Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

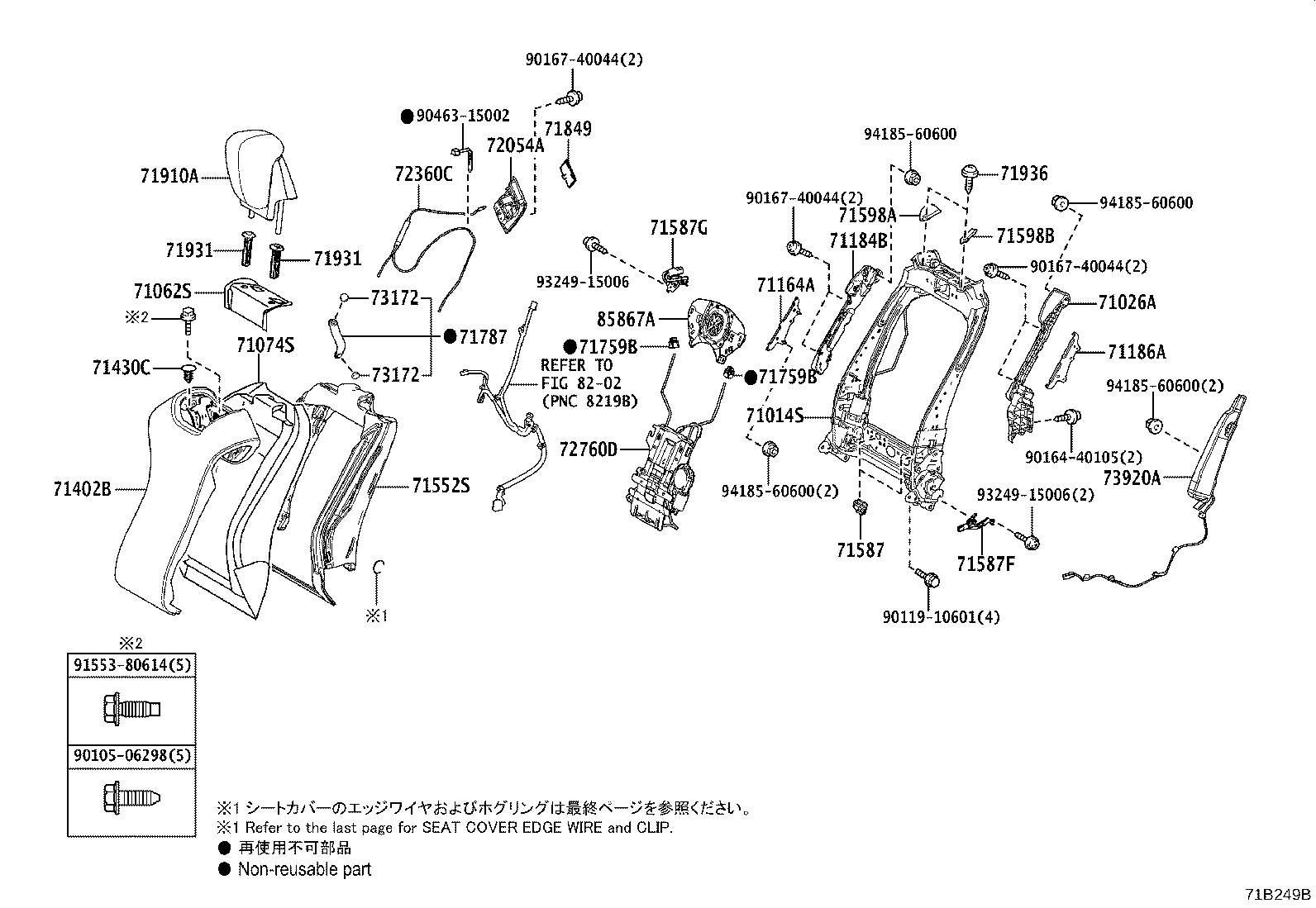

Exploded illustration 71B249C 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (11 parts) 71026A — SUPPORT, FRONT SEATBACK, LH (7 parts) 71062S — COVER SUB-ASSY, FRONT SEATBACK, UPPER LH (7 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (24 parts) 71164A — BRACKET, FRONT SEATBACK SUPPORT, LH (1 parts) 71184B — SUPPORT, FRONT SEATBACK, LH (7 parts) 71186A — BRACKET, FRONT SEAT SIDE SUPPORT, LH (1 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 71759B — HOOK, FRONT SEATBACK (3 parts) 71759B — HOOK, FRONT SEATBACK (3 parts) 71787 — BAND, FRONT SEATBACK POCKET (42 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (15 parts) 71910A — HEADREST ASSY, FRONT SEAT (44 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (16 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (16 parts) 72054A — LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH (26 parts) 72360C — CABLE ASSY, RECLINING ADJUSTER EQUALIZING LH (1 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (1 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (1 parts) 85867A — BLOWER, SEATBACK CLIMATE CONTROL, LH (1 parts) 9016440105 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9046315002 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 8202 — not listed in this catalogue 71402B — BACK SUB-ASSY, FRONT SEAT, LH (16 parts) 9011910601 — not listed in this catalogue 9016740044 — not listed in this catalogue 71430C — CLIP (4 parts) 71598B — PLATE, SEAT COVER, LH (3 parts) 71598A — PLATE, SEAT COVER, RH (3 parts) 71936 — CLIP (1 parts) 9155380614 — not listed in this catalogue 9010506298 — not listed in this catalogue 71587F — PROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR LH SEAT) (1 parts) 71587G — PROTECTOR, FRONT SEATBACK EDGE, INNER(FOR LH SEAT) (1 parts) 9324915006 — not listed in this catalogue 9324915006 — not listed in this catalogue 73172 — CAP, FRONT SHOULDER BELT HANGER (1 parts) 73172 — CAP, FRONT SHOULDER BELT HANGER (1 parts)
71B249C · 30 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
242 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-11010 note Frame Sub-assy, Front Seatback, LH
2019-10 → 2020-04 ended
GWZ100,URZ100 ¥49,500
71014-11010 Frame Sub-assy, Front Seatback, LH
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥49,500
71014-11011 Frame Sub-assy, Front Seatback, LH
2019-11 → —
GWZ100,URZ100 ¥37,400
71014-11020 note Frame Sub-assy, Front Seatback, LH
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥47,800
71014-11020 note Frame Sub-assy, Front Seatback, LH
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥47,800
71014-11021 note Frame Sub-assy, Front Seatback, LH
2019-11 → 2021-11 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2019-11 → 2021-11 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥36,100
71014-11021 note Frame Sub-assy, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥36,100
71026A — Support, Front Seatback, LH
71026-11010 Support, Front Seatback, LH
2017-01 → —
GWZ100,URZ100 ¥2,620
71026-11020 note Support, Front Seatback, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,910
71026-11020 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,910
71062S — Cover Sub-assy, Front Seatback, Upper LH
71061-11010-C0 note Cover Sub-assy, Front Seatback, Upper LH
2017-01 → —
GWZ100,URZ100 ¥2,700
71061-11010-E1 note Cover Sub-assy, Front Seatback, Upper LH
2017-01 → 2019-09 ended
GWZ100,URZ100 ¥2,700
71061-11010-E1 note Cover Sub-assy, Front Seatback, Upper LH
2020-04 → —
GWZ100,URZ100 ¥2,700
71061-11010-E1 note Cover Sub-assy, Front Seatback, Upper LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥2,700
71061-11010-E2 note Cover Sub-assy, Front Seatback, Upper LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥3,570
71061-11010-E3 note Cover Sub-assy, Front Seatback, Upper LH
2020-04 → —
GWZ100,URZ100 ¥2,970
71061-11010-J0 note Cover Sub-assy, Front Seatback, Upper LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥3,570
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
00000-00000 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2021-11 ended
GWZ100,URZ100 —
00000-00000 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2021-11 ended
GWZ100,URZ100 —
71074-11010-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11010-C8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-06 → —
GWZ100,URZ100 ¥97,000
71074-11010-C9 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-06 → 2020-04 ended
GWZ100,URZ100 ¥129,000
71074-11010-D8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11010-E6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11010-E7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-06 → —
GWZ100,URZ100 ¥97,000
71074-11050-20 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-06 → 2020-04 ended
GWZ100,URZ100 ¥97,000
71074-11050-21 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥129,000
71074-11050-21 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥129,000
71074-11050-22 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-04 → —
GWZ100,URZ100 ¥107,000
71074-11050-23 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-04 → —
GWZ100,URZ100 ¥107,000
71074-11050-24 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → —
GWZ100,URZ100 ¥107,000
71074-11050-A7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11050-A9 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11050-C8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11050-C9 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-06 → 2022-02 ended
GWZ100,URZ100 ¥97,000
71074-11050-C9 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → —
GWZ100,URZ100 ¥97,000
71074-11050-D8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11050-E6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2019-06 ended
GWZ100,URZ100 ¥129,000
71074-11050-E7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → —
GWZ100,URZ100 ¥97,000
71074-11050-E7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-06 → 2019-09 ended
GWZ100,URZ100 ¥97,000
71074-11050-J0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-06 → 2020-04 ended
GWZ100,URZ100 ¥129,000
71164A — Bracket, Front Seatback Support, LH
71163-11010 Bracket, Front Seatback Support, LH
2017-01 → —
GWZ100,URZ100 ¥490
71184B — Support, Front Seatback, LH
71025-11030 note Support, Front Seatback, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2021-11 → —
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,030
71025-11030 note Support, Front Seatback, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥2,030
71183-11010 Support, Front Seatback, LH
2017-01 → —
GWZ100,URZ100 ¥1,820
71186A — Bracket, Front Seat Side Support, LH
71186-11020 Bracket, Front Seat Side Support, LH
2017-01 → —
GWZ100,URZ100 ¥490
71402B — Back Sub-assy, Front Seat, LH
00000-00000 note Back Sub-assy, Front Seat, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 —
00000-00000 note Back Sub-assy, Front Seat, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 —
71402-11010-C4 note Back Sub-assy, Front Seat, LH
2017-01 → —
GWZ100,URZ100 ¥97,000
71402-11010-D1 note Back Sub-assy, Front Seat, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥129,000
71402-11010-E1 note Back Sub-assy, Front Seat, LH
2017-01 → —
GWZ100,URZ100 ¥97,000
71402-11030-A0 note Back Sub-assy, Front Seat, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥97,000
71402-11030-C5 note Back Sub-assy, Front Seat, LH
2017-01 → 2022-02 ended
GWZ100,URZ100 ¥97,000
71402-11030-C5 note Back Sub-assy, Front Seat, LH
2022-02 → —
GWZ100,URZ100 ¥97,000
71402-11030-C6 note Back Sub-assy, Front Seat, LH
2020-04 → —
GWZ100,URZ100 ¥107,000
71402-11030-C8 note Back Sub-assy, Front Seat, LH
2022-02 → —
GWZ100,URZ100 ¥107,000
71402-11030-D1 note Back Sub-assy, Front Seat, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥97,000
71402-11030-D3 note Back Sub-assy, Front Seat, LH
2020-04 → —
GWZ100,URZ100 ¥107,000
71402-11030-E1 note Back Sub-assy, Front Seat, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥97,000
71402-11030-E1 note Back Sub-assy, Front Seat, LH
2020-04 → —
GWZ100,URZ100 ¥97,000
71402-11100-A2 note Back Sub-assy, Front Seat, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥143,000
71402-11160-E1 note Back Sub-assy, Front Seat, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥141,000
71430C — Clip
00000-00000 note Clip
2017-01 → 2021-11 ended
GWZ100,URZ100 —
00000-00000 note Clip
2017-01 → 2021-11 ended
GWZ100,URZ100 —
67771-26230-C0 note Clip
2017-01 → 2017-10 ended
GWZ100,URZ100 ¥110
67771-26230-C1 note Clip
2017-10 → —
GWZ100,URZ100 ¥100
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
00000-00000 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2021-11 ended
GWZ100,URZ100 —
00000-00000 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → 2021-11 ended
GWZ100,URZ100 —
71552-11010 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-01 → —
GWZ100,URZ100 ¥7,300
71587 — Protector, Front Seatback Edge
71587-47010 Protector, Front Seatback Edge
2017-01 → —
GWZ100,URZ100 ¥200
71587F — Protector, Front Seatback Edge, Outer(FOR LH SEAT)
71587-11030 Protector, Front Seatback Edge, Outer(FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 ¥2,220
71587G — Protector, Front Seatback Edge, Inner(FOR LH SEAT)
71587-11040 Protector, Front Seatback Edge, Inner(FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 ¥2,680
71598A — Plate, Seat Cover, RH
00000-00000 note Plate, Seat Cover, RH
2017-01 → 2021-11 ended
GWZ100,URZ100 —
00000-00000 note Plate, Seat Cover, RH
2017-01 → 2021-11 ended
GWZ100,URZ100 —
71598-11010 Plate, Seat Cover, RH
2017-01 → —
GWZ100,URZ100 ¥200
71598B — Plate, Seat Cover, LH
00000-00000 note Plate, Seat Cover, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 —
00000-00000 note Plate, Seat Cover, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 —
71598-11010 Plate, Seat Cover, LH
2017-01 → —
GWZ100,URZ100 ¥200
71759B — Hook, Front Seatback
71759-50040 Hook, Front Seatback
2019-11 → —
GWZ100,URZ100 ¥130
71759-52050 note Hook, Front Seatback
2019-10 → 2020-04 ended
GWZ100,URZ100 ¥130
71759-52050 Hook, Front Seatback
2017-01 → 2019-10 ended
GWZ100,URZ100 ¥130
71787 — Band, Front Seatback Pocket
71788-11010-A1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11010-A2 note Band, Front Seatback Pocket
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥18,200
71788-11010-C5 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11010-C5 note Band, Front Seatback Pocket
2022-02 → —
GWZ100,URZ100 ¥13,800
71788-11010-C5 note Band, Front Seatback Pocket
2017-01 → —
GWZ100,URZ100 ¥13,800
71788-11010-C6 note Band, Front Seatback Pocket
2020-04 → —
GWZ100,URZ100 ¥15,200
71788-11010-D2 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11010-D2 note Band, Front Seatback Pocket
2022-02 → —
GWZ100,URZ100 ¥13,800
71788-11010-D4 note Band, Front Seatback Pocket
2022-02 → —
GWZ100,URZ100 ¥15,200
71788-11010-D4 note Band, Front Seatback Pocket
2020-04 → 2022-02 ended
GWZ100,URZ100 ¥15,200
71788-11010-E3 note Band, Front Seatback Pocket
2020-04 → —
GWZ100,URZ100 ¥13,800
71788-11010-E3 note Band, Front Seatback Pocket
2017-01 → —
GWZ100,URZ100 ¥13,800
71788-11010-E6 note Band, Front Seatback Pocket
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥18,300
71788-11020-C2 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-C2 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥13,800
71788-11020-C4 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-C4 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-C5 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-D1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11020-D1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11020-D3 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥15,200
71788-11020-D3 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥15,200
71788-11020-E1 note Band, Front Seatback Pocket
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2021-11 → —
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥13,800
71788-11020-E1 note Band, Front Seatback Pocket
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥13,800
71849 — Cap, Seat Adjuster Cover, LH
71848-11010-A0 note Cap, Seat Adjuster Cover, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥200
71848-11010-A0 note Cap, Seat Adjuster Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥200
71848-11010-C1 note Cap, Seat Adjuster Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥200
71848-11010-C1 note Cap, Seat Adjuster Cover, LH
2020-04 → —
GWZ100,URZ100 ¥200
71848-11010-C1 note Cap, Seat Adjuster Cover, LH
2020-04 → —
GWZ100,URZ100 ¥200
71848-11010-D0 note Cap, Seat Adjuster Cover, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥270
71848-11010-D1 note Cap, Seat Adjuster Cover, LH
2020-04 → —
GWZ100,URZ100 ¥220
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-11 → —
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-11 → —
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥200
71848-11010-E1 note Cap, Seat Adjuster Cover, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥200
71848-11010-E2 note Cap, Seat Adjuster Cover, LH
2017-01 → —
GWZ100,URZ100 ¥200
71848-11010-E3 note Cap, Seat Adjuster Cover, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥270
71910A — Headrest Assy, Front Seat
71910-11020-20 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥46,400
71910-11020-C7 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71910-11020-C8 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71910-11020-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71910-11020-E4 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥46,400
71910-11030-20 note Headrest Assy, Front Seat
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥51,800
71910-11030-23 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-24 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-25 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-C8 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11030-C9 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11030-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11030-E4 note Headrest Assy, Front Seat
2020-04 → —
GWZ100,URZ100 ¥43,100
71910-11030-J1 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥51,800
71910-11040-C5 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-C5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-C7 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-C7 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥26,000
71910-11040-C8 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-D4 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥31,200
71910-11040-D4 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥31,200
71910-11040-D5 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-D5 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥26,000
71910-11040-E3 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2020-04 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2021-11 → —
GWZ100,URZ100 ¥23,600
71910-11040-E3 note Headrest Assy, Front Seat
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥23,600
71910-11190-E0 note Headrest Assy, Front Seat
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥55,700
71931 — Support, Front Seat Headrest
71930-47050-C5 note Support, Front Seat Headrest
2017-01 → —
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥770
71930-47050-C5 note Support, Front Seat Headrest
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥770
71931-47030-C4 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2017-01 → —
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-11 → —
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥470
71936 — Clip
90467-08186-C0 note Clip
2017-01 → —
GWZ100,URZ100 ¥70
72054A — Lever Sub-assy, Reclining Remote Control, LH
72053-11010-A0 note Lever Sub-assy, Reclining Remote Control, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 ¥920
72053-11010-A0 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2020-04 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2020-04 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥920
72053-11010-C1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥920
72053-11010-D0 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-D0 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-D1 note Lever Sub-assy, Reclining Remote Control, LH
2020-04 → 2023-05 ended
GWZ100,URZ100 ¥1,020
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-11 → 2022-10 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-E1 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2021-11 ended
GWZ100,URZ100 ¥920
72053-11010-E2 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E2 note Lever Sub-assy, Reclining Remote Control, LH
2017-01 → 2023-05 ended
GWZ100,URZ100 ¥920
72053-11010-E3 note Lever Sub-assy, Reclining Remote Control, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-E3 note Lever Sub-assy, Reclining Remote Control, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72053-11010-E3 note Lever Sub-assy, Reclining Remote Control, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 ¥1,230
72360C — Cable Assy, Reclining Adjuster Equalizing LH
72360-11010 Cable Assy, Reclining Adjuster Equalizing LH
2017-01 → —
GWZ100,URZ100 ¥1,830
72760D — Adjuster Assy, Lumbar Support, LH
72760-11010 Adjuster Assy, Lumbar Support, LH
2017-01 → —
GWZ100,URZ100 ¥20,300
73172 — Cap, Front Shoulder Belt Hanger
73172-50020 Cap, Front Shoulder Belt Hanger
2017-01 → —
GWZ100,URZ100 ¥650
73920A — Airbag Assy, Front Seat, LH
73920-11010 Airbag Assy, Front Seat, LH
2017-01 → —
GWZ100,URZ100 ¥20,000
85867A — Blower, Seatback Climate Control, LH
85867-11011 Blower, Seatback Climate Control, LH
2017-01 → —
GWZ100,URZ100 ¥8,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
