Toyota Lexus LC500/500H(CP)
2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan
Supported model
Data version 2024-06

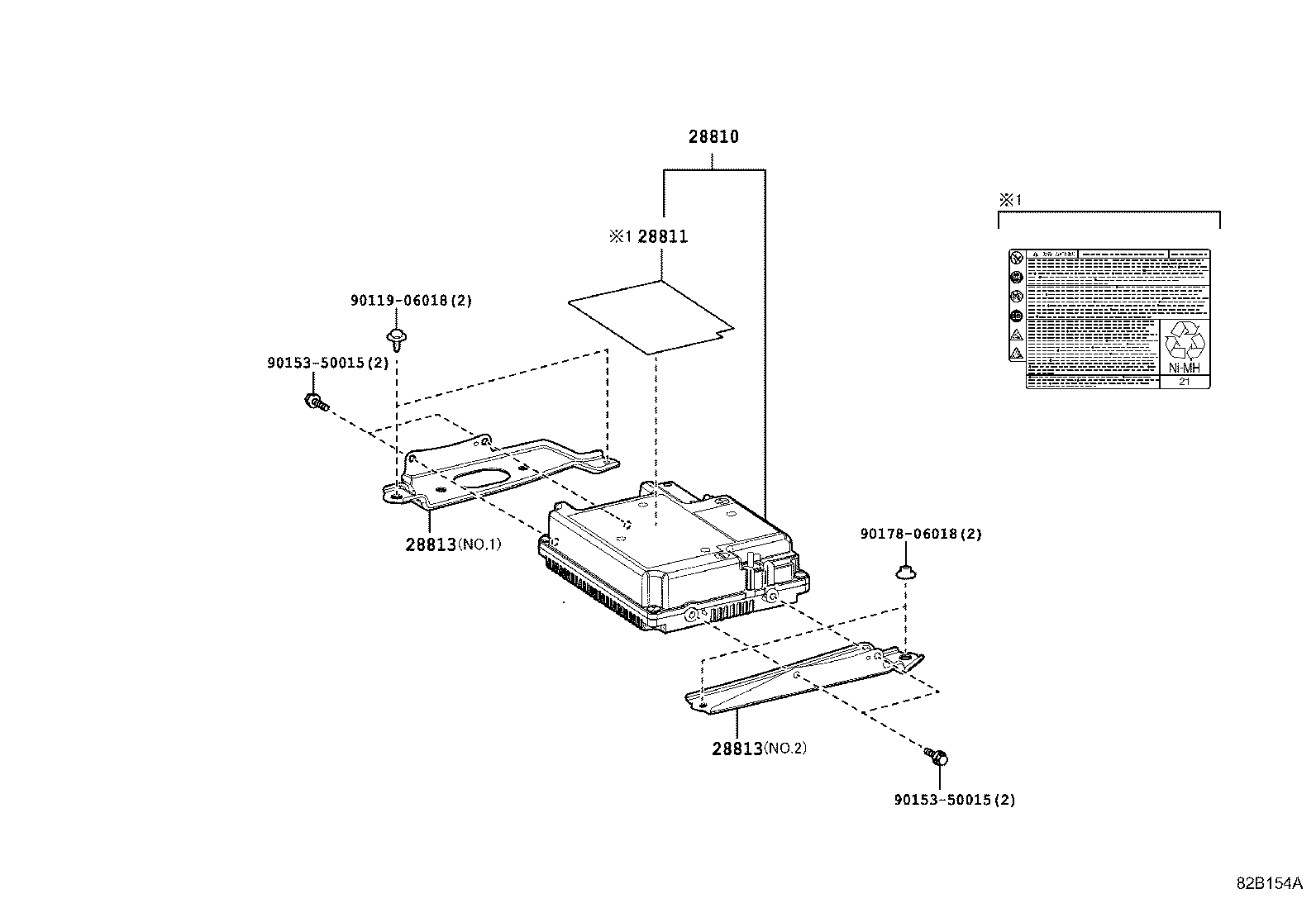

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28810 — Sub-battery Assy, W/Control | ||||
| 28810-38010 |
Sub-battery Assy, W/Control
2017-01 → —
|
8GRFXS,2URGSE GWZ100,URZ100 | ¥62,700 | |
| 28811 — Label, Sub-battery Caution | ||||
| 28811-38010 |
Label, Sub-battery Caution
2017-01 → —
|
8GRFXS,2URGSE GWZ100,URZ100 | ¥390 | |
| 28813 — Bracket, Sub-battery | ||||
| 28813-38010 note |
Bracket, Sub-battery
2017-01 → —
|
8GRFXS,2URGSE GWZ100,URZ100 | ¥1,890 | |
| 28813-38020 note |
Bracket, Sub-battery
2017-01 → —
|
8GRFXS,2URGSE GWZ100,URZ100 | ¥1,850 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
