Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 2 illustrations

Illustrations

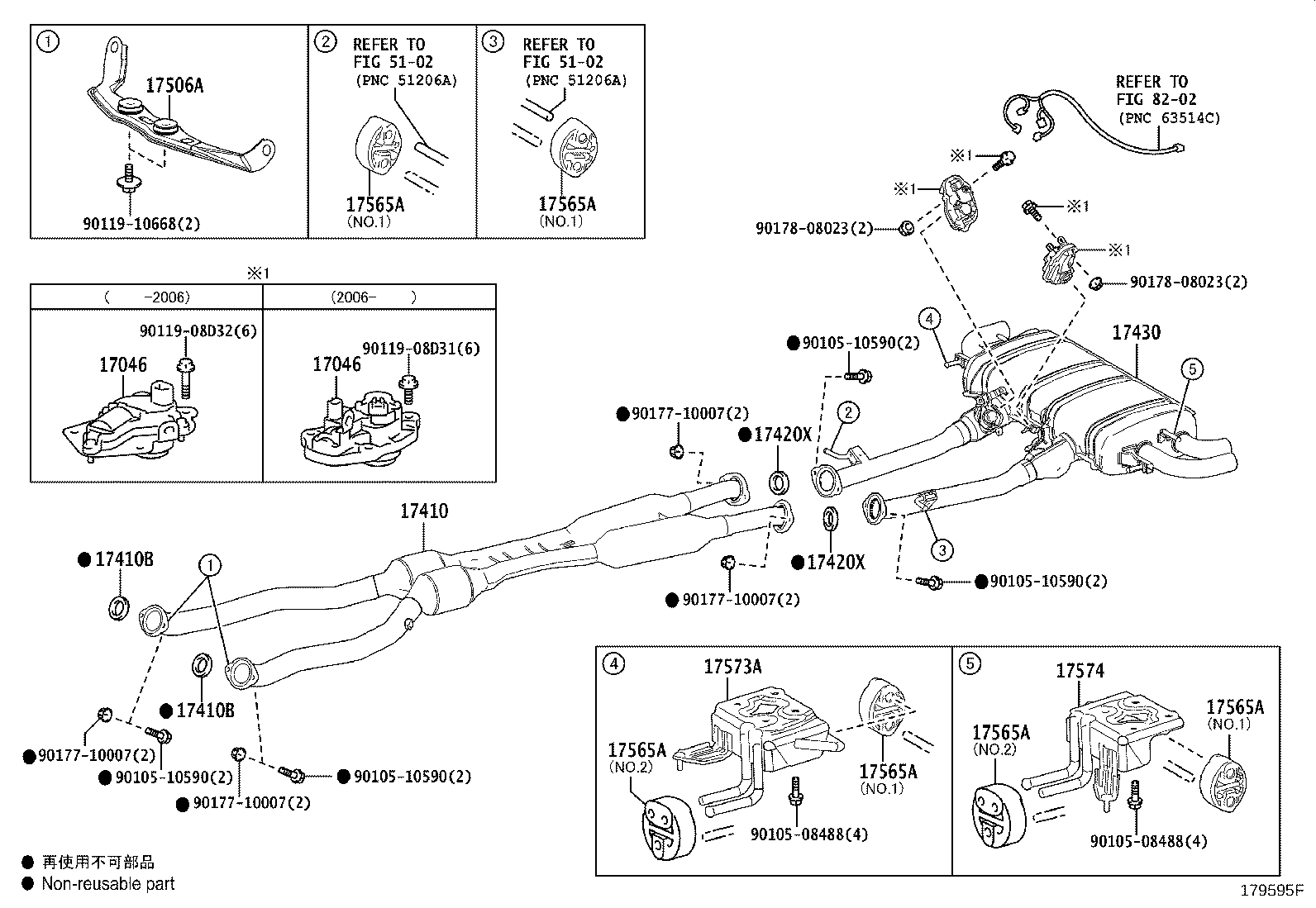

Figure 179596B 179596B 2017-01 → — Figure 179595F 179595F 2017-03 → —

Part groups

PNCDescription
17046 Actuator Sub-assy, Exhaust Pipe Gas Control
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17565A Support, Exhaust Pipe, NO.4
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
