Toyota Lexus LC500/500H(CP)
2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan
Supported model
Data version 2024-06

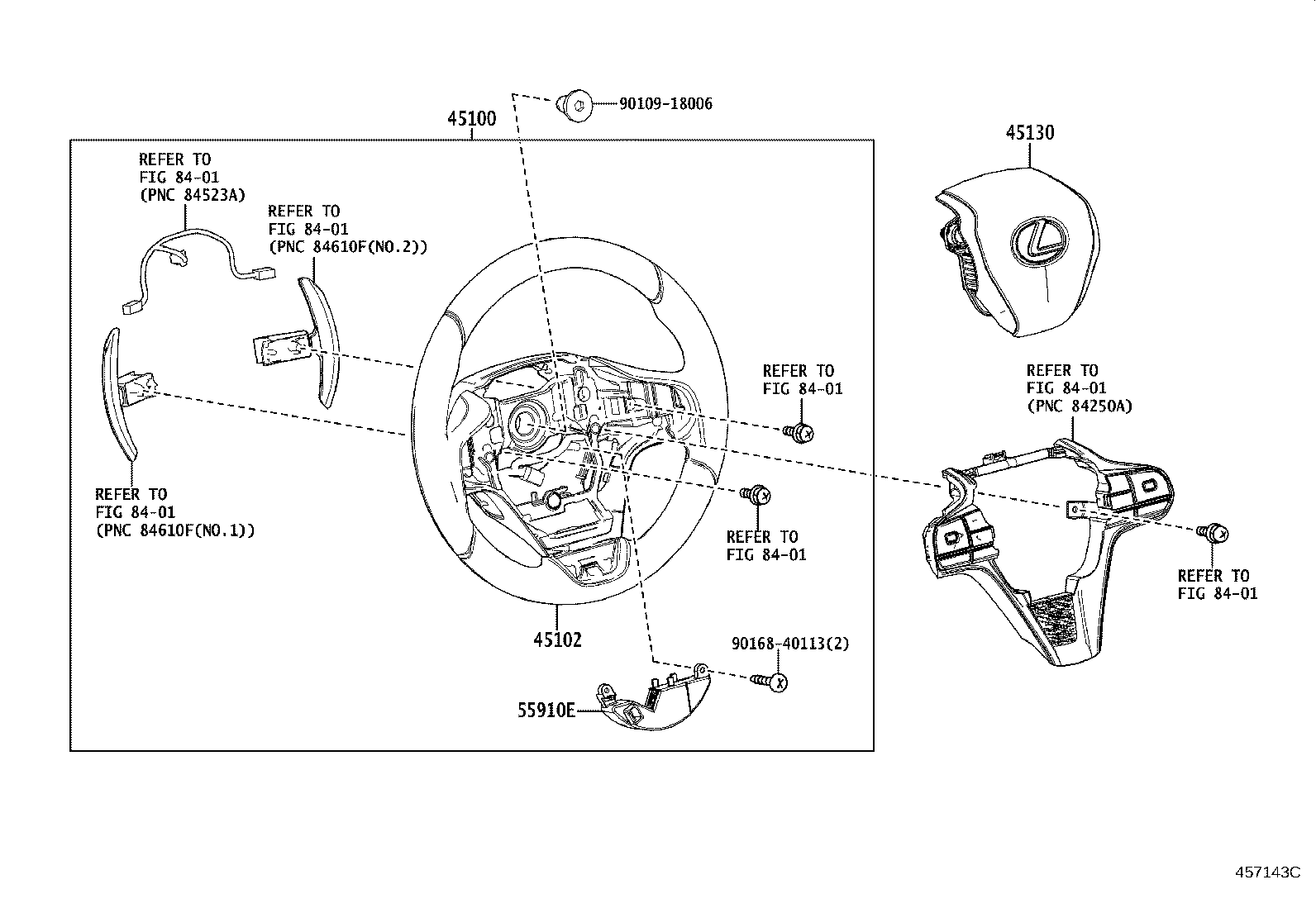

Steering Wheel
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45102 | Wheel Sub-assy, Steering |
| 45130 | Button Assy, Horn |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 55910E | Control Assy, Steering Wheel Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
