Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433110 · Japan

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

101 part groups · 19 illustrations

Illustrations

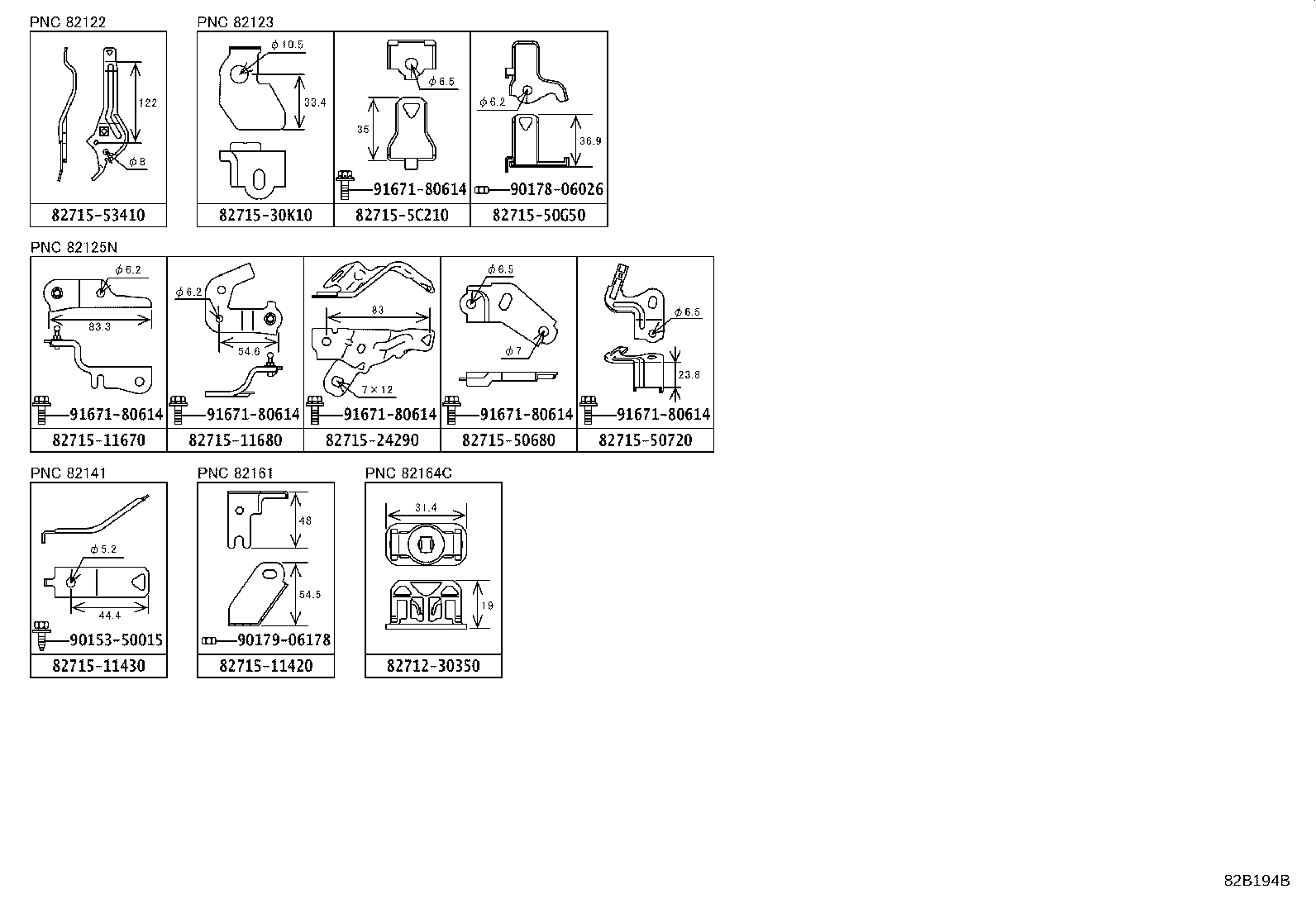

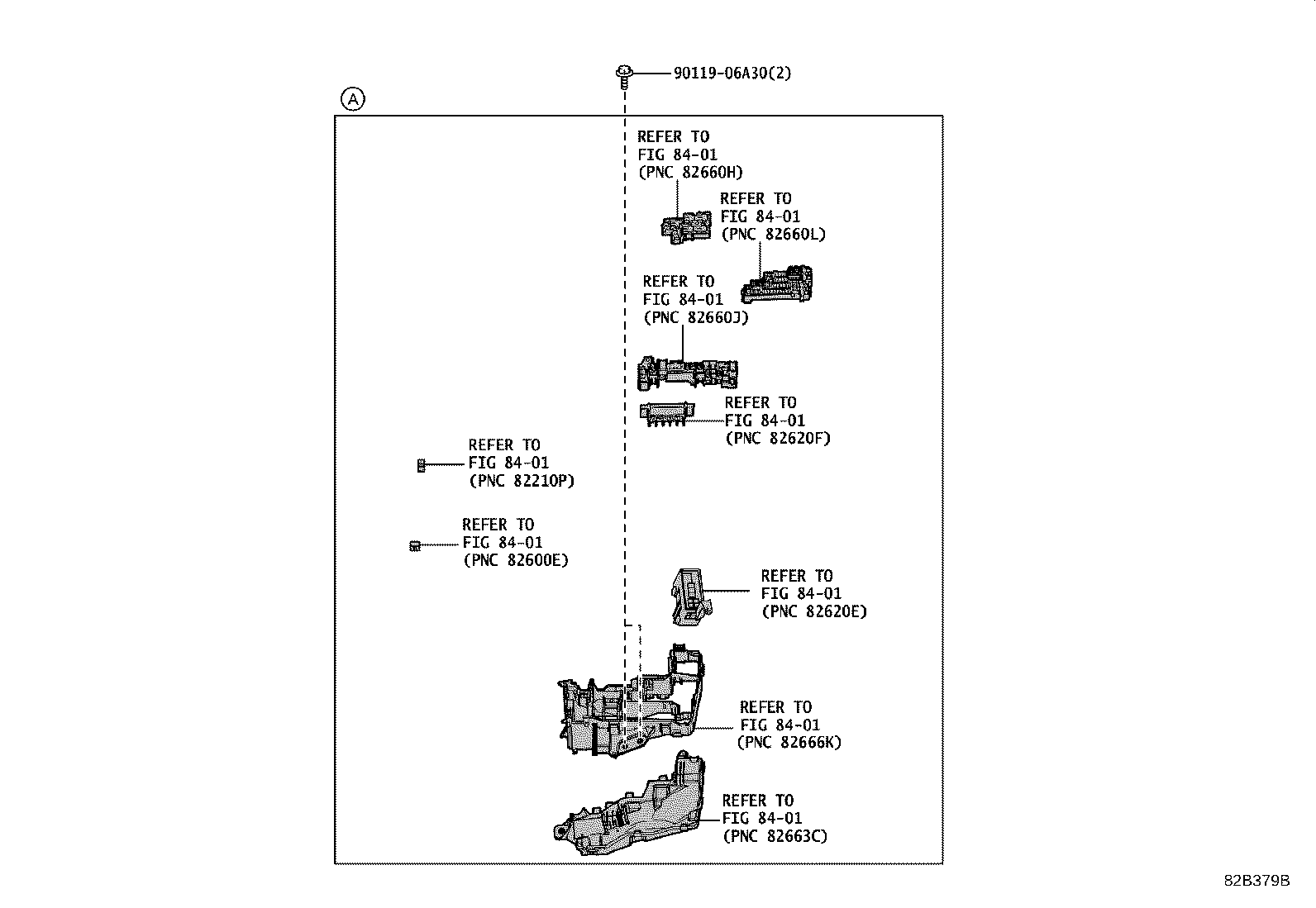

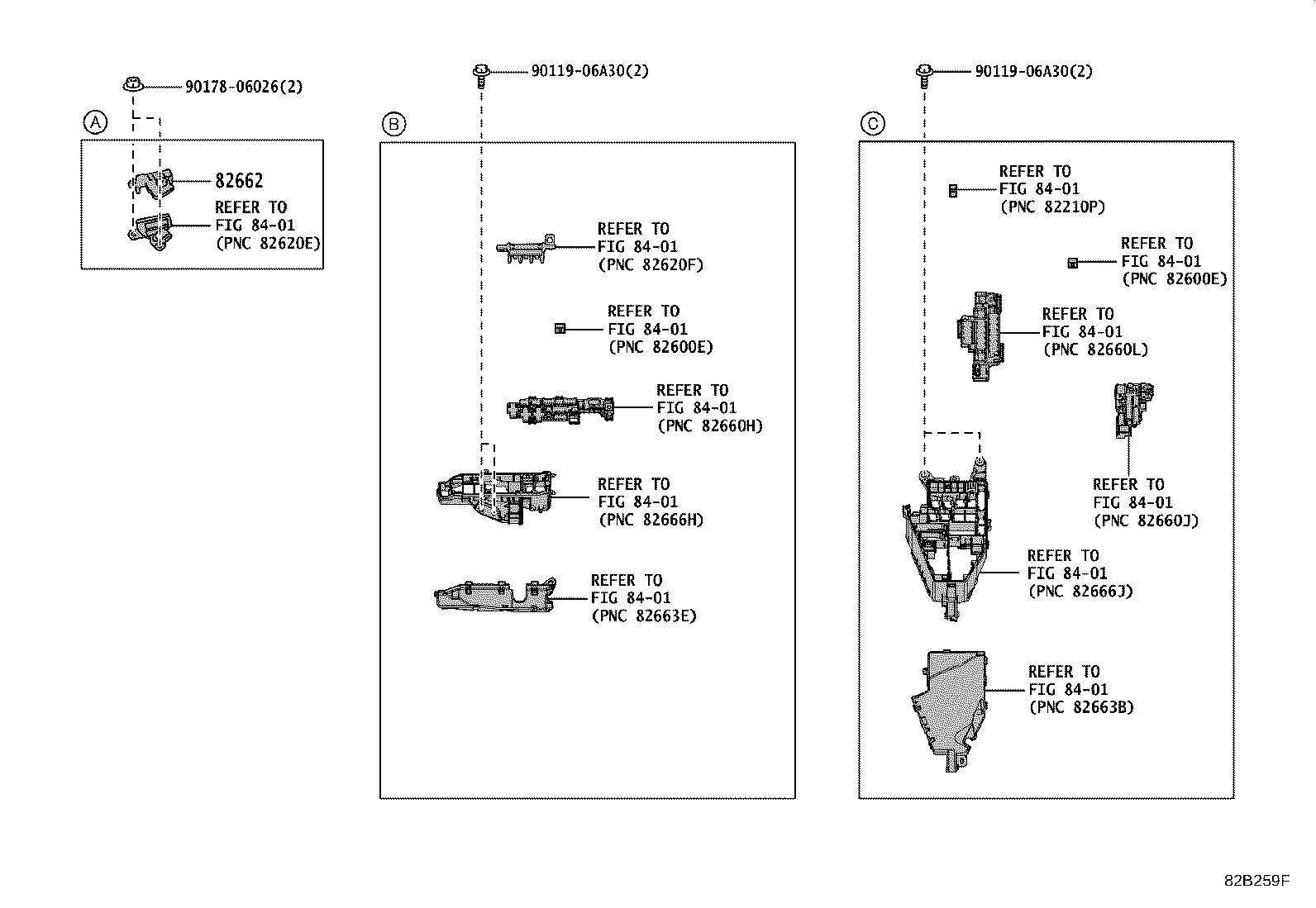

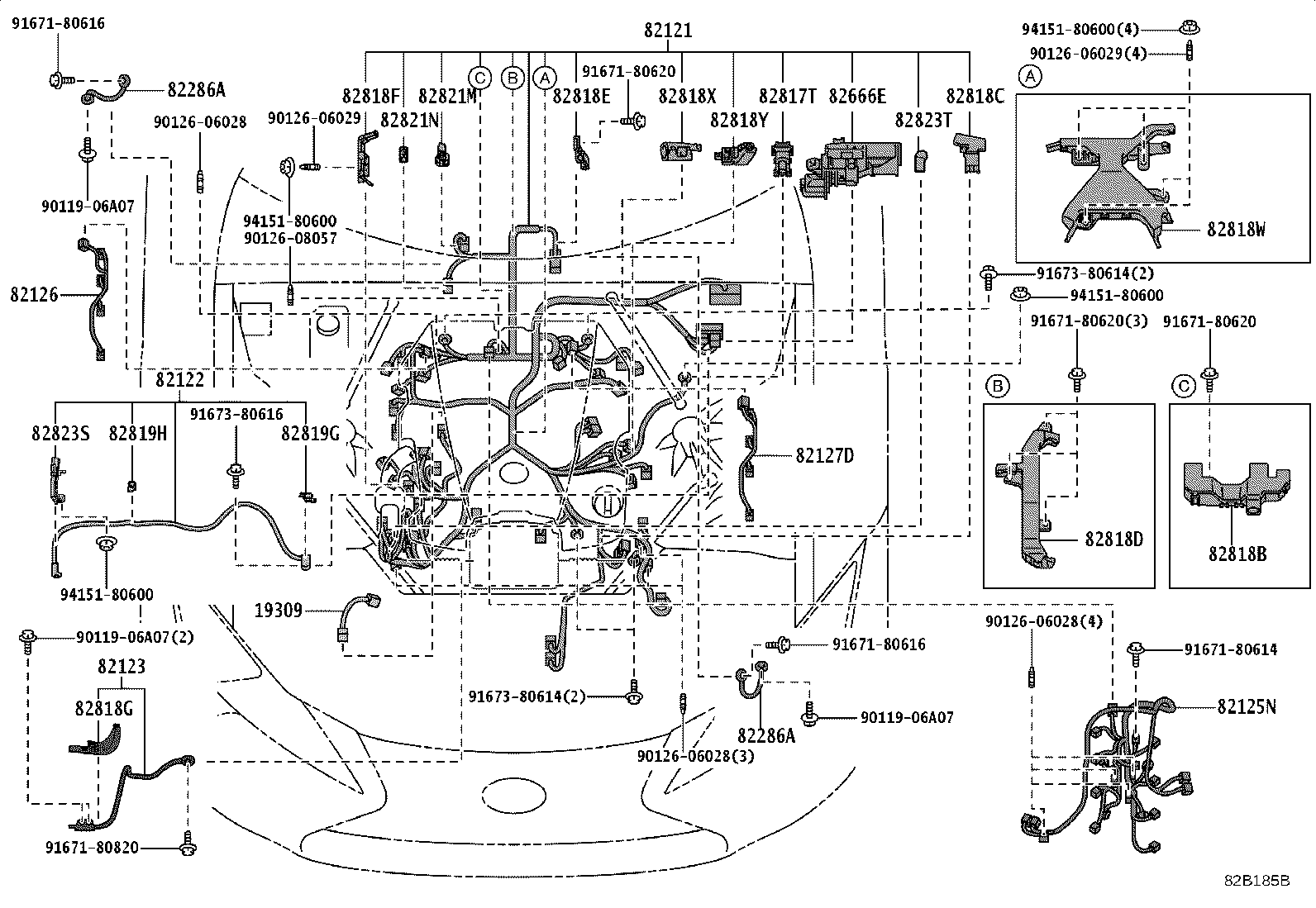

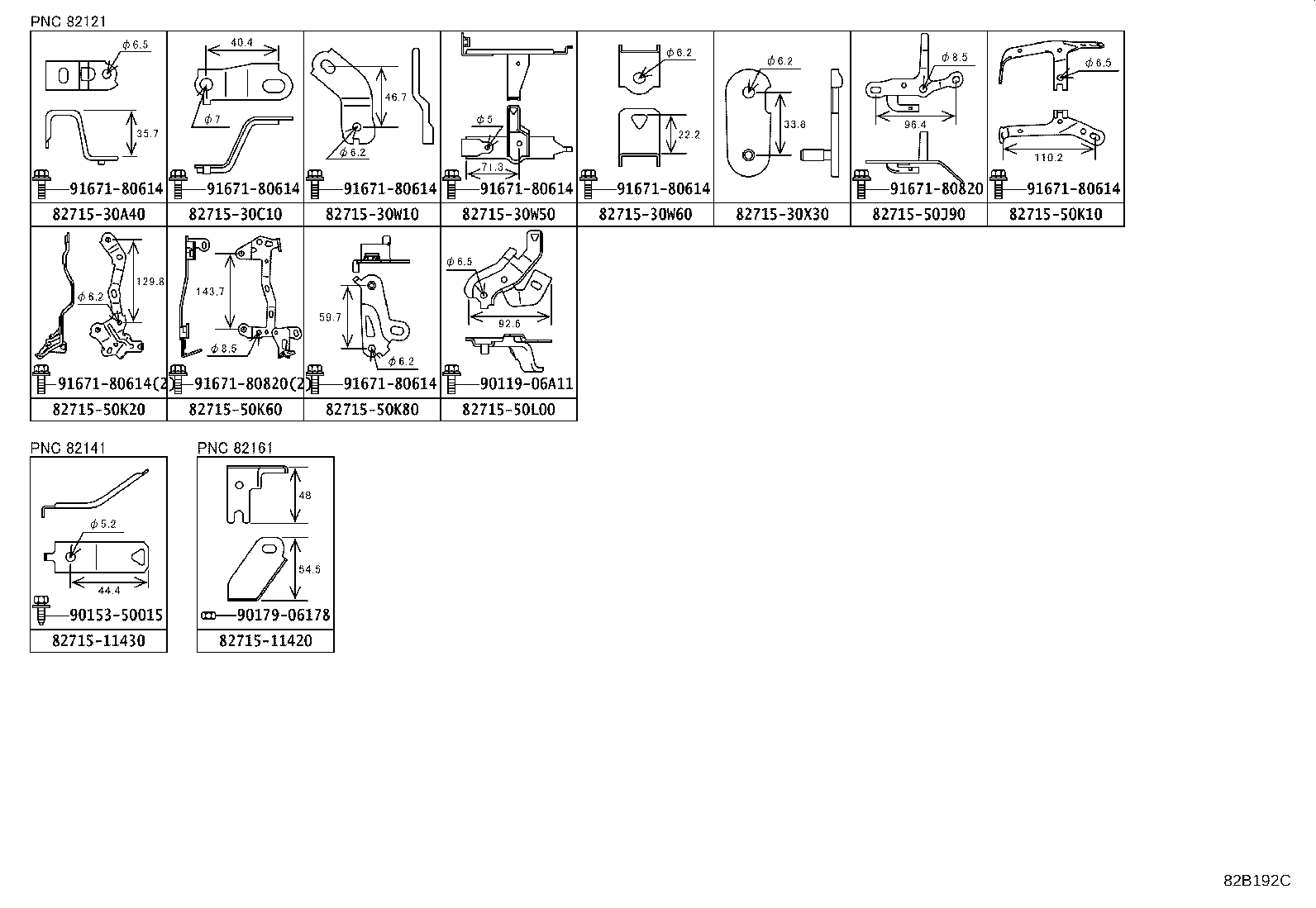

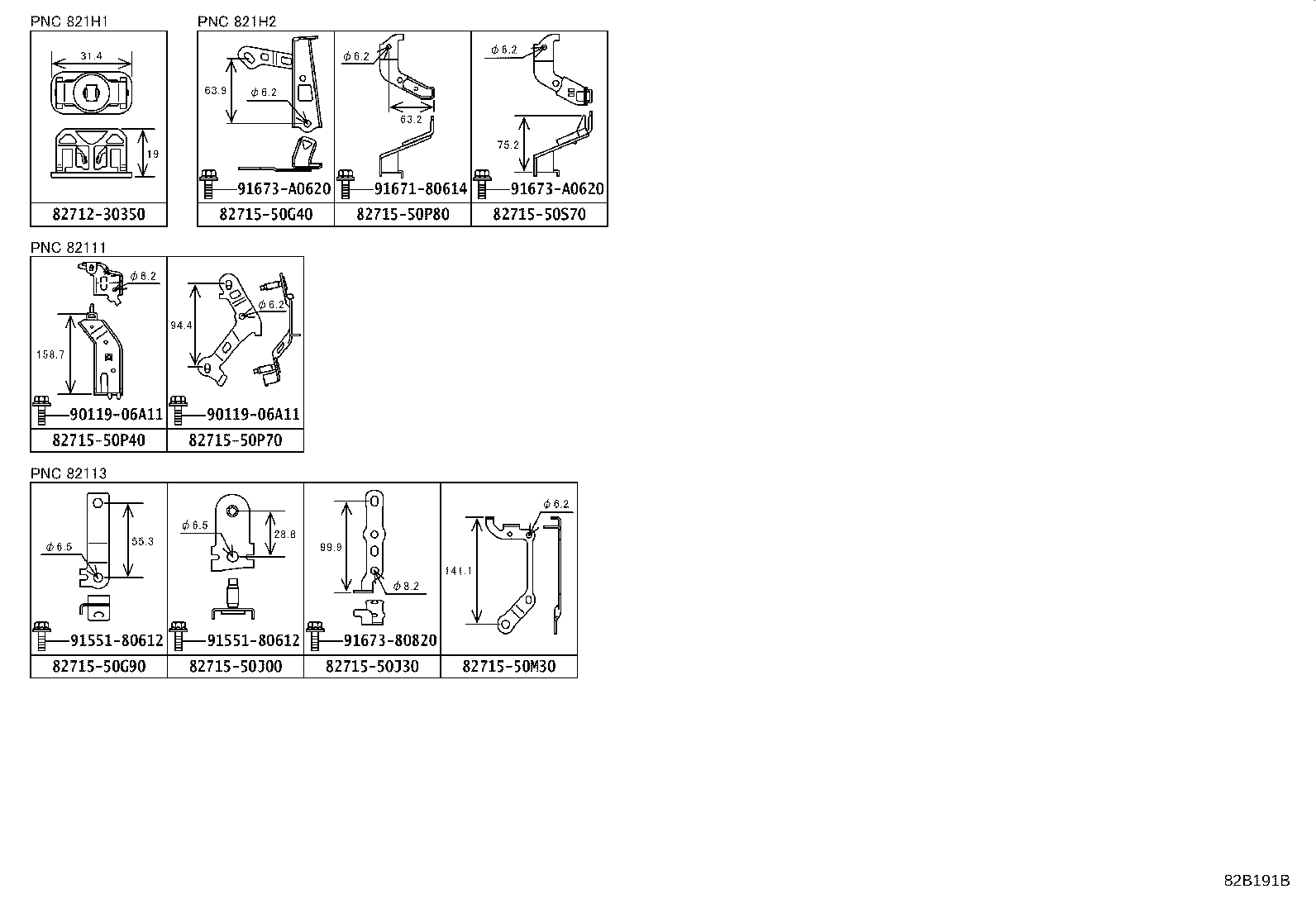

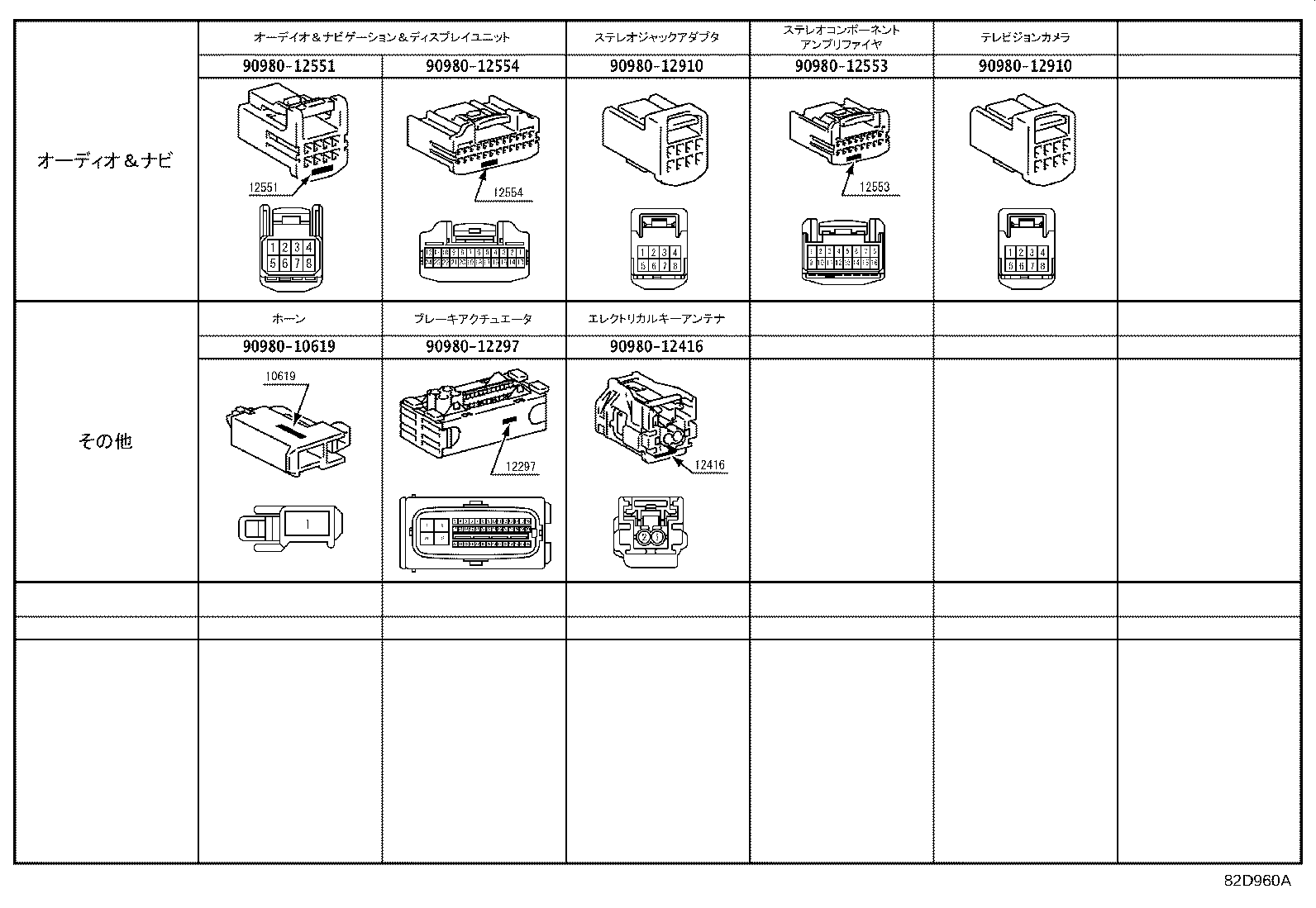

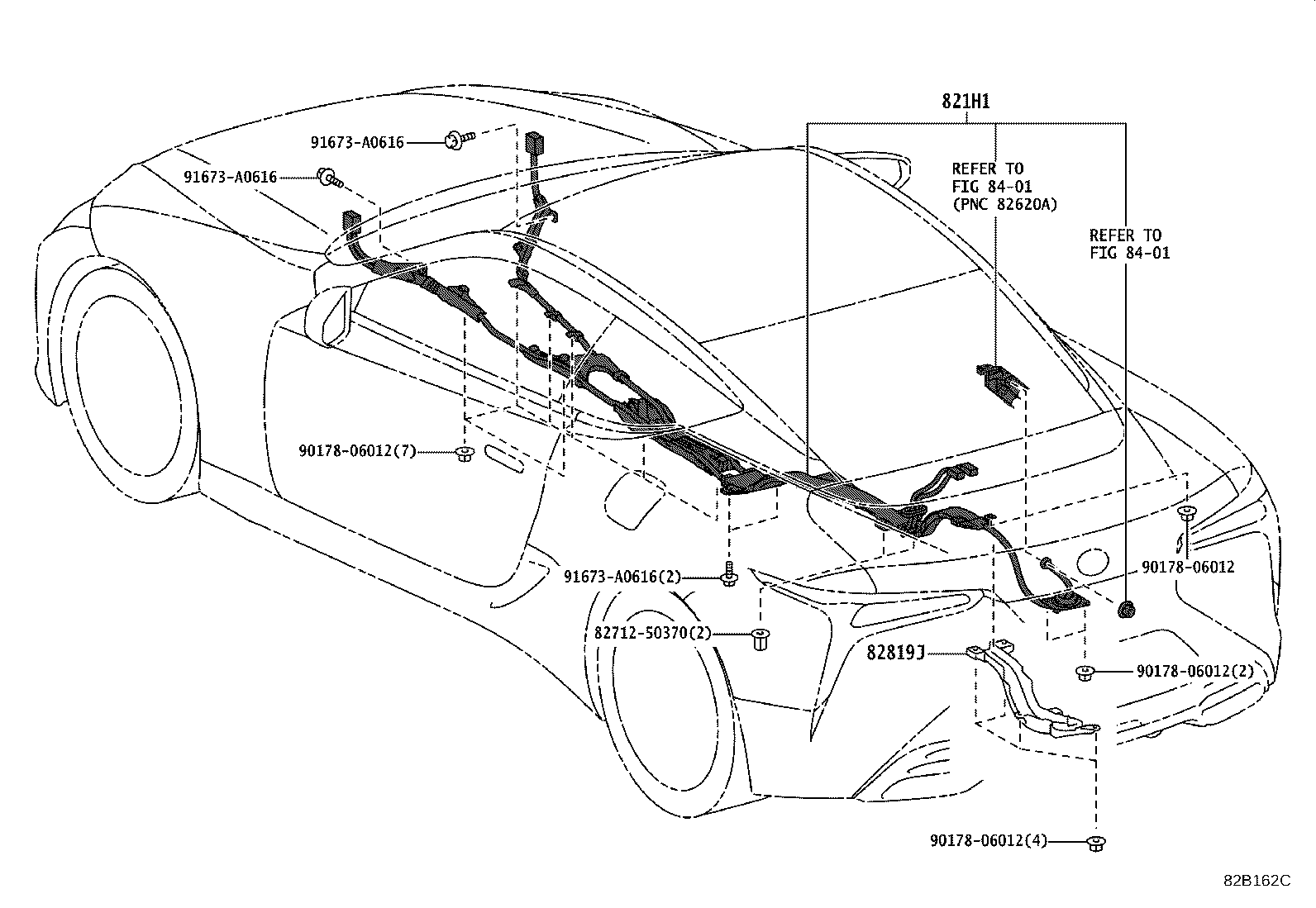

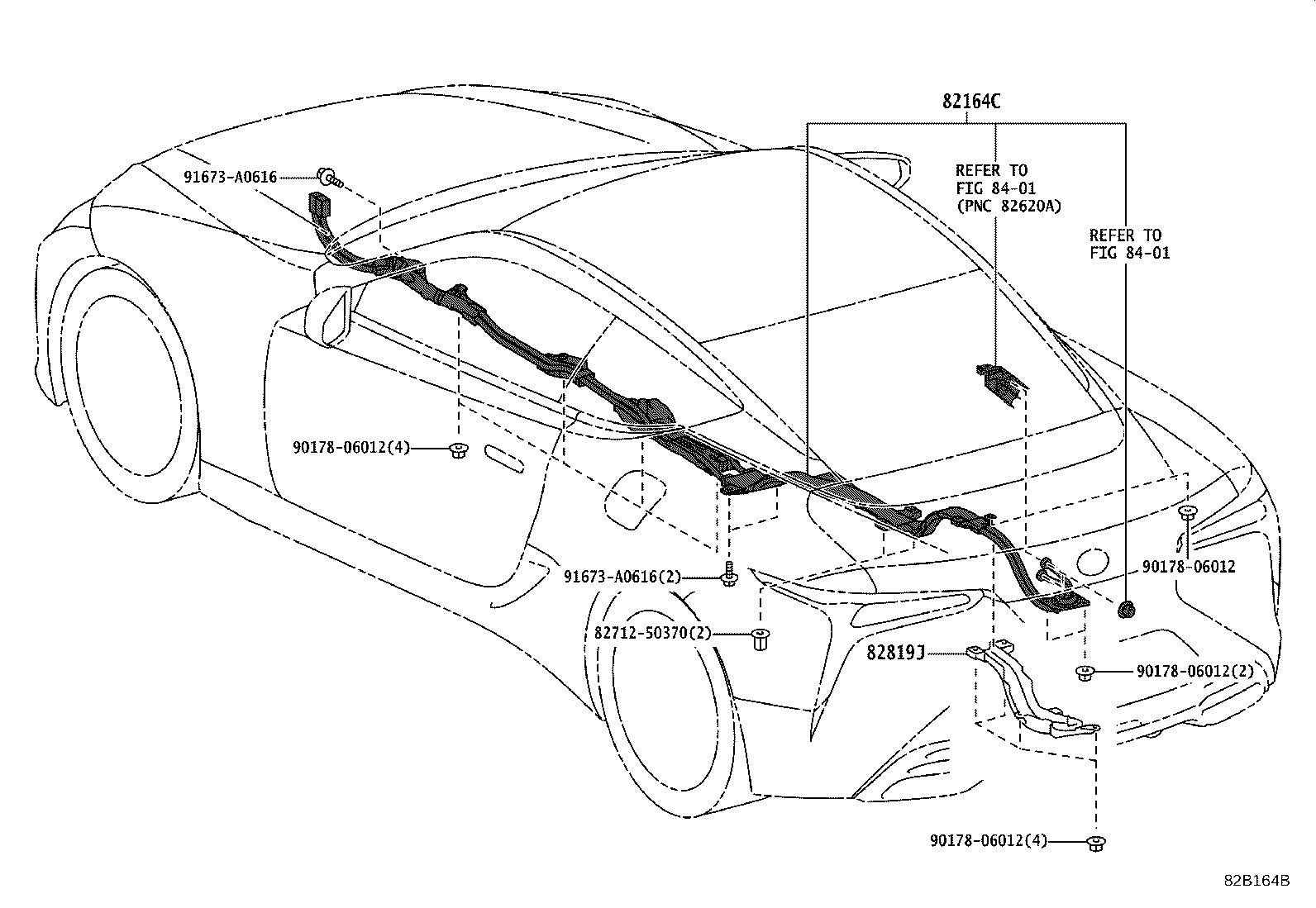

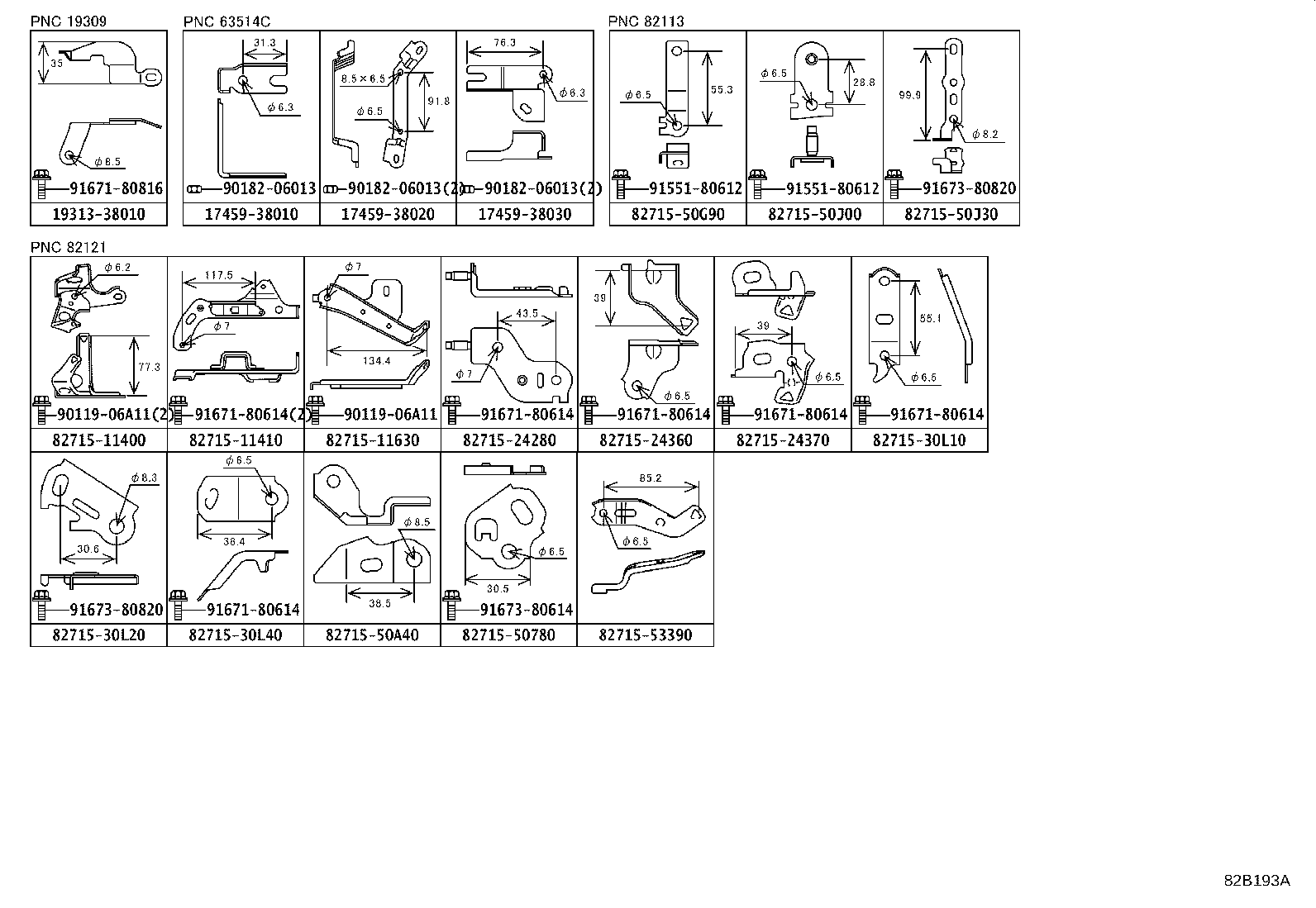

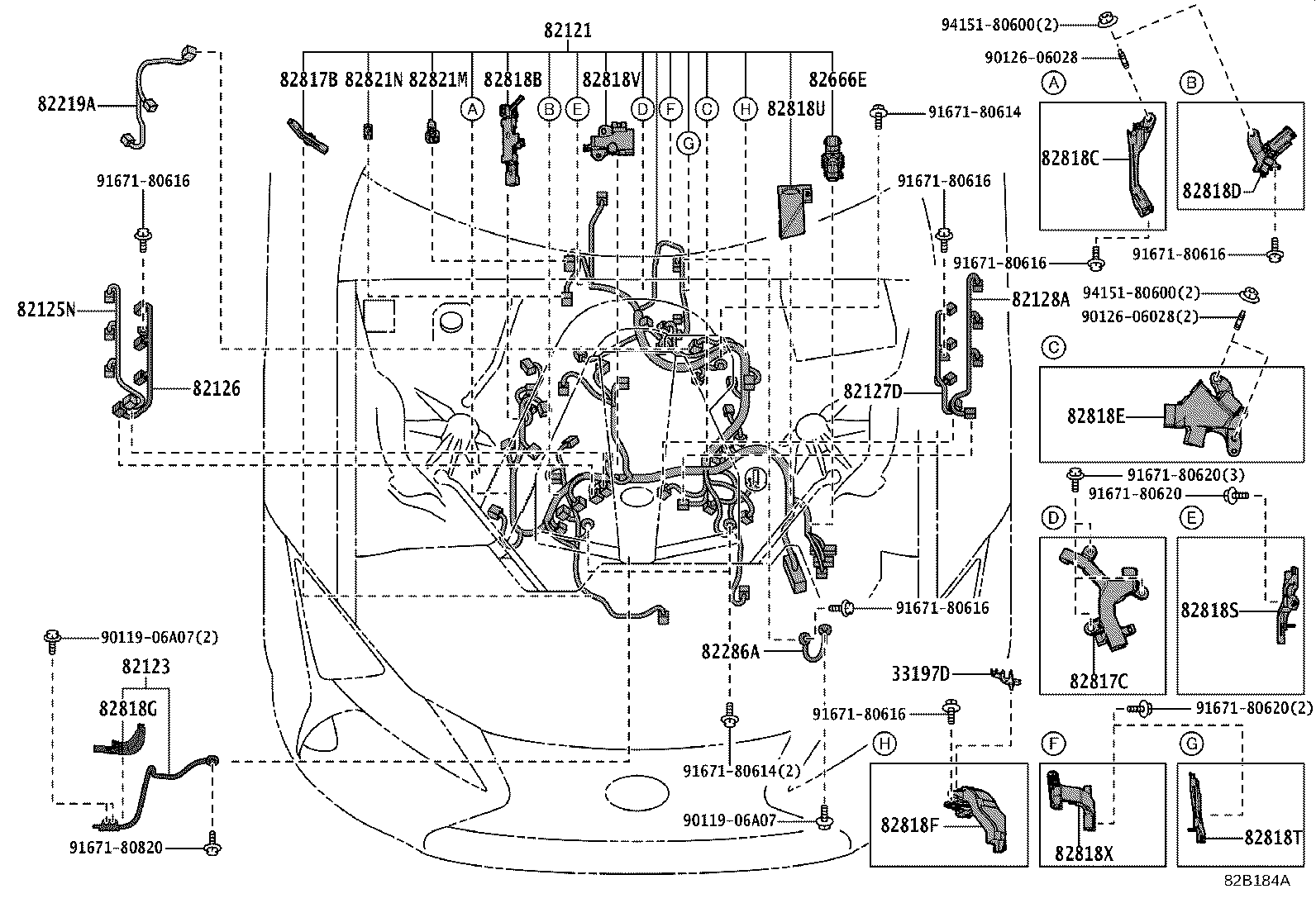

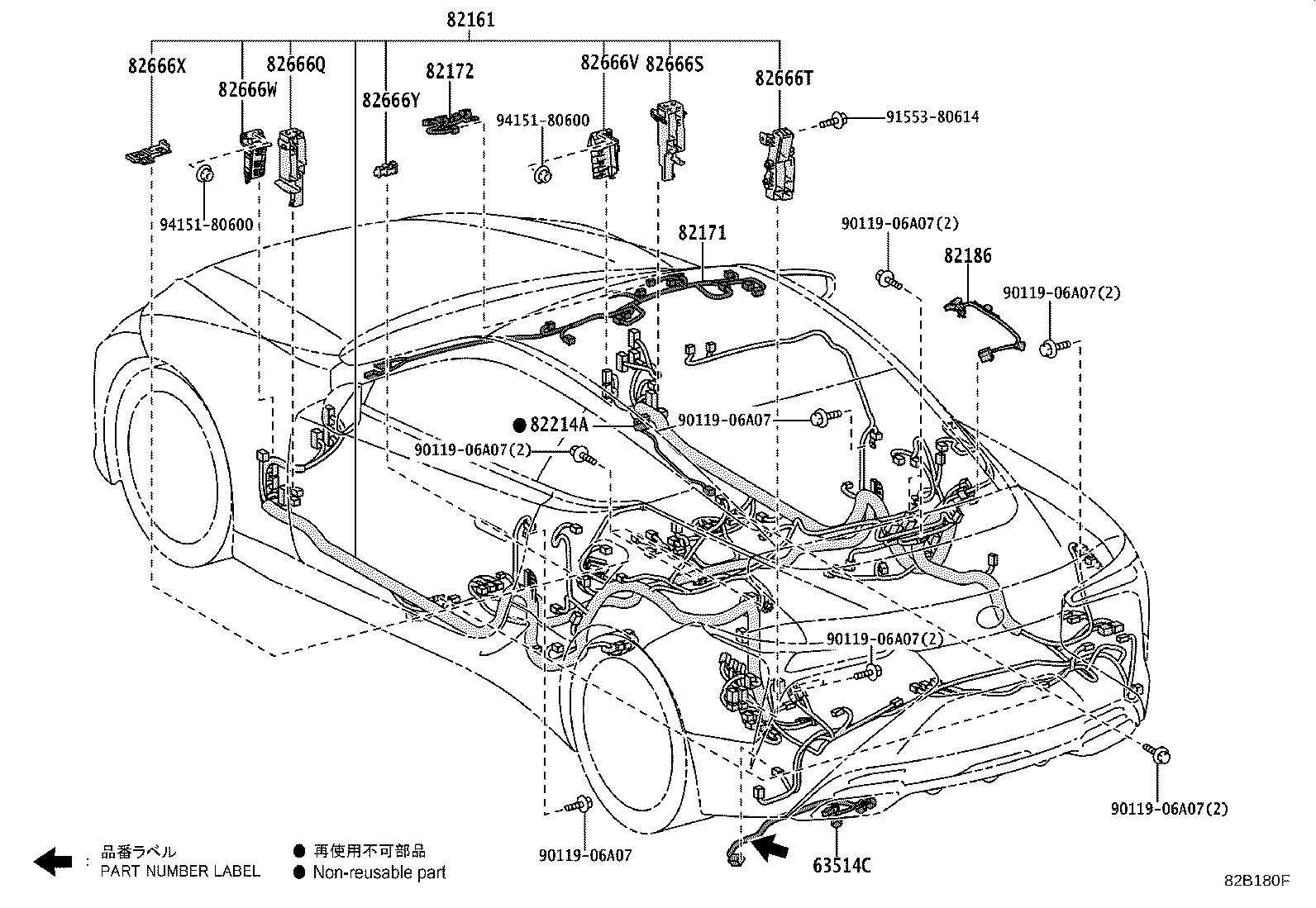

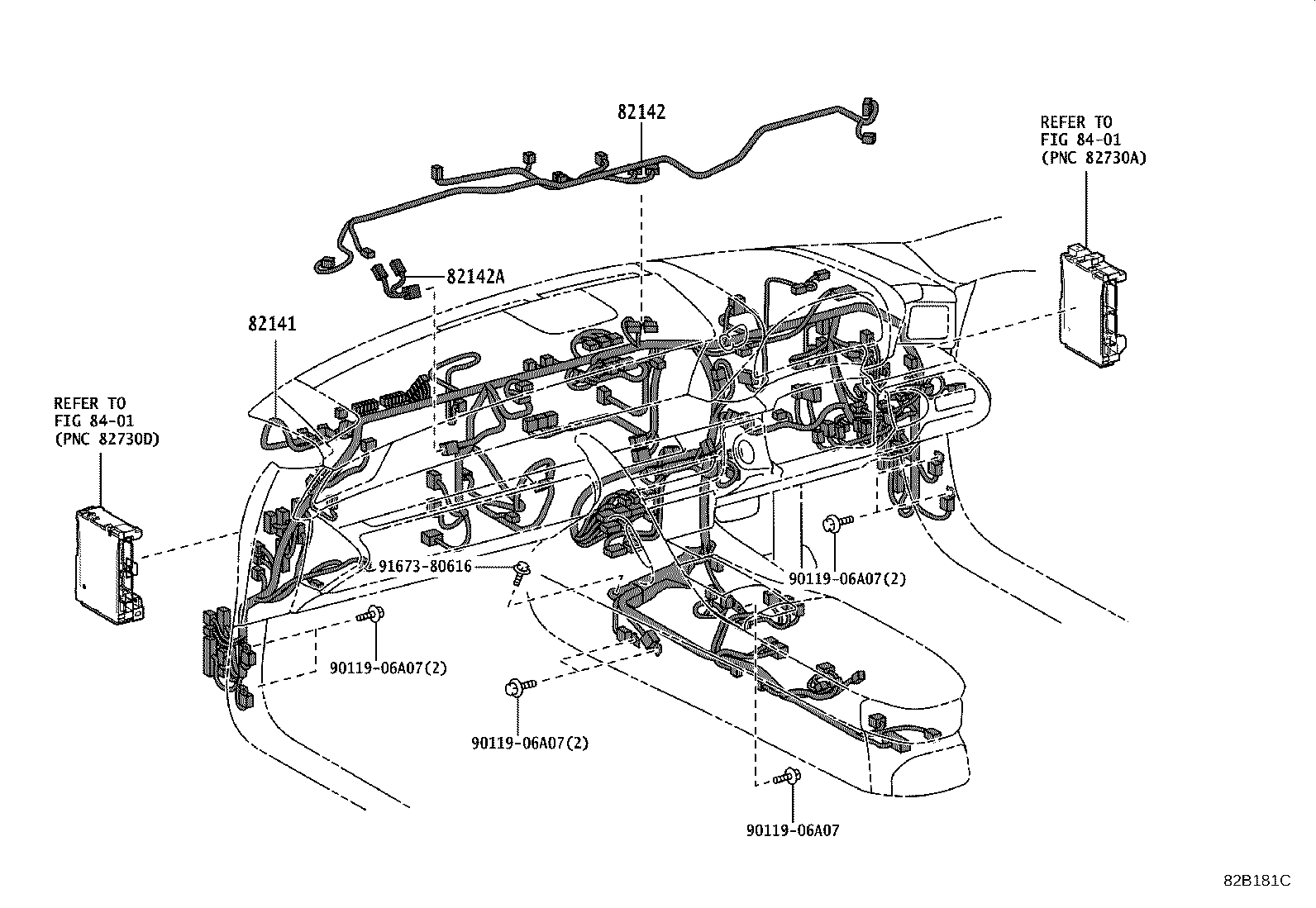

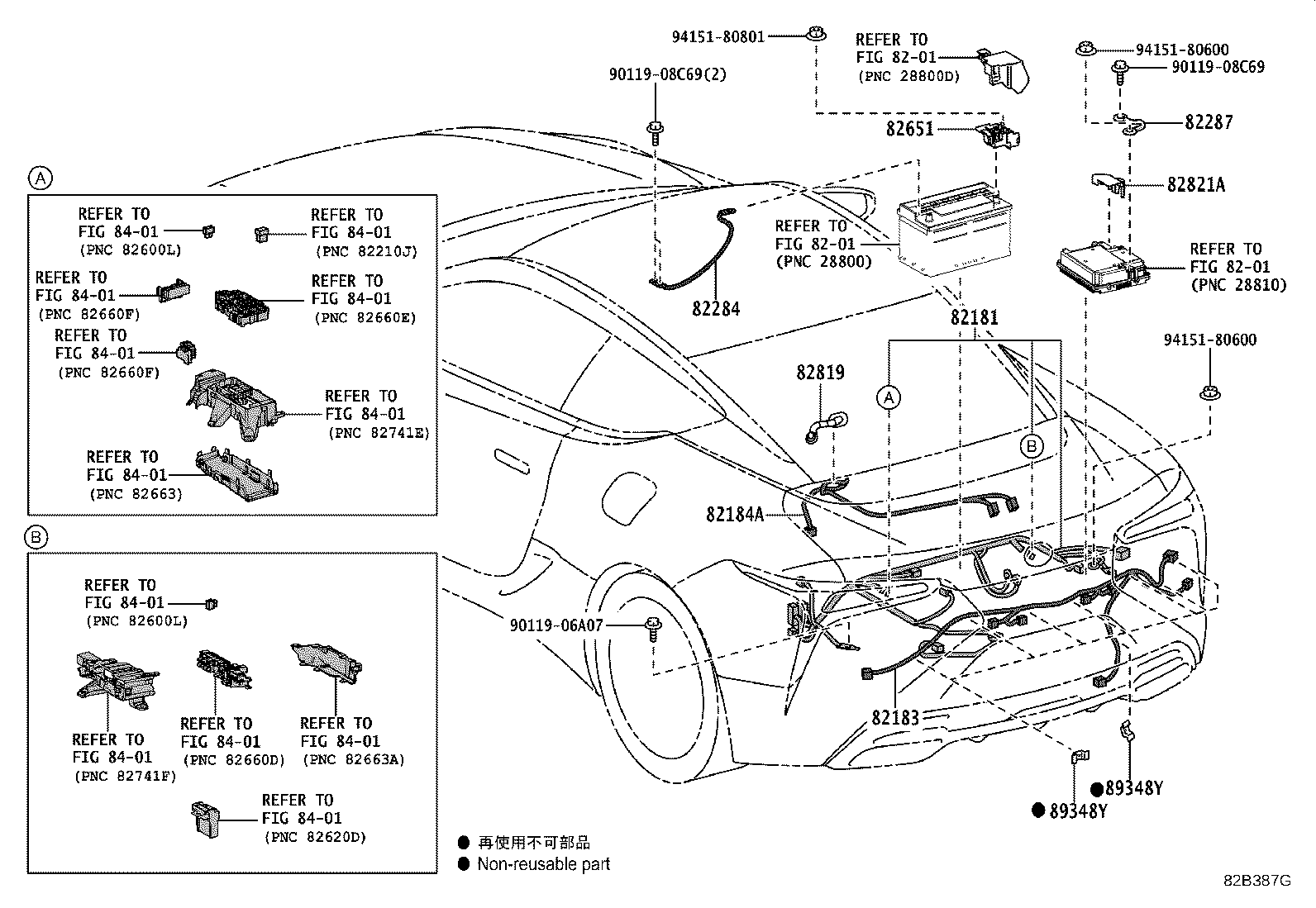

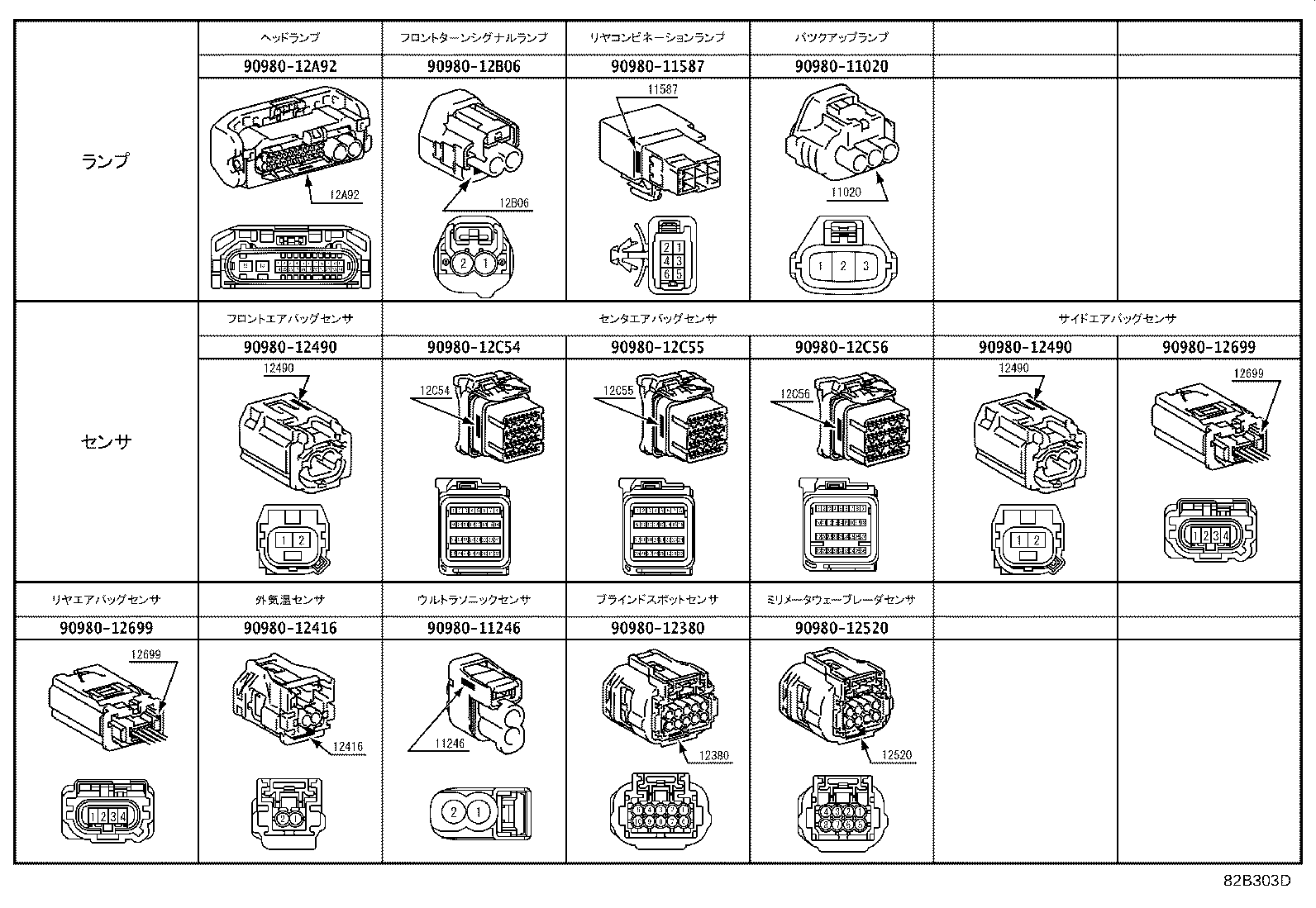

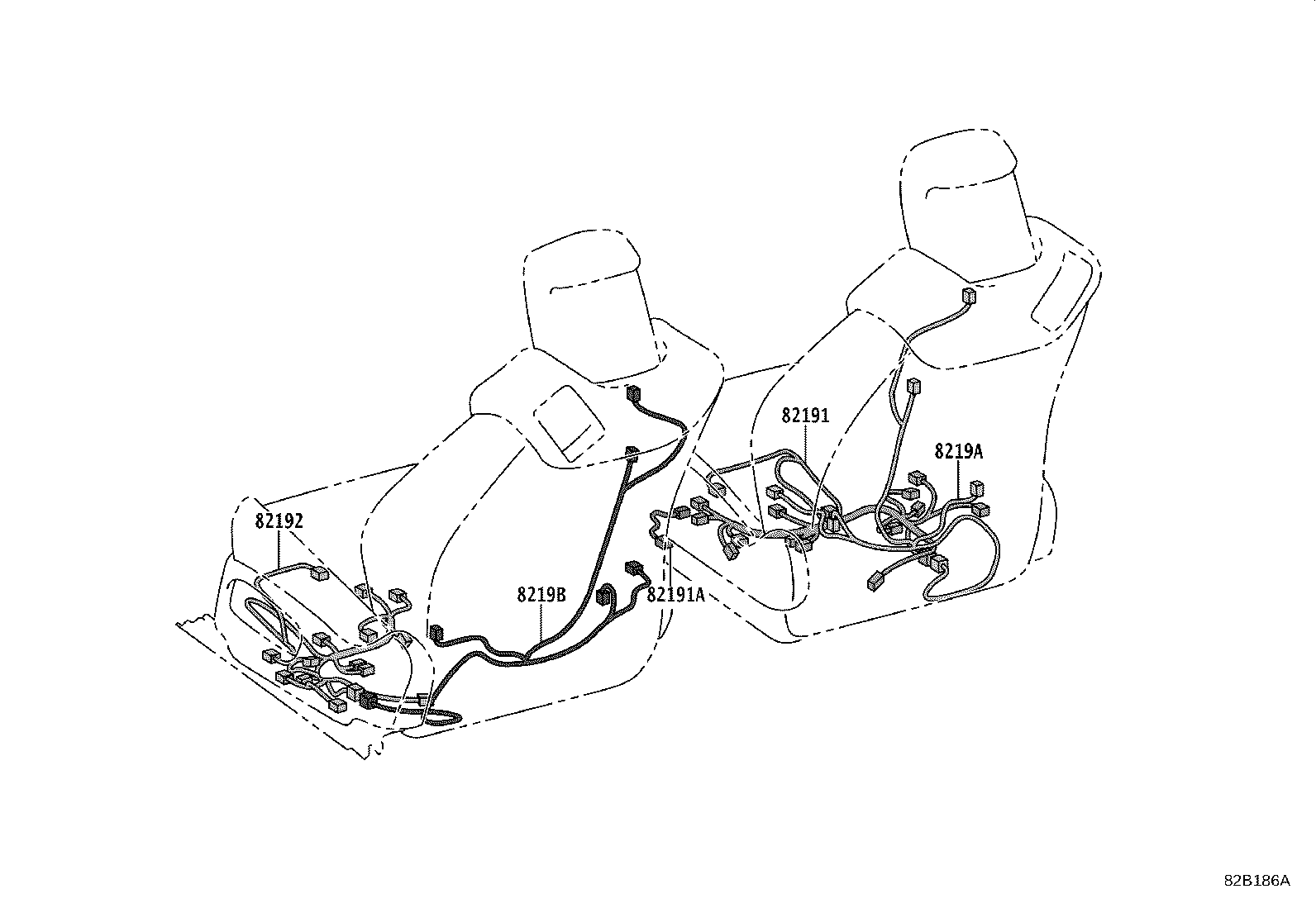

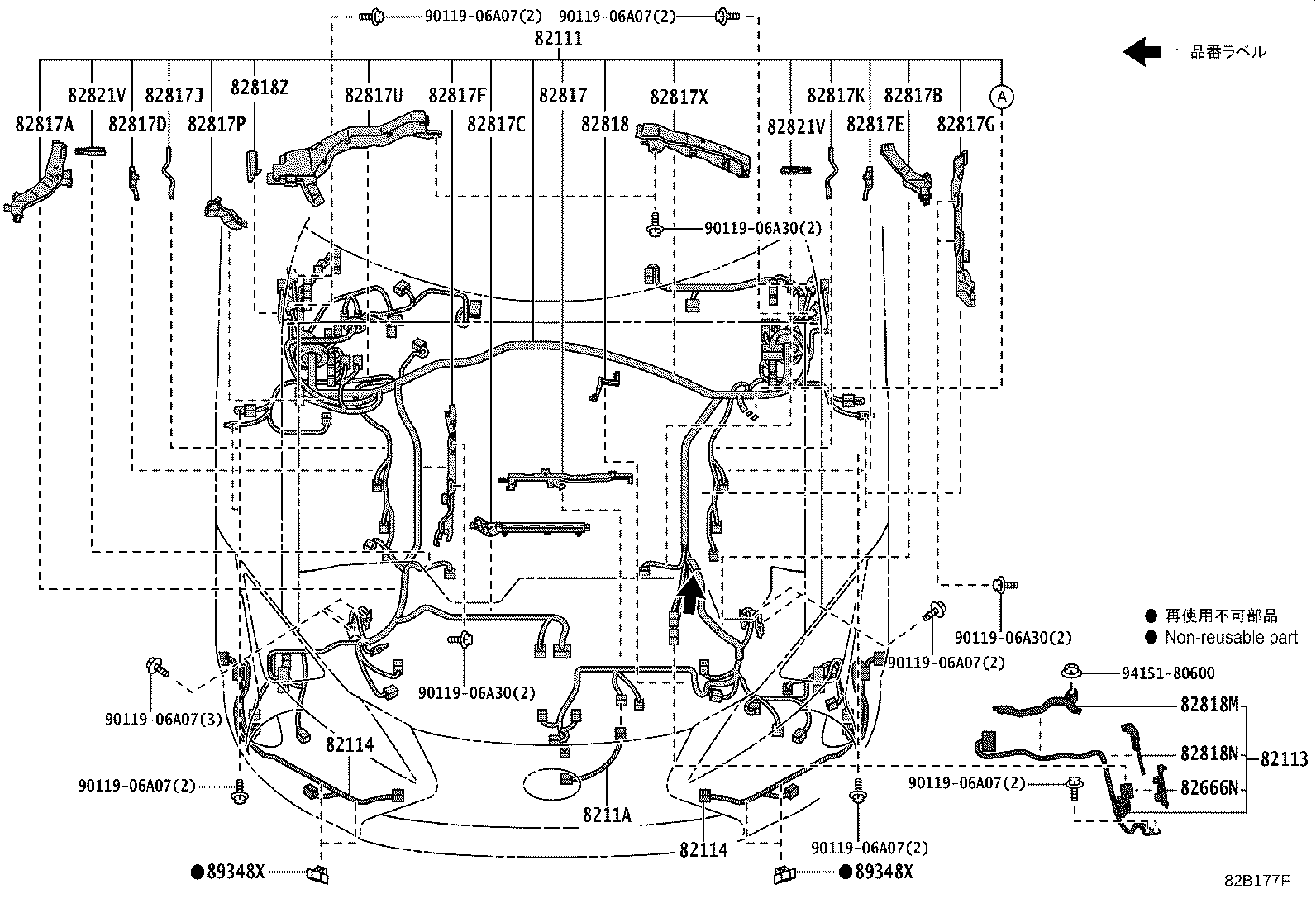

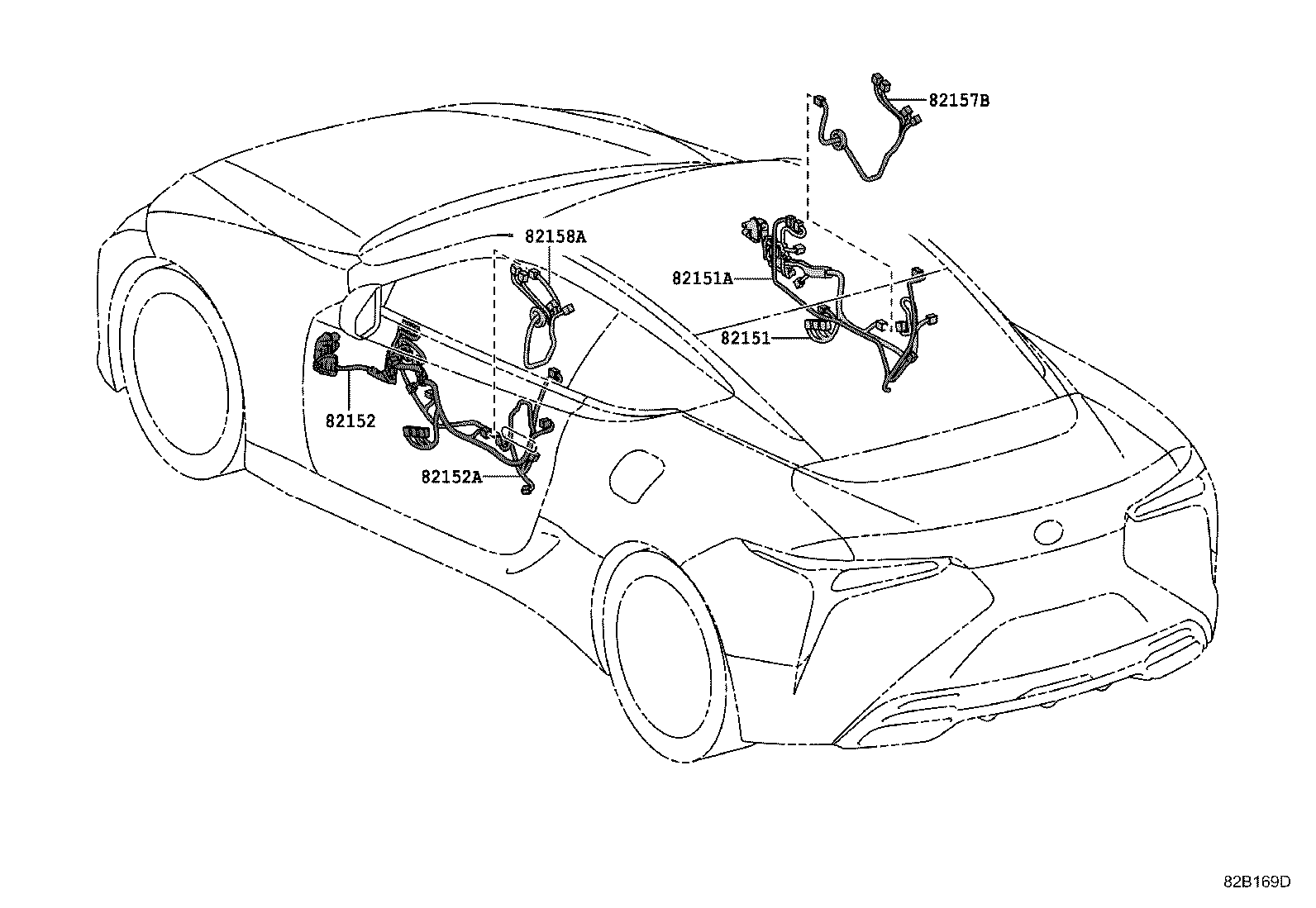

Figure 82B175E 82B175E 2017-01 → — Figure 82B259F 82B259F 2017-01 → — Figure 82B177F 82B177F 2017-03 → — Figure 82B379B 82B379B 2017-03 → — Figure 82B184A 82B184A 2017-01 → — Figure 82B185B 82B185B 2017-03 → — Figure 82B181C 82B181C 2017-01 → — Figure 82B169D 82B169D 2017-01 → — Figure 82B387G 82B387G 2017-01 → — Figure 82B180F 82B180F 2017-01 → — Figure 82B164B 82B164B 2017-03 → — Figure 82B162C 82B162C 2017-01 → — Figure 82B186A 82B186A 2017-01 → — Figure 82B191B 82B191B 2017-01 → — Figure 82B192C 82B192C 2017-01 → — Figure 82B193A 82B193A 2017-03 → — Figure 82B194B 82B194B 2017-03 → — Figure 82B303D 82B303D 2017-01 → — Figure 82D960A 82D960A 2017-01 → —

Part groups

PNCDescription
19309 Harness Sub-assy, Cam Position Sensor
33197D Clamp, Transmission Breather
63514C Wire, Connector
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
8211A Wire, Engine Room, NO.6
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82157B Wire, Step Rear Floor, RH
82158A Wire, Step Panel, LH
82161 Wire, Floor
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82184A Wire, Luggage Room, NO.4
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82214A Wire, Lamp
82219A Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82287 Wire, Earth, NO.3
82651 Block, Terminal
82662 Cover, Relay Block, Upper
82666E Holder, Connector NO.6
82666N Holder, Connector NO.10
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819 Grommet, Wiring Harness
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82821A Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821V Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
89348X Clip, Ultrasonic Sensor, Front
89348Y Clip, Ultrasonic Sensor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
