Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433120 · Japan
Supported model
Data version 2023-06

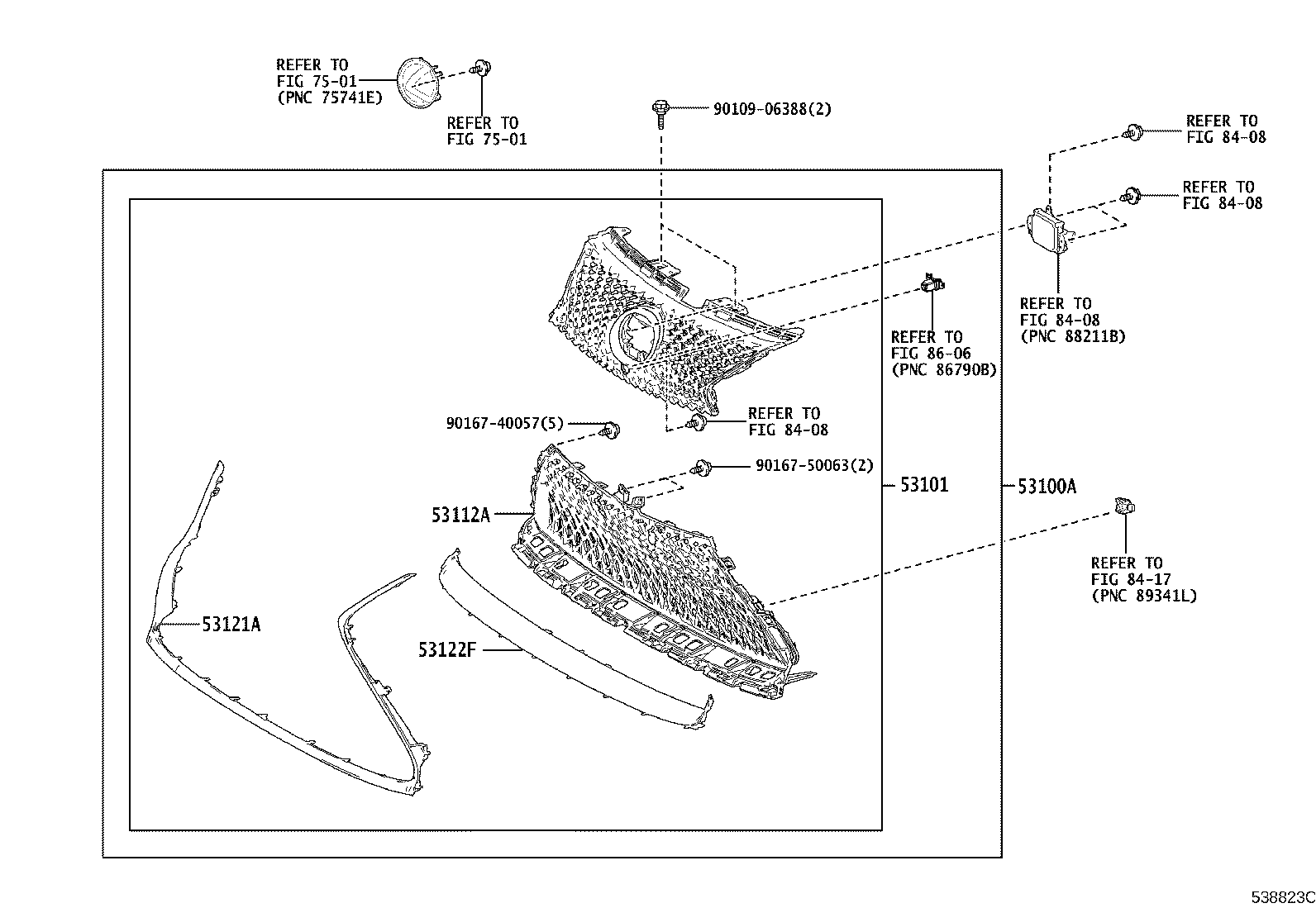

Radiator Grille
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53100A | Grille Assy, Radiator |
| 53101 | Grille Sub-assy, Radiator |
| 53112A | Grille, Radiator, Lower |
| 53121A | Moulding, Radiator Grille |
| 53122F | Moulding, Radiator Grille, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
