Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433120 · Japan

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 3 illustrations

Illustrations

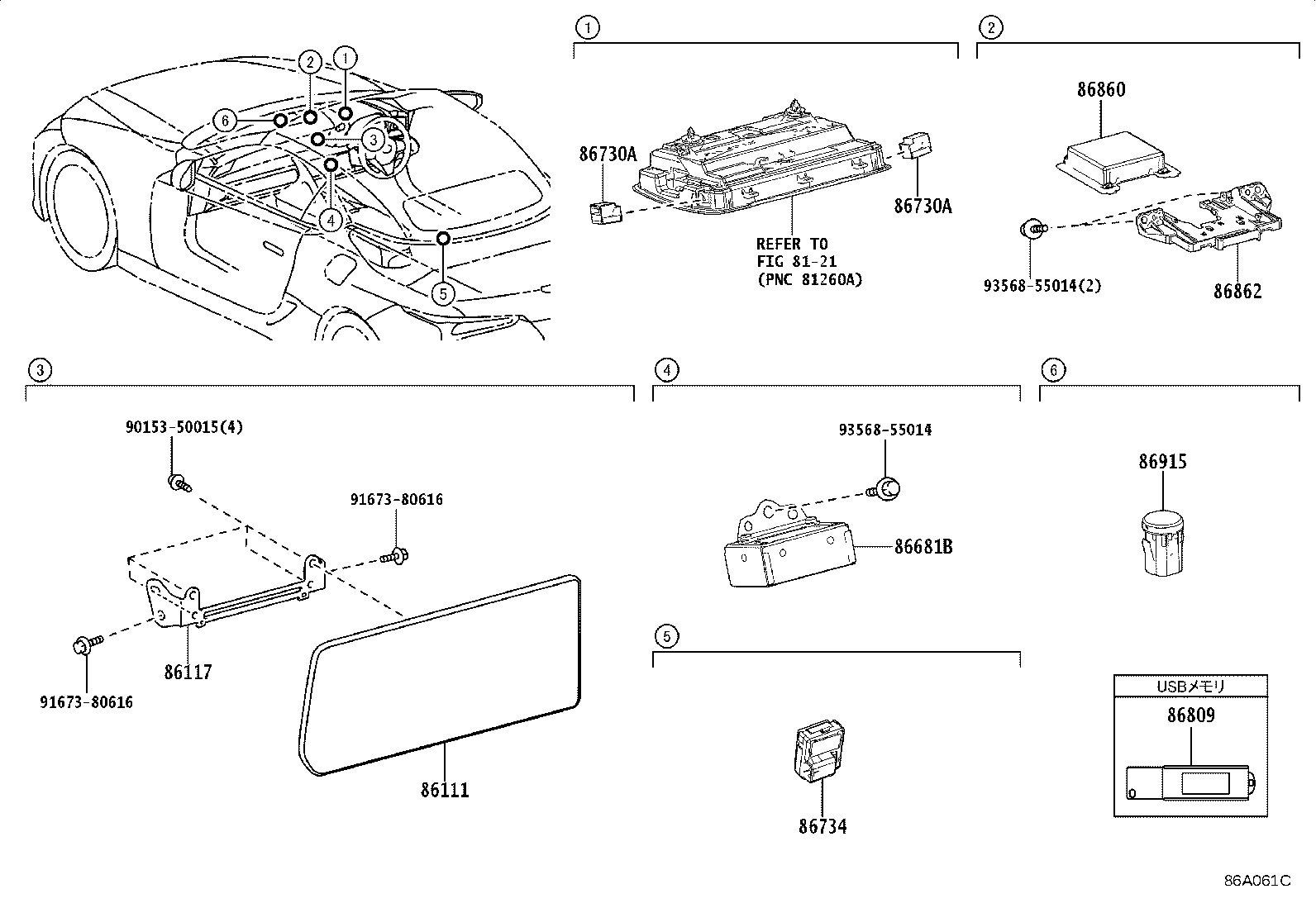

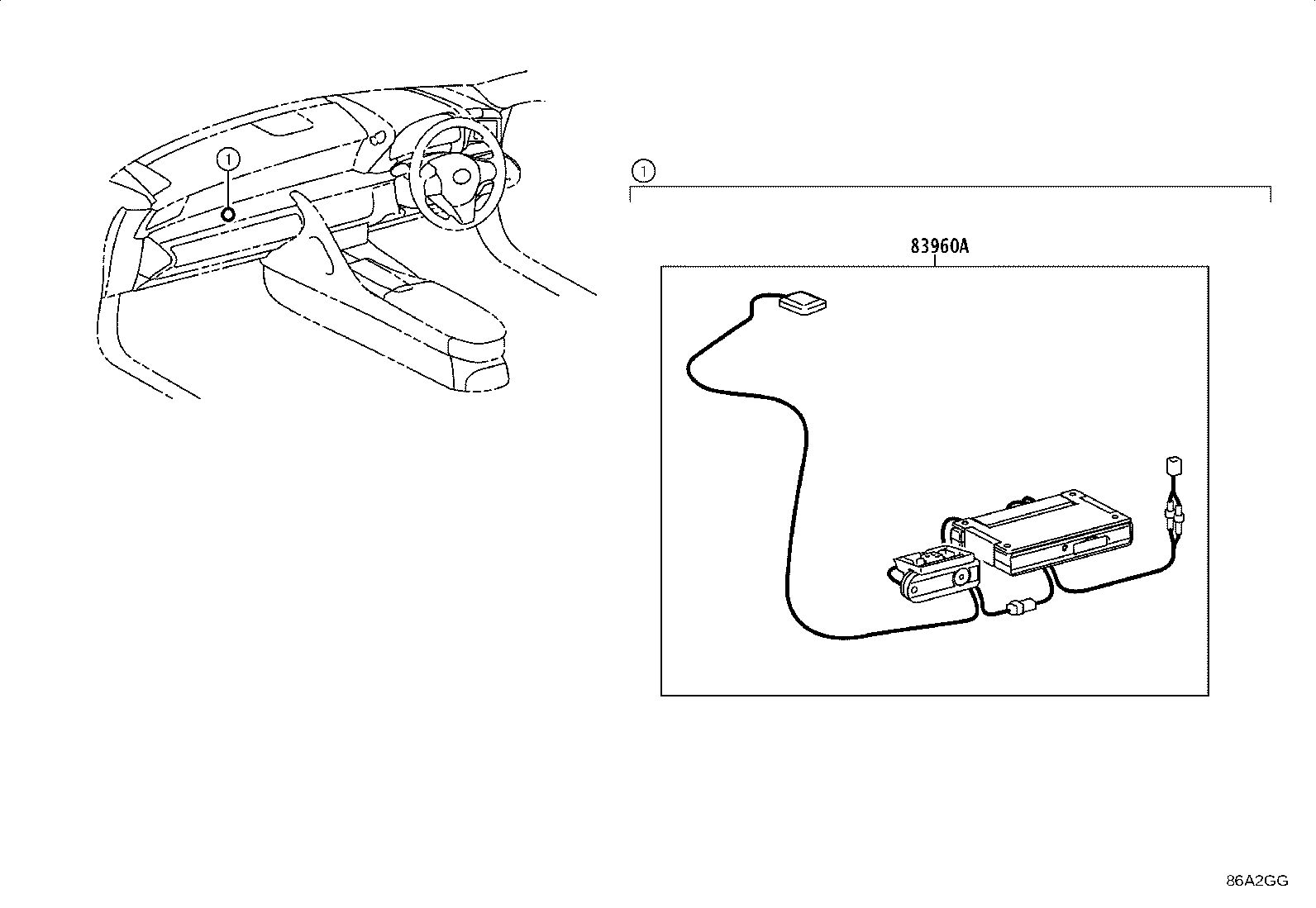

Figure 86A060B 86A060B 2023-05 → — Figure 86A061C 86A061C 2023-05 → — Figure 86A2GG 86A2GG 2023-05 → —

Part groups

PNCDescription
83960A Memorizer Assy
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86732A Wire,Microphone
86734 Microphone, Active Noise Control
86734A Microphone, Active Noise Control, Front
86809 Usb Set, Usb Memory Navigation Data
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
