Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434110 · Japan
Supported model
Data version 2024-06
Navigation & Front Monitor Display
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

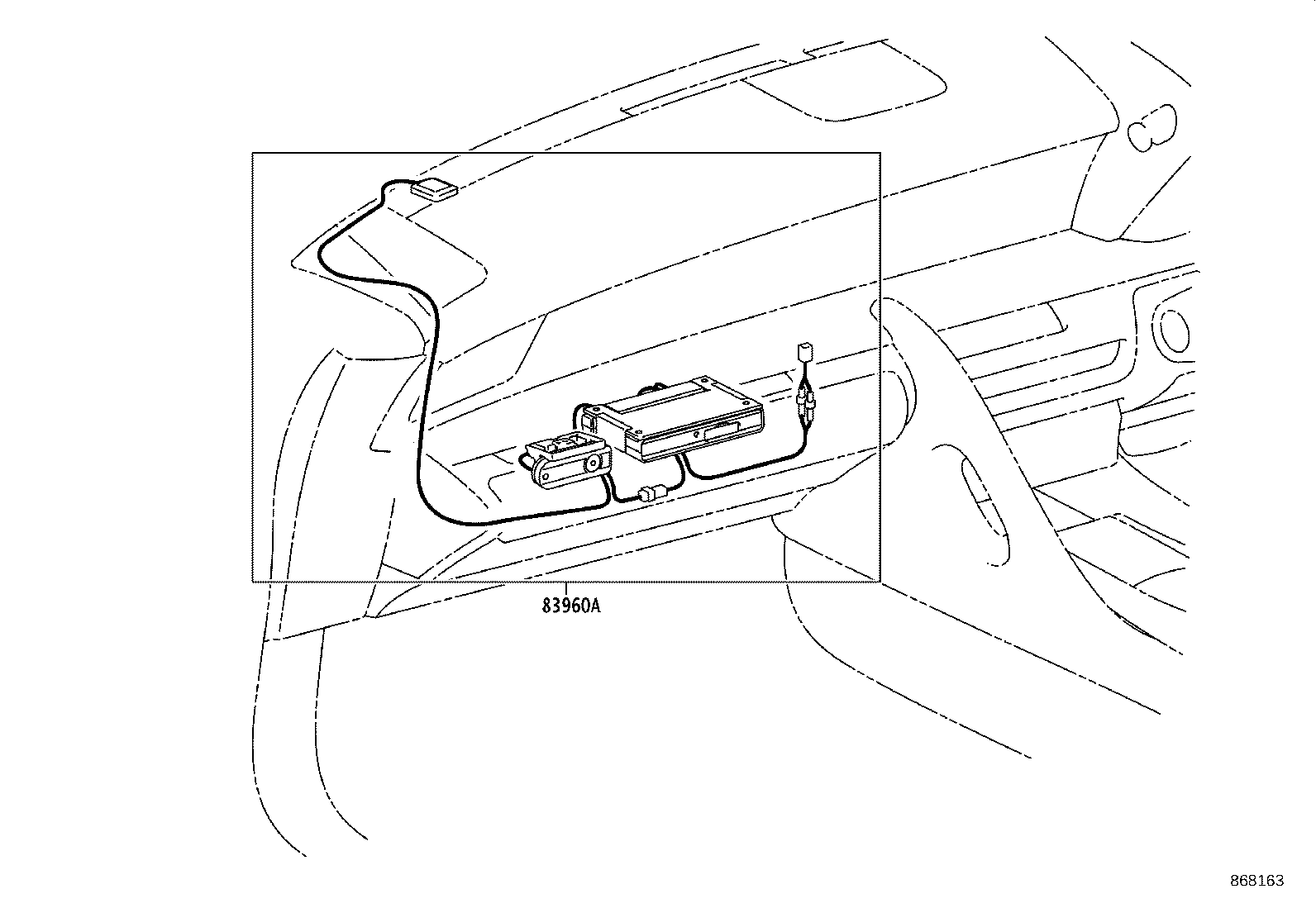

| 83960A | Memorizer Assy |
| 84780A | Controller Assy, Remote Operation |
| 86012A | Parts Set, Radio Setting |
| 86111 | Multi-display |
| 86134A | Parts, Multi-display |
| 86681B | Divider, Antenna |
| 86730A | Microphone Assy, Telephone |
| 86734 | Microphone, Active Noise Control |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
