Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01

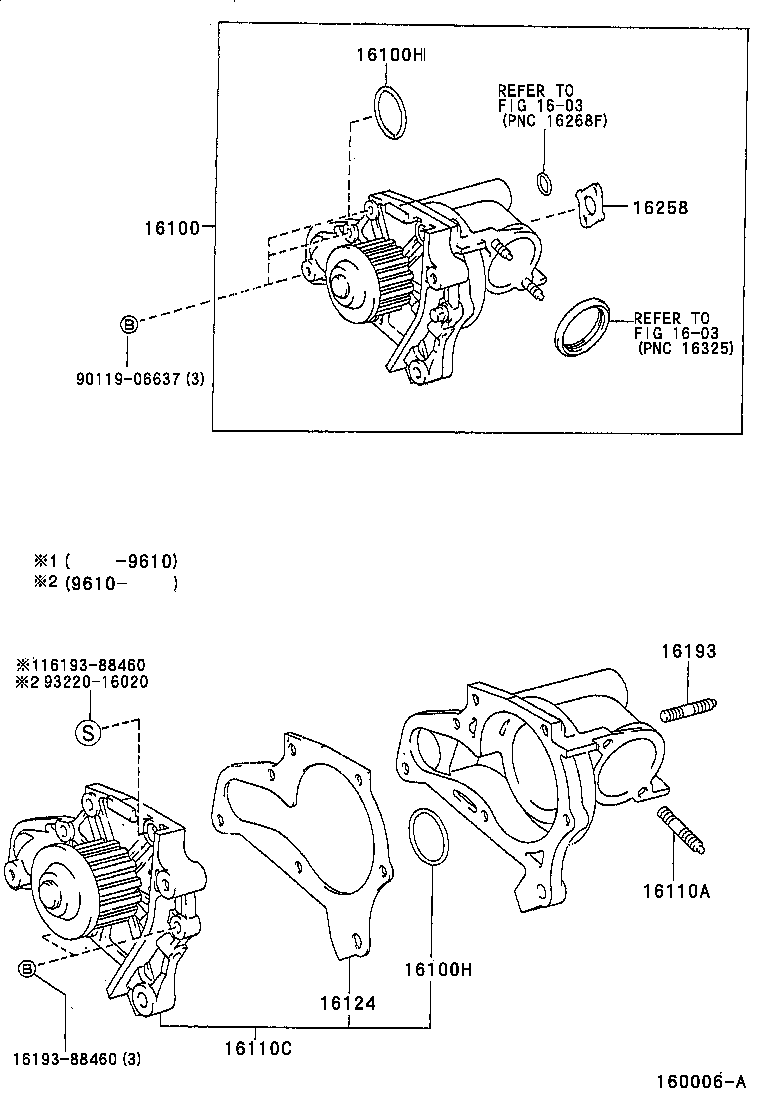

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

11 parts on this figure

Part number	Description	Fitment	Price
16100 — Pump Assy, Engine Water
16100-69296	Pump Assy, Engine Water 1997-09 → 1998-11 ended	3CTE CXM10	¥13,600
16100-69298	Pump Assy, Engine Water 1998-11 → 2000-12 ended	3CTE CXM10	¥10,500
16100-69435	Pump Assy, Engine Water 2000-12 → —	3CTE CXM10	¥9,100
16100-79185	Pump Assy, Engine Water 1996-05 → —	3SFE SXM1#	¥14,400
16100H — Ring, O(FOR WATER PUMP)
90301-37005	Ring, O(FOR WATER PUMP) 1996-05 → —	3SFE SXM1#	¥260
16110A — Bolt, Stud(FOR WATER OUTLET SETTING)
16193-63010	Bolt, Stud(FOR WATER OUTLET SETTING) 1996-05 → —	3SFE SXM1#	¥350
16110C — Pump Assy, Water, W/O Cover
16110-79025	Pump Assy, Water, W/O Cover 1996-05 → 1996-10 ended	3SFE SXM1#	¥10,300
16110-79026	Pump Assy, Water, W/O Cover 1996-10 → —	3SFE SXM1#	¥10,200
16124 — Gasket, Water Pump Cover
16124-88460	Gasket, Water Pump Cover 1996-05 → —	3SFE SXM1#	¥700
16193 — Bolt, Stud(FOR WATER PUMP COVER)
90029-01500	Bolt, Stud(FOR WATER PUMP COVER) 1996-05 → —	3SFE SXM1#	¥170
16258 — Gasket(FOR HEATER RETURN)
16258-74021	Gasket(FOR HEATER RETURN) 1996-05 → —	3SFE SXM1#	¥590

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
