Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

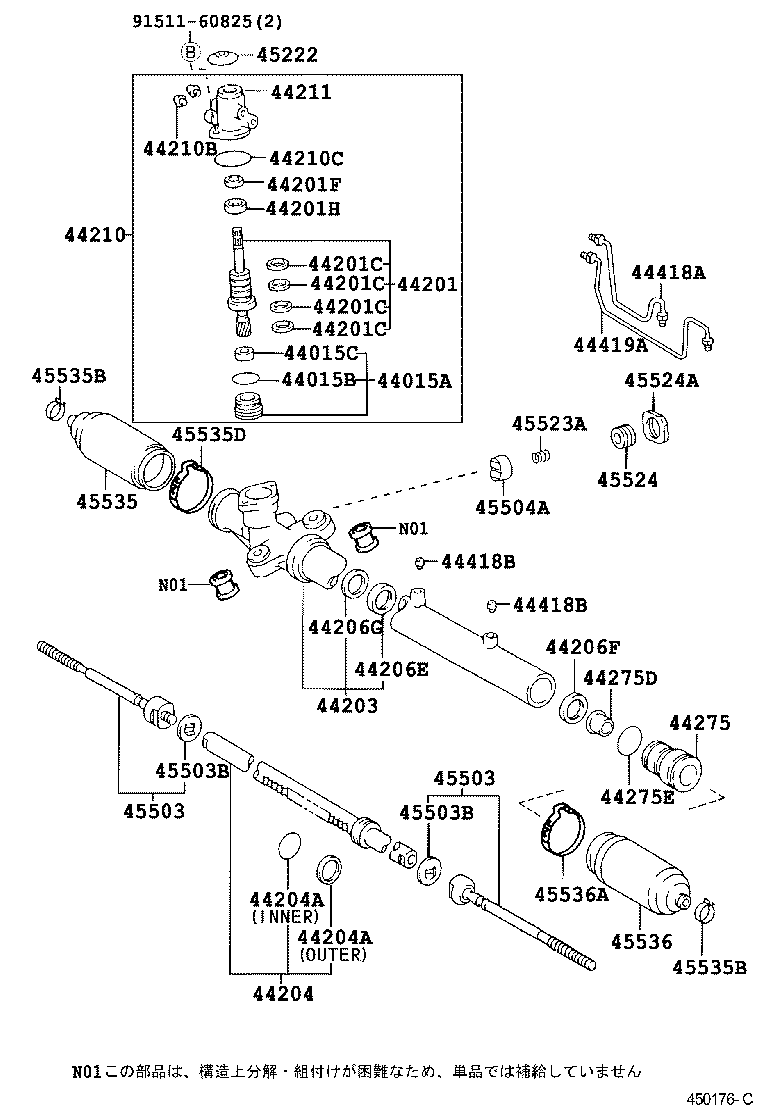

Exploded illustration 450176C 9151160825 — not listed in this catalogue 45222 — COVER, STEERING GEAR DUST (1 parts) 44211 — HOUSING, CONTROL VALVE (3 parts) 44210C — RING, O(FOR POWER STEERING CONTROL VALVE) (3 parts) 44201F — SEAL, OIL(FOR POWER STEERING CONTROL VALVE) (3 parts) 44201H — BEARING(FOR POWER STEERING CONTROL VALVE UPPER) (3 parts) 44210 — VALVE ASSY, POWER STEERING CONTROL (6 parts) 44201C — RING(FOR POWER STEERING CONTROL VALVE) (3 parts) 44201C — RING(FOR POWER STEERING CONTROL VALVE) (3 parts) 44201C — RING(FOR POWER STEERING CONTROL VALVE) (3 parts) 44201C — RING(FOR POWER STEERING CONTROL VALVE) (3 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (3 parts) 45535D — CLAMP(FOR STEERING RACK BOOT NO.1) (3 parts) 44210B — SEAT, UNION(FOR POWER STEERING CONTROL VALVE) (3 parts) 44015C — SEAL, OIL(FOR BEARING GUIDE NUT) (2 parts) 44015B — RING, O(FOR BEARING GUIDE NUT) (2 parts) 44015A — NUT SUB-ASSY, BEARING GUIDE (2 parts) 44201 — VALVE SUB-ASSY, POWER STEERING CONTROL (6 parts) 44418A — TUBE, STEERING RIGHT TURN PRESSURE (3 parts) 44419A — TUBE, STEERING LEFT TURN PRESSURE (3 parts) 45524A — NUT(FOR STEERING RACK GUIDE SPRING CAP) (2 parts) 45504A — GUIDE SUB-ASSY, RACK (1 parts) 45523A — SPRING(FOR STEERING GEAR RACK GUIDE) (3 parts) 45524 — CAP, STEERING RACK GUIDE SPRING (3 parts) 44203 — HOUSING SUB-ASSY, POWER STEERING RACK (3 parts) 45535 — BOOT, STEERING RACK, NO.1 (2 parts) 44418B — SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) (4 parts) 44418B — SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) (4 parts) 44206F — SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) (3 parts) 44275D — BUSH(FOR CYLINDER END STOPPER) (2 parts) 44275 — STOPPER, CYLINDER END (3 parts) 44275E — RING, O(FOR RACK END GUIDE) (2 parts) 45536A — CLAMP(FOR STEERING RACK BOOT NO.2) (3 parts) 45503 — END SUB-ASSY, STEERING RACK (2 parts) 45503B — WASHER, CLAW(FOR STEERING RACK END) (1 parts) 45536 — BOOT, STEERING RACK, NO.2 (3 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (3 parts) 44204 — RACK SUB-ASSY, POWER STEERING (4 parts) 44204A — RING(FOR RACK STEERING PISTON) (6 parts) 44204A — RING(FOR RACK STEERING PISTON) (6 parts) 45503 — END SUB-ASSY, STEERING RACK (2 parts) 45503B — WASHER, CLAW(FOR STEERING RACK END) (1 parts) 44206G — SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) (2 parts) 44206E — SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) (3 parts)
450176C · 43 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
101 parts on this figure
Part number Description Fitment Price
44015A — Nut Sub-assy, Bearing Guide
44015-22020 Nut Sub-assy, Bearing Guide
1997-08 → 2001-05 ended
SXM15;SXM10 IPSUM,L ¥7,200
44015-22020 Nut Sub-assy, Bearing Guide
1996-05 → 1997-08 ended
SXM15 ¥7,200
44015B — Ring, O(FOR BEARING GUIDE NUT)
90301-43002 Ring, O(FOR BEARING GUIDE NUT)
1997-08 → 2001-05 ended
SXM15;SXM10 IPSUM,L ¥270
90301-43002 Ring, O(FOR BEARING GUIDE NUT)
1996-05 → 1997-08 ended
SXM15 ¥270
44015C — Seal, Oil(FOR BEARING GUIDE NUT)
90310-25004 Seal, Oil(FOR BEARING GUIDE NUT)
1996-05 → 1997-08 ended
SXM15 ¥180
90310-25004 Seal, Oil(FOR BEARING GUIDE NUT)
1997-08 → 2001-05 ended
SXM15;SXM10 IPSUM,L ¥180
44201 — Valve Sub-assy, Power Steering Control
44201-20401 Valve Sub-assy, Power Steering Control
1999-07 → 2001-05 ended
SXM15 ¥21,900
44201-44010 Valve Sub-assy, Power Steering Control
1997-09 → 2001-05 ended
CXM10 ¥21,900
44201-44020 Valve Sub-assy, Power Steering Control
1996-05 → 1999-07 ended
SXM15 ¥21,900
44201-44050 Valve Sub-assy, Power Steering Control
1996-05 → 2001-05 ended
SXM10 ¥21,900
44201-44060 note Valve Sub-assy, Power Steering Control
1997-08 → 2001-05 ended
SXM15 IPSUM,L ¥21,900
44201-44070 note Valve Sub-assy, Power Steering Control
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥21,900
44201C — Ring(FOR POWER STEERING CONTROL VALVE)
90562-33002 Ring(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥310
90562-33007 Ring(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
SXM15 ¥110
90562-33007 note Ring(FOR POWER STEERING CONTROL VALVE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥110
44201F — Seal, Oil(FOR POWER STEERING CONTROL VALVE)
90311-19002 Seal, Oil(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
SXM15 ¥190
90311-19002 note Seal, Oil(FOR POWER STEERING CONTROL VALVE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥190
90311-19006 Seal, Oil(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥190
44201H — Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
90363-19002 Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥2,290
90363-19003 Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
1996-05 → 2001-05 ended
SXM15 ¥1,240
90363-19003 note Bearing(FOR POWER STEERING CONTROL VALVE UPPER)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥1,240
44203 — Housing Sub-assy, Power Steering Rack
44203-44010 Housing Sub-assy, Power Steering Rack
1996-05 → 2001-05 ended
CXM10,SXM10 ¥40,900
44203-44020 Housing Sub-assy, Power Steering Rack
1996-05 → 2001-05 ended
SXM15 ¥41,100
44203-44040 note Housing Sub-assy, Power Steering Rack
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥41,100
44204 — Rack Sub-assy, Power Steering
44204-20270 Rack Sub-assy, Power Steering
1998-04 → 2001-05 ended
SXM15 ¥16,200
44204-20290 Rack Sub-assy, Power Steering
1996-05 → 1998-04 ended
SXM15 ¥15,300
44204-20320 Rack Sub-assy, Power Steering
1996-05 → 2001-05 ended
CXM10,SXM10 ¥26,500
44204-44030 note Rack Sub-assy, Power Steering
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥15,300
44204A — Ring(FOR RACK STEERING PISTON)
90301-35002 note Ring(FOR RACK STEERING PISTON)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥280
90301-36005 note Ring(FOR RACK STEERING PISTON)
1996-05 → 2001-05 ended
SXM15 ¥260
90301-36005 note Ring(FOR RACK STEERING PISTON)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥260
90562-38004 note Ring(FOR RACK STEERING PISTON)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥130
90562-39001 note Ring(FOR RACK STEERING PISTON)
1996-05 → 2001-05 ended
SXM15 ¥130
90562-39001 note Ring(FOR RACK STEERING PISTON)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥130
44206E — Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
90310-25017 Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
1996-05 → 2001-05 ended
SXM15 ¥240
90310-25017 note Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥240
90310-25025 Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥190
44206F — Seal, Oil, NO.2(FOR POWER STEERING CYLINDER TUBE)
90310-25017 note Seal, Oil, NO.2(FOR POWER STEERING CYLINDER TUBE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥240
90310-25017 Seal, Oil, NO.2(FOR POWER STEERING CYLINDER TUBE)
1996-05 → 2001-05 ended
SXM15 ¥240
90310-25025 Seal, Oil, NO.2(FOR POWER STEERING CYLINDER TUBE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥190
44206G — Spacer, NO.1(FOR POWER STEERING CYLINDER TUBE)
90560-26013 Spacer, NO.1(FOR POWER STEERING CYLINDER TUBE)
1996-05 → 1997-08 ended
SXM15 ¥240
90560-26013 Spacer, NO.1(FOR POWER STEERING CYLINDER TUBE)
1997-08 → 2001-05 ended
SXM15;SXM10 IPSUM,L ¥240
44210 — Valve Assy, Power Steering Control
44210-20481 Valve Assy, Power Steering Control
1999-07 → 2001-05 ended
SXM15 ¥41,800
44210-44010 Valve Assy, Power Steering Control
1997-09 → 2001-05 ended
CXM10 ¥41,800
44210-44020 Valve Assy, Power Steering Control
1996-05 → 1999-07 ended
SXM15 ¥41,800
44210-44050 Valve Assy, Power Steering Control
1996-05 → 2001-05 ended
SXM10 ¥41,800
44210-44060 note Valve Assy, Power Steering Control
1997-08 → 2001-05 ended
SXM15 IPSUM,L ¥41,800
44210-44070 note Valve Assy, Power Steering Control
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥41,800
44210B — Seat, Union(FOR POWER STEERING CONTROL VALVE)
90410-06002 Seat, Union(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥220
90410-06005 note Seat, Union(FOR POWER STEERING CONTROL VALVE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥160
90410-06005 Seat, Union(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
SXM15 ¥160
44210C — Ring, O(FOR POWER STEERING CONTROL VALVE)
90301-51001 Ring, O(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
SXM15 ¥320
90301-51001 note Ring, O(FOR POWER STEERING CONTROL VALVE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥320
96711-24060 Ring, O(FOR POWER STEERING CONTROL VALVE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥240
44211 — Housing, Control Valve
44211-20100 Housing, Control Valve
1996-05 → 2001-05 ended
CXM10,SXM10 ¥9,900
44211-44010 Housing, Control Valve
1996-05 → 2001-05 ended
SXM15 ¥14,500
44211-44010 note Housing, Control Valve
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥14,500
44275 — Stopper, Cylinder End
44275-20110 Stopper, Cylinder End
1996-05 → 2001-05 ended
SXM15 ¥1,720
44275-20110 note Stopper, Cylinder End
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥1,720
44275-20130 Stopper, Cylinder End
1996-05 → 2001-05 ended
CXM10,SXM10 ¥1,240
44275D — Bush(FOR CYLINDER END STOPPER)
90386-25004 Bush(FOR CYLINDER END STOPPER)
1996-05 → 2001-05 ended
SXM15 ¥190
90386-25004 note Bush(FOR CYLINDER END STOPPER)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥190
44275E — Ring, O(FOR RACK END GUIDE)
90301-38003 Ring, O(FOR RACK END GUIDE)
1996-05 → 2001-05 ended
SXM15 ¥240
90301-38003 note Ring, O(FOR RACK END GUIDE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥240
44418A — Tube, Steering Right Turn Pressure
44418-44010 Tube, Steering Right Turn Pressure
1996-05 → 2001-05 ended
CXM10,SXM10 ¥880
44418-44020 Tube, Steering Right Turn Pressure
1996-05 → 2001-05 ended
SXM15 ¥1,170
44418-44040 note Tube, Steering Right Turn Pressure
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥1,170
44418B — Seat, Union(FOR STEERING TURN PRESSURE TUBE)
90410-04002 Seat, Union(FOR STEERING TURN PRESSURE TUBE)
1996-05 → 2001-05 ended
SXM15 ¥170
90410-04002 note Seat, Union(FOR STEERING TURN PRESSURE TUBE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥170
90410-04003 note Seat, Union(FOR STEERING TURN PRESSURE TUBE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥170
96390-71200 note Seat, Union(FOR STEERING TURN PRESSURE TUBE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥100
44419A — Tube, Steering Left Turn Pressure
44419-44010 Tube, Steering Left Turn Pressure
1996-05 → 2001-05 ended
CXM10,SXM10 ¥1,070
44419-44020 Tube, Steering Left Turn Pressure
1996-05 → 2001-05 ended
SXM15 ¥1,260
44419-44040 note Tube, Steering Left Turn Pressure
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥1,260
45222 — Cover, Steering Gear Dust
45222-32010 Cover, Steering Gear Dust
1996-05 → 2001-05 ended
CXM10,SXM1# ¥430
45503 — End Sub-assy, Steering Rack
45503-29615 End Sub-assy, Steering Rack
1996-05 → 2001-05 ended
CXM10,SXM10 ¥6,700
45503-29625 End Sub-assy, Steering Rack
1996-05 → 2001-05 ended
SXM15 ¥7,600
45503B — Washer, Claw(FOR STEERING RACK END)
90214-14002 note Washer, Claw(FOR STEERING RACK END)
1996-05 → 2001-05 ended
CXM10,SXM1# ¥550
45504A — Guide Sub-assy, Rack
45504-44010 Guide Sub-assy, Rack
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥2,080
45523A — Spring(FOR STEERING GEAR RACK GUIDE)
90501-23007 Spring(FOR STEERING GEAR RACK GUIDE)
1996-05 → 2001-05 ended
SXM15 ¥170
90501-29036 Spring(FOR STEERING GEAR RACK GUIDE)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥270
90501-30019 note Spring(FOR STEERING GEAR RACK GUIDE)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥170
45524 — Cap, Steering Rack Guide Spring
45524-20040 Cap, Steering Rack Guide Spring
1996-05 → 2001-05 ended
SXM15 ¥780
45524-44010 note Cap, Steering Rack Guide Spring
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥710
45524-50010 Cap, Steering Rack Guide Spring
1996-05 → 2001-05 ended
CXM10,SXM10 ¥810
45524A — Nut(FOR STEERING RACK GUIDE SPRING CAP)
90179-36002 Nut(FOR STEERING RACK GUIDE SPRING CAP)
1996-05 → 2001-05 ended
CXM10,SXM1# ¥350
90179-36002 note Nut(FOR STEERING RACK GUIDE SPRING CAP)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥350
45535 — Boot, Steering Rack, NO.1
45535-20190 Boot, Steering Rack, NO.1
1996-05 → 2001-05 ended
CXM10,SXM10 ¥1,290
45535-20290 Boot, Steering Rack, NO.1
1996-05 → 2001-05 ended
SXM15 ¥1,290
45535B — Clip(FOR STEERING RACK BOOT)
90467-19012 Clip(FOR STEERING RACK BOOT)
1996-05 → 2001-05 ended
SXM15 ¥200
90467-19018 note Clip(FOR STEERING RACK BOOT)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥240
90467-19021 Clip(FOR STEERING RACK BOOT)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥180
45535D — Clamp(FOR STEERING RACK BOOT NO.1)
90460-49002 Clamp(FOR STEERING RACK BOOT NO.1)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥300
90460-49004 Clamp(FOR STEERING RACK BOOT NO.1)
1996-05 → 2001-05 ended
SXM15 ¥250
90460-49004 note Clamp(FOR STEERING RACK BOOT NO.1)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥250
45536 — Boot, Steering Rack, NO.2
45535-20170 Boot, Steering Rack, NO.2
1996-05 → 2001-05 ended
CXM10,SXM10 ¥860
45535-20190 note Boot, Steering Rack, NO.2
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥1,290
45535-20290 Boot, Steering Rack, NO.2
1996-05 → 2001-05 ended
SXM15 ¥1,290
45536A — Clamp(FOR STEERING RACK BOOT NO.2)
90460-49004 Clamp(FOR STEERING RACK BOOT NO.2)
1996-05 → 2001-05 ended
SXM15 ¥250
90460-49004 note Clamp(FOR STEERING RACK BOOT NO.2)
1997-08 → 2001-05 ended
SXM10 IPSUM,L ¥250
90460-52001 Clamp(FOR STEERING RACK BOOT NO.2)
1996-05 → 2001-05 ended
CXM10,SXM10 ¥400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
