Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

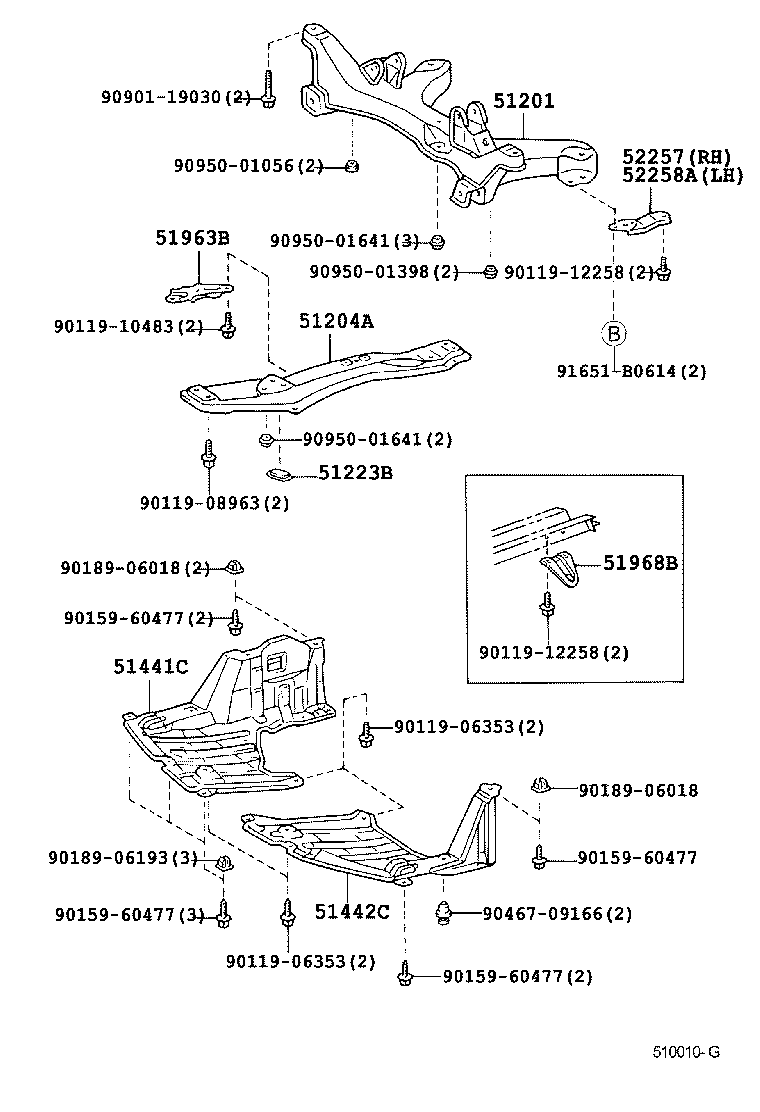

Exploded illustration 510010G 9090119030 — not listed in this catalogue 9011908963 — not listed in this catalogue 9095001056 — not listed in this catalogue 51963B — HOOK, TRANSPORT, FRONT RH (2 parts) 9011910483 — not listed in this catalogue 9095001641 — not listed in this catalogue 9095001398 — not listed in this catalogue 51204A — MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER (3 parts) 9095001641 — not listed in this catalogue 51223B — COVER, ENGINE MOUNTING HOLE (1 parts) 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (2 parts) 9011912258 — not listed in this catalogue 91651B0614 — not listed in this catalogue 52258A — BRACE, FRONT SUSPENSION MEMBER, REAR LH (2 parts) 52257 — BRACE, FRONT SUSPENSION MEMBER, REAR RH (2 parts) 51968B — HOOK, TRANSPORT, REAR LH (2 parts) 9011912258 — not listed in this catalogue 9011906353 — not listed in this catalogue 9018906018 — not listed in this catalogue 9018906018 — not listed in this catalogue 9015960477 — not listed in this catalogue 9046709166 — not listed in this catalogue 9015960477 — not listed in this catalogue 51442C — COVER, ENGINE UNDER, LH (2 parts) 9011906353 — not listed in this catalogue 9015960477 — not listed in this catalogue 9018906193 — not listed in this catalogue 51441C — COVER, ENGINE UNDER, RH (2 parts) 9015960477 — not listed in this catalogue
510010G · 9 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
51201 — Crossmember Sub-assy, Front Suspension
51201-20290 Crossmember Sub-assy, Front Suspension
1996-05 → —
SXM15 ¥64,000
51201-20320 Crossmember Sub-assy, Front Suspension
1996-05 → —
CXM10,SXM10 ¥41,900
51204A — Member Sub-assy, Engine Mounting, Center
51204-20110 Member Sub-assy, Engine Mounting, Center
1996-05 → 1998-05 ended
CXM10,SXM10 ¥15,700
51204-20111 Member Sub-assy, Engine Mounting, Center
1998-05 → —
CXM10,SXM10 ¥15,900
51204-20121 Member Sub-assy, Engine Mounting, Center
1996-05 → —
SXM15 ¥17,700
51223B — Cover, Engine Mounting Hole
51223-20050 Cover, Engine Mounting Hole
1996-05 → —
CXM10,SXM1# ¥370
51441C — Cover, Engine Under, RH
51441-20380 Cover, Engine Under, RH
1996-05 → —
SXM1# ¥8,600
51441-44010 Cover, Engine Under, RH
1997-09 → —
CXM10 ¥10,200
51442C — Cover, Engine Under, LH
51442-20450 Cover, Engine Under, LH
1996-05 → —
SXM1# ¥6,800
51442-44010 Cover, Engine Under, LH
1997-09 → —
CXM10 ¥10,200
51963B — Hook, Transport, Front RH
51963-20130 Hook, Transport, Front RH
1996-05 → —
SXM1# ¥1,950
51963-44010 Hook, Transport, Front RH
1997-09 → —
CXM10 ¥3,210
51968B — Hook, Transport, Rear LH
51096-44010 Hook, Transport, Rear LH
1997-08 → —
SXM1# ATG ¥7,200
51968-44010 Hook, Transport, Rear LH
1996-05 → —
CXM10,SXM1# E,IPSUM,L ¥3,170
52257 — Brace, Front Suspension Member, Rear RH
52257-44010 Brace, Front Suspension Member, Rear RH
1996-05 → —
CXM10,SXM10 ¥2,130
52257-44020 Brace, Front Suspension Member, Rear RH
1996-05 → —
SXM15 ¥2,130
52258A — Brace, Front Suspension Member, Rear LH
52258-44010 Brace, Front Suspension Member, Rear LH
1996-05 → —
CXM10,SXM10 ¥2,120
52258-44020 Brace, Front Suspension Member, Rear LH
1996-05 → —
SXM15 ¥2,120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
