Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

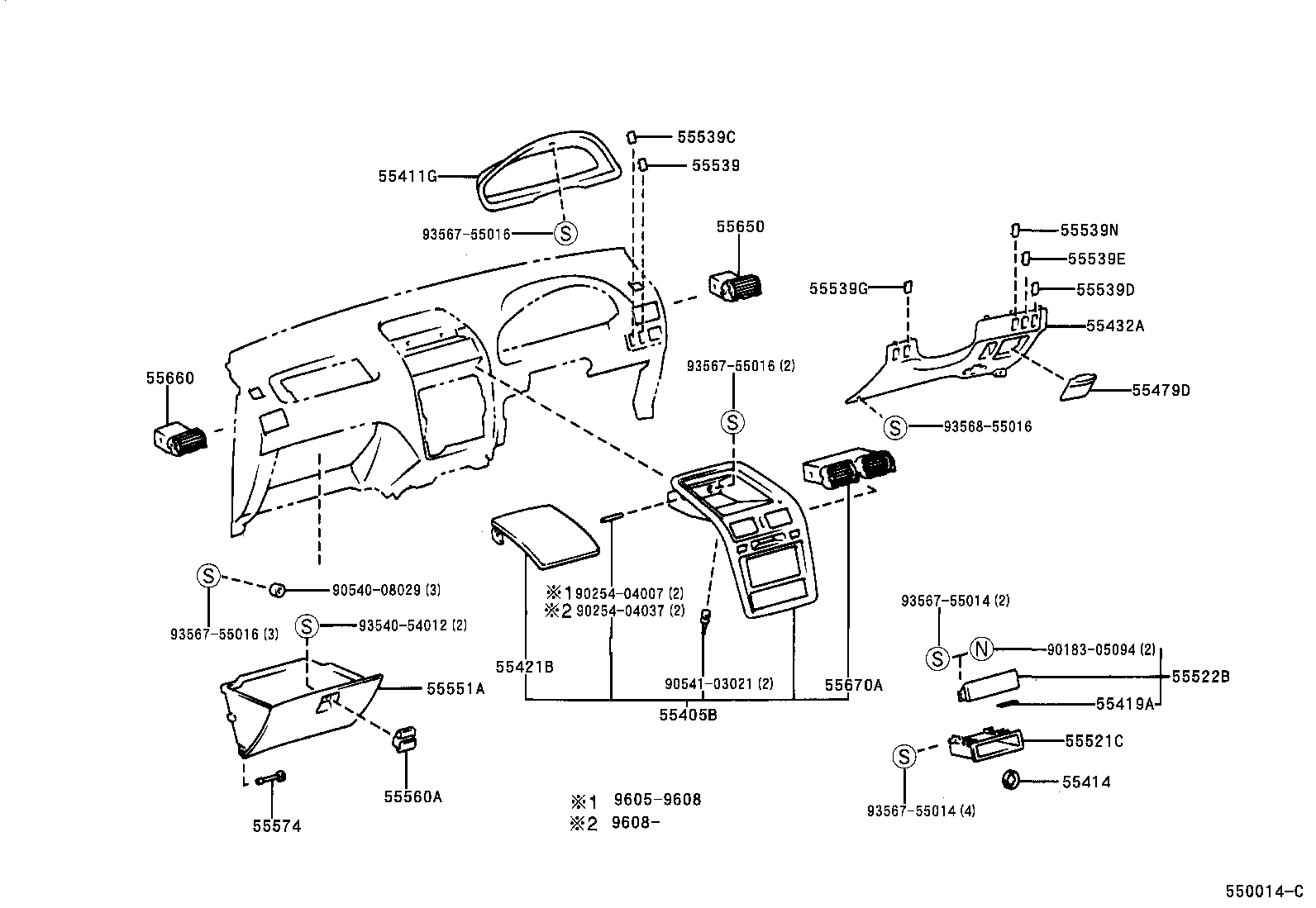

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-44010-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1996-05 → 1996-08
ended
|
SXM1# | ¥20,500 | |
| 55405-44011-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1996-08 → 1998-04
ended
|
CXM10,SXM1# | ¥20,600 | |
| 55405-44040-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1998-04 → —
|
CXM10,SXM1# | ¥18,700 | |
| 55405-44040-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥18,700 | |
| 55405-44040-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥18,700 | |
| 55405-44040-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥18,700 | |
| 55405-44040-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1998-06 → —
|
SXM1# IPSUM | ¥18,700 | |
| 55405-44040-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥18,700 | |
| 55405-44050-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1998-04 → —
|
CXM10,SXM1# | ¥12,000 | |
| 55405-44050-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥12,000 | |
| 55405-44050-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥12,000 | |
| 55405-44050-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥12,000 | |
| 55405-44050-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥12,000 | |
| 55405-44050-B1 note |
Panel Sub-assy, Instrument Cluster Finish, Center
1998-06 → —
|
SXM1# IPSUM | ¥12,000 | |
| 55411G — Panel, Instrument Cluster Finish, NO.1 | ||||
| 55411-44010-B0 note |
Panel, Instrument Cluster Finish, NO.1
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥5,400 | |
| 55411-44010-C1 note |
Panel, Instrument Cluster Finish, NO.1
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥5,400 | |
| 55411-44010-C1 note |
Panel, Instrument Cluster Finish, NO.1
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥5,400 | |
| 55411-44010-C1 note |
Panel, Instrument Cluster Finish, NO.1
1998-04 → —
|
CXM10,SXM1# | ¥5,400 | |
| 55411-44010-C1 note |
Panel, Instrument Cluster Finish, NO.1
1998-06 → —
|
SXM1# IPSUM | ¥5,400 | |
| 55414 — Bezel, Cigar Lighter Hole | ||||
| 55477-26010 |
Bezel, Cigar Lighter Hole
1996-05 → —
|
CXM10,SXM1# | ¥310 | |
| 55419A — Cushion, Instrument Cluster Finish Panel | ||||
| 55419-14020 |
Cushion, Instrument Cluster Finish Panel
1996-05 → 1996-08
ended
|
SXM1# | ¥60 | |
| 55421B — Panel, Instrument Cluster Finish, Upper | ||||
| 55421-44010-B0 note |
Panel, Instrument Cluster Finish, Upper
1996-05 → 1996-08
ended
|
SXM1# | ¥4,060 | |
| 55421-44011-B0 note |
Panel, Instrument Cluster Finish, Upper
1996-08 → 1998-04
ended
|
CXM10,SXM1# | ¥4,090 | |
| 55421-44020-B0 note |
Panel, Instrument Cluster Finish, Upper
1998-04 → —
|
CXM10,SXM1# | ¥5,400 | |
| 55421-44020-B1 note |
Panel, Instrument Cluster Finish, Upper
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥5,400 | |
| 55421-44020-B1 note |
Panel, Instrument Cluster Finish, Upper
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥5,400 | |
| 55421-44020-B1 note |
Panel, Instrument Cluster Finish, Upper
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥5,400 | |
| 55421-44020-B1 note |
Panel, Instrument Cluster Finish, Upper
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥5,400 | |
| 55432A — Panel, Instrument Panel Finish, Lower RH | ||||
| 55432-44010-B0 note |
Panel, Instrument Panel Finish, Lower RH
1996-05 → —
|
CXM10,SXM1# | ¥9,800 | |
| 55432-44010-B1 note |
Panel, Instrument Panel Finish, Lower RH
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥9,900 | |
| 55432-44010-B1 note |
Panel, Instrument Panel Finish, Lower RH
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥9,900 | |
| 55432-44010-B1 note |
Panel, Instrument Panel Finish, Lower RH
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥9,900 | |
| 55432-44010-B1 note |
Panel, Instrument Panel Finish, Lower RH
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥9,900 | |
| 55432-44010-B1 note |
Panel, Instrument Panel Finish, Lower RH
1998-06 → —
|
SXM1# IPSUM | ¥9,900 | |
| 55479D — Garnish, Instrument Cluster Finish Panel, Lower | ||||
| 55479-44010-B0 note |
Garnish, Instrument Cluster Finish Panel, Lower
1996-05 → —
|
CXM10,SXM1# | ¥2,840 | |
| 55479-44010-B2 note |
Garnish, Instrument Cluster Finish Panel, Lower
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥2,830 | |
| 55479-44010-B2 note |
Garnish, Instrument Cluster Finish Panel, Lower
1998-06 → —
|
SXM1# IPSUM | ¥2,830 | |
| 55479-44010-B2 note |
Garnish, Instrument Cluster Finish Panel, Lower
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥2,830 | |
| 55479-44010-B2 note |
Garnish, Instrument Cluster Finish Panel, Lower
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥2,830 | |
| 55479-44010-B2 note |
Garnish, Instrument Cluster Finish Panel, Lower
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥2,830 | |
| 55521C — Cover, Stereo Opening | ||||
| 55521-16030 |
Cover, Stereo Opening
1996-05 → —
|
CXM10,SXM1# | ¥1,580 | |
| 55522B — Cover, Radio Tuner Opening | ||||
| 55522-20070 |
Cover, Radio Tuner Opening
1996-08 → —
|
CXM10,SXM1# | ¥1,690 | |
| 55522-32010 |
Cover, Radio Tuner Opening
1996-05 → 1996-08
ended
|
SXM1# | ¥1,620 | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1996-05 → —
|
CXM10,SXM1# | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1998-06 → —
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥440 | |
| 55539C — Cover, Spare Switch Hole | ||||
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥440 | |
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1998-04 → —
|
CXM10,SXM10 | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1998-06 → —
|
SXM1# IPSUM | ¥440 | |
| 55539D — Cover, Spare Switch Hole | ||||
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥440 | |
| 55539E — Cover, Spare Switch Hole | ||||
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1996-05 → —
|
CXM10,SXM1# | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1998-06 → —
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥440 | |
| 55539G — Cover, Spare Switch Hole | ||||
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1996-05 → 1997-08
ended
|
SXM1# E,IPSUM | ¥440 | |
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1997-08 → —
|
CXM10,SXM1# E | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥440 | |
| 55539-12130-B4 note |
Cover, Spare Switch Hole
1998-06 → —
|
SXM1# IPSUM | ¥440 | |
| 55539N — Cover, Spare Switch Hole | ||||
| 55539-12130-B2 note |
Cover, Spare Switch Hole
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥440 | |
| 55551A — Door, Glove Compartment, Outer | ||||
| 55550-44010-B0 note |
Door, Glove Compartment, Outer
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥11,800 | |
| 55550-44010-B0 note |
Door, Glove Compartment, Outer
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥11,800 | |
| 55550-44010-B0 note |
Door, Glove Compartment, Outer
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥11,800 | |
| 55550-44010-B0 note |
Door, Glove Compartment, Outer
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥11,800 | |
| 55550-44010-B1 note |
Door, Glove Compartment, Outer
1998-11 → —
|
CXM10,SXM1# | ¥11,800 | |
| 55551-44010-B0 note |
Door, Glove Compartment, Outer
1996-05 → 1998-11
ended
|
CXM10,SXM1# | ¥11,800 | |
| 55551-44010-B1 note |
Door, Glove Compartment, Outer
1998-06 → —
|
SXM1# IPSUM | ¥11,800 | |
| 55560A — Lock Assy, Glove Compartment Door | ||||
| 55560-12080-B2 note |
Lock Assy, Glove Compartment Door
1996-05 → —
|
CXM10,SXM1# | ¥1,410 | |
| 55560-12080-B5 note |
Lock Assy, Glove Compartment Door
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥1,410 | |
| 55560-12080-B5 note |
Lock Assy, Glove Compartment Door
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥1,410 | |
| 55560-12080-B5 note |
Lock Assy, Glove Compartment Door
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥1,410 | |
| 55560-12080-B5 note |
Lock Assy, Glove Compartment Door
1998-06 → —
|
SXM1# IPSUM | ¥1,410 | |
| 55574 — Shaft, Glove Compartment Door Hinge | ||||
| 55574-10010 |
Shaft, Glove Compartment Door Hinge
1996-05 → —
|
CXM10,SXM1# | ¥160 | |
| 55650 — Register Assy, Instrument Panel, NO.1 | ||||
| 55650-44010-B0 note |
Register Assy, Instrument Panel, NO.1
1996-05 → —
|
CXM10,SXM1# | ¥5,100 | |
| 55650-44010-B1 note |
Register Assy, Instrument Panel, NO.1
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55650-44010-B1 note |
Register Assy, Instrument Panel, NO.1
1998-06 → —
|
SXM1# IPSUM | ¥5,200 | |
| 55650-44010-B1 note |
Register Assy, Instrument Panel, NO.1
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55650-44010-B1 note |
Register Assy, Instrument Panel, NO.1
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55650-44010-B1 note |
Register Assy, Instrument Panel, NO.1
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-44010-B0 note |
Register Assy, Instrument Panel, NO.2
1996-05 → —
|
CXM10,SXM1# | ¥5,100 | |
| 55660-44010-B1 note |
Register Assy, Instrument Panel, NO.2
1998-12 → 2000-04
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55660-44010-B1 note |
Register Assy, Instrument Panel, NO.2
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55660-44010-B1 note |
Register Assy, Instrument Panel, NO.2
2000-04 → 2000-09
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55660-44010-B1 note |
Register Assy, Instrument Panel, NO.2
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥5,200 | |
| 55660-44010-B1 note |
Register Assy, Instrument Panel, NO.2
1998-06 → —
|
SXM1# IPSUM | ¥5,200 | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-44010-B0 note |
Register Assy, Instrument Panel, Center
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥8,200 | |
| 55670-44030 note |
Register Assy, Instrument Panel, Center
1998-04 → —
|
CXM10,SXM1# | ¥7,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
