Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

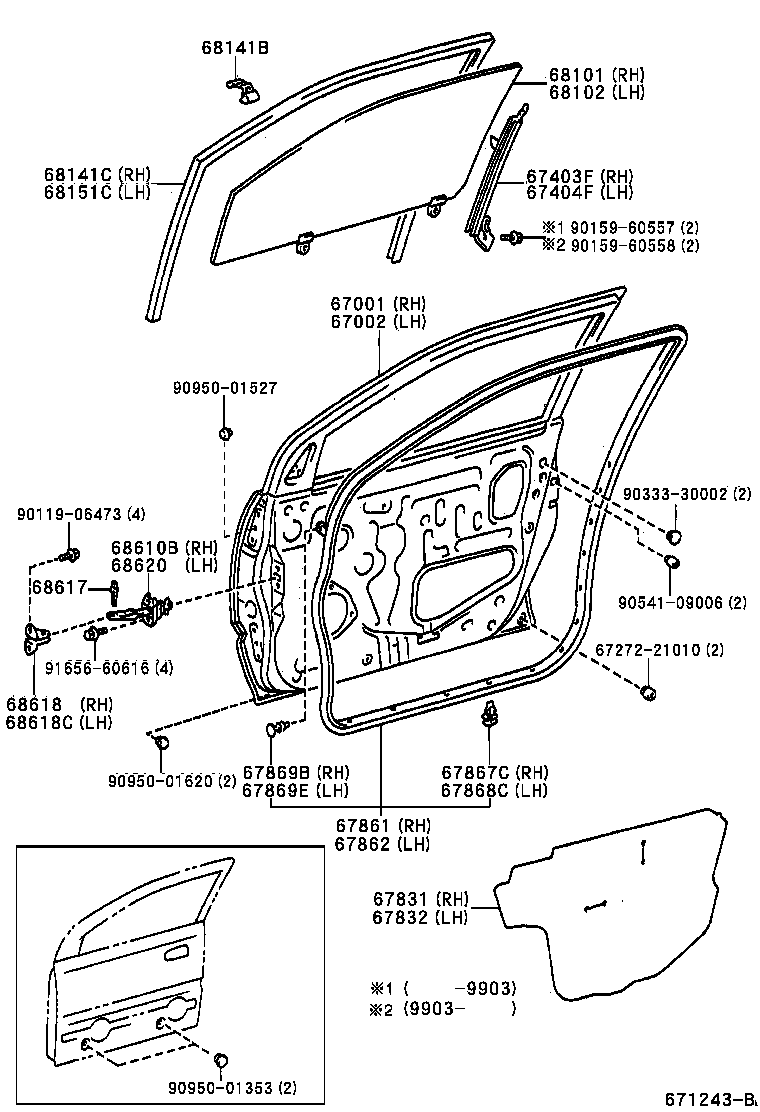

Exploded illustration 671243B 68141B — CLIP, DOOR GLASS RUN (1 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (5 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (5 parts) 68141C — RUN, FRONT DOOR GLASS, RH (1 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (3 parts) 68151C — RUN, FRONT DOOR GLASS, LH (1 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (3 parts) 9015960557 — not listed in this catalogue 9015960558 — not listed in this catalogue 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (3 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (3 parts) 9095001527 — not listed in this catalogue 9033330002 — not listed in this catalogue 9011906473 — not listed in this catalogue 68610B — CHECK ASSY, FRONT DOOR, RH (1 parts) 68620 — CHECK ASSY, FRONT DOOR, LH (1 parts) 68617 — PIN, FRONT DOOR CHECK (1 parts) 9054109006 — not listed in this catalogue 6727221010 — not listed in this catalogue 9165660616 — not listed in this catalogue 68618 — BRACKET, FRONT DOOR CHECK ARM, RH (2 parts) 68618C — BRACKET, FRONT DOOR CHECK ARM, LH (2 parts) 67869B — CLIP, FRONT DOOR WEATHERSTRIP (1 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (1 parts) 9095001620 — not listed in this catalogue 67869E — CLIP, FRONT DOOR WEATHERSTRIP (1 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (1 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (2 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (2 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (1 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (1 parts) 9095001353 — not listed in this catalogue
671243B · 22 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-44010 Panel Sub-assy, Front Door, RH
1996-05 → 1998-04 ended
CXM10,SXM1# ¥64,800
67001-44011 Panel Sub-assy, Front Door, RH
1998-04 → 1999-06 ended
CXM10,SXM1# ¥64,800
67001-44012 Panel Sub-assy, Front Door, RH
1999-06 → —
CXM10,SXM1# ¥64,800
67002 — Panel Sub-assy, Front Door, LH
67002-44010 Panel Sub-assy, Front Door, LH
1996-05 → 1998-04 ended
CXM10,SXM1# ¥64,800
67002-44011 Panel Sub-assy, Front Door, LH
1998-04 → 1999-06 ended
CXM10,SXM1# ¥64,800
67002-44012 Panel Sub-assy, Front Door, LH
1999-06 → —
CXM10,SXM1# ¥64,800
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-44010 Frame Sub-assy, Front Door, Rear Lower RH
1996-05 → 1998-04 ended
CXM10,SXM1# ¥1,760
67403-44030 Frame Sub-assy, Front Door, Rear Lower RH
1998-04 → 1999-03 ended
CXM10,SXM1# ¥1,760
67403-44031 Frame Sub-assy, Front Door, Rear Lower RH
1999-03 → —
CXM10,SXM1# ¥1,760
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-44010 Frame Sub-assy, Front Door, Rear Lower LH
1996-05 → 1998-04 ended
CXM10,SXM1# ¥1,760
67404-44030 Frame Sub-assy, Front Door, Rear Lower LH
1998-04 → 1999-03 ended
CXM10,SXM1# ¥1,760
67404-44031 Frame Sub-assy, Front Door, Rear Lower LH
1999-03 → —
CXM10,SXM1# ¥1,760
67831 — Cover, Front Door Service Hole, RH
67831-44010 Cover, Front Door Service Hole, RH
1996-05 → —
CXM10,SXM1# ¥1,000
67832 — Cover, Front Door Service Hole, LH
67831-44010 Cover, Front Door Service Hole, LH
1996-05 → —
CXM10,SXM1# ¥1,000
67861 — Weatherstrip, Front Door, RH
67861-44010 Weatherstrip, Front Door, RH
1996-05 → 1998-04 ended
CXM10,SXM1# ¥9,200
67861-44011 Weatherstrip, Front Door, RH
1998-04 → —
CXM10,SXM1# ¥9,200
67862 — Weatherstrip, Front Door, LH
67862-44010 Weatherstrip, Front Door, LH
1996-05 → 1998-04 ended
CXM10,SXM1# ¥9,200
67862-44011 Weatherstrip, Front Door, LH
1998-04 → —
CXM10,SXM1# ¥9,200
67867C — Retainer, Front Door Weatherstrip, RH
67867-12150 Retainer, Front Door Weatherstrip, RH
1996-05 → —
CXM10,SXM1# ¥100
67868C — Retainer, Front Door Weatherstrip, LH
67867-12150 Retainer, Front Door Weatherstrip, LH
1996-05 → —
CXM10,SXM1# ¥100
67869B — Clip, Front Door Weatherstrip
67869-22010 Clip, Front Door Weatherstrip
1996-05 → —
CXM10,SXM1# ¥100
67869E — Clip, Front Door Weatherstrip
67869-22010 Clip, Front Door Weatherstrip
1996-05 → —
CXM10,SXM1# ¥100
68101 — Glass Sub-assy, Front Door, RH
68101-44030 note Glass Sub-assy, Front Door, RH
1996-05 → 1996-08 ended
SXM1# IPSUM,L ¥30,900
68101-44040 note Glass Sub-assy, Front Door, RH
1996-05 → 1996-08 ended
SXM1# E ¥0
68101-44070 note Glass Sub-assy, Front Door, RH
1996-08 → 1997-08 ended
SXM1# IPSUM,L ¥29,300
68101-44080 note Glass Sub-assy, Front Door, RH
1996-08 → —
CXM10,SXM1# E ¥28,200
68101-44090 note Glass Sub-assy, Front Door, RH
1997-08 → —
CXM10,SXM1# ATG,IPSUM,L ¥30,700
68102 — Glass Sub-assy, Front Door, LH
68102-44030 note Glass Sub-assy, Front Door, LH
1996-05 → 1996-08 ended
SXM1# IPSUM,L ¥30,900
68102-44040 note Glass Sub-assy, Front Door, LH
1996-05 → 1996-08 ended
SXM1# E ¥0
68102-44070 note Glass Sub-assy, Front Door, LH
1996-08 → 1997-08 ended
SXM1# IPSUM,L ¥29,300
68102-44080 note Glass Sub-assy, Front Door, LH
1996-08 → —
CXM10,SXM1# E ¥28,200
68102-44090 note Glass Sub-assy, Front Door, LH
1997-08 → —
CXM10,SXM1# ATG,IPSUM,L ¥30,700
68141B — Clip, Door Glass Run
62367-44010 Clip, Door Glass Run
1996-05 → —
CXM10,SXM1# ¥380
68141C — Run, Front Door Glass, RH
68141-44010 Run, Front Door Glass, RH
1996-05 → —
CXM10,SXM1# ¥4,480
68151C — Run, Front Door Glass, LH
68151-44010 Run, Front Door Glass, LH
1996-05 → —
CXM10,SXM1# ¥4,480
68610B — Check Assy, Front Door, RH
68610-44010 Check Assy, Front Door, RH
1996-05 → —
CXM10,SXM1# ¥3,700
68617 — Pin, Front Door Check
68617-20050 Pin, Front Door Check
1996-05 → —
CXM10,SXM1# ¥320
68618 — Bracket, Front Door Check Arm, RH
68618-20030 Bracket, Front Door Check Arm, RH
2001-04 → —
CXM10,SXM1# ¥370
68618-26010 Bracket, Front Door Check Arm, RH
1996-05 → 2001-04 ended
CXM10,SXM1# ¥360
68618C — Bracket, Front Door Check Arm, LH
68618-20030 Bracket, Front Door Check Arm, LH
2001-04 → —
CXM10,SXM1# ¥370
68618-26010 Bracket, Front Door Check Arm, LH
1996-05 → 2001-04 ended
CXM10,SXM1# ¥360
68620 — Check Assy, Front Door, LH
68610-44010 Check Assy, Front Door, LH
1996-05 → —
CXM10,SXM1# ¥3,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
