Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

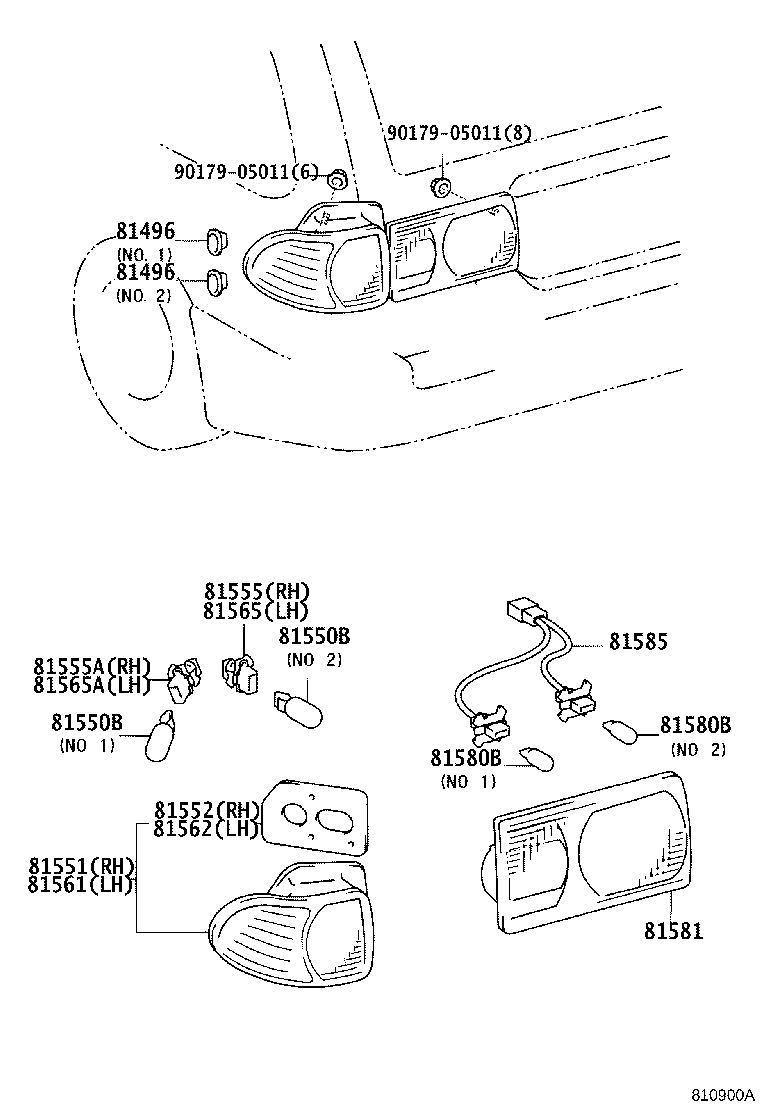

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81496 — Guide, Rear Combination Lamp | ||||
| 81496-44010 note |
Guide, Rear Combination Lamp
1996-05 → —
|
CXM10,SXM1# | ¥360 | |
| 81496-44020 note |
Guide, Rear Combination Lamp
1996-05 → —
|
CXM10,SXM1# | ¥360 | |
| 81550B — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 note |
Bulb(FOR REAR COMBINATION LAMP)
1996-05 → —
|
CXM10,SXM1# | ¥220 | |
| 90981-13044 note |
Bulb(FOR REAR COMBINATION LAMP)
1996-05 → —
|
CXM10,SXM1# | ¥230 | |
| 81551 — Lens, Rear Combination Lamp, RH | ||||
| 81551-44010 |
Lens, Rear Combination Lamp, RH
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥12,000 | |
| 81551-44040 |
Lens, Rear Combination Lamp, RH
1998-04 → —
|
CXM10,SXM1# | ¥14,600 | |
| 81552 — Gasket, Rear Combination Lamp Lens, RH | ||||
| 81552-44010 |
Gasket, Rear Combination Lamp Lens, RH
1996-05 → —
|
CXM10,SXM1# | ¥2,010 | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 90075-60002 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1996-05 → —
|
CXM10,SXM1# | ¥670 | |
| 81555A — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 90075-60003 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1996-05 → —
|
CXM10,SXM1# | ¥620 | |
| 81561 — Lens, Rear Combination Lamp, LH | ||||
| 81561-44010 |
Lens, Rear Combination Lamp, LH
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥12,000 | |
| 81561-44040 |
Lens, Rear Combination Lamp, LH
1998-04 → —
|
CXM10,SXM1# | ¥14,600 | |
| 81562 — Gasket, Rear Combination Lamp Lens, LH | ||||
| 81552-44010 |
Gasket, Rear Combination Lamp Lens, LH
1996-05 → —
|
CXM10,SXM1# | ¥2,010 | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 90075-60002 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1996-05 → —
|
CXM10,SXM1# | ¥670 | |
| 81565A — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 90075-60003 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1996-05 → —
|
CXM10,SXM1# | ¥620 | |
| 81580B — Bulb (FOR REAR LAMP) | ||||
| 90981-11039 note |
Bulb (FOR REAR LAMP)
1998-04 → —
|
CXM10,SXM1# | ¥200 | |
| 90981-13043 note |
Bulb (FOR REAR LAMP)
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥220 | |
| 90981-13044 note |
Bulb (FOR REAR LAMP)
1996-05 → —
|
CXM10,SXM1# | ¥230 | |
| 81581 — Lens, Rear Lamp | ||||
| 81581-44010 note |
Lens, Rear Lamp
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥8,500 | |
| 81581-44040 note |
Lens, Rear Lamp
1998-04 → —
|
CXM10,SXM1# | ¥11,100 | |
| 81591-44010 note |
Lens, Rear Lamp
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥8,500 | |
| 81591-44040 note |
Lens, Rear Lamp
1998-04 → —
|
CXM10,SXM1# | ¥11,100 | |
| 81585 — Socket & Wire, Rear Lamp | ||||
| 81585-44010 |
Socket & Wire, Rear Lamp
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥2,030 | |
| 81585-44040 |
Socket & Wire, Rear Lamp
1998-04 → —
|
CXM10,SXM1# | ¥2,170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
