Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

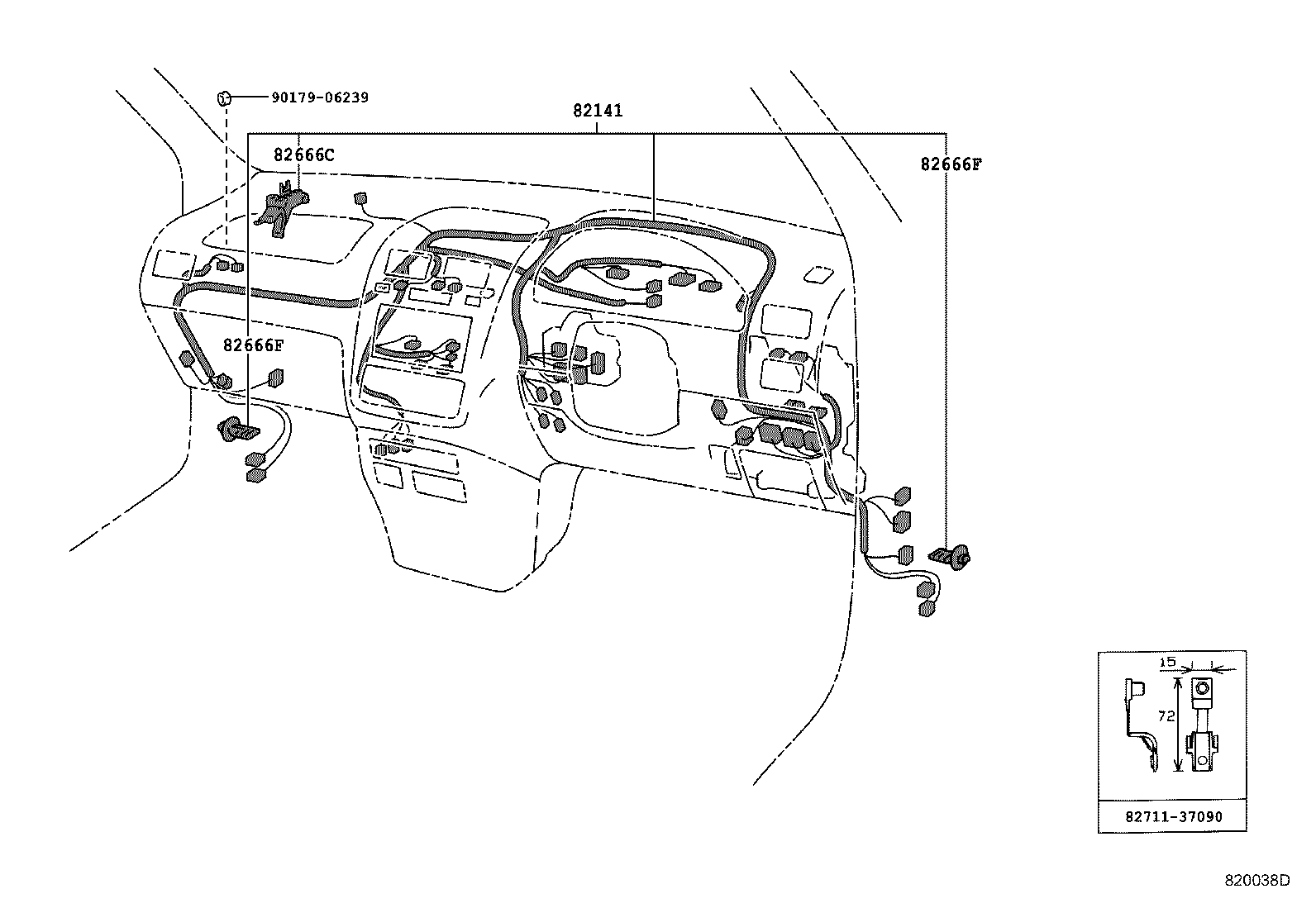

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-44010 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# E | ¥40,000 | |
| 82141-44020 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# IPSUM | ¥40,000 | |
| 82141-44030 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# E,IPSUM | ¥42,900 | |
| 82141-44040 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# | ¥48,900 | |
| 82141-44050 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# | ¥92,700 | |
| 82141-44060 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# | ¥92,700 | |
| 82141-44140 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# E,IPSUM | ¥48,900 | |
| 82141-44150 note |
Wire, Instrument Panel
1996-05 → 1997-08
ended
|
SXM1# E,IPSUM | ¥48,900 | |
| 82141-44170 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# IPSUM | ¥92,800 | |
| 82141-44180 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# ATG,IPSUM | ¥49,000 | |
| 82141-44190 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# E | ¥42,900 | |
| 82141-44200 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# IPSUM | ¥42,900 | |
| 82141-44210 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# E | ¥42,900 | |
| 82141-44220 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# ATG,IPSUM,L | ¥92,800 | |
| 82141-44230 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# L | ¥92,800 | |
| 82141-44240 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# ATG,IPSUM,L | ¥92,800 | |
| 82141-44250 note |
Wire, Instrument Panel
1997-08 → 1998-04
ended
|
CXM10,SXM1# E | ¥92,800 | |
| 82141-44340 note |
Wire, Instrument Panel
2000-05 → —
|
CXM10,SXM10 ATG,E,IPSUM | ¥49,000 | |
| 82141-44340 note |
Wire, Instrument Panel
1998-04 → 2000-05
ended
|
CXM10,SXM10 E,IPSUM | ¥49,000 | |
| 82141-44350 note |
Wire, Instrument Panel
1998-06 → —
|
SXM1# IPSUM | ¥106,000 | |
| 82141-44350 note |
Wire, Instrument Panel
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥106,000 | |
| 82141-44371 note |
Wire, Instrument Panel
2000-10 → 2001-04
ended
|
SXM1# IPSUM | ¥114,000 | |
| 82141-44380 note |
Wire, Instrument Panel
1998-04 → —
|
CXM10,SXM1# ATG,IPSUM,L | ¥92,800 | |
| 82141-44400 note |
Wire, Instrument Panel
1998-04 → —
|
CXM10,SXM1# L | ¥106,000 | |
| 82141-44410 note |
Wire, Instrument Panel
1998-04 → 2000-04
ended
|
CXM10,SXM1# ATG,IPSUM,L | ¥119,000 | |
| 82141-44411 note |
Wire, Instrument Panel
2000-04 → —
|
CXM10,SXM1# ATG,IPSUM,L | ¥114,000 | |
| 82141-44420 note |
Wire, Instrument Panel
1998-04 → 2000-04
ended
|
CXM10,SXM1# E,IPSUM | ¥106,000 | |
| 82141-44421 note |
Wire, Instrument Panel
2000-04 → 2000-05
ended
|
CXM10,SXM1# E,IPSUM | ¥101,000 | |
| 82141-44421 note |
Wire, Instrument Panel
2000-05 → —
|
CXM10,SXM1# ATG,E,IPSUM | ¥101,000 | |
| 82141-44430 note |
Wire, Instrument Panel
1998-04 → 2000-05
ended
|
CXM10,SXM1# E,IPSUM | ¥92,800 | |
| 82141-44430 note |
Wire, Instrument Panel
2000-05 → —
|
CXM10,SXM1# ATG,E,IPSUM | ¥92,800 | |
| 82141-44630 note |
Wire, Instrument Panel
1999-10 → 2000-04
ended
|
SXM1# IPSUM | ¥81,800 | |
| 82666C — Holder, Connector NO.4 | ||||
| 82666-44020 |
Holder, Connector NO.4
1996-05 → 1997-08
ended
|
SXM1# | ¥2,590 | |
| 82666-44080 |
Holder, Connector NO.4
1997-08 → —
|
CXM10,SXM1# | ¥2,600 | |
| 82666F — Holder, Connector NO.7 | ||||
| 82666-44050 |
Holder, Connector NO.7
1996-05 → —
|
CXM10,SXM1# | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
