Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

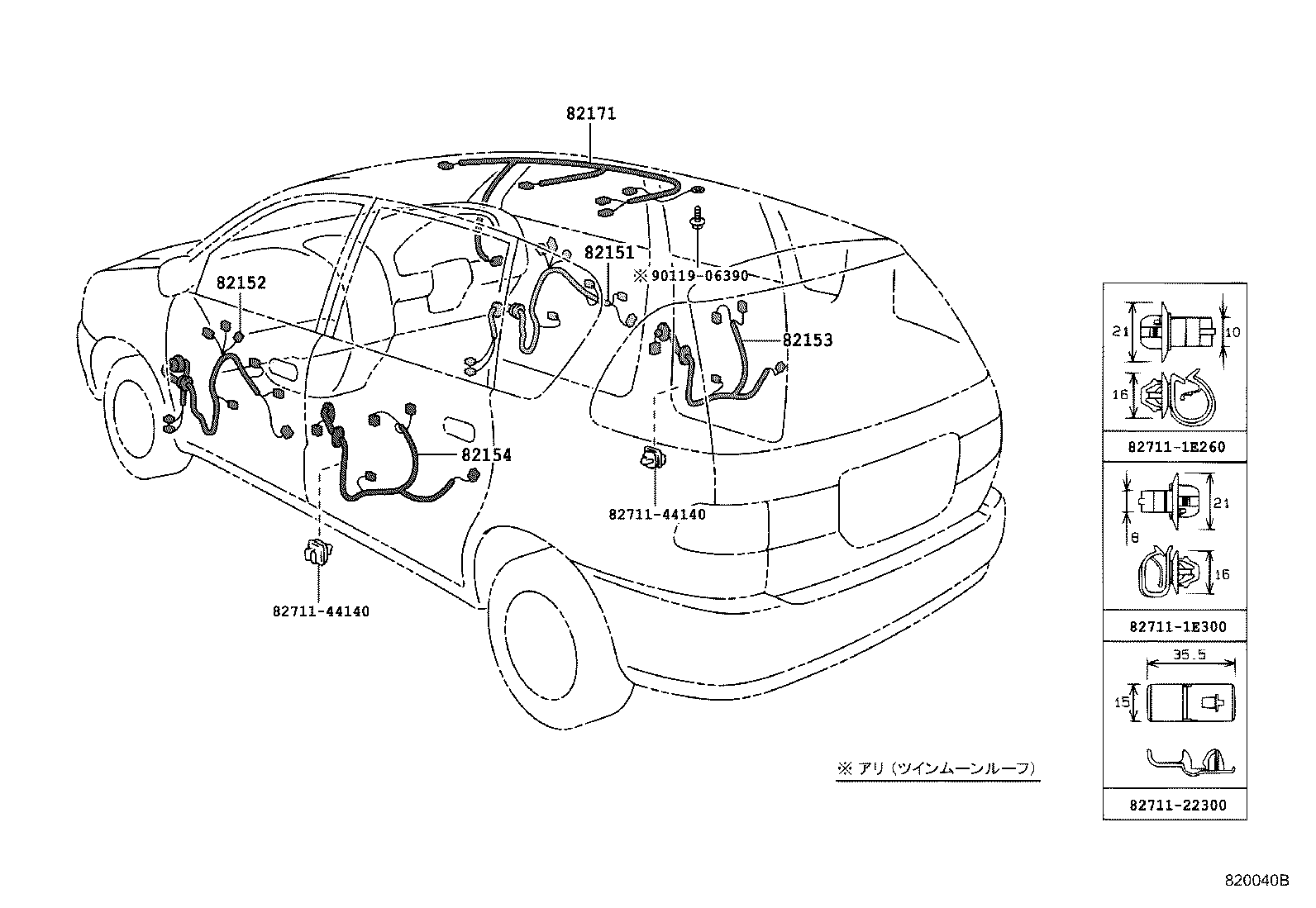

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

24 parts on this figure

Part number	Description	Fitment	Price
82151 — Wire, Front Door, RH
82151-44010	Wire, Front Door, RH 1996-05 → 1997-08 ended	SXM1#	¥16,200
82151-44020 note	Wire, Front Door, RH 1996-05 → 1997-08 ended	SXM1#	¥16,200
82151-44040 note	Wire, Front Door, RH 1997-08 → 1998-04 ended	CXM10,SXM1#	¥13,400
82151-44050 note	Wire, Front Door, RH 1997-08 → 1998-04 ended	CXM10,SXM1#	¥13,400
82151-44060 note	Wire, Front Door, RH 1998-04 → —	CXM10,SXM1#	¥14,900
82151-44070 note	Wire, Front Door, RH 1998-04 → —	CXM10,SXM1#	¥14,900
82152 — Wire, Front Door, LH
82152-44010 note	Wire, Front Door, LH 1996-05 → 1998-04 ended	CXM10,SXM1#	¥16,300
82152-44020 note	Wire, Front Door, LH 1996-05 → 1998-04 ended	CXM10,SXM1#	¥16,300
82152-44050 note	Wire, Front Door, LH 1998-04 → —	CXM10,SXM1#	¥10,500
82152-44060 note	Wire, Front Door, LH 1998-04 → —	CXM10,SXM1#	¥10,500
82153 — Wire, Rear Door, NO.1
82153-44010	Wire, Rear Door, NO.1 1996-05 → 1997-08 ended	SXM1# IPSUM,L	¥5,700
82153-44010 note	Wire, Rear Door, NO.1 1996-05 → 1997-08 ended	SXM1# E	¥5,700
82153-44010	Wire, Rear Door, NO.1 1997-08 → 1998-04 ended	CXM10,SXM1#	¥5,700
82153-44020	Wire, Rear Door, NO.1 1996-05 → 1997-08 ended	SXM1# E	¥5,700
82153-44030	Wire, Rear Door, NO.1 1998-04 → —	CXM10,SXM1#	¥5,700
82154 — Wire, Rear Door, NO.2
82154-44010	Wire, Rear Door, NO.2 1996-05 → 1997-08 ended	SXM1# IPSUM,L	¥5,700
82154-44010 note	Wire, Rear Door, NO.2 1996-05 → 1997-08 ended	SXM1# E	¥5,700
82154-44010	Wire, Rear Door, NO.2 1997-08 → 1998-04 ended	CXM10,SXM1#	¥5,700
82154-44020	Wire, Rear Door, NO.2 1996-05 → 1997-08 ended	SXM1# E	¥5,700
82154-44030	Wire, Rear Door, NO.2 1998-04 → —	CXM10,SXM1#	¥6,600
82171 — Wire, Roof, NO.1
82171-44020 note	Wire, Roof, NO.1 1996-05 → 1998-04 ended	CXM10,SXM1#	¥9,100
82171-44030	Wire, Roof, NO.1 1996-05 → 1998-04 ended	CXM10,SXM1#	¥3,890
82171-44060 note	Wire, Roof, NO.1 1998-04 → —	CXM10,SXM1#	¥9,100
82171-44070	Wire, Roof, NO.1 1998-04 → —	CXM10,SXM1#	¥3,480

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
