Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

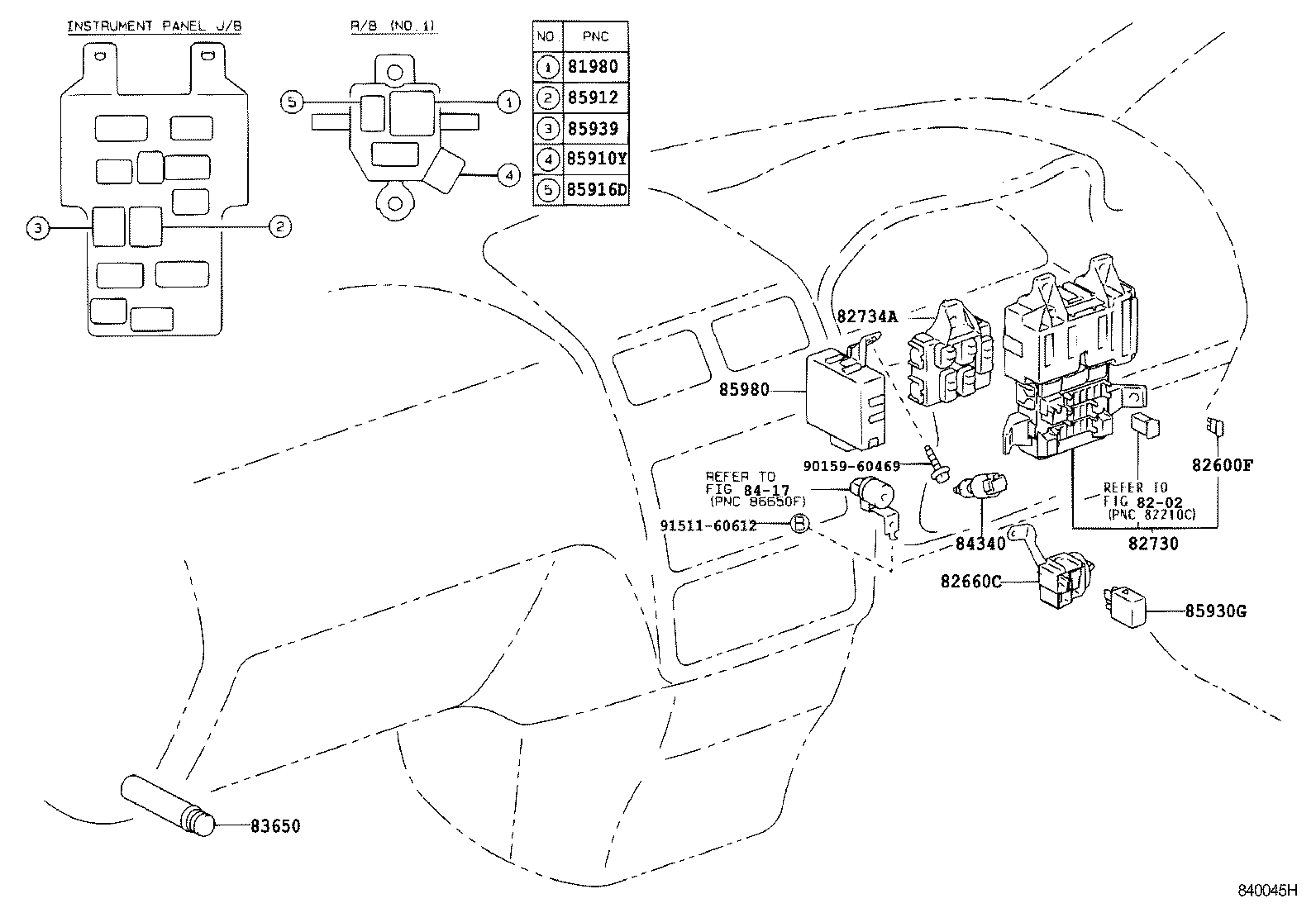

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-12070 |
Flasher Assy, Turn Signal
1996-05 → 1998-04
ended
|
CXM10,SXM1# | ¥7,800 | |
| 81980-12110 |
Flasher Assy, Turn Signal
1998-04 → —
|
CXM10,SXM1# | ¥7,900 | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09007 note |
Fuse, Fuse Block
1996-05 → —
|
CXM10,SXM1# | ¥60 | |
| 90982-09008 note |
Fuse, Fuse Block
1996-05 → —
|
CXM10,SXM1# | ¥80 | |
| 90982-09009 note |
Fuse, Fuse Block
1996-05 → —
|
CXM10,SXM1# | ¥70 | |
| 90982-09010 note |
Fuse, Fuse Block
1996-05 → —
|
CXM10,SXM1# | ¥70 | |
| 90982-09011 note |
Fuse, Fuse Block
1996-05 → —
|
CXM10,SXM1# | ¥70 | |
| 90982-09012 note |
Fuse, Fuse Block
1996-05 → —
|
CXM10,SXM1# | ¥80 | |
| 90982-09013 note |
Fuse, Fuse Block
1997-09 → 1998-04
ended
|
CXM10 | ¥70 | |
| 90982-09013 note |
Fuse, Fuse Block
1998-04 → —
|
SXM1# | ¥70 | |
| 82660C — Block Assy, Relay | ||||
| 82660-44020 |
Block Assy, Relay
1996-05 → 1998-04
ended
|
SXM1# | ¥1,850 | |
| 82660-44020 |
Block Assy, Relay
1998-04 → —
|
CXM10,SXM10 | ¥1,850 | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-44010 |
Block Assy, Instrument Panel Junction
1996-05 → 1997-08
ended
|
SXM1# | ¥22,300 | |
| 82730-44030 |
Block Assy, Instrument Panel Junction
1997-08 → —
|
CXM10,SXM1# | ¥20,600 | |
| 82734A — Block, Center Junction | ||||
| 82734-44010 |
Block, Center Junction
1996-05 → —
|
CXM10,SXM1# | ¥3,680 | |
| 83650 — Fusee | ||||
| 90986-01005 |
Fusee
1996-05 → —
|
CXM10,SXM1# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-32050 |
Switch Assy, Stop Lamp
1996-05 → 2001-05
ended
|
CXM10,SXM1# | ¥2,240 | |
| 85910Y — Relay, Rear Heater | ||||
| 90987-04002 |
Relay, Rear Heater
1997-08 → 1998-04
ended
|
CXM10;SXM1# ATG | ¥2,430 | |
| 90987-04002 |
Relay, Rear Heater
1998-04 → —
|
CXM10,SXM1# | ¥2,430 | |
| 85912 — Relay, Defogger | ||||
| 90987-02012 |
Relay, Defogger
1996-05 → —
|
CXM10,SXM1# | ¥2,930 | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02012 |
Relay, Fog Lamp
1998-04 → —
|
CXM10,SXM1# | ¥2,930 | |
| 85930G — Relay, Acc | ||||
| 90987-02012 |
Relay, Acc
1996-05 → —
|
CXM10,SXM1# | ¥2,930 | |
| 85939 — Relay, Power Window | ||||
| 90987-02012 |
Relay, Power Window
1996-05 → —
|
CXM10,SXM1# | ¥2,930 | |
| 85980 — Relay Assy, Door Control | ||||
| 85980-44010 |
Relay Assy, Door Control
1996-05 → 1998-04
ended
|
CXM10,SXM1# ATG,E,IPSUM | ¥20,800 | |
| 85980-44011 |
Relay Assy, Door Control
1998-04 → —
|
SXM10 E,IPSUM | ¥20,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
