Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01

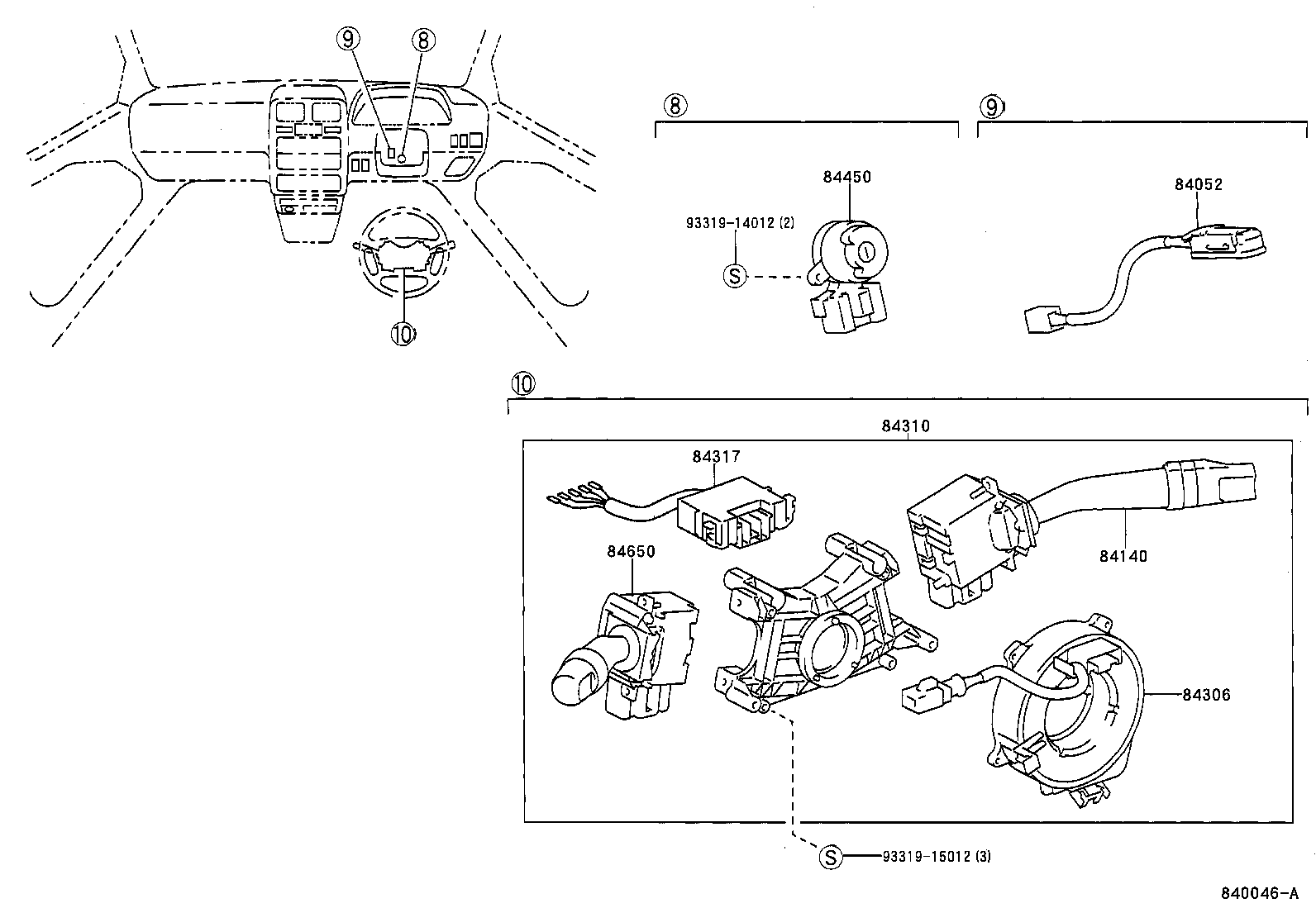

840046A · 7 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
11 parts on this figure
Part number Description Fitment Price
84052 — Switch Assy, Un-lock Warning
84052-12070 Switch Assy, Un-lock Warning
1996-05 → —
CXM10,SXM1# ¥1,080
84140 — Switch Assy, Headlamp Dimmer
84140-20570 Switch Assy, Headlamp Dimmer
1996-05 → —
CXM10,SXM1# ¥6,800
84306 — Cable Sub-assy, Spiral
84306-12070 Cable Sub-assy, Spiral
1998-04 → 2001-05 ended
CXM10,SXM1# ¥17,200
84306-35010 Cable Sub-assy, Spiral
1996-05 → 1997-03 ended
SXM1# ¥20,900
84306-35011 Cable Sub-assy, Spiral
1997-03 → 1998-04 ended
CXM10,SXM1# ¥20,600
84310 — Switch Assy, Turn Signal
84310-1G060 Switch Assy, Turn Signal
1998-04 → —
CXM10,SXM10 ¥30,400
84310-44030 Switch Assy, Turn Signal
1996-05 → 1998-04 ended
CXM10,SXM1# ¥30,400
84310-44040 Switch Assy, Turn Signal
1998-04 → —
SXM15 ¥37,200
84317 — Sensor, Steering Position
84317-44010 Sensor, Steering Position
1998-04 → —
SXM15 ¥14,000
84450 — Switch Assy, Ignition OR Starter
84450-12200 Switch Assy, Ignition OR Starter
1996-05 → —
CXM10,SXM1# ¥3,240
84650 — Switch Assy, Windshield Wiper
84652-44030 Switch Assy, Windshield Wiper
1996-05 → —
CXM10,SXM1# ¥11,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
