Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

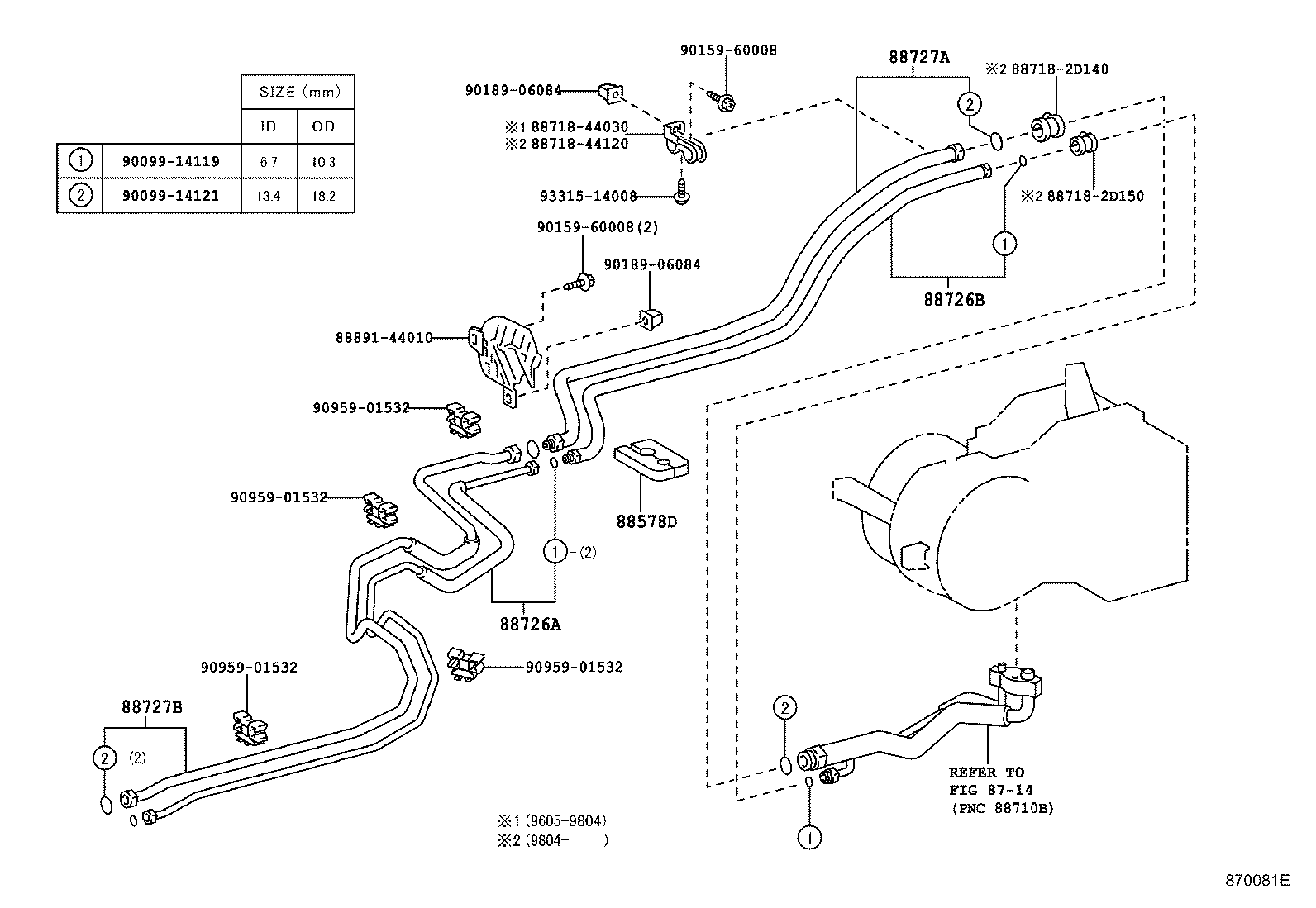

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88578D — Packing, Cooler Pipe, NO.1 | ||||
| 88578-44020 |
Packing, Cooler Pipe, NO.1
1996-05 → 1997-08
ended
|
SXM1# | — | |
| 88578-44020 |
Packing, Cooler Pipe, NO.1
1997-08 → —
|
CXM10,SXM1# ATG,IPSUM,L | — | |
| 88726A — Pipe, Cooler Refrigerant Liquid, A | ||||
| 88716-44070 |
Pipe, Cooler Refrigerant Liquid, A
1996-05 → 1997-08
ended
|
SXM1# | ¥9,800 | |
| 88716-44070 |
Pipe, Cooler Refrigerant Liquid, A
1997-08 → —
|
CXM10,SXM1# ATG,IPSUM,L | ¥9,800 | |
| 88726B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88716-44060 |
Pipe, Cooler Refrigerant Liquid, B
1996-05 → 1997-08
ended
|
SXM1# | ¥9,300 | |
| 88716-44060 |
Pipe, Cooler Refrigerant Liquid, B
1997-08 → 1998-04
ended
|
CXM10,SXM1# ATG,IPSUM,L | ¥9,300 | |
| 88716-44260 |
Pipe, Cooler Refrigerant Liquid, B
1998-04 → —
|
CXM10,SXM1# ATG,IPSUM,L | ¥9,000 | |
| 88727A — Pipe, Cooler Refrigerant Suction, A | ||||
| 88717-44020 |
Pipe, Cooler Refrigerant Suction, A
1996-05 → 1997-08
ended
|
SXM1# | ¥16,800 | |
| 88717-44020 |
Pipe, Cooler Refrigerant Suction, A
1997-08 → 1998-04
ended
|
CXM10,SXM1# ATG,IPSUM,L | ¥16,800 | |
| 88717-44110 |
Pipe, Cooler Refrigerant Suction, A
1998-04 → —
|
CXM10,SXM1# ATG,IPSUM,L | ¥16,500 | |
| 88727B — Pipe, Cooler Refrigerant Suction, B | ||||
| 88717-44030 |
Pipe, Cooler Refrigerant Suction, B
1996-05 → 1997-08
ended
|
SXM1# | ¥21,900 | |
| 88717-44030 |
Pipe, Cooler Refrigerant Suction, B
1997-08 → —
|
CXM10,SXM1# ATG,IPSUM,L | ¥21,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
