Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 4 illustrations

Illustrations

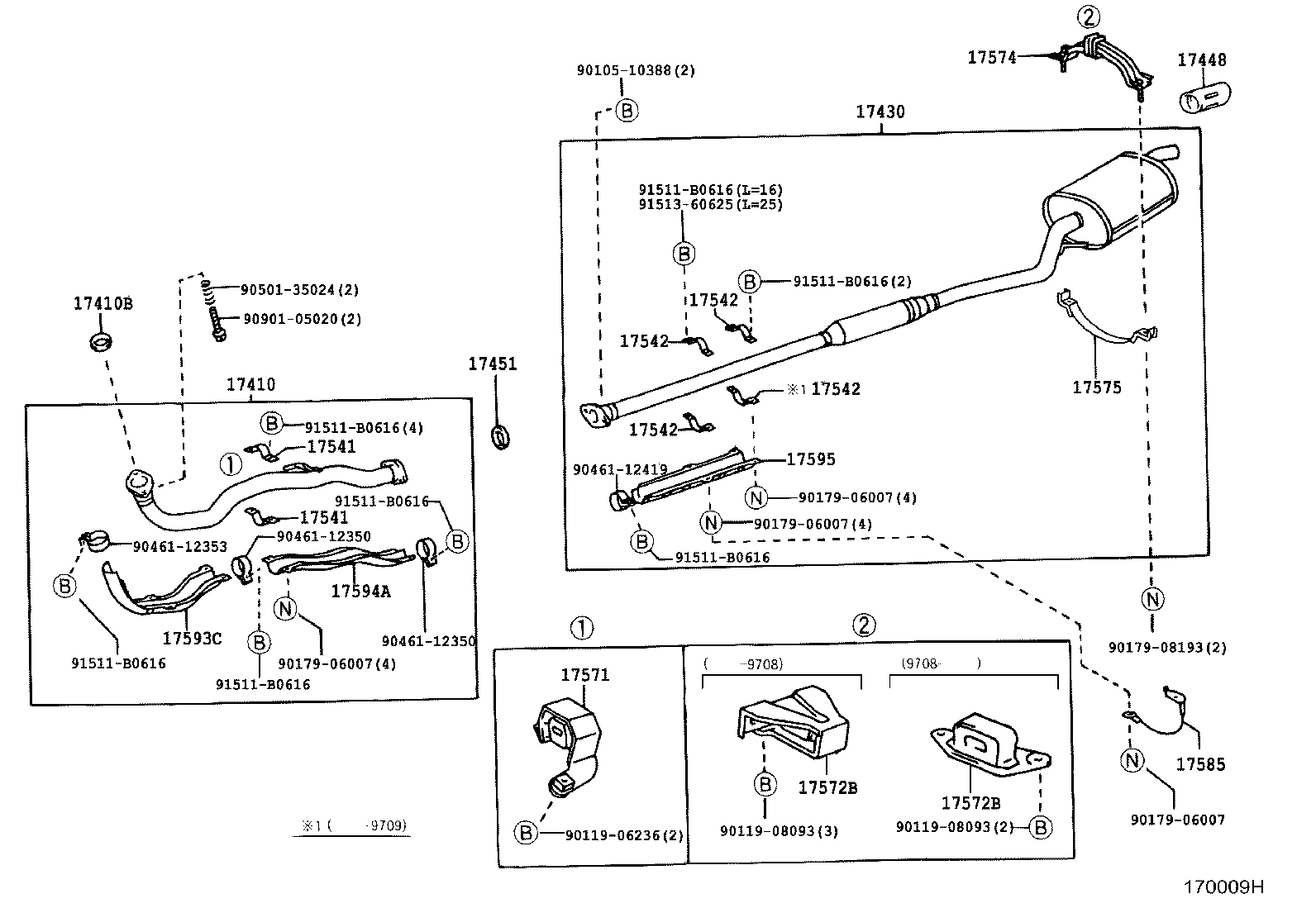

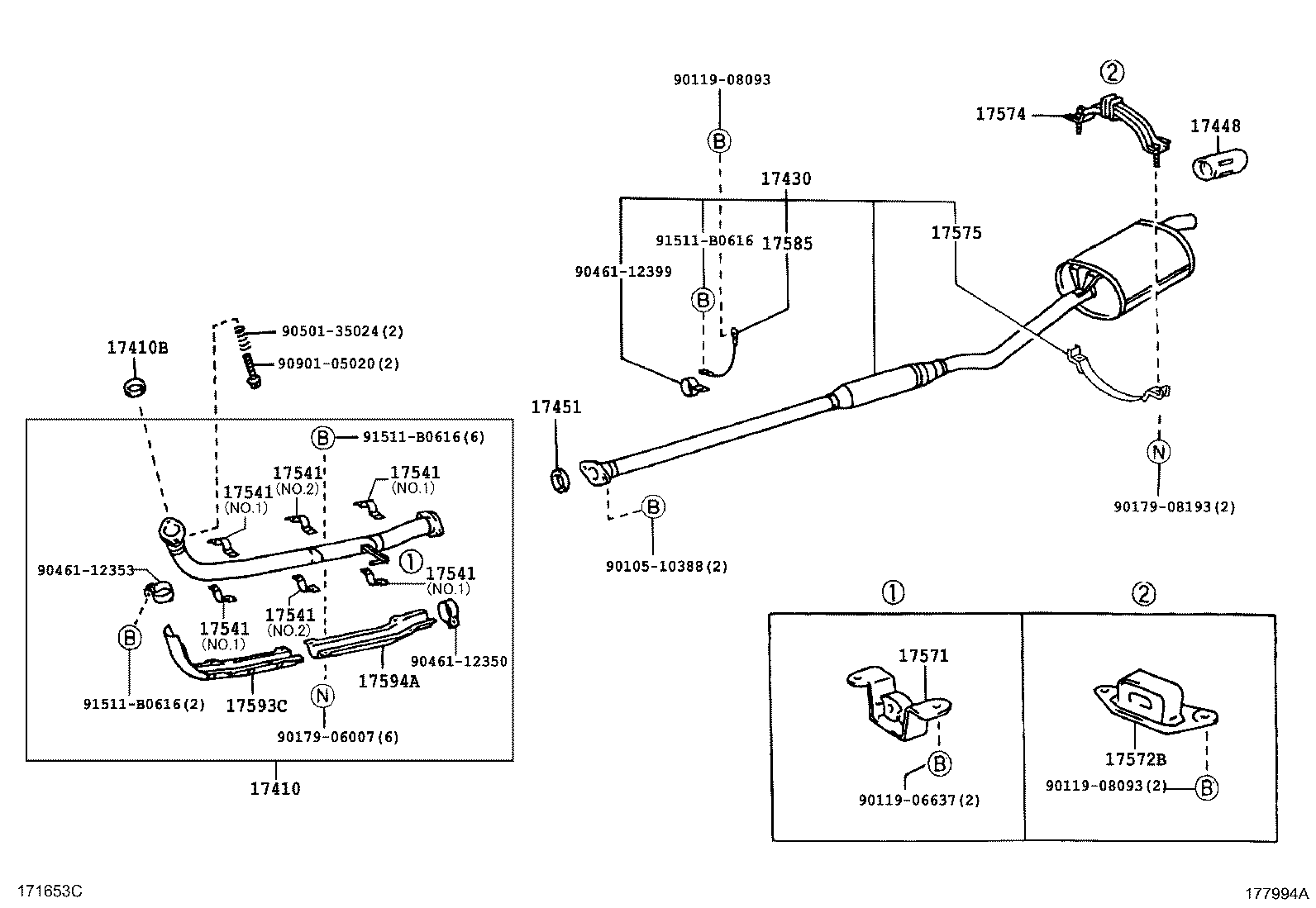

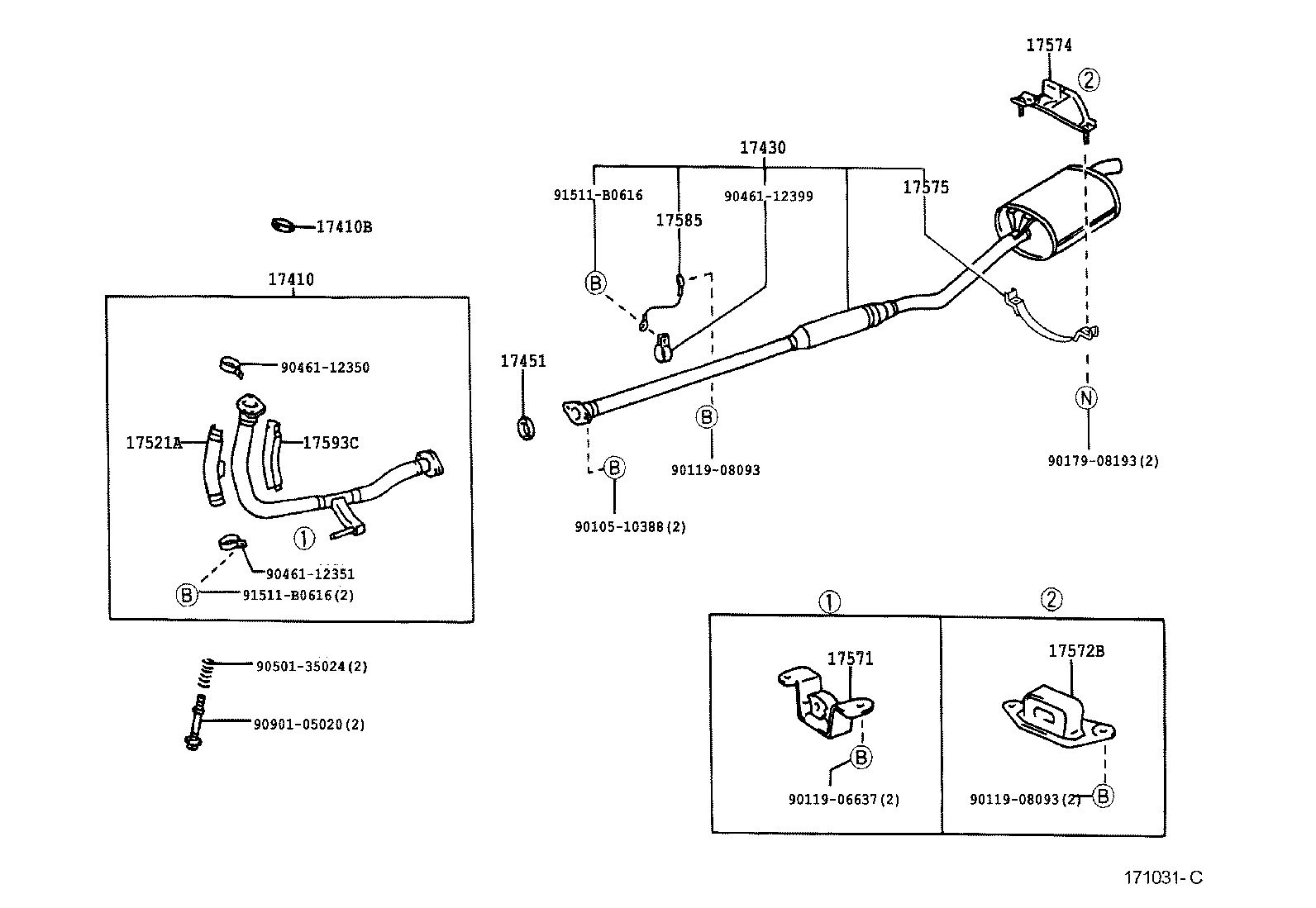

Figure 170008E 170008E 1996-05 → 1998-04 Figure 177994A 177994A 1998-04 → — Figure 170009H 170009H 1996-05 → — Figure 171031C 171031C 1997-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17541 Stay, Exhust Pipe Protector, NO.1
17542 Stay, Exhaust Pipe Protector, NO.2
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17585 Hanger, Exhaust Pipe
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
