Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

13 part groups · 2 illustrations

Illustrations

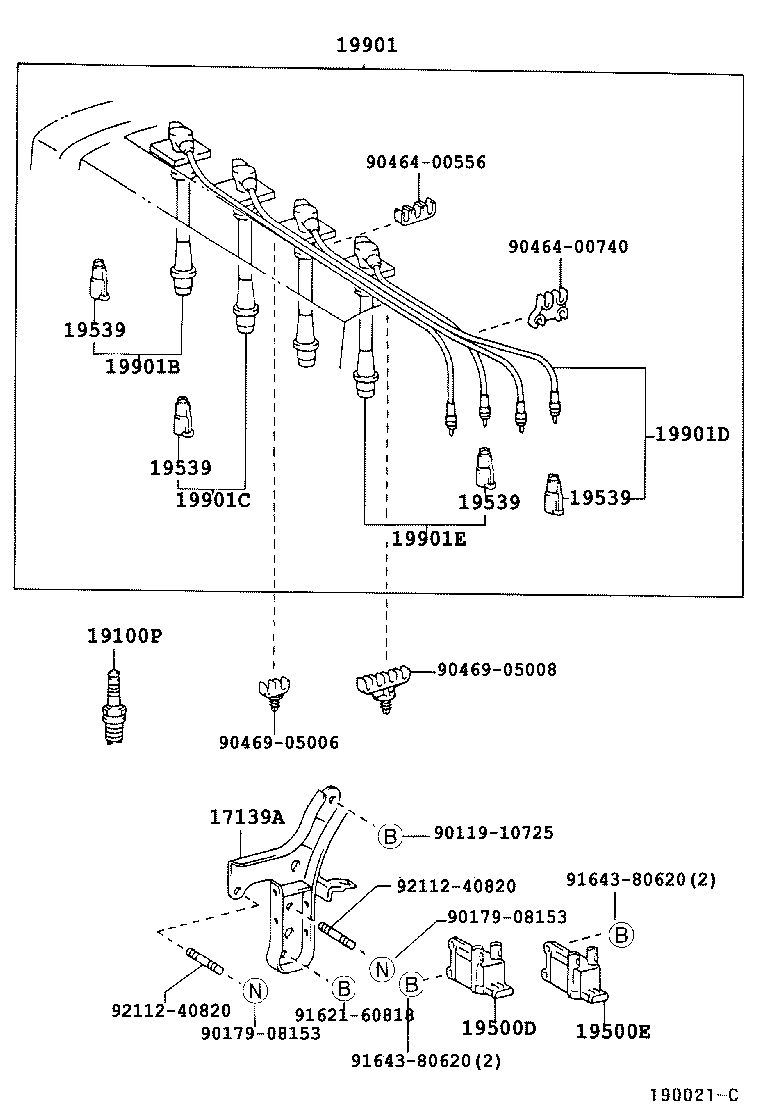

Figure 190377 190377 1997-09 → — Figure 190021D 190021D 1996-05 → —

Part groups

PNCDescription
17139A Stay, Manifold, NO.1
19100P Plug, Spark
19500D Coil, Ignition, NO.1
19500E Coil, Ignition, NO.2
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
