Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

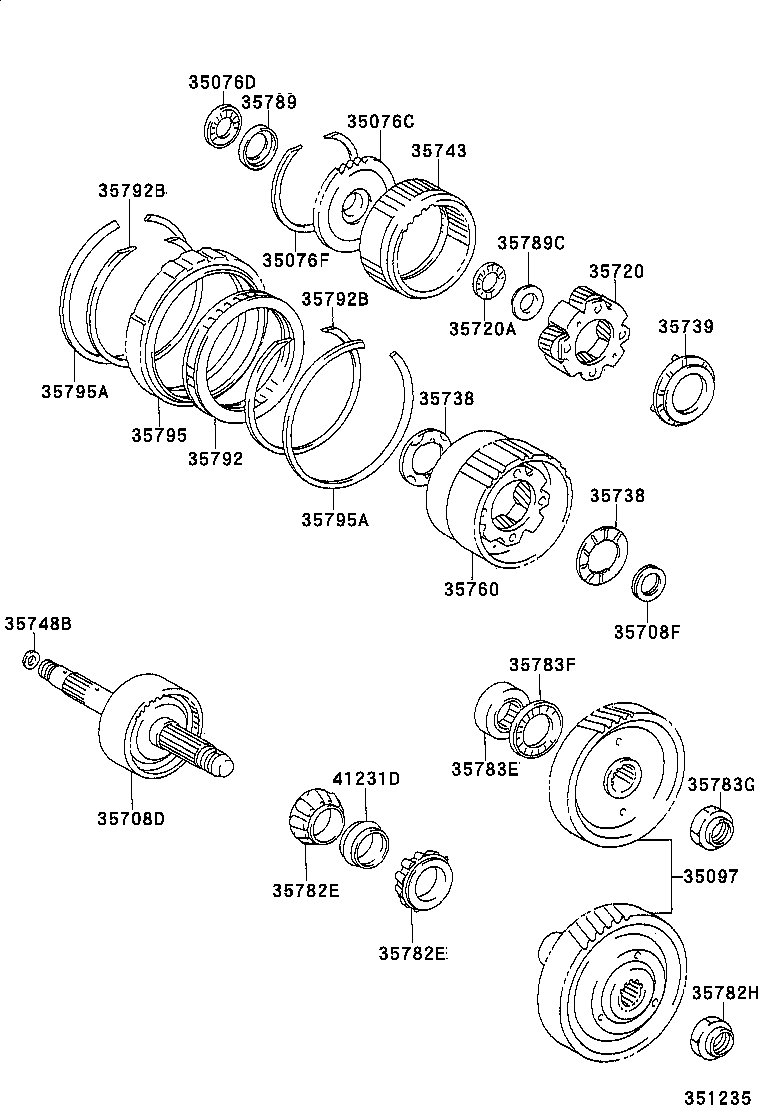

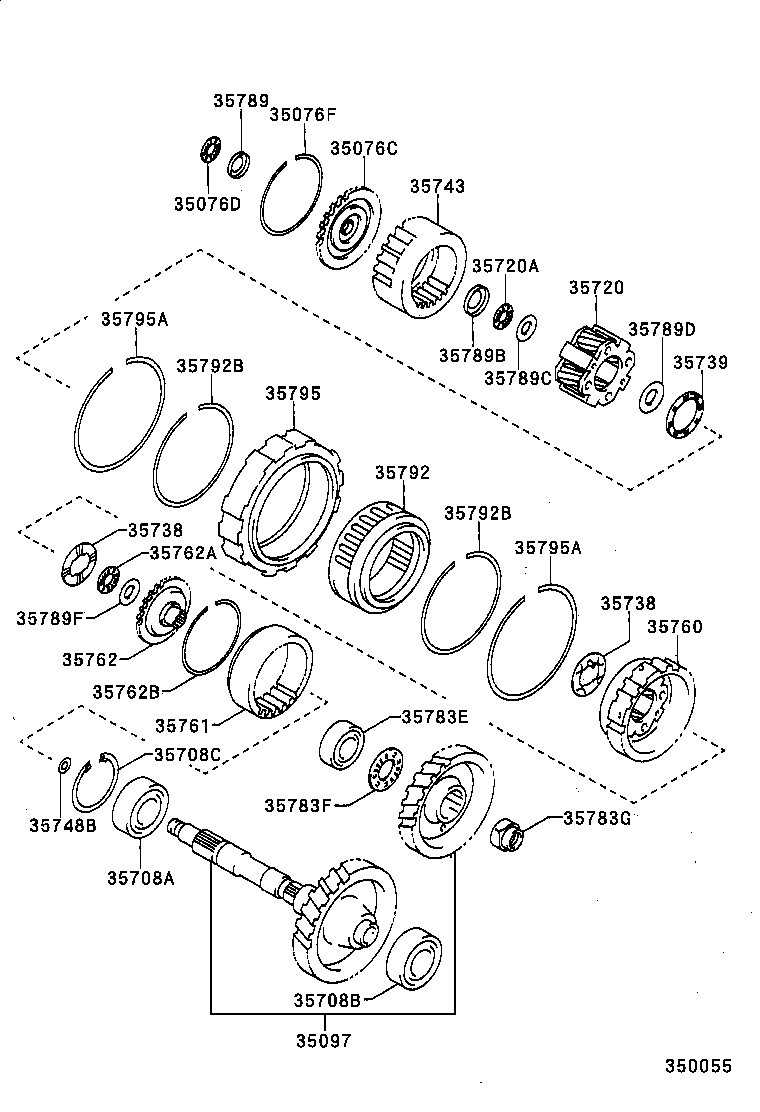

Planetary Gear, Reverse Piston & Counter Gear(ATM)
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35076C | Flange Sub-assy, Front Planetary Ring Gear |
| 35076D | Bearing, Thrust Needle Roller(FOR FRONT PLANETARY FLANGE) |
| 35076F | Ring, Hole Snap (FOR FRONT PLANETARY RING GEAR FLANGE) |
| 35097 | Counter Gear Kit, Automatic Transaxle |
| 35708A | Bearing, Radial Ball (FOR INTERMEDIATE SHAFT FRONT) |
| 35708B | Bearing, Radial Ball (FOR INTERMEDIATE SHAFT REAR) |
| 35708C | Ring, Hole Snap (FOR INTERMEDIATE SHAFT FRONT BEARING) |
| 35708D | Shaft Sub-assy, Intermediate |
| 35708F | Bearing, Thrust Needle Roller (FOR INTERMEDIATE SHAFT) |
| 35720 | Gear Assy, Front Planetary |
| 35720A | Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR) |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35739 | Washer, Planetary Carrier Thrust, NO.3 |
| 35743 | Gear, Front Planetary Ring |
| 35748B | Ring, Intermediate Shaft Oil Seal |
| 35760 | Gear Assy, Rear Planetary |
| 35761 | Gear, Rear Planetary Ring |
| 35762 | Flange, Rear Planetary Ring Gear |
| 35762A | Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE) |
| 35762B | Ring, Hole Snap (FOR REAR PLANETARY RING GEAR FLANGE) |
| 35782D | Ring, Hole Snap(FOR COUNTER DRIVE GEAR) |
| 35782E | Bearing(FOR COUNTER DRIVE GEAR) |
| 35782H | Nut(FOR COUNTER DRIVE GEAR) |
| 35783E | Bearing, Cylindrical Roller(FOR COUNTER DRIVEN GEAR) |
| 35783F | Bearing, Thrust Needle Roller(FOR COUNTER DRIVEN GEAR) |
| 35783G | Nut(FOR COUNTER DRIVEN GEAR) |
| 35789 | Race, Thrust Bearing (FOR FRONT PLANETARY FLANGE FRONT) |
| 35789B | Race, Thrust Bearing (FOR FRONT PLANETARY FLANGE REAR) |
| 35789C | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR FRONT) |
| 35789D | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR) |
| 35789F | Race, Thrust Bearing (FOR REAR PLANETARY FLANGE) |
| 35792 | Clutch, 1 Way, NO.2 |
| 35792B | Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2) |
| 35795 | Race, 1 Way Clutch Outer |
| 35795A | Ring, Hole Snap (FOR 1 WAY CLUTCH OUTER RACE) |
| 41231D | Spacer, Drive Pinion Bearing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
