Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

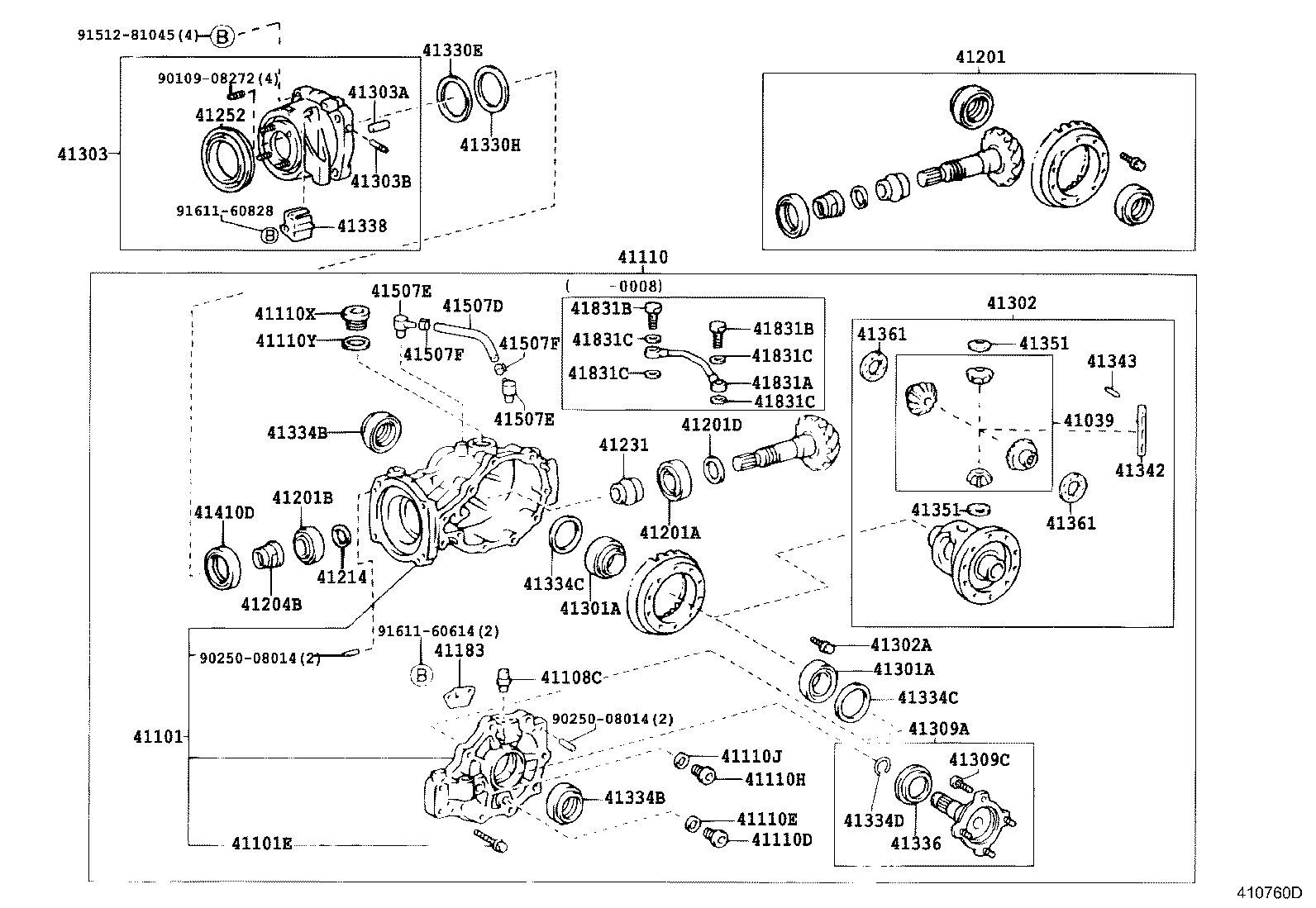

Rear Axle Housing & Differential
63 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 41039 | Gear Kit, Differential, Rear |
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41101E | Bolt (FOR REAR DIFFERENTIAL CARRIER) |
| 41108C | Plug, Breather (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41110 | Carrier Assy, Differential, Rear |
| 41110D | Plug (FOR REAR DIFFERENTIAL DRAIN) |
| 41110E | Gasket (FOR REAR DIFFERENTIAL DRAIN PLUG) |
| 41110H | Plug (FOR REAR DIFFERENTIAL FILLER) |
| 41110J | Gasket (FOR REAR DIFFERENTIAL FILLER PLUG) |
| 41110K | Plug, Breather (FOR REAR DIFFERENTIAL) |
| 41110X | Plug (FOR DIFFERENTIAL INSPECTION) |
| 41110Y | Gasket (FOR DIFFERENTIAL INSPECTION PLUG) |
| 41171 | Protector, Differential, Rear |
| 41181J | Cover, Rear Differential Carrier |
| 41181P | Bolt (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) |
| 41183 | Deflector, Rear Differential Breather Plug Oil |
| 41196 | Damper, Rear Differential Dynamic |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222 | Plate, Rear Differential Ring Gear Set Bolt Lock |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41303 | Coupling Sub-assy, Electro Magnetic Control |
| 41303A | Pin, Straight (FOR ELECTRO MAGNETIC CONTROL COUPLING) |
| 41303B | Tube (FOR ELECTRO MAGNETIC CONTROL COUPLING) |
| 41309A | Shaft Sub-assy, Rear Differential Side Gear |
| 41309B | Washer, Plate (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41309C | Bolt (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41309D | Seal Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41311J | Case, Rear Differential |
| 41330E | Washer, Conical Spring (FOR TRANSMISSION COUPLING) |
| 41330H | Spacer (FOR TRANSMISSION COUPLING) |
| 41331 | Gear, Rear Differential Side |
| 41334B | Seal, Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334C | Washer, Plate (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334D | Ring, Shaft Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41336 | Cover, Dust(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41338 | Bracket, Connector Clamp |
| 41341 | Pinion, Rear Differential |
| 41342 | Shaft, Rear Differential Pinion |
| 41342B | Pin, Straight (FOR REAR DIFFERENTIAL PINION SHAFT) |
| 41343 | Pin, Rear Differential Pinion Shaft |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41410D | Seal, Oil Diaphragm |
| 41507D | Hose, Differential Pressure Control |
| 41507E | Elbow,Differential Pressure Control Hose |
| 41507F | Clip, Differential Pressure Control Hose |
| 41831A | Tube, Differential Pressure Control |
| 41831B | Bolt, Union (FOR DIFFERENTIAL PRESSURE CONTROL) |
| 41831C | Gasket (FOR DIFFERENTIAL PRESSURE CONTROL TUBE) |
| 52380 | Support, Rear Differential, NO.1 |
| 52390A | Support Assy, Differential, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
