Rear Axle Shaft & Hub

51 part groups · 4 illustrations

Illustrations

410015A 1996-05 → 1998-04

410021B 1996-05 → —

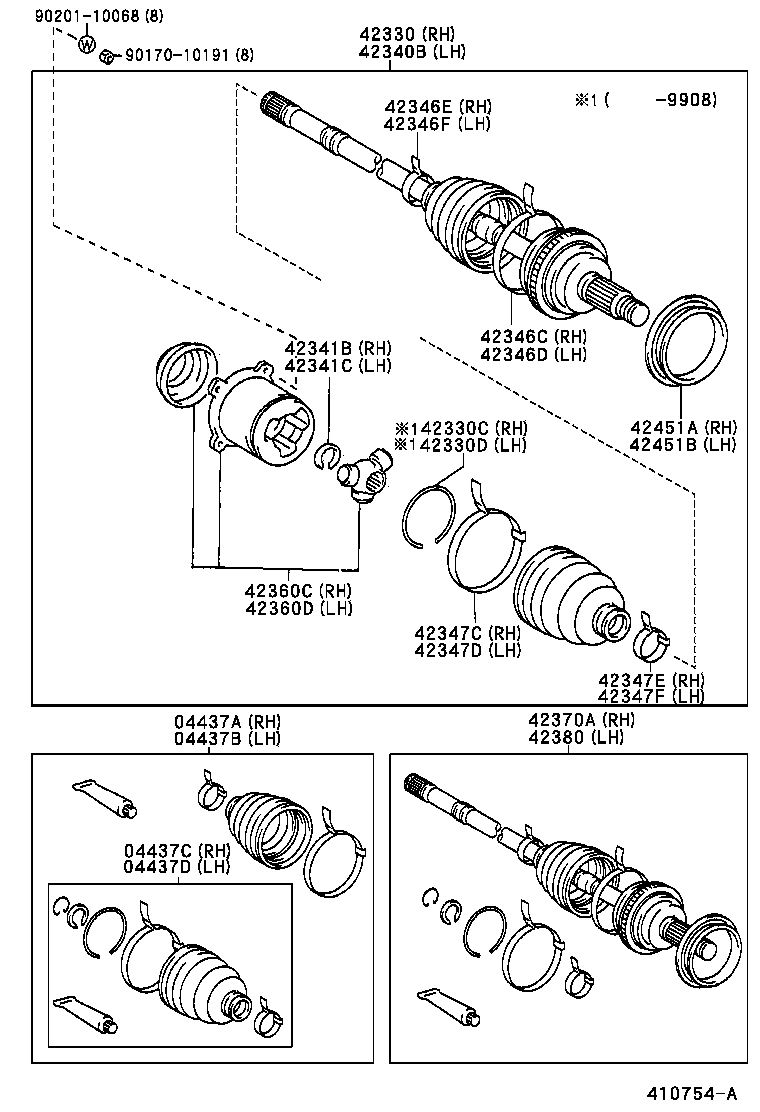

410754A 1998-04 → —

410022C 1996-05 → —

Part groups

PNC	Description
04437A	Boot Kit, Rear Drive Shaft, RH
04437B	Boot Kit, Rear Drive Shaft, LH
04437C	Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D	Boot Kit, Rear Drive Shaft Inboard Joint, LH
04438C	Boot Kit, Rear Drive Shaft
04438D	Boot Kit, Rear Drive Shaft Inboard Joint
42173	Bracket, Rear Axle Harness, RH
42174	Bracket, Rear Axle Harness, LH
42311L	Shaft, Rear Axle, RH
42311U	Bolt, Hub(FOR REAR AXLE RH)
42312	Shaft, Rear Axle, LH
42312E	Bolt, Hub(FOR REAR AXLE LH)
42330	Shaft Assy, Rear Drive, RH
42330C	Ring, Hole Snap(FOR REAR DRIVE SHAFT)
42330D	Ring, Shaft Snap(FOR REAR DRIVE SHAFT)
42330E	Nut(FOR REAR DRIVE SHAFT)
42330F	Washer(FOR REAR DRIVE SHAFT)
42340B	Shaft Assy, Rear Drive, LH
42341A	Ring, Snap (FOR REAR DRIVE SHAFT)
42341B	Ring, Snap (FOR REAR DRIVE SHAFT RH)
42341C	Ring, Snap (FOR REAR DRIVE SHAFT LH)
42346A	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346B	Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346C	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D	Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346E	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346F	Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347A	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347B	Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347C	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D	Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347E	Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347F	Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42360	Joint Assy, Rear Drive Shaft Inboard
42360C	Joint Assy, Rear Drive Shaft Inboard, RH
42360D	Joint Assy, Rear Drive Shaft Inboard, LH
42370	Shaft Assy, Rear Drive Outboard Joint
42370A	Shaft Assy, Rear Drive Outboard Joint, RH
42380	Shaft Assy, Rear Drive Outboard Joint, LH
42403	Drum Sub-assy, Rear Brake
42403A	Piece, Balance (FOR REAR BRAKE DRUM)
42409A	Bearing Sub-assy, Rear Axle, RH
42409B	Bearing Sub-assy, Rear Axle, LH
42423	Retainer, Rear Axle Bearing, Inner
42450A	Hub & Bearing Assy, Rear Axle, RH
42450B	Hub & Bearing Assy, Rear Axle, LH
42451A	Deflector, Rear Wheel Bearing Dust, NO.1 RH
42451B	Deflector, Rear Wheel Bearing Dust, NO.1 LH
42491	Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
43525D	Cap, Rear Wheel Adjusting Lock, RH
43525E	Cap, Rear Wheel Adjusting Lock, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
