Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

30 part groups · 2 illustrations

Illustrations

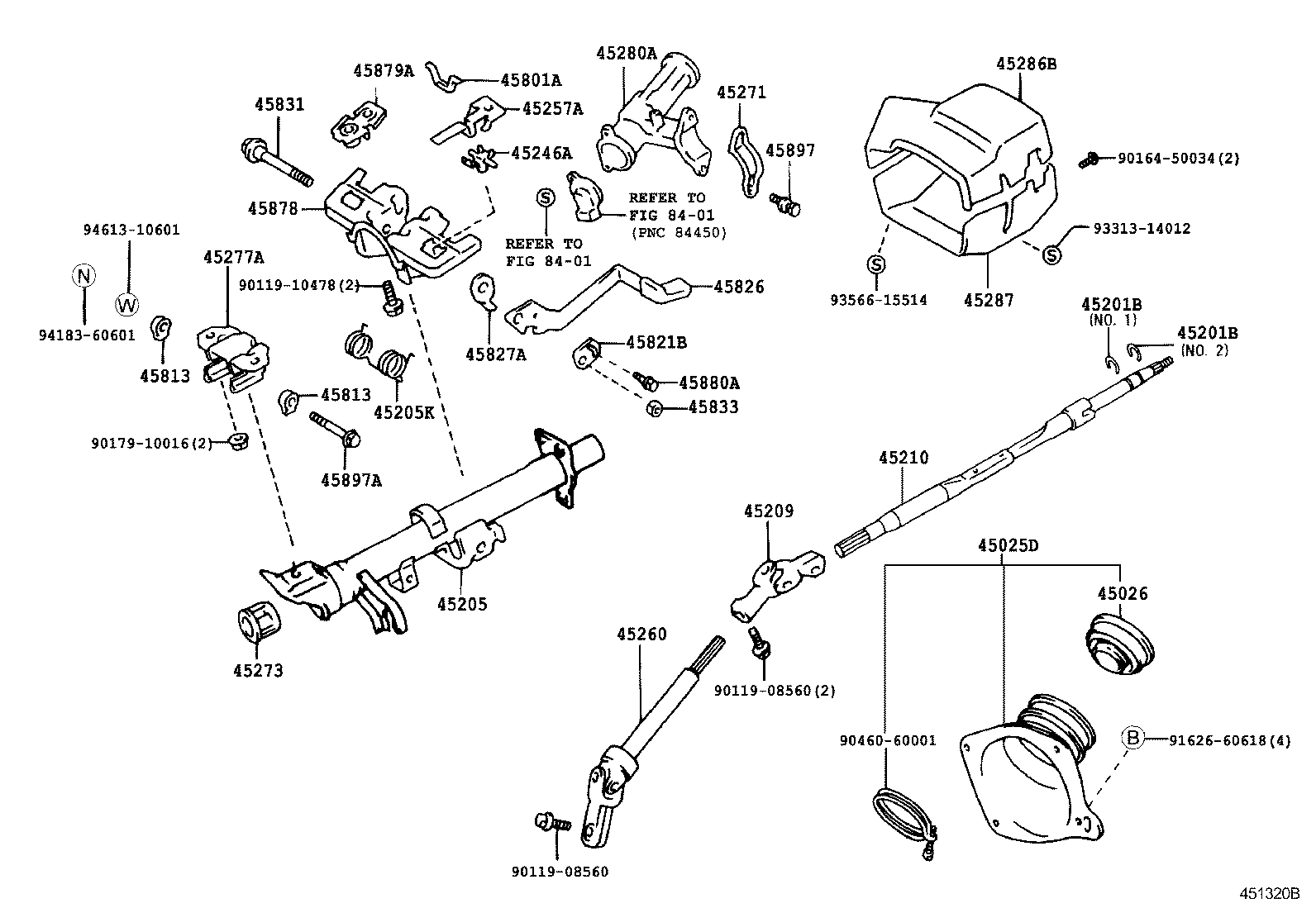

Figure 450028G 450028G 1996-05 → 1998-04 Figure 451320B 451320B 1998-04 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45205K Spring(FOR STEERING COLUMN TUBE)
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45246A Guide, Steering Energy Absorbing Plate
45257A Plate, Steering Column Energy Absorbing
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45277A Support, Tilt Steering
45279A Attachment, Steering Column Tube, Lwr
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45291A Support, Steering Column Tube
45801A Pin Sub-assy, Steering Energy Absorbing
45813 Collar, Tilt Steering Support, NO.1
45821B Reinforce, Tilt Steering Support, NO.1
45826 Lever, Steering Tilt
45827A Lever, Steering Tilt Sub
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45878 Bracket, Steering Column Upper Support
45879A Capsule, Break Away
45880A Bolt(FOR STEERING TILT LEVER)
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
