Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 3 illustrations

Illustrations

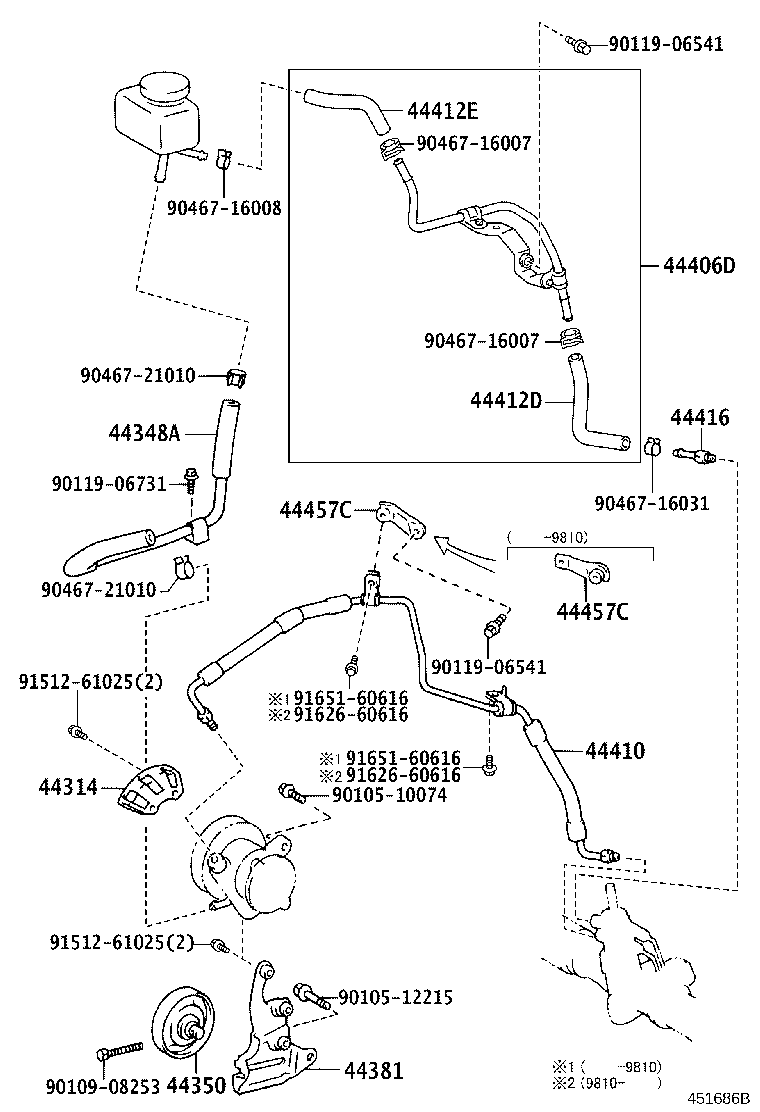

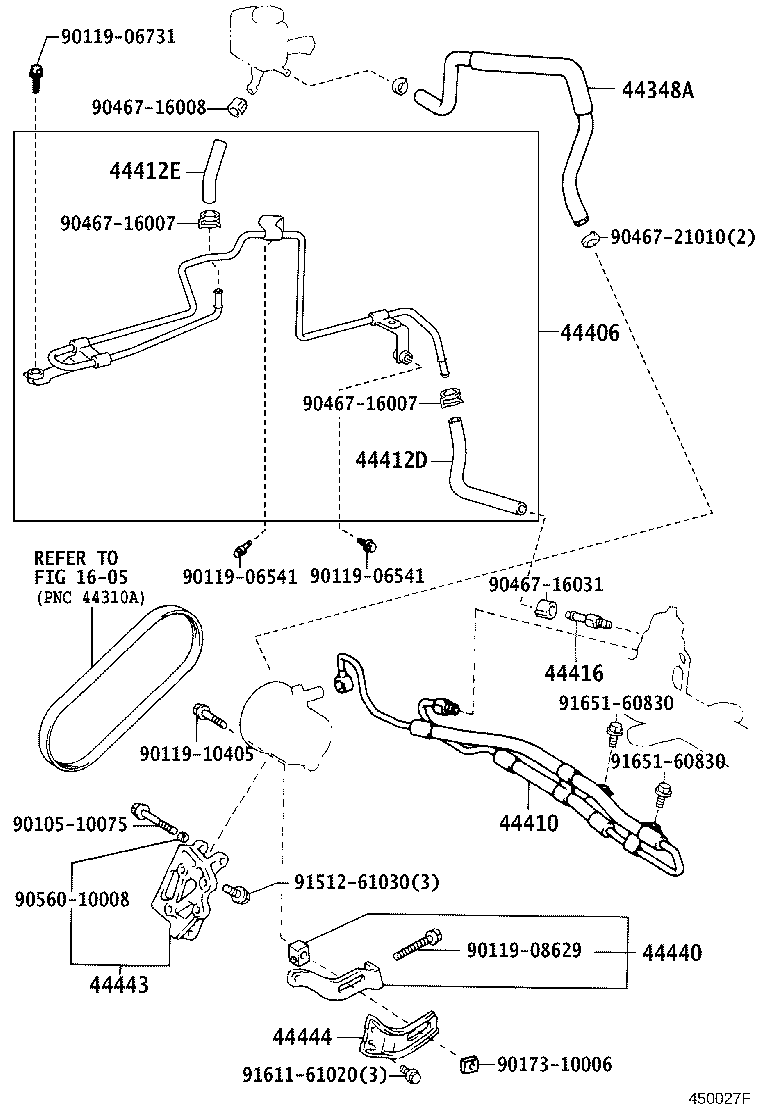

Figure 450026I 450026I 1996-05 → — Figure 450027F 450027F 1996-05 → — Figure 451686B 451686B 1997-09 → —

Part groups

PNCDescription
44314 Cover, Pulley
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44406 Tube Sub-assy, Return
44406D Tube Sub-assy, Return, NO.1
44410 Tube Assy, Pressure Feed
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44440 Bracket Assy, Pump
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
