Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

39 part groups · 3 illustrations

Illustrations

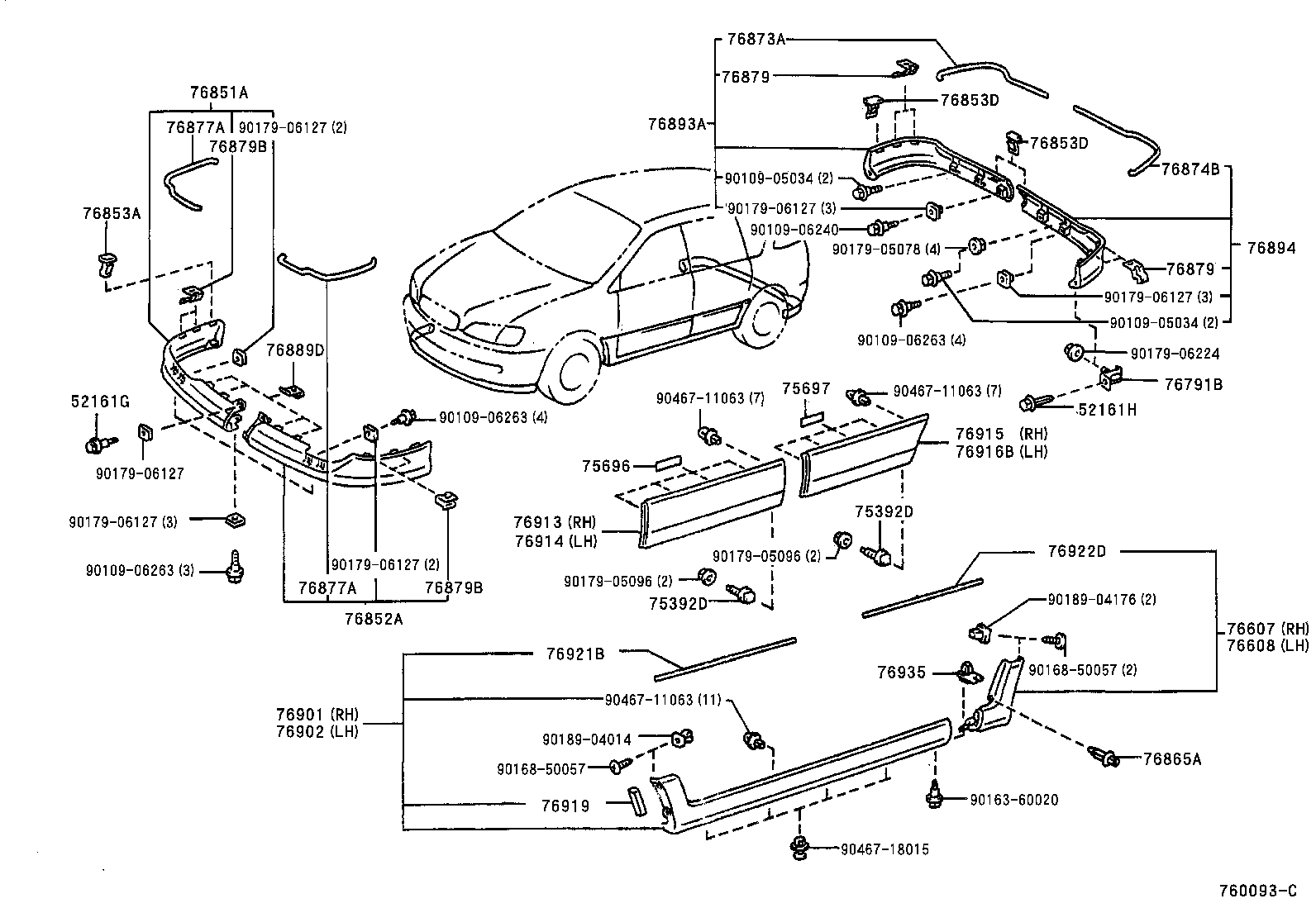

Figure 760001E 760001E 1996-05 → — Figure 760093C 760093C 1997-08 → — Figure 760192A 760192A 2000-04 → —

Part groups

PNCDescription
52161G Piece, Rear Bumper
52161H Piece, Rear Bumper
75392D Retainer, Outside Moulding
75696 Pad, Body Outside Moulding, NO.1
75697 Pad, Body Outside Moulding, NO.2
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76791B Bracket, Rear Spoiler
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853A Retainer, Front Spoiler, Upper NO.1
76853D Retainer, Front Spoiler, NO.1
76865A Retainer, Side Mudguard
76871 Spoiler, Rear
76873 Protector, Rear Spoiler, NO.2
76873A Protector, Rear Spoiler, RH
76874 Protector, Rear Spoiler, NO.3
76874B Protector, Rear Spoiler, LH
76877A Protector, Front Spoiler
76879 Clip, Rear Spoiler, NO.1
76879B Clip, Rear Spoiler, NO.2
76889D Clip, Rear Spoiler, NO.2
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76911A Mudguard, Fender Panel, RH
76912C Mudguard, Fender Panel, LH
76913 Mudguard, Front Door, RH
76914 Mudguard, Front Door, LH
76915 Mudguard, Rear Door, RH
76916B Mudguard, Rear Door, LH
76917B Mudguard, Quarter Panel, RH
76917C Clip, Quarter Panel Mudguard
76918B Mudguard, Quarter Panel, LH
76919 Pad, Side Mudguard
76921B Protector, Side Mudguard, NO.1
76922D Protector, Side Mudguard, NO.2
76935 Retainer, Side Mudguard, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
