Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01

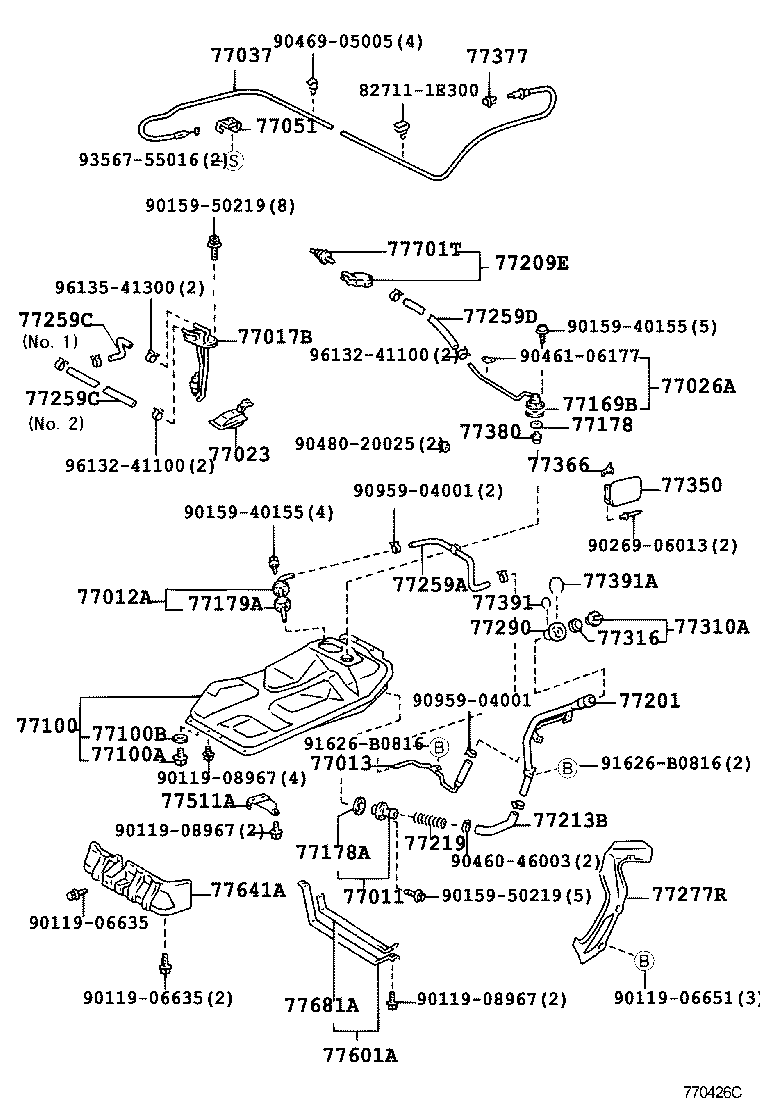

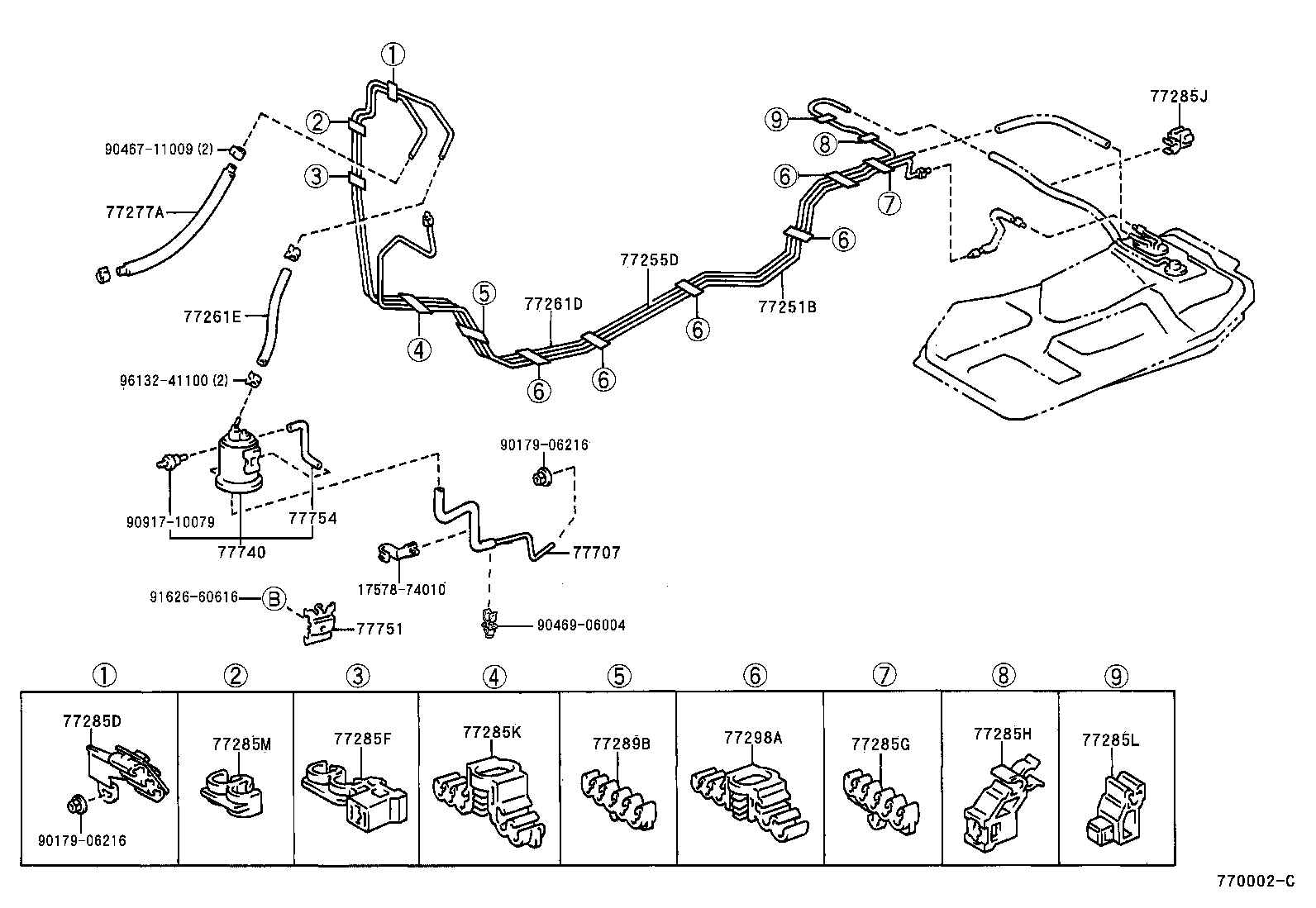

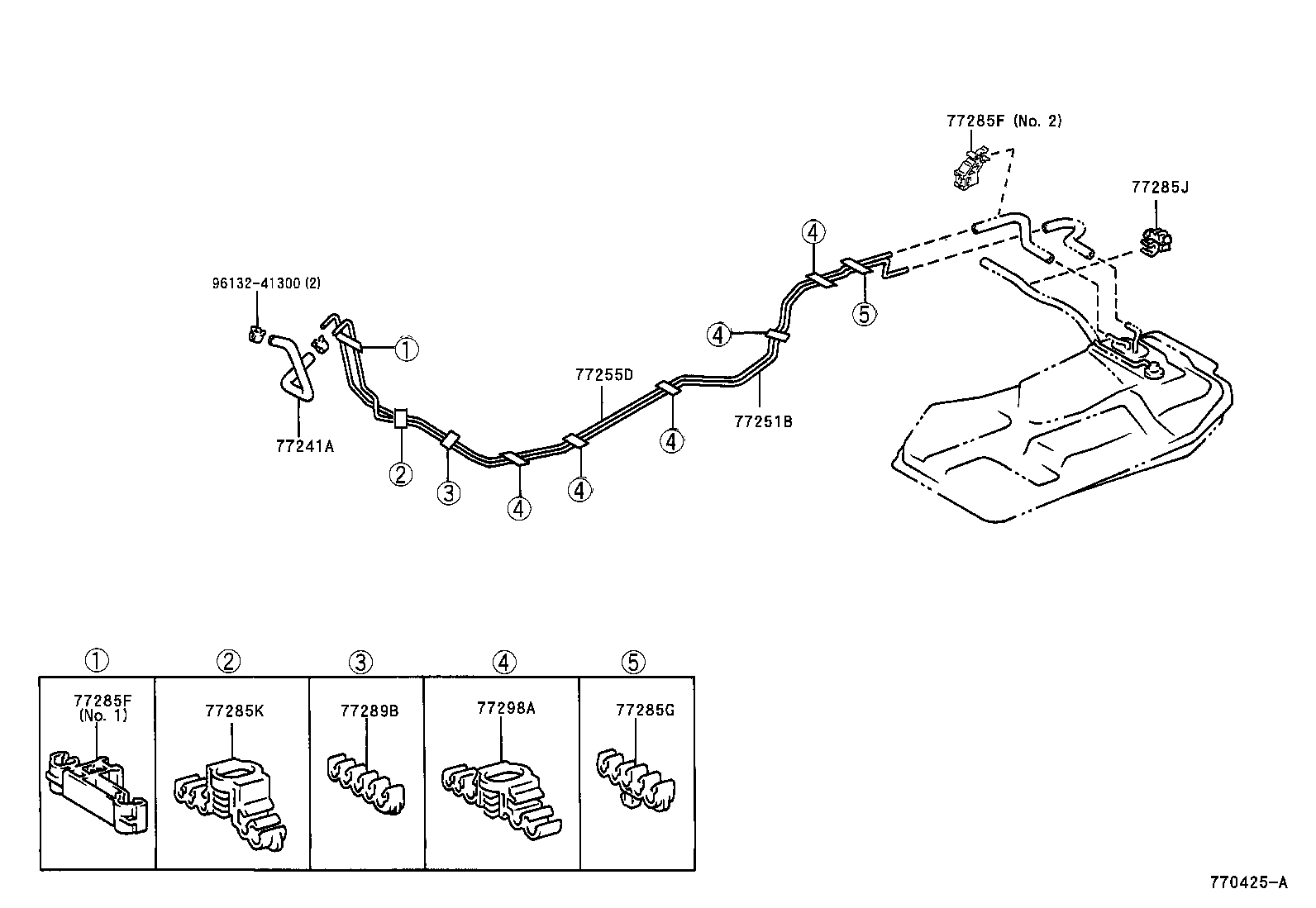

Fuel Tank & Tube
62 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012A | Tube Sub-assy, Fuel Tank Breather, NO.1 |
| 77013 | Tube Sub-assy, Fuel Tank Breather, NO.2 |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77051 | Lever Sub-assy, Fuel Lid Open |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77169B | Gasket, Fuel Suction Tube Set, NO.1 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77178A | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77204B | Hose, Fuel(FOR FUEL RETURN) |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77209E | Hose Sub-assy, Fuel Emission |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77259C | Hose, Fuel |
| 77259D | Hose, Fuel, NO.1 |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77285L | Clamp, Fuel Tube, NO.1 |
| 77285M | Clamp, Fuel Tube, NO.1 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77511A | Bracket, Fuel Tank |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77681A | Seat, Fuel Tank Band |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
