Toyota Ipsum
1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan
Discontinued model
Data version 2002-01
Abs & Vsc

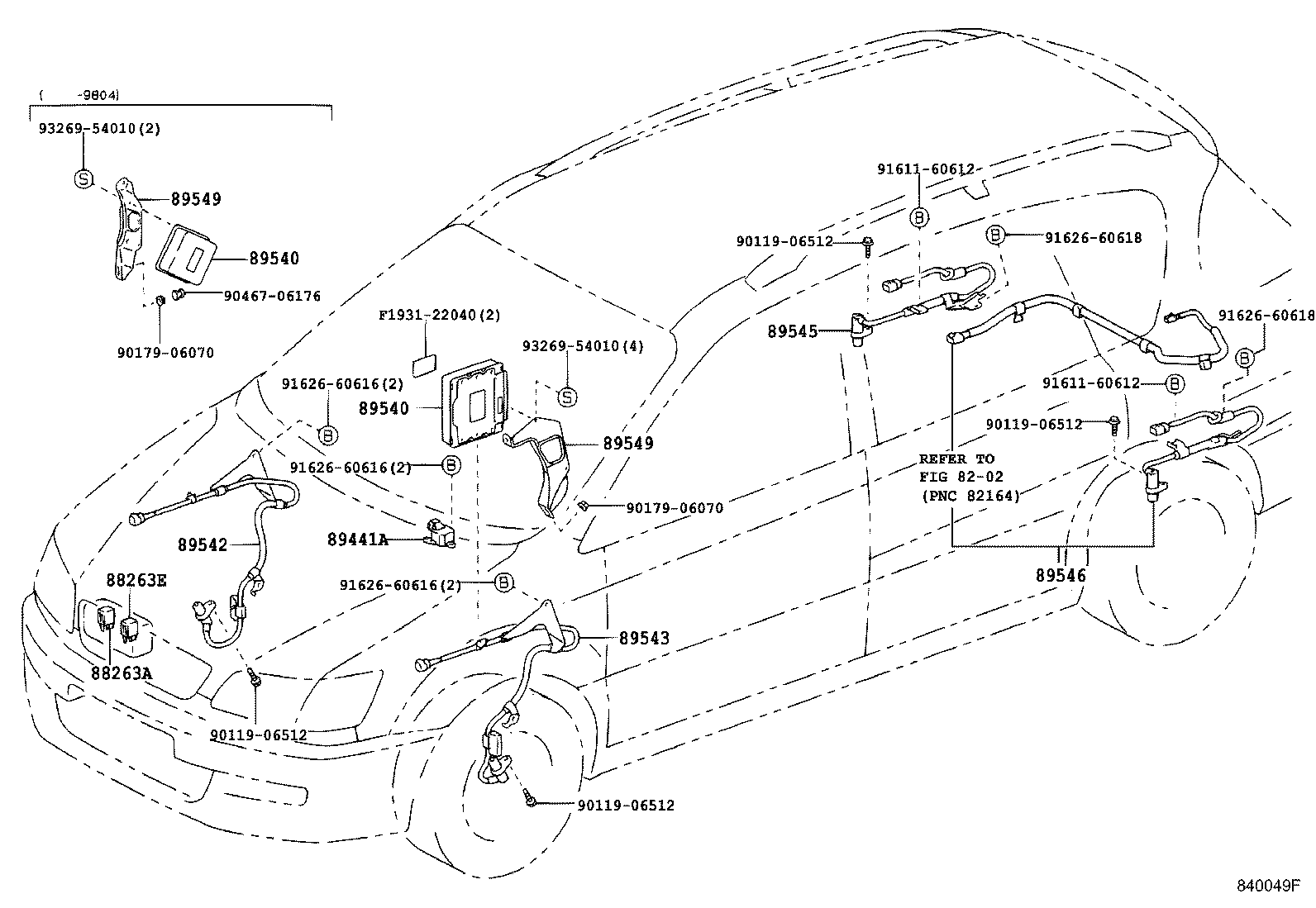

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89549 | Bracket, Skid Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
