Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

7 part groups · 2 illustrations

Illustrations

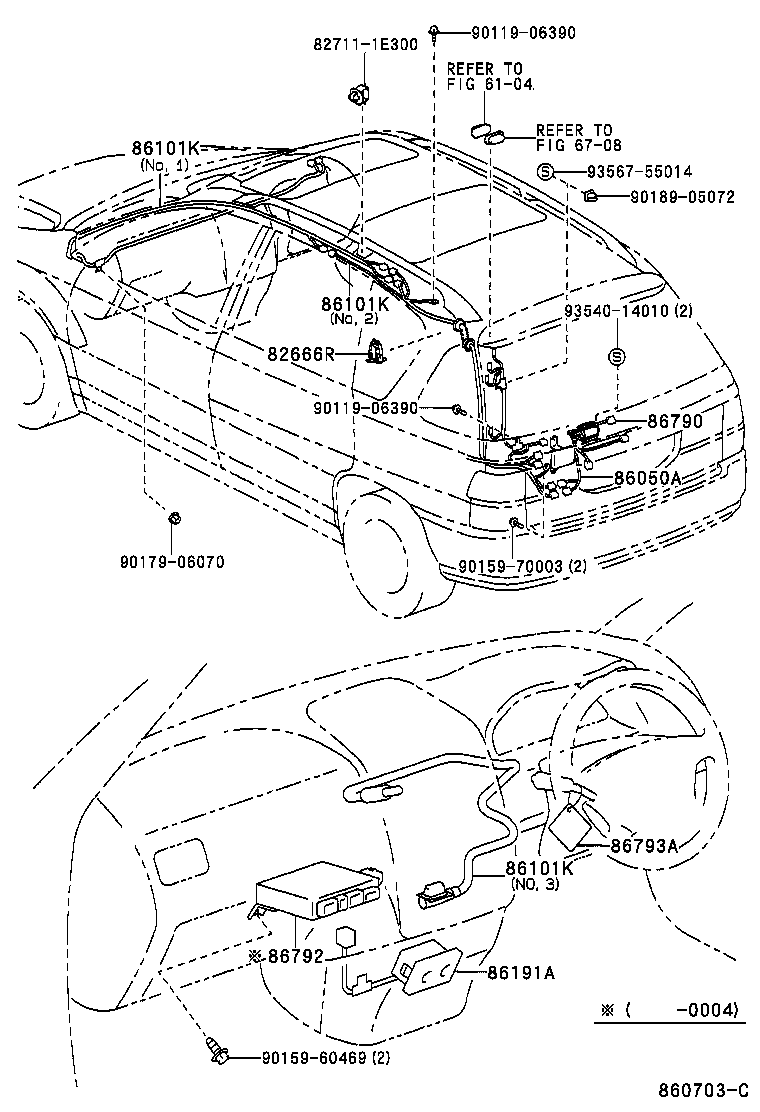

Figure 860018H 860018H 1996-05 → 1998-04 Figure 860703C 860703C 1998-04 → —

Part groups

PNCDescription
82666R Holder, Connector
86050A Antenna Assy, Television
86101K Cord Sub-assy, Television Antenna
86191A Terminal, Video(VIDEO ADAPTER)
86790 Camera Assy, Television
86792 Controller, Television Camera
86793A Label, Television Camera Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
