Toyota Ipsum

1996-05 → 2001-05 · chassis CXM10,SXM1# · catalogue 511110 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 6 illustrations

Illustrations

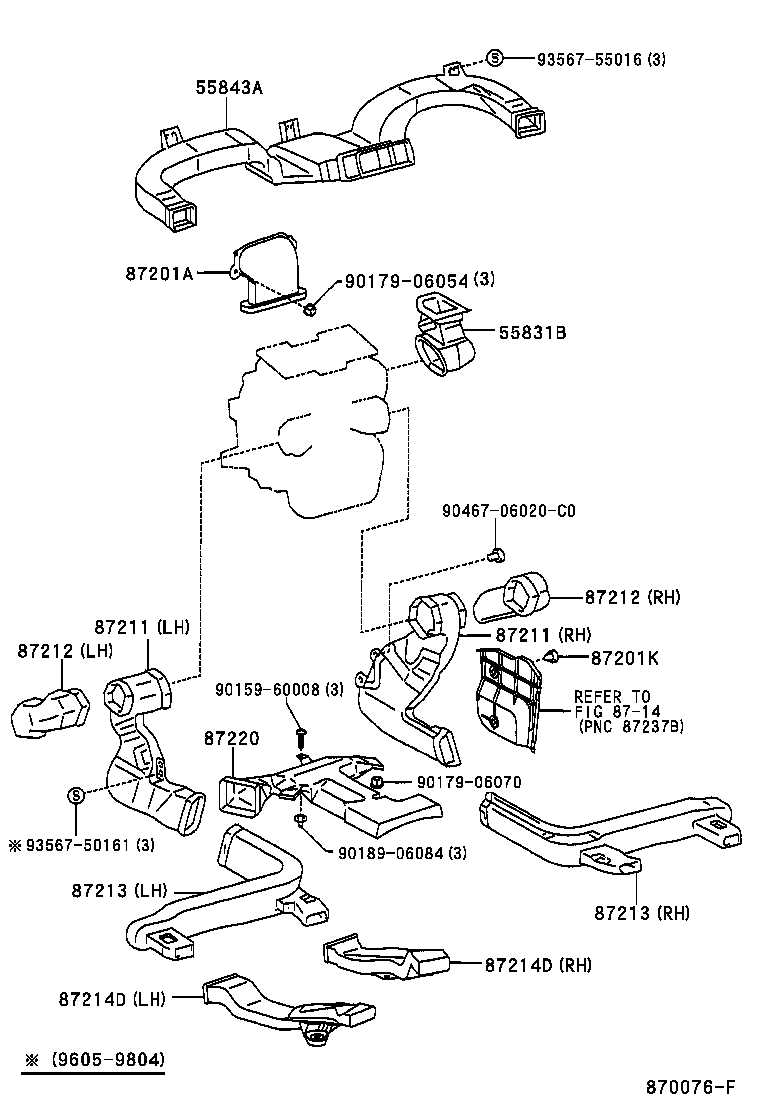

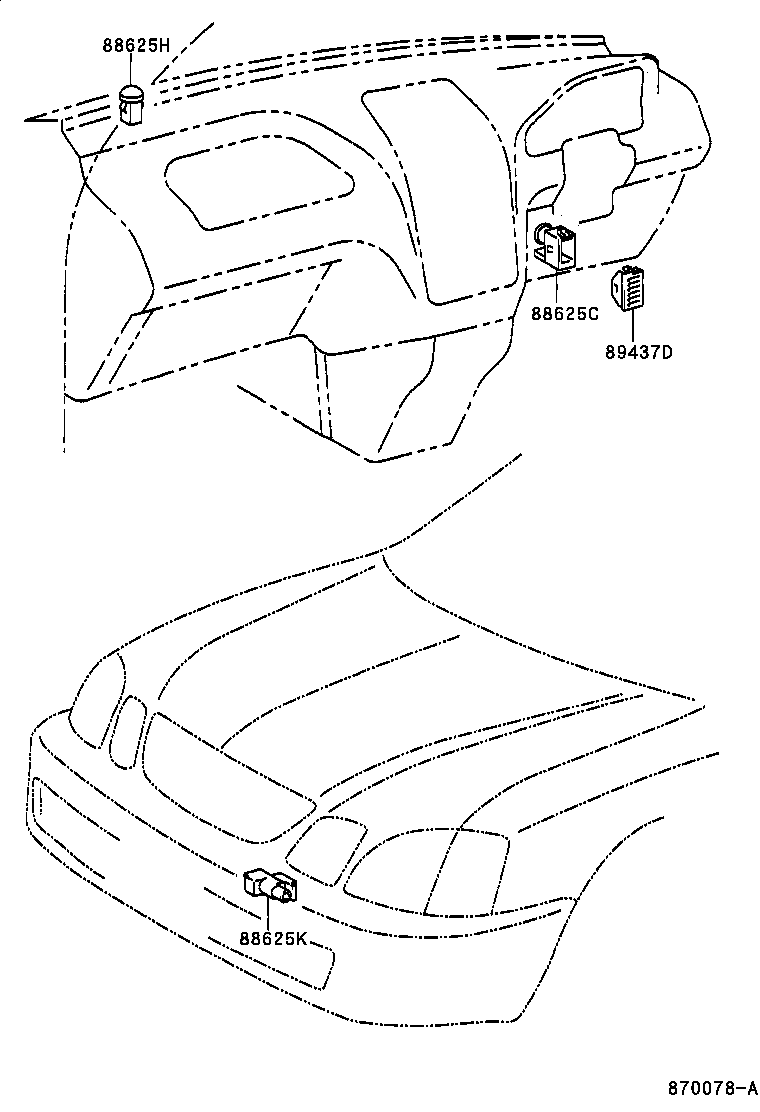

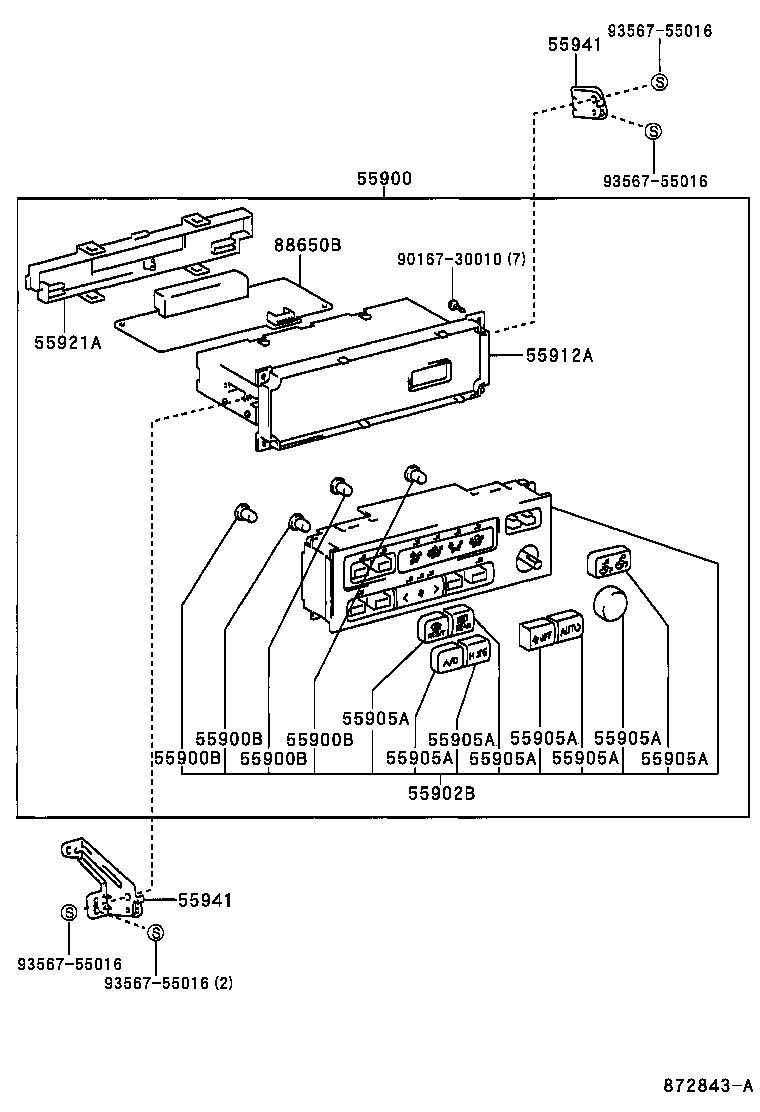

Figure 870075E 870075E 1996-05 → 1998-04 Figure 872661B 872661B 1998-04 → — Figure 872843A 872843A 1998-04 → — Figure 870076F 870076F 1996-05 → — Figure 870077G 870077G 1996-05 → — Figure 870078A 870078A 1996-05 → —

Part groups

PNCDescription
55831B Connector, Instrument Panel Register, RH
55843A Duct, Heater TO Register, NO.1
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
55912A Housing, Heater Control
55921A Retainer, Heater Control
55941 Bracket, Heater Control
81942A Sheet, Heater Control Name, NO.1
87201A Duct Sub-assy, Air
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87220 Duct Assy, Air
88566A Duct, Cooler Air, NO.1
88566C Duct, Cooler Air, NO.3
88566D Duct, Cooler Air, NO.4
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
89437D Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
