Toyota Ipsum
2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan
Discontinued model
Data version 2010-04

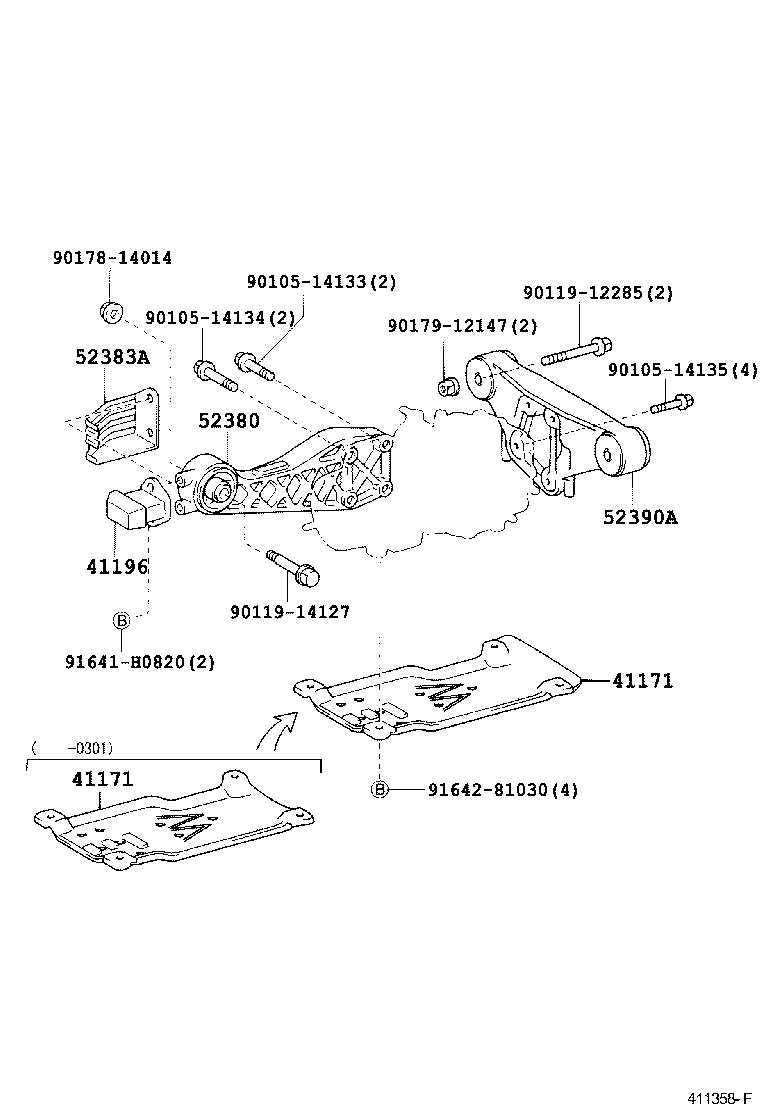

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41171 — Protector, Differential, Rear | ||||
| 41171-28010 |
Protector, Differential, Rear
2001-05 → 2003-01
ended
|
ACM26 | ¥5,200 | |
| 41171-28030 |
Protector, Differential, Rear
2003-01 → 2003-10
ended
|
ACM26 | ¥6,500 | |
| 41171-28030 |
Protector, Differential, Rear
2003-10 → 2007-06
ended
|
ACM26 06S | ¥6,500 | |
| 41171-28030 |
Protector, Differential, Rear
2003-10 → —
|
ACM26 07S | ¥6,500 | |
| 41196 — Damper, Rear Differential Dynamic | ||||
| 41196-28050 |
Damper, Rear Differential Dynamic
2001-05 → 2003-10
ended
|
ACM26 | ¥2,820 | |
| 41196-28050 |
Damper, Rear Differential Dynamic
2003-10 → 2007-06
ended
|
ACM26 06S | ¥2,820 | |
| 41196-28050 |
Damper, Rear Differential Dynamic
2003-10 → —
|
ACM26 07S | ¥2,820 | |
| 52380 — Support, Rear Differential, NO.1 | ||||
| 52380-44030 |
Support, Rear Differential, NO.1
2001-05 → 2003-10
ended
|
ACM26 | ¥12,700 | |
| 52380-44030 |
Support, Rear Differential, NO.1
2003-10 → 2007-06
ended
|
ACM26 06S | ¥12,700 | |
| 52380-44030 |
Support, Rear Differential, NO.1
2003-10 → —
|
ACM26 07S | ¥12,700 | |
| 52383A — Protector, Rear Differntial Support | ||||
| 52383-28050 |
Protector, Rear Differntial Support
2001-05 → 2001-07
ended
|
ACM26 | ¥1,410 | |
| 52390A — Support Assy, Differential, Rear | ||||
| 52390-28010 |
Support Assy, Differential, Rear
2001-05 → 2003-01
ended
|
ACM26 | ¥18,800 | |
| 52390-28050 |
Support Assy, Differential, Rear
2003-01 → 2003-10
ended
|
ACM26 | ¥15,600 | |
| 52390-28050 |
Support Assy, Differential, Rear
2003-10 → 2007-06
ended
|
ACM26 06S | ¥15,600 | |
| 52390-28050 |
Support Assy, Differential, Rear
2003-10 → —
|
ACM26 07S | ¥15,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
