Toyota Ipsum
2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan
Discontinued model
Data version 2010-04

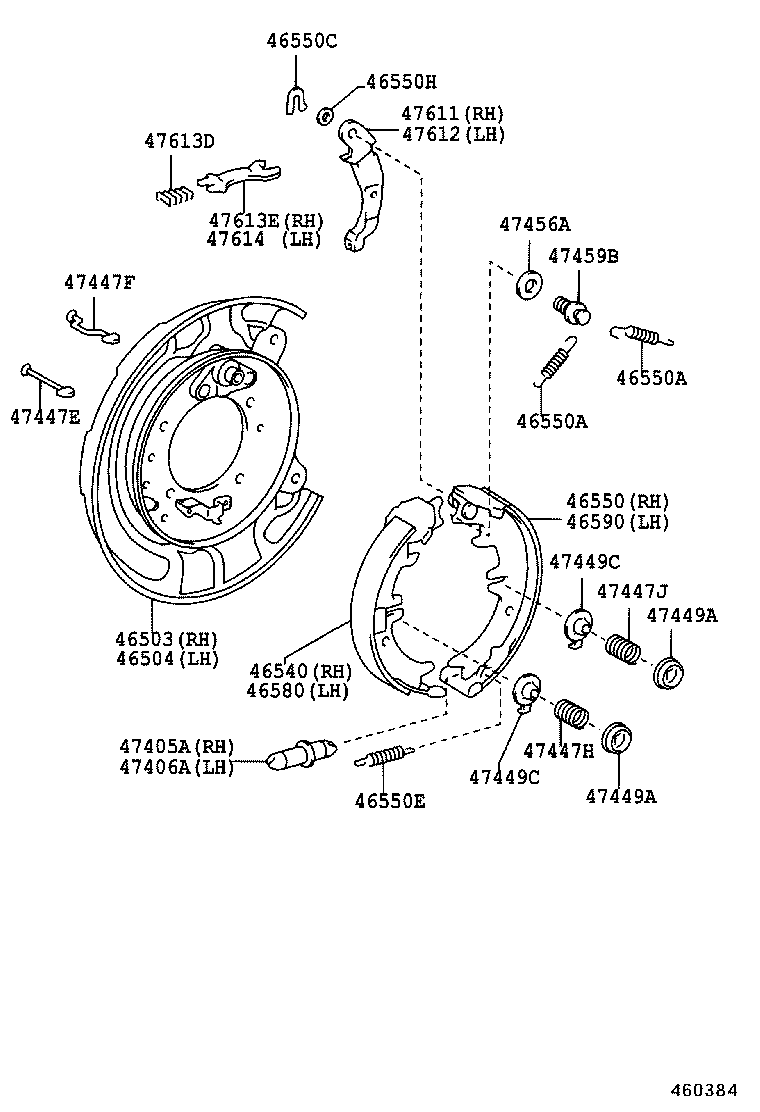

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46503 — Plate Sub-assy, Parking Brake, RH | ||||
| 46503-28030 |
Plate Sub-assy, Parking Brake, RH
2001-05 → 2003-10
ended
|
ACM2# | ¥19,700 | |
| 46503-28030 |
Plate Sub-assy, Parking Brake, RH
2003-10 → 2008-06
ended
|
ACM2# | ¥19,700 | |
| 46503-44020 |
Plate Sub-assy, Parking Brake, RH
2008-06 → —
|
ACM2# | ¥19,400 | |
| 46504 — Plate Sub-assy, Parking Brake, LH | ||||
| 46504-28030 |
Plate Sub-assy, Parking Brake, LH
2001-05 → 2003-10
ended
|
ACM2# | ¥19,700 | |
| 46504-28030 |
Plate Sub-assy, Parking Brake, LH
2003-10 → 2008-06
ended
|
ACM2# | ¥19,700 | |
| 46504-44020 |
Plate Sub-assy, Parking Brake, LH
2008-06 → —
|
ACM2# | ¥19,400 | |
| 46540 — Shoe Assy, Parking Brake, RH OR Center NO.1 | ||||
| 46540-44010 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2001-05 → 2003-10
ended
|
ACM2# | ¥2,550 | |
| 46540-44010 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2003-10 → —
|
ACM2# | ¥2,550 | |
| 46550 — Shoe Assy, Parking Brake, RH OR Center NO.2 | ||||
| 46550-44010 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2001-05 → 2003-10
ended
|
ACM2# | ¥2,550 | |
| 46550-44010 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2003-10 → —
|
ACM2# | ¥2,550 | |
| 46550A — Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2001-05 → 2003-10
ended
|
ACM2# | ¥130 | |
| 90507-20016 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2003-10 → —
|
ACM2# | ¥130 | |
| 46550C — Washer, Type C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2001-05 → 2003-10
ended
|
ACM2# | ¥80 | |
| 90213-07018 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2003-10 → —
|
ACM2# | ¥80 | |
| 46550E — Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2001-05 → 2003-10
ended
|
ACM2# | ¥120 | |
| 90506-12051 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2003-10 → —
|
ACM2# | ¥120 | |
| 46550H — Shim(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 note |
Shim(FOR PARKING BRAKE SHOE)
2001-05 → 2003-10
ended
|
ACM2# | ¥90 | |
| 90564-09185 note |
Shim(FOR PARKING BRAKE SHOE)
2001-05 → 2003-10
ended
|
ACM2# | ¥90 | |
| 90564-09186 note |
Shim(FOR PARKING BRAKE SHOE)
2001-05 → 2003-10
ended
|
ACM2# | ¥90 | |
| 90564-09184 note |
Shim(FOR PARKING BRAKE SHOE)
2003-10 → 2008-06
ended
|
ACM2# | ¥90 | |
| 90564-09184 note |
Shim(FOR PARKING BRAKE SHOE)
2008-06 → —
|
ACM2# | ¥90 | |
| 90564-09185 note |
Shim(FOR PARKING BRAKE SHOE)
2003-10 → 2008-06
ended
|
ACM2# | ¥90 | |
| 90564-09185 note |
Shim(FOR PARKING BRAKE SHOE)
2008-06 → —
|
ACM2# | ¥90 | |
| 90564-09186 note |
Shim(FOR PARKING BRAKE SHOE)
2003-10 → 2008-06
ended
|
ACM2# | ¥90 | |
| 90564-09186 note |
Shim(FOR PARKING BRAKE SHOE)
2008-06 → —
|
ACM2# | ¥90 | |
| 46580 — Shoe Assy, Parking Brake, LH NO.1 | ||||
| 46540-44010 |
Shoe Assy, Parking Brake, LH NO.1
2001-05 → 2003-10
ended
|
ACM2# | ¥2,550 | |
| 46540-44010 |
Shoe Assy, Parking Brake, LH NO.1
2003-10 → —
|
ACM2# | ¥2,550 | |
| 46590 — Shoe Assy, Parking Brake, LH NO.2 | ||||
| 46590-44010 |
Shoe Assy, Parking Brake, LH NO.2
2001-05 → 2003-10
ended
|
ACM2# | ¥2,550 | |
| 46590-44010 |
Shoe Assy, Parking Brake, LH NO.2
2003-10 → —
|
ACM2# | ¥2,550 | |
| 47405A — Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥1,400 | |
| 47405-30040 |
Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥1,400 | |
| 47406A — Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥1,400 | |
| 47406-30040 |
Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥1,400 | |
| 47447E — Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥130 | |
| 47447-30020 |
Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥130 | |
| 47447F — Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥110 | |
| 47447-50010 |
Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥110 | |
| 47447H — Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
2001-05 → 2003-10
ended
|
ACM2# | ¥100 | |
| 90501-16053 |
Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
2003-10 → —
|
ACM2# | ¥100 | |
| 47447J — Spring, Compression, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16118 |
Spring, Compression, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN)
2001-05 → 2003-10
ended
|
ACM2# | ¥70 | |
| 90501-16118 |
Spring, Compression, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN)
2003-10 → —
|
ACM2# | ¥70 | |
| 47449A — Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥190 | |
| 47449-30030 |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥190 | |
| 47449C — Cup, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
Cup, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥170 | |
| 47449-40010 |
Cup, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥170 | |
| 47456A — Plate, Shoe Guide(FOR PARKING BRAKE) | ||||
| 47456-33010 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥120 | |
| 47456-33010 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥120 | |
| 47459B — Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) | ||||
| 47459-30010 |
Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
2001-05 → 2003-10
ended
|
ACM2# | ¥700 | |
| 47459-30010 |
Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
2003-10 → —
|
ACM2# | ¥700 | |
| 47611 — Lever, Parking Brake Shoe, RH | ||||
| 47611-28030 |
Lever, Parking Brake Shoe, RH
2001-05 → 2003-10
ended
|
ACM2# | ¥1,410 | |
| 47611-28030 |
Lever, Parking Brake Shoe, RH
2003-10 → —
|
ACM2# | ¥1,410 | |
| 47612 — Lever, Parking Brake Shoe, LH | ||||
| 47612-28030 |
Lever, Parking Brake Shoe, LH
2001-05 → 2003-10
ended
|
ACM2# | ¥1,410 | |
| 47612-28030 |
Lever, Parking Brake Shoe, LH
2003-10 → —
|
ACM2# | ¥1,410 | |
| 47613D — Spring, Compression(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2001-05 → 2003-10
ended
|
ACM2# | ¥200 | |
| 90504-14002 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2003-10 → —
|
ACM2# | ¥200 | |
| 47613E — Strut, Parking Brake Shoe, RH | ||||
| 47613-28010 |
Strut, Parking Brake Shoe, RH
2001-05 → 2003-10
ended
|
ACM2# | ¥540 | |
| 47613-28010 |
Strut, Parking Brake Shoe, RH
2003-10 → —
|
ACM2# | ¥540 | |
| 47614 — Strut, Parking Brake Shoe, LH | ||||
| 47614-28010 |
Strut, Parking Brake Shoe, LH
2001-05 → 2003-10
ended
|
ACM2# | ¥540 | |
| 47614-28010 |
Strut, Parking Brake Shoe, LH
2003-10 → —
|
ACM2# | ¥540 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
