Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

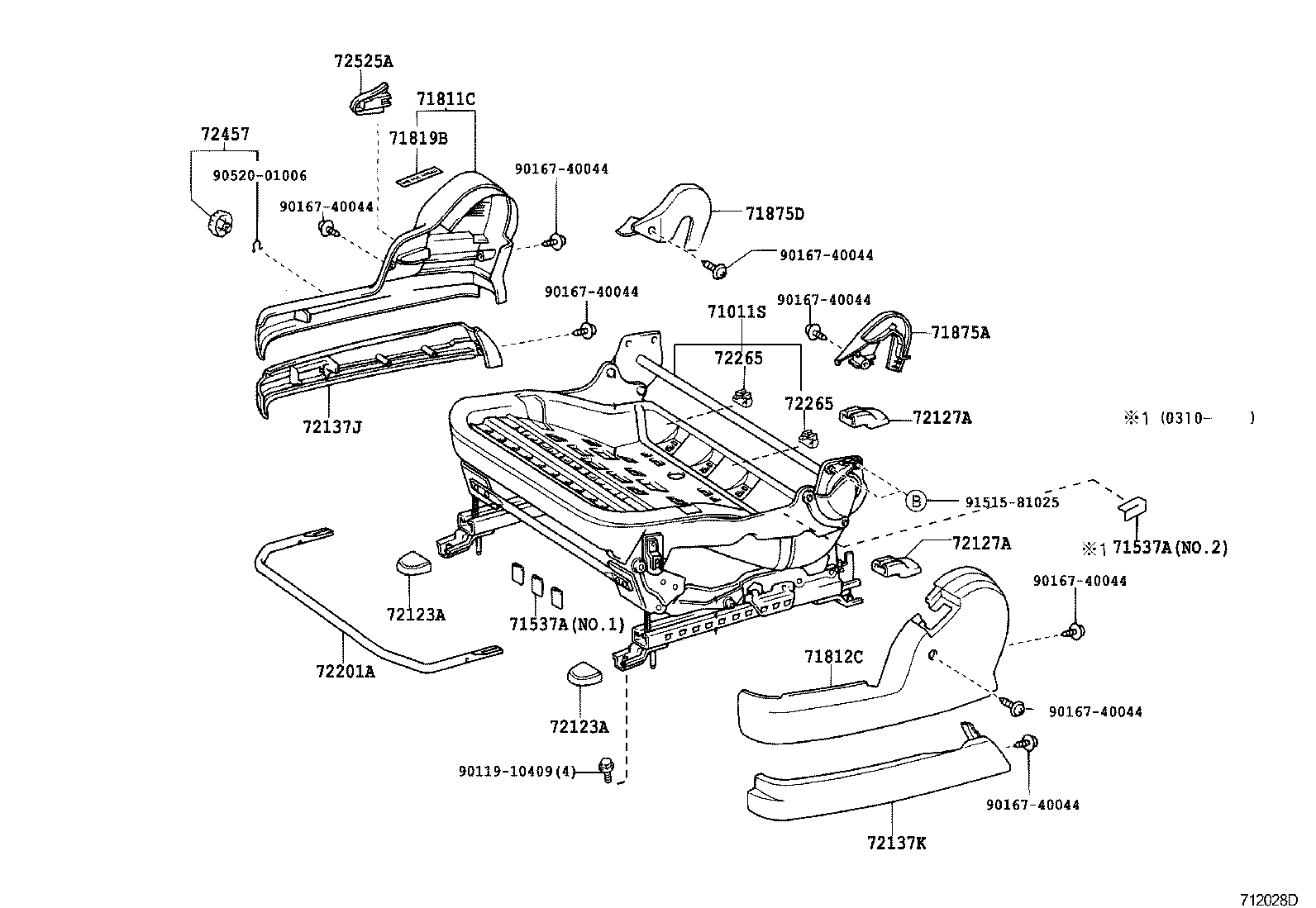

Exploded illustration 712028D 72457 — KNOB, VERTICAL SEAT ADJUSTER (5 parts) 9052001006 — not listed in this catalogue 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 71811C — COVER, RECLINING ADJUSTER, RH (18 parts) 71819B — LABEL, SIDE AIRBAG NAME (4 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (5 parts) 9016740044 — not listed in this catalogue 71011S — FRAME SUB-ASSY, FRONT SEAT CUSHION, RH (3 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71875D — COVER, RECLINING ADJUSTER OUTSIDE, RH (11 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (10 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (11 parts) 9151581025 — not listed in this catalogue 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (10 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71812C — COVER, RECLINING ADJUSTER, LH (9 parts) 72137K — COVER, FRONT SEAT TRACK, RH REAR INNER (5 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (8 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 72201A — HANDLE SUB-ASSY, SEAT TRACK RH (2 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (4 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (8 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (4 parts) 9011910409 — not listed in this catalogue
712028D · 19 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
71011S — Frame Sub-assy, Front Seat Cushion, RH
71110-44010 note Frame Sub-assy, Front Seat Cushion, RH
2001-05 → 2003-10 ended
ACM2# ¥42,700
71110-44010 note Frame Sub-assy, Front Seat Cushion, RH
2003-10 → 2006-07 ended
ACM2# ¥42,700
71110-44150 Frame Sub-assy, Front Seat Cushion, RH
2006-07 → —
ACM2# ¥42,700
71537A — Protector, Front Seat Cushion
71537-26010 note Protector, Front Seat Cushion
2001-05 → 2001-08 ended
ACM2# 240I,240S,240U ¥60
71537-26010 note Protector, Front Seat Cushion
2001-08 → 2003-10 ended
ACM2# 240I,240U ¥60
71537-26010 note Protector, Front Seat Cushion
2003-10 → 2005-08 ended
ACM2# 06S 240U ¥60
71537-26010 note Protector, Front Seat Cushion
2003-10 → —
ACM2# 07S (240I,240U) ¥60
71537-26010 note Protector, Front Seat Cushion
2003-10 → —
ACM2# ¥60
71537-28060 note Protector, Front Seat Cushion
2003-10 → 2006-07 ended
ACM2# 240S ¥670
71537-28060 note Protector, Front Seat Cushion
2003-10 → —
ACM2# 240I,240U ¥670
71537-28060 note Protector, Front Seat Cushion
2003-10 → —
ACM2# ¥670
71811C — Cover, Reclining Adjuster, RH
71811-28191-A0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥4,520
71811-28191-C0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# ¥4,520
71811-44140-A0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥4,320
71811-44140-C0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥4,320
71811-44150-A0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥4,520
71811-44150-C0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# ¥4,520
71811-44160-A0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥4,320
71811-44160-C0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥4,320
71811-28191-A0 note Cover, Reclining Adjuster, RH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥4,520
71811-28191-C0 note Cover, Reclining Adjuster, RH
2003-10 → 2007-06 ended
ACM2# 240S ¥4,520
71811-28191-C0 note Cover, Reclining Adjuster, RH
2007-06 → 2009-12 ended
ACM2# 240S ¥4,520
71811-44140-A0 note Cover, Reclining Adjuster, RH
2007-06 → 2009-12 ended
ACM2# 240U ¥4,320
71811-44140-A0 note Cover, Reclining Adjuster, RH
2003-10 → 2007-06 ended
ACM2# 240U ¥4,320
71811-44150-A0 note Cover, Reclining Adjuster, RH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥4,520
71811-44150-C0 note Cover, Reclining Adjuster, RH
2003-10 → 2007-06 ended
ACM2# 240S ¥4,520
71811-44150-C0 note Cover, Reclining Adjuster, RH
2007-06 → 2009-12 ended
ACM2# 240S ¥4,520
71811-44160-A0 note Cover, Reclining Adjuster, RH
2007-06 → 2009-12 ended
ACM2# 240U ¥4,320
71811-44160-A0 note Cover, Reclining Adjuster, RH
2003-10 → 2007-06 ended
ACM2# 240U ¥4,320
71812C — Cover, Reclining Adjuster, LH
71812-28181-A0 note Cover, Reclining Adjuster, LH
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥4,520
71812-28181-C0 note Cover, Reclining Adjuster, LH
2001-05 → 2003-10 ended
ACM2# ¥4,520
71812-44120-A0 note Cover, Reclining Adjuster, LH
2001-05 → 2003-10 ended
ACM2# 240U ¥4,320
71812-44120-C0 note Cover, Reclining Adjuster, LH
2001-05 → 2003-10 ended
ACM2# 240U ¥4,320
71812-28181-A0 note Cover, Reclining Adjuster, LH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥4,520
71812-28181-C0 note Cover, Reclining Adjuster, LH
2003-10 → 2007-06 ended
ACM2# 240S ¥4,520
71812-28181-C0 note Cover, Reclining Adjuster, LH
2007-06 → 2009-12 ended
ACM2# 240S ¥4,520
71812-44120-A0 note Cover, Reclining Adjuster, LH
2007-06 → 2009-12 ended
ACM2# 240U ¥4,320
71812-44120-A0 note Cover, Reclining Adjuster, LH
2003-10 → 2007-06 ended
ACM2# 240U ¥4,320
71819B — Label, Side Airbag Name
71819-12020-A1 note Label, Side Airbag Name
2001-05 → 2003-10 ended
ACM2# 240I,240U ¥200
71819-12020-A1 note Label, Side Airbag Name
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥200
71819-12020-C0 note Label, Side Airbag Name
2001-05 → 2003-10 ended
ACM2# 240I,240U ¥190
71819-12020-C0 note Label, Side Airbag Name
2001-05 → 2003-10 ended
ACM2# ¥190
71875A — Cover, Reclining Adjuster Inside, RH
71876-28030-A0 note Cover, Reclining Adjuster Inside, RH
2001-05 → 2001-10 ended
ACM2# 240E,240I,240U ¥1,240
71876-28030-C0 note Cover, Reclining Adjuster Inside, RH
2001-05 → 2001-10 ended
ACM2# ¥1,240
71876-32040-A0 note Cover, Reclining Adjuster Inside, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥1,790
71876-32040-C0 note Cover, Reclining Adjuster Inside, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥1,780
71876-44050-A0 note Cover, Reclining Adjuster Inside, RH
2001-10 → 2003-10 ended
ACM2# 240E,240I,240U ¥1,260
71876-44050-C0 note Cover, Reclining Adjuster Inside, RH
2001-10 → 2003-10 ended
ACM2# ¥1,260
71876-32040-A0 note Cover, Reclining Adjuster Inside, RH
2003-10 → 2007-06 ended
ACM2# 240U ¥1,790
71876-32040-A0 note Cover, Reclining Adjuster Inside, RH
2007-06 → 2009-12 ended
ACM2# 240U ¥1,790
71876-44050-A0 note Cover, Reclining Adjuster Inside, RH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥1,260
71876-44050-C0 note Cover, Reclining Adjuster Inside, RH
2007-06 → 2009-12 ended
ACM2# 240S ¥1,260
71876-44050-C0 note Cover, Reclining Adjuster Inside, RH
2003-10 → 2007-06 ended
ACM2# 240S ¥1,260
71875D — Cover, Reclining Adjuster Outside, RH
71875-28030-A0 note Cover, Reclining Adjuster Outside, RH
2001-05 → 2001-10 ended
ACM2# 240E,240I,240U ¥1,240
71875-28030-C0 note Cover, Reclining Adjuster Outside, RH
2001-05 → 2001-10 ended
ACM2# ¥1,240
71875-32060-A0 note Cover, Reclining Adjuster Outside, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥1,790
71875-32060-C0 note Cover, Reclining Adjuster Outside, RH
2001-05 → 2003-10 ended
ACM2# 240U ¥1,780
71875-44040-A0 note Cover, Reclining Adjuster Outside, RH
2001-10 → 2003-10 ended
ACM2# 240E,240I,240U ¥1,260
71875-44040-C0 note Cover, Reclining Adjuster Outside, RH
2001-10 → 2003-10 ended
ACM2# ¥1,260
71875-32060-A0 note Cover, Reclining Adjuster Outside, RH
2003-10 → 2007-06 ended
ACM2# 240U ¥1,790
71875-32060-A0 note Cover, Reclining Adjuster Outside, RH
2007-06 → 2009-12 ended
ACM2# 240U ¥1,790
71875-44040-A0 note Cover, Reclining Adjuster Outside, RH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥1,260
71875-44040-C0 note Cover, Reclining Adjuster Outside, RH
2003-10 → 2007-06 ended
ACM2# 240S ¥1,260
71875-44040-C0 note Cover, Reclining Adjuster Outside, RH
2007-06 → 2009-12 ended
ACM2# 240S ¥1,260
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-44020-A0 note Cover, Seat Track Bracket, Outer Front RH
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥610
72123-44020-C0 note Cover, Seat Track Bracket, Outer Front RH
2001-05 → 2003-10 ended
ACM2# ¥610
72123-44020-A0 note Cover, Seat Track Bracket, Outer Front RH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥610
72123-44020-C0 note Cover, Seat Track Bracket, Outer Front RH
2003-10 → 2009-12 ended
ACM2# 240S ¥610
72127A — Cover, Seat Track Bracket, Inner Front RH
72127-44020-A0 note Cover, Seat Track Bracket, Inner Front RH
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥610
72127-44020-C0 note Cover, Seat Track Bracket, Inner Front RH
2001-05 → 2003-10 ended
ACM2# ¥610
72127-44050-A0 note Cover, Seat Track Bracket, Inner Front RH
2001-05 → 2003-10 ended
ACM2# 240U ¥610
72127-44050-C0 note Cover, Seat Track Bracket, Inner Front RH
2001-05 → 2003-10 ended
ACM2# 240U ¥610
72128-44030-A0 note Cover, Seat Track Bracket, Inner Front RH
2001-05 → 2003-10 ended
ACM2# 240U ¥610
72128-44030-C0 note Cover, Seat Track Bracket, Inner Front RH
2001-05 → 2003-10 ended
ACM2# 240U ¥610
72127-44020-A0 note Cover, Seat Track Bracket, Inner Front RH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥610
72127-44020-C0 note Cover, Seat Track Bracket, Inner Front RH
2003-10 → 2009-12 ended
ACM2# 240S ¥610
72127-44050-A0 note Cover, Seat Track Bracket, Inner Front RH
2003-10 → 2009-12 ended
ACM2# 240U ¥610
72128-44030-A0 note Cover, Seat Track Bracket, Inner Front RH
2003-10 → 2009-12 ended
ACM2# 240U ¥610
72137J — Cover, Front Seat Track, RH Rear Outer
72137-44020-A0 note Cover, Front Seat Track, RH Rear Outer
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥2,630
72137-44020-C0 note Cover, Front Seat Track, RH Rear Outer
2001-05 → 2003-10 ended
ACM2# ¥2,630
72137-44020-A0 note Cover, Front Seat Track, RH Rear Outer
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥2,630
72137-44020-C0 note Cover, Front Seat Track, RH Rear Outer
2003-10 → 2007-06 ended
ACM2# 240S ¥2,630
72137-44020-C0 note Cover, Front Seat Track, RH Rear Outer
2007-06 → 2009-12 ended
ACM2# 240S ¥2,630
72137K — Cover, Front Seat Track, RH Rear Inner
72138-44020-A0 note Cover, Front Seat Track, RH Rear Inner
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥2,630
72138-44020-C0 note Cover, Front Seat Track, RH Rear Inner
2001-05 → 2003-10 ended
ACM2# ¥2,630
72138-44020-A0 note Cover, Front Seat Track, RH Rear Inner
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥2,630
72138-44020-C0 note Cover, Front Seat Track, RH Rear Inner
2003-10 → 2007-06 ended
ACM2# 240S ¥2,630
72138-44020-C0 note Cover, Front Seat Track, RH Rear Inner
2007-06 → 2009-12 ended
ACM2# 240S ¥2,630
72201A — Handle Sub-assy, Seat Track RH
72201-44080 Handle Sub-assy, Seat Track RH
2001-05 → 2003-10 ended
ACM2# ¥1,720
72201-44080 Handle Sub-assy, Seat Track RH
2003-10 → —
ACM2# ¥1,720
72265 — Cover, Seat Track Upper Rail, RH
72265-44070 Cover, Seat Track Upper Rail, RH
2001-08 → 2003-10 ended
ACM2# ¥190
72265-63010 note Cover, Seat Track Upper Rail, RH
2001-06 → 2001-08 ended
ACM2# ¥620
72265-63020 Cover, Seat Track Upper Rail, RH
2001-06 → 2001-08 ended
ACM2# ¥540
72265-44070 Cover, Seat Track Upper Rail, RH
2003-10 → —
ACM2# ¥190
72457 — Knob, Vertical Seat Adjuster
72457-18010-A1 note Knob, Vertical Seat Adjuster
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥1,280
72457-18010-C0 note Knob, Vertical Seat Adjuster
2001-05 → 2003-10 ended
ACM2# ¥1,280
72457-18010-A1 note Knob, Vertical Seat Adjuster
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥1,280
72457-18010-C0 note Knob, Vertical Seat Adjuster
2003-10 → 2007-06 ended
ACM2# 240S ¥1,280
72457-18010-C0 note Knob, Vertical Seat Adjuster
2007-06 → 2009-12 ended
ACM2# 240S ¥1,280
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-A0 note Handle, Reclining Adjuster Release, RH
2001-05 → 2003-10 ended
ACM2# 240E,240I,240U ¥1,260
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
2001-05 → 2003-10 ended
ACM2# ¥1,260
72525-16010-A0 note Handle, Reclining Adjuster Release, RH
2003-10 → 2009-12 ended
ACM2# 240I,240U ¥1,260
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
2003-10 → 2007-06 ended
ACM2# 240S ¥1,260
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
2007-06 → 2009-12 ended
ACM2# 240S ¥1,260
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
