Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 3 illustrations

Illustrations

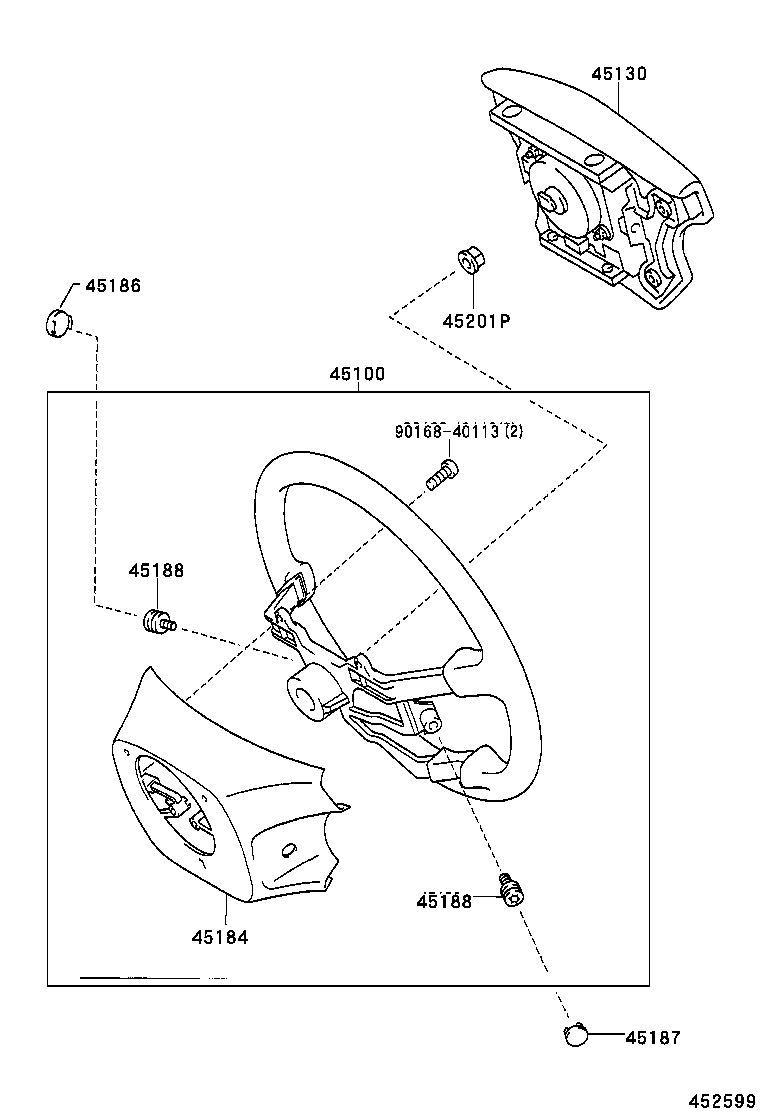

Figure 452598 452598 2001-05 → 2003-10 Figure 452599 452599 2001-05 → 2003-10 Figure 453670A 453670A 2003-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
86719D Bracket,Transmission Shift Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
