Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

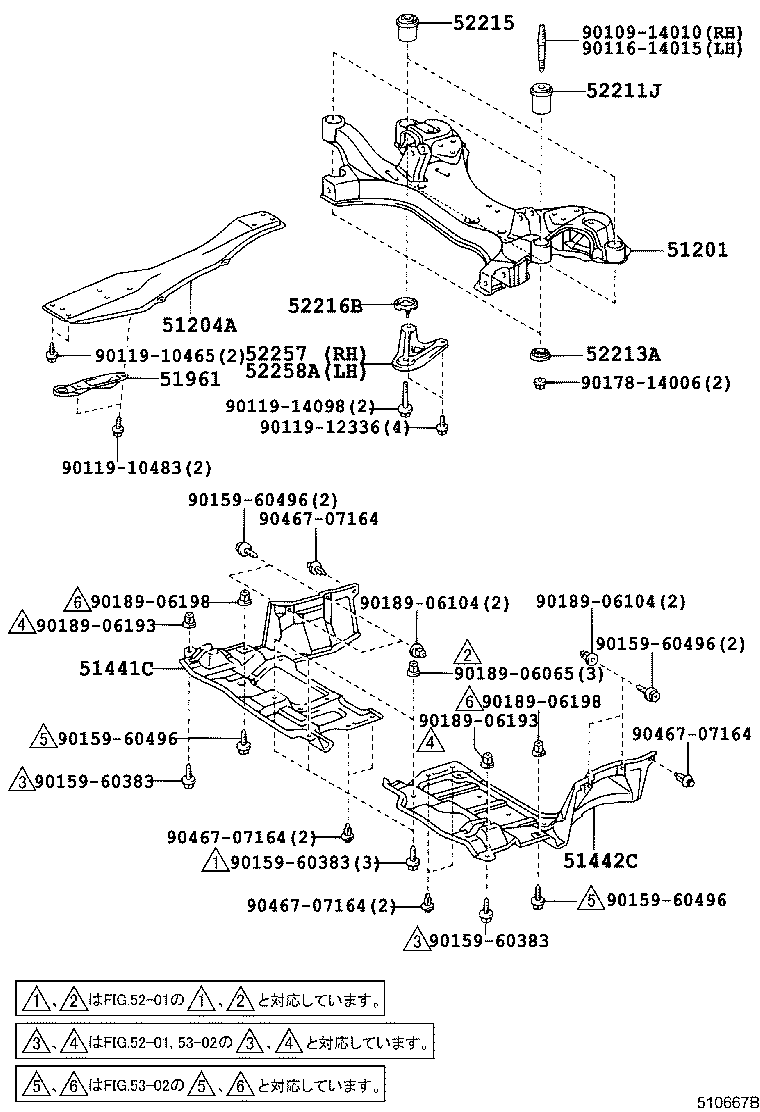

Figure 510668C 510668C 2001-05 → — Figure 510667B 510667B 2001-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51961 Hook, NO.1
52211J Cushion, Front Suspension Member Body Mounting, Front
52213A Stopper, Front Suspension Member Body Mounting, Front
52215 Cushion, Front Suspension Member Body Mounting, Rear
52216B Stopper, Front Suspension Member Body Mounting, Rear
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
