Toyota Ipsum
2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan
Discontinued model
Data version 2010-04

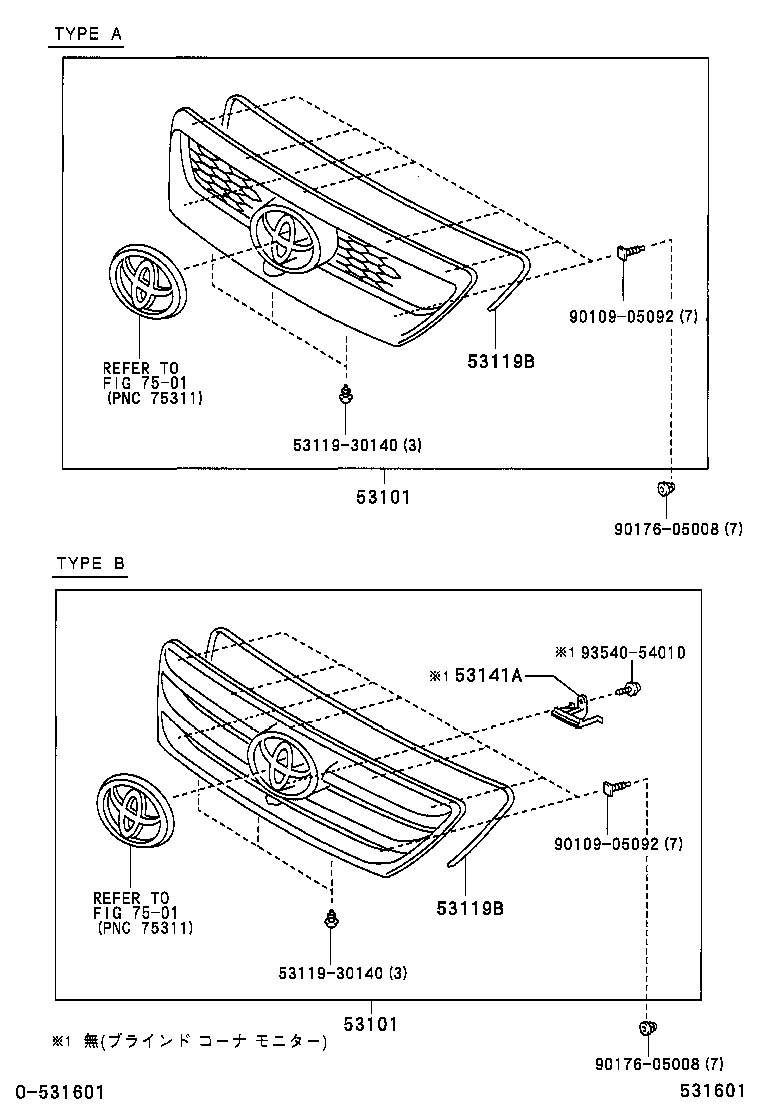

Radiator Grille
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53101 | Grille Sub-assy, Radiator |
| 53119B | Protector, Radiator Grille |
| 53121A | Moulding, Radiator Grille |
| 53141A | Garnish, Radiator Grille, Lower RH |
| 53149C | Protector, Radiator Grille, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
