Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

15 part groups · 2 illustrations

Illustrations

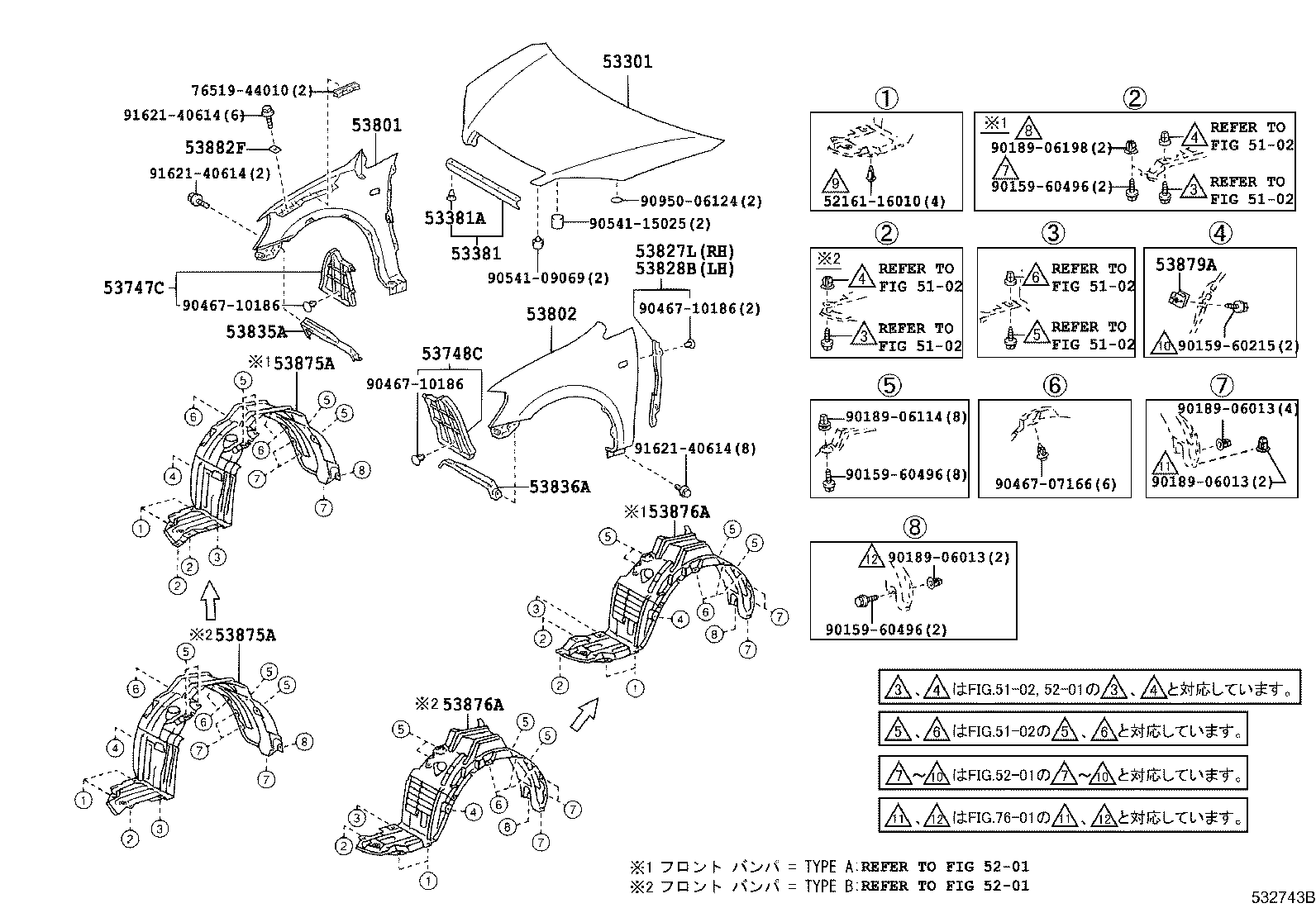

Figure 531093E 531093E 2001-05 → 2003-10 Figure 532743B 532743B 2003-10 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53747C Plate, Air Sealed, RH
53748C Plate, Air Sealed, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53835A Brace, Front Fender TO Apron, RH
53836A Brace, Front Fender TO Apron, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
