Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

22 part groups · 2 illustrations

Illustrations

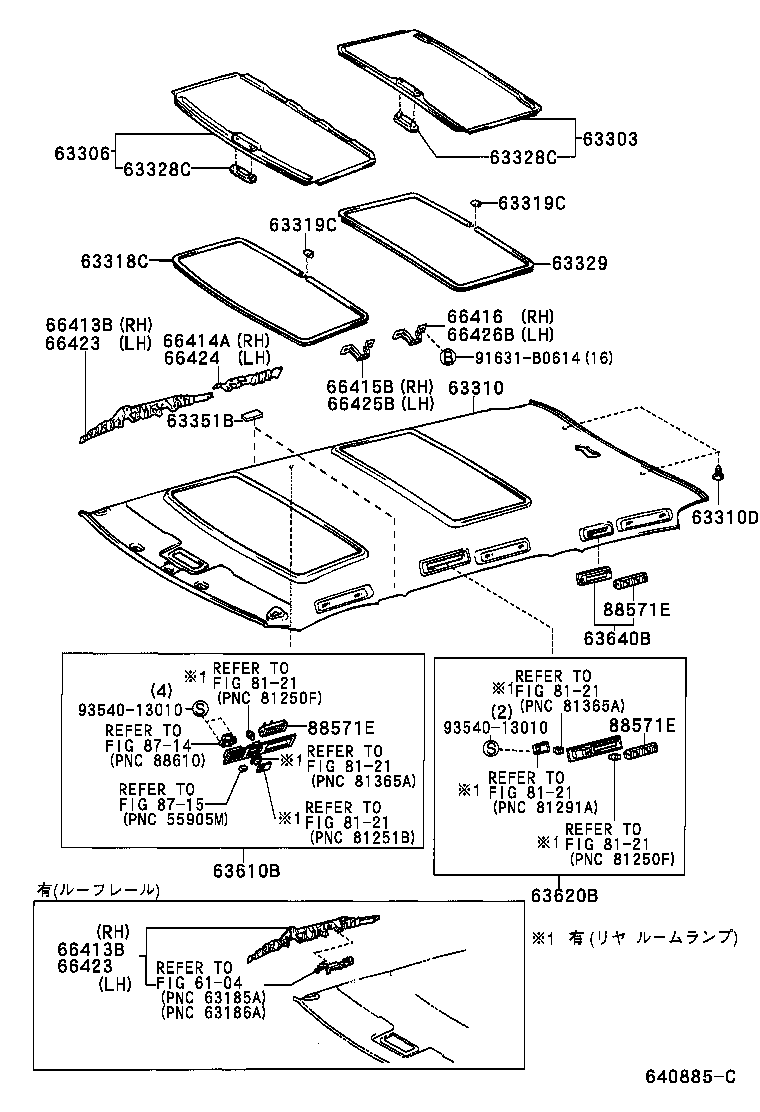

Figure 640884F 640884F 2001-05 → — Figure 640885C 640885C 2001-05 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63319C Joint, Sun Roof Opening Trim
63328C Knob, Sunshade Trim
63329 Moulding, Sun Roof Opening Trim, NO.2
63341 Pad, Roof Silencer, NO.1
63351B Pad, Roof Headlining
63610B Register Assy, Air Outlet, RH
63620B Register Assy, Air Outlet, LH
63640B Register Assy, Air Outlet
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
88571E Grille, Cooler Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
