Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 3 illustrations

Illustrations

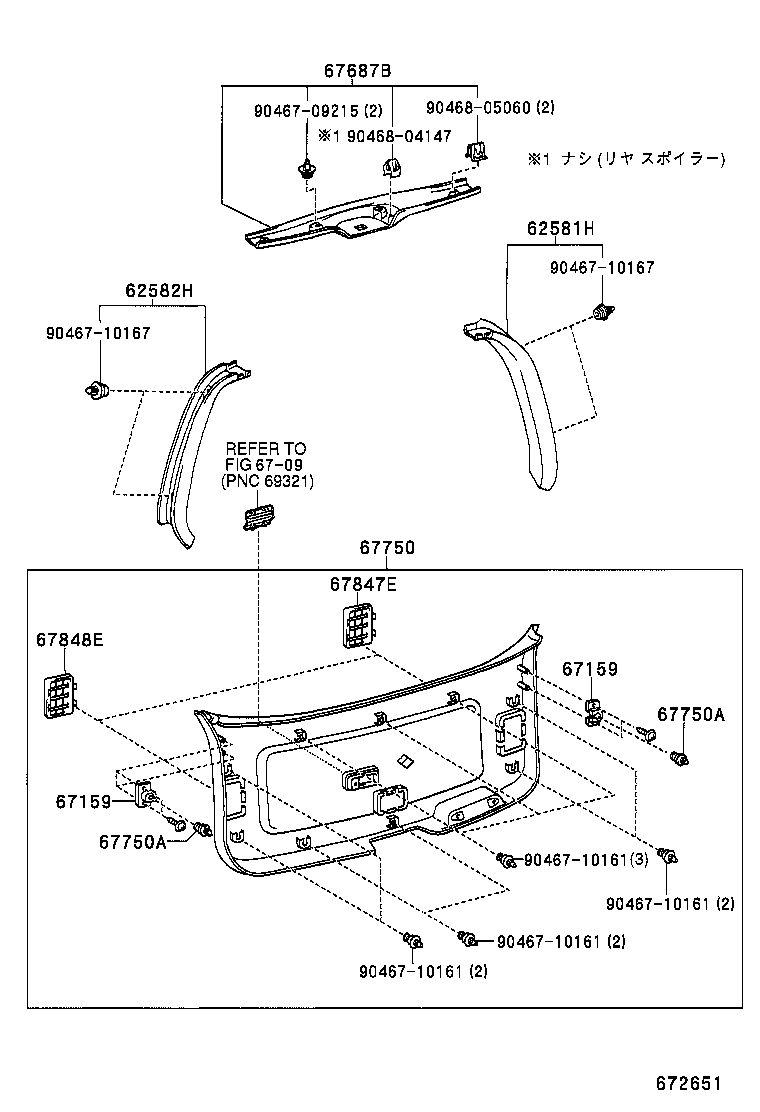

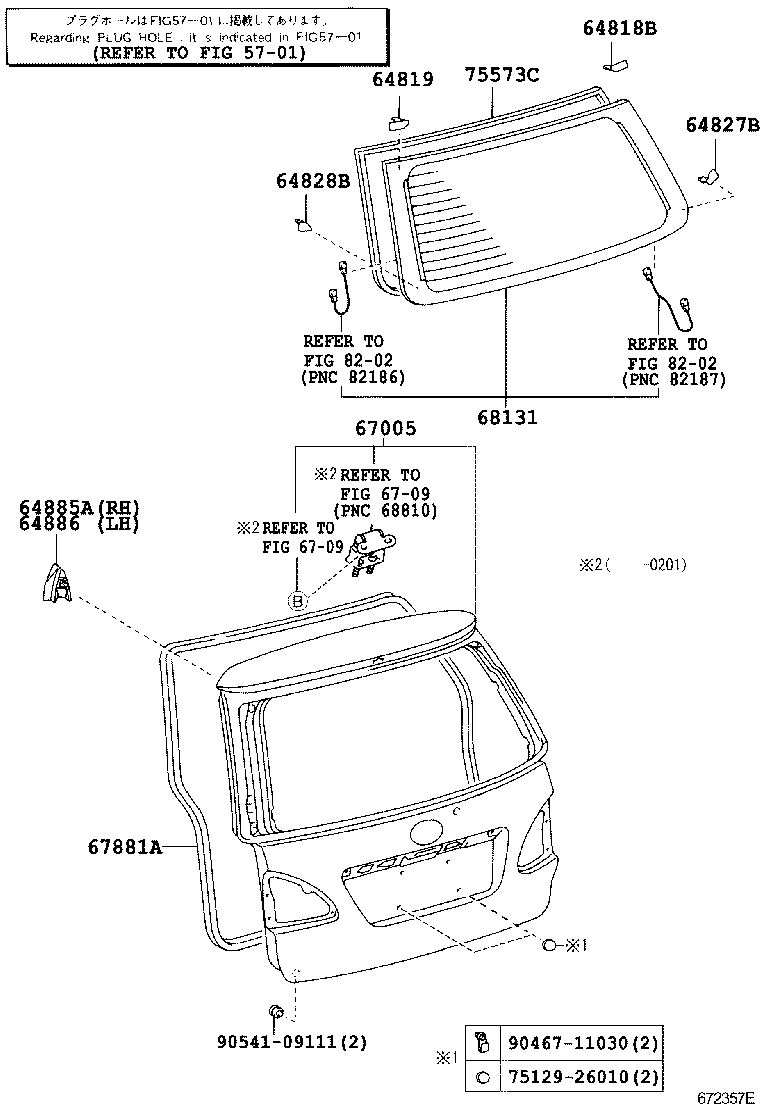

Figure 672316B 672316B 2001-05 → 2001-10 Figure 672357E 672357E 2001-05 → — Figure 672651 672651 2001-10 → —

Part groups

PNCDescription
62581H Garnish, Rear Window Side, RH
62582H Garnish, Rear Window Side, LH
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67159 Retainer, Back Door Trim
67687B Garnish, Back Window
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67847E Cover, Back Door Service Hole, RH
67848E Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
68131 Glass, Back Door
75573C Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
