Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

128 part groups · 6 illustrations

Illustrations

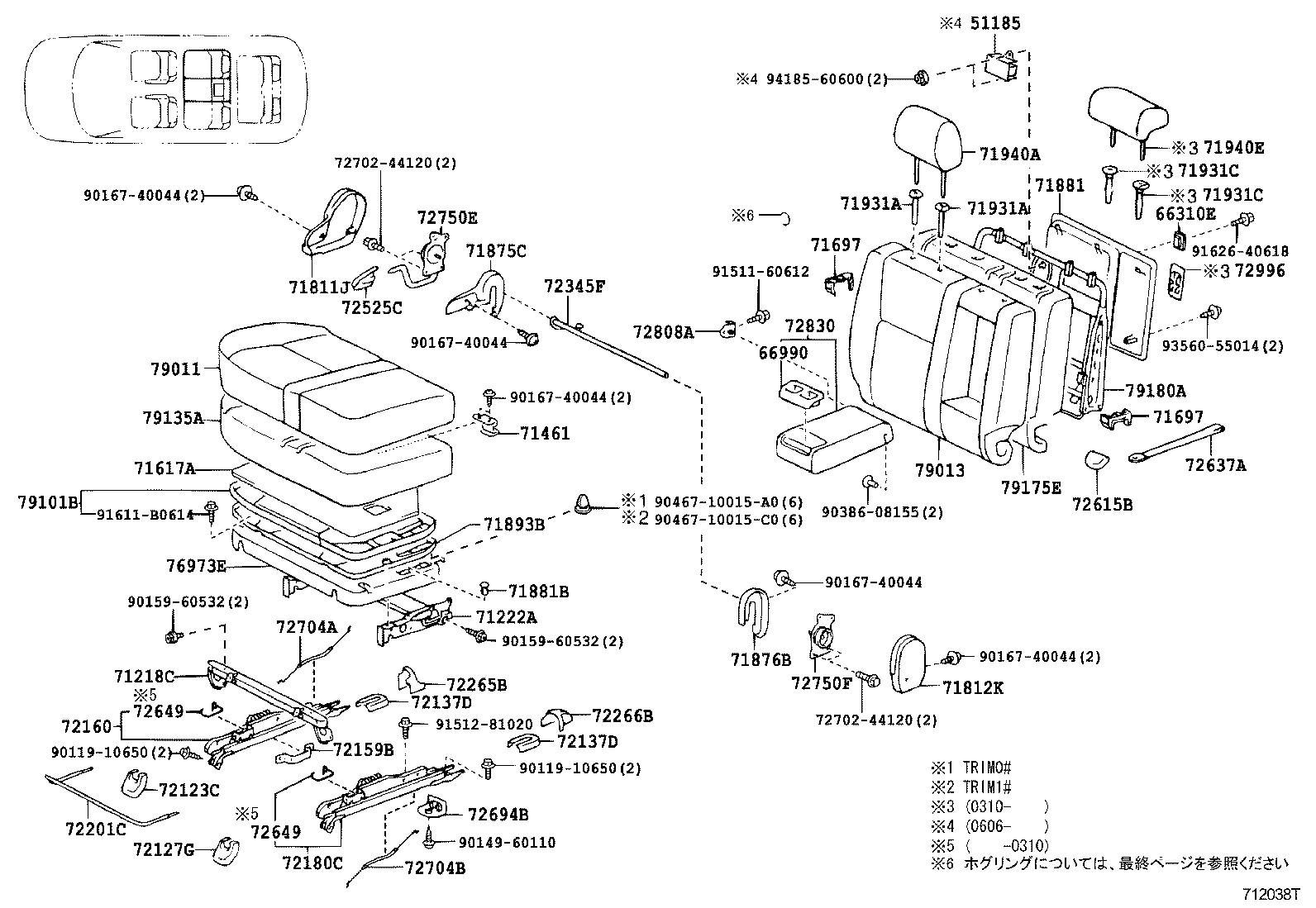

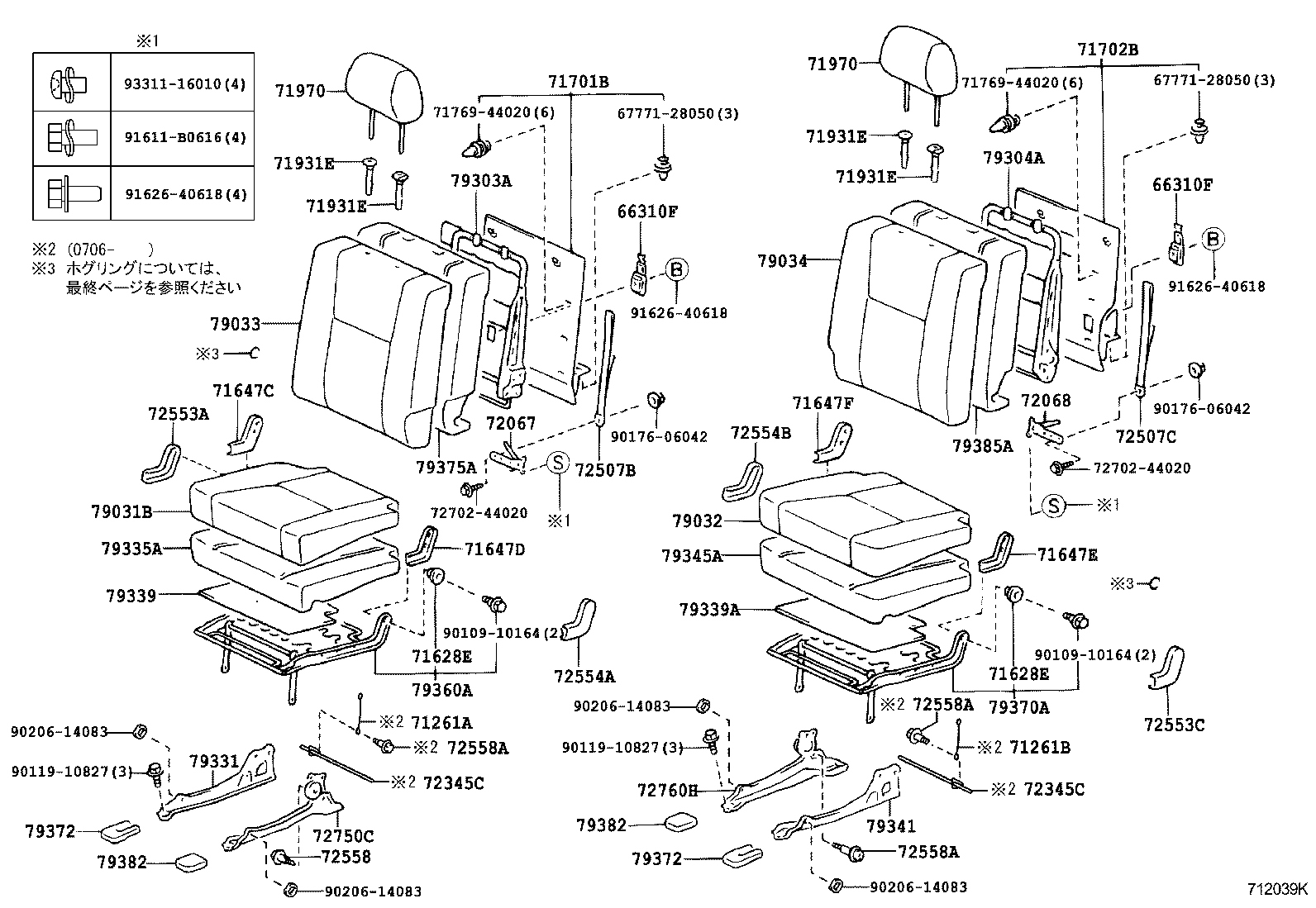

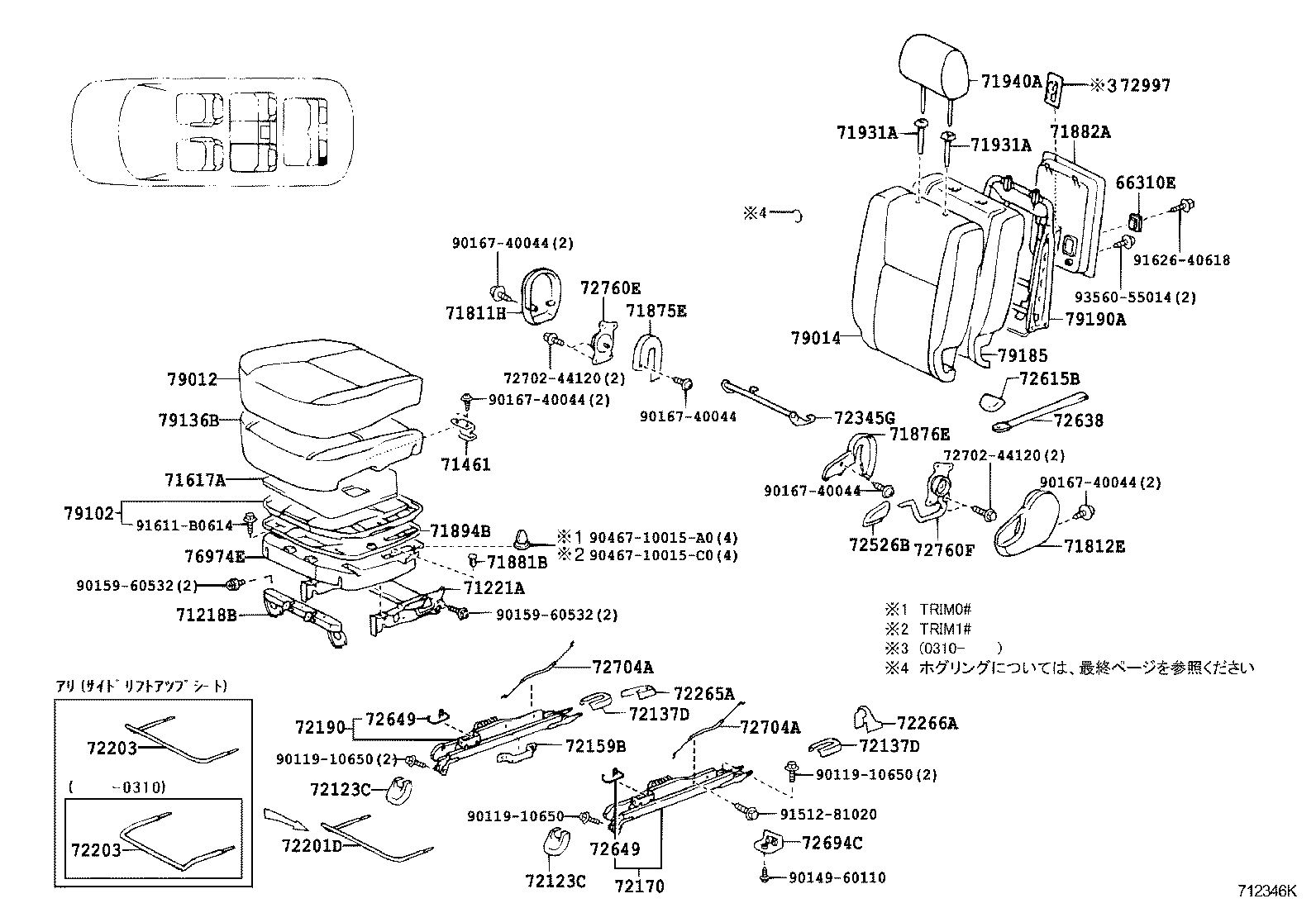

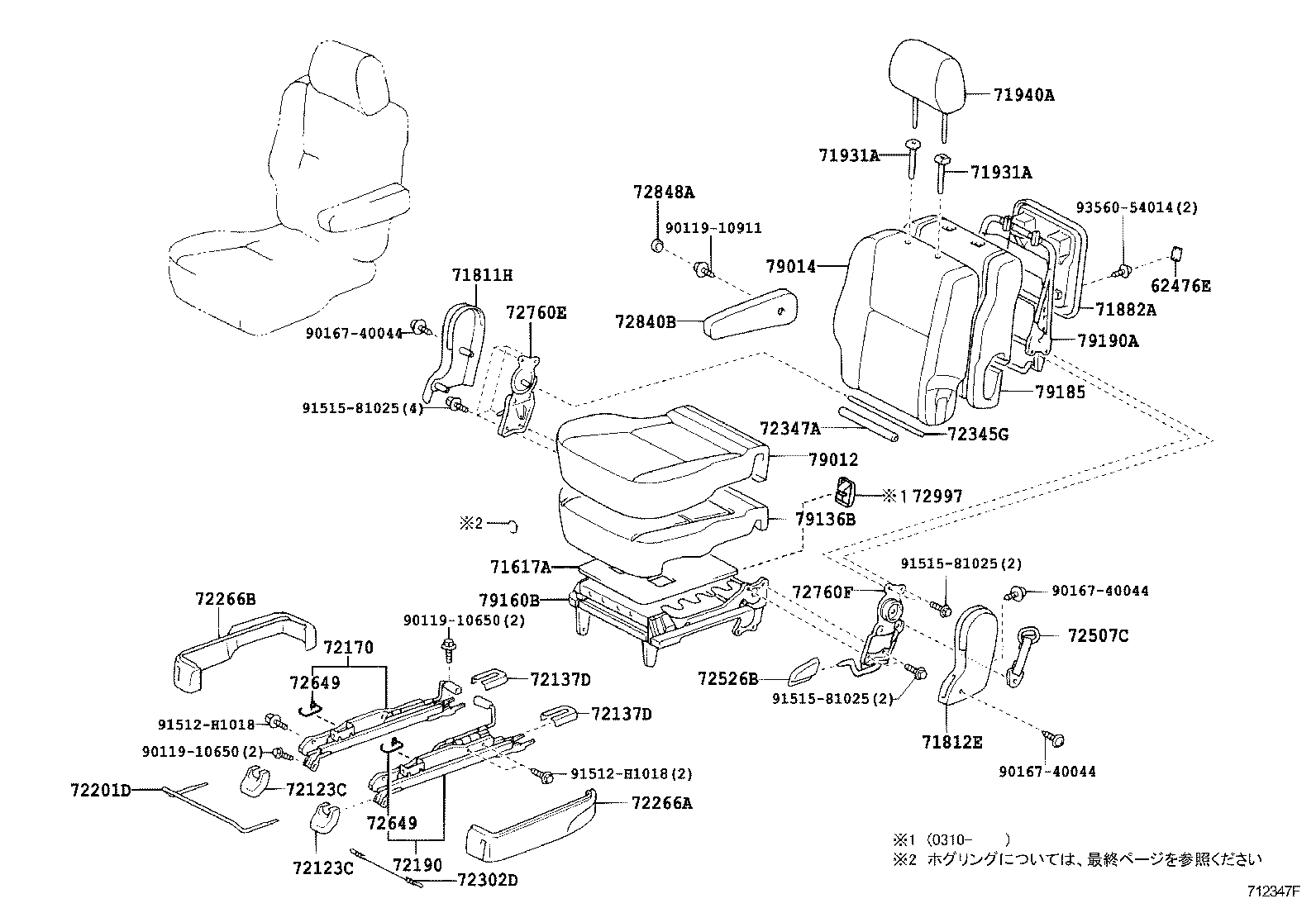

Figure 712037K 712037K 2001-05 → — Figure 712347F 712347F 2001-05 → — Figure 712038T 712038T 2001-05 → — Figure 712346K 712346K 2001-05 → — Figure 712039K 712039K 2001-05 → — Figure 718165A 718165A 2001-05 → —

Part groups

PNCDescription
51185 Weight, Frame, Front NO.1
62476E Cap, Rear Seat
66310E Hook Assy, Rope
66310F Hook Assy, Rope
66990 Holder Assy, Cup
71218B Reinforcement, RR Seat Cushion, RH
71218C Reinforcement, RR Seat Cushion, LH
71221A Reinforcement, Rear Seat Cushion, Rear
71222A Reinforcement, Rear Seat Cushion, Rear
71261A Wire, Rear Seatback Connecting, RH
71261B Wire, Rear Seatback Connecting, LH
71461 Spring, Rear Seat Cushion
71617A Cloth, Rear Seat Cushion Under
71628E Spacer, Rear Seat Cushion
71647C Protector, Rear Seat Cushion Edge,Outer RH
71647D Protector, Rear Seat Cushion Edge, Inner RH
71647E Protector, Rear Seat Cushion Edge, Outer LH
71647F Protector, Rear Seat Cushion Edge, Inner LH
71697 Protector, Rear Seatback Edge
71701B Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71811H Cover, Reclining Adjuster, RH
71811J Cover, Reclining Adjuster, RH
71812E Cover, Reclining Adjuster, LH
71812K Cover, Reclining Adjuster, LH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71881 Board, Rear Seatback, RH
71881B Clip, Rear Seatback Board
71882A Board, Rear Seatback, LH
71893B Carpet, Rear Seat Cushion, Under RH
71894B Carpet, Rear Seat Cushion, Under LH
71931A Support, Rear Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71931E Support Assy, Rear NO.3 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71970 Headrest Assy, Rear Seat
72067 Lever Sub-assy, Rear Back Lock Control, RH
72068 Lever Sub-assy, Rear Back Lock Control, LH
72123C Cover, Seat Track Bracket, Outer Front RH
72127G Cover, Seat Track Bracket, Inner Front RH
72137D Cover, Rear Seat Track, RH
72159B Cover, Rear Seat Track Bracket, Outer
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180C Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72201C Handle Sub-assy, Seat Track, RH
72201D Handle Sub-assy, Seat Track, LH
72203 Handle Sub-assy, Rear Seat Track
72265A Cover, Seat Track Upper Rail, RH
72265B Cover, Seat Track Upr Rail, RH
72266A Cover, Seat Track Upper Rail, LH
72266B Cover, Seat Track Upper Rail, LH
72302C Wire Sub-assy, Rear Seat Track Equalizing, RH
72302D Wire Sub-assy, Rear Seat Track Equalizing, LH
72345C Pipe,Reclining Connecting, RH
72345F Pipe, Reclining Connecting, RH
72345G Pipe, Reclining Connecting, LH
72347A Cover, Reclining Connecting Hook
72507B Handle Sub-assy, Reclining Release, RH
72507C Handle Sub-assy, Reclining Release, LH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72553A Protector, Reclining Cover, RH
72553C Protector, Reclining Cover, RH
72554A Protector, Reclining Cover, LH
72554B Protector, Reclining Cover, LH
72558 Stopper, Reclining
72558A Stopper, Reclining
72615B Cover, Rear Seat Lock Striker, RH
72637A Handle, Rear Seat Lock
72638 Handle, Rear Seat Lock, LH
72649 Spring, Rear Seat Cushion Support
72694B Cover, Rear Seat Cushion Lock, RH
72694C Cover, Rear Seat Cushion Lock, LH
72704A Cable, Rear Seat Reclining Control
72704B Cable, Rear Seat Reclining Control, NO.2
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72750E Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
72750F Adjuster Assy, Rear NO.2 Seat Reclining, Inner LH
72760E Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
72760F Adjuster Assy, Rear NO.2 Seat Reclining, Outer LH
72760H Adjuster Assy, NO.3 Seat Reclining, LH
72808A Bracket Sub-assy, Seat Center Armrest
72830 Armrest Assy, Rear Seat, Center
72830M Armrest Assy, Seat Center, RH
72840B Armrest Assy, Seat Center, LH
72848A Cap, Seat Armrest, NO.1
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79031B Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79160A Spring Assy, NO.1 Seat Cushion, RH
79160B Spring Assy, NO.1 Seat Cushion, LH
79175E Pad, NO.1 Seatback, RH
79180A Spring Assy, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79190A Spring Assy, NO.1 Seatback, LH
79303A Frame Sub-assy, NO.3 Seatback, RH
79304A Frame Sub-assy, NO.3 Seatback, LH
79331 Leg, NO.3 Seat, Outer RH
79335A Pad, NO.3 Seat Cushion, RH
79339 Cloth, NO.3 Seat Cushion RH
79339A Cloth, NO.3 Seat Cushion LH
79341 Leg, NO.3 Seat, Outer LH
79345A Pad, NO.3 Seat Cushion, LH
79360A Spring Assy, NO.3 Seat Cushion, RH
79370A Spring Assy, NO.3 Seat Cushion, LH
79372 Cover, NO.3 Seat Front Bracket, RH
79375A Pad, NO.3 Seatback, RH
79382 Cover, NO.3 Seat Front Bracket, LH
79385A Pad, NO.3 Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
