Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

21 part groups · 3 illustrations

Illustrations

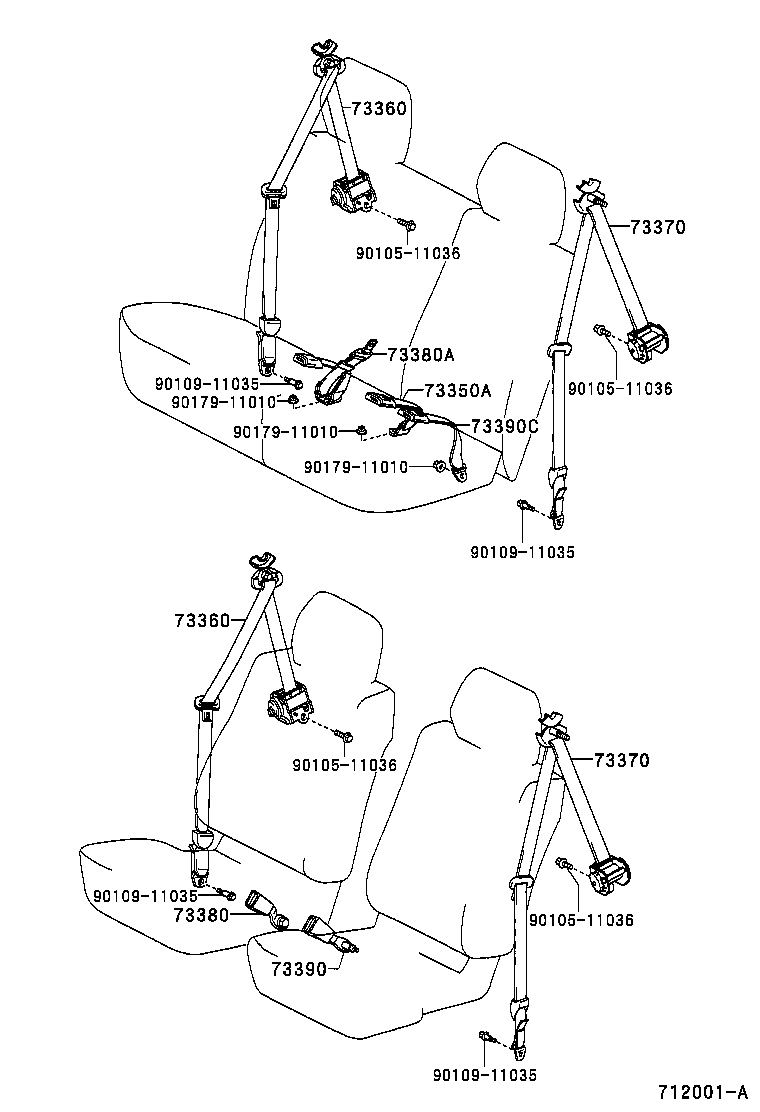

Figure 711988D 711988D 2001-05 → — Figure 712001A 712001A 2001-05 → — Figure 712003B 712003B 2001-05 → —

Part groups

PNCDescription
73135A Cover, Shoulder Belt Anchor, RH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380A Belt Assy, Rear Seat, Inner
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
