Toyota Ipsum
2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan
Discontinued model
Data version 2010-04

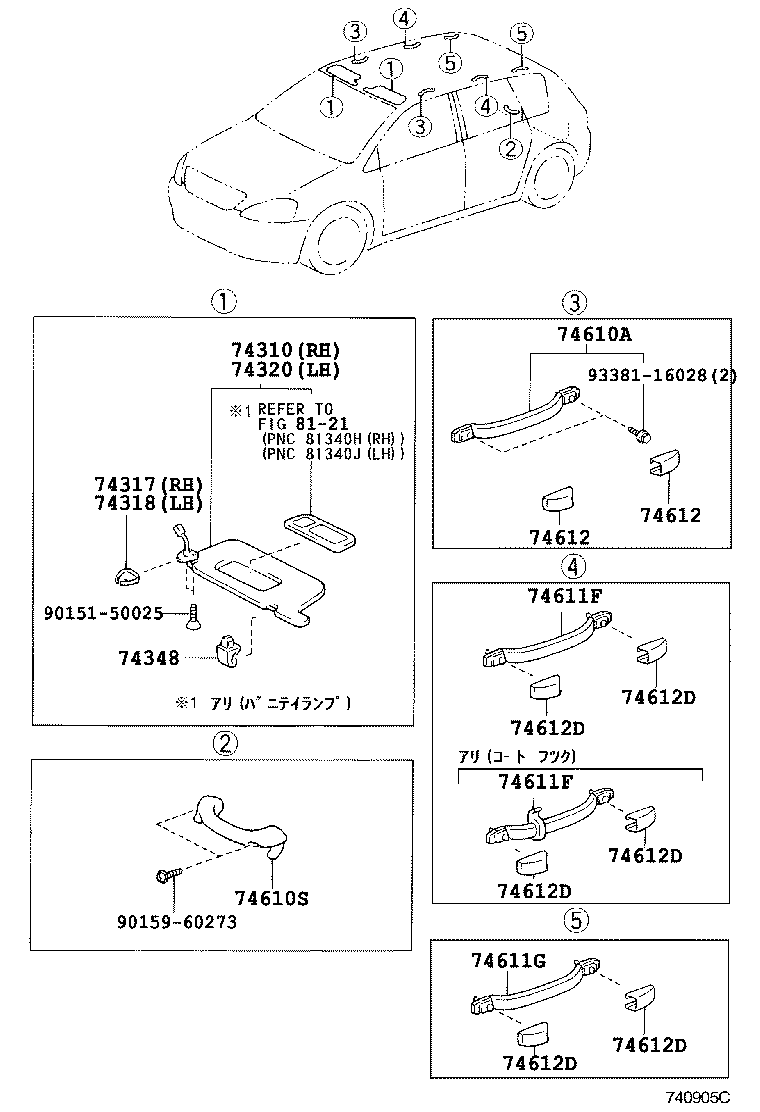

Armrest & Visor
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74250A | Armrest Assy, Quarter, RH |
| 74260A | Armrest Assy, Quarter, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74610S | Grip Assy, Assist |
| 74611F | Grip, Assist, NO.1 |
| 74611G | Grip, Assist, NO.2 |
| 74612 | Cover, Assist Grip |
| 74612D | Cover, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
