Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

11 part groups · 5 illustrations

Illustrations

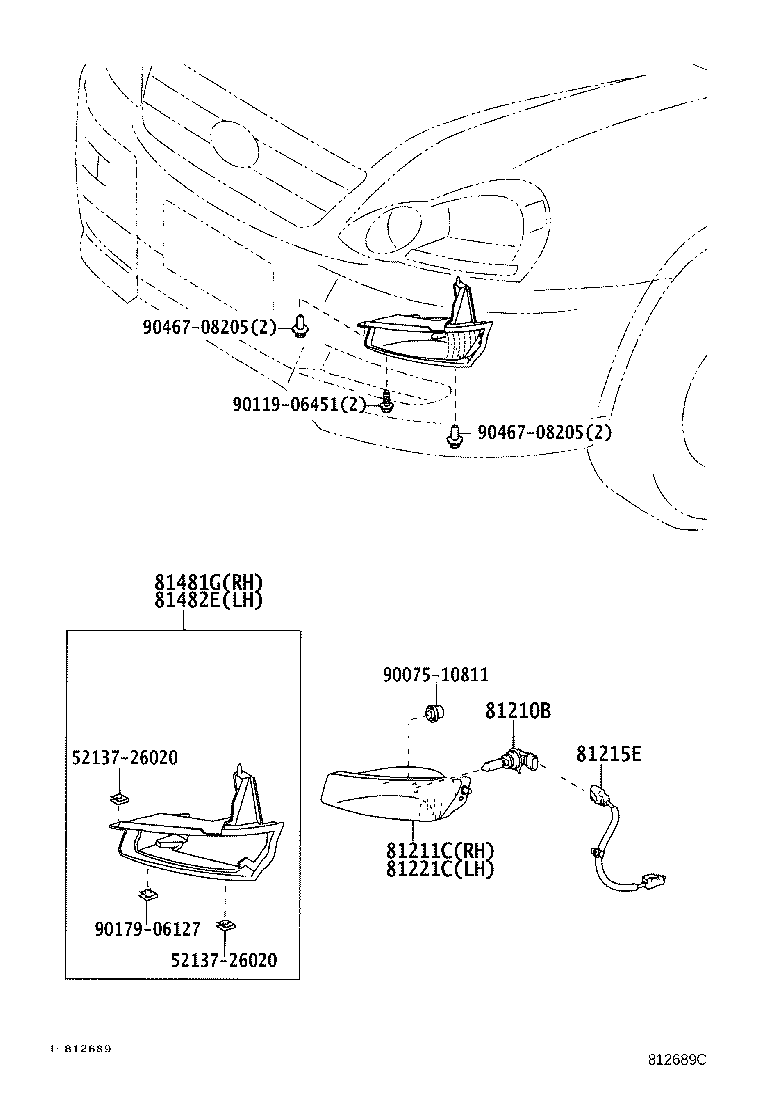

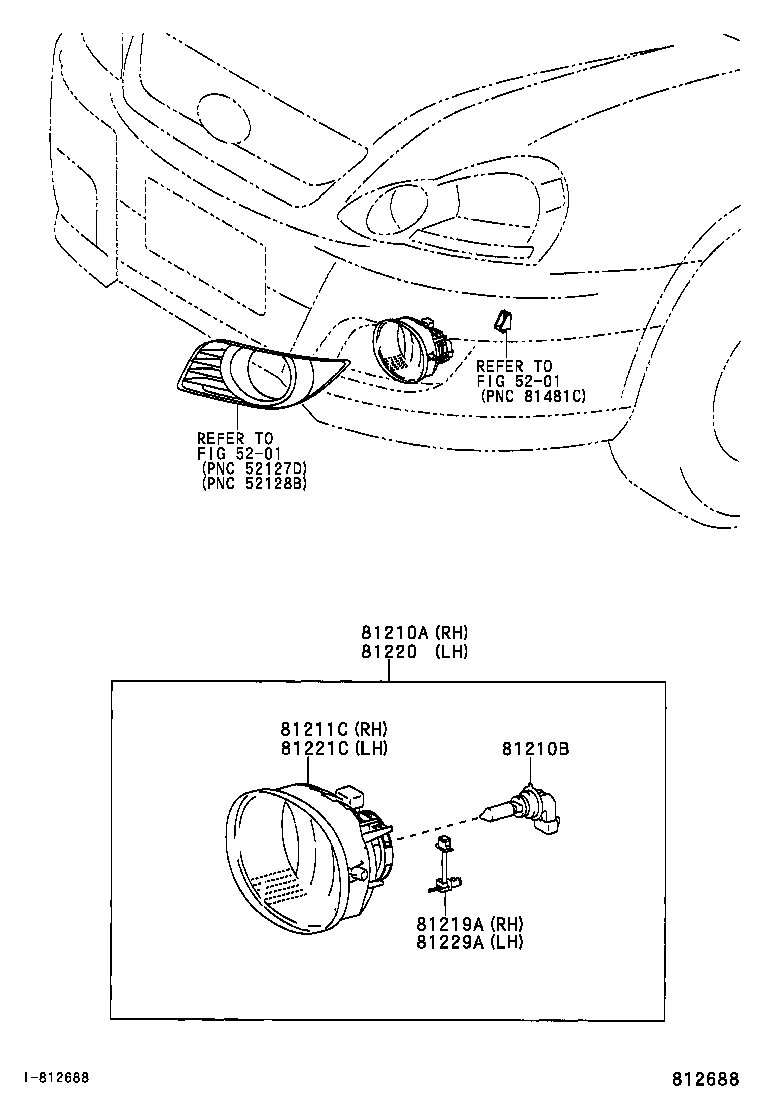

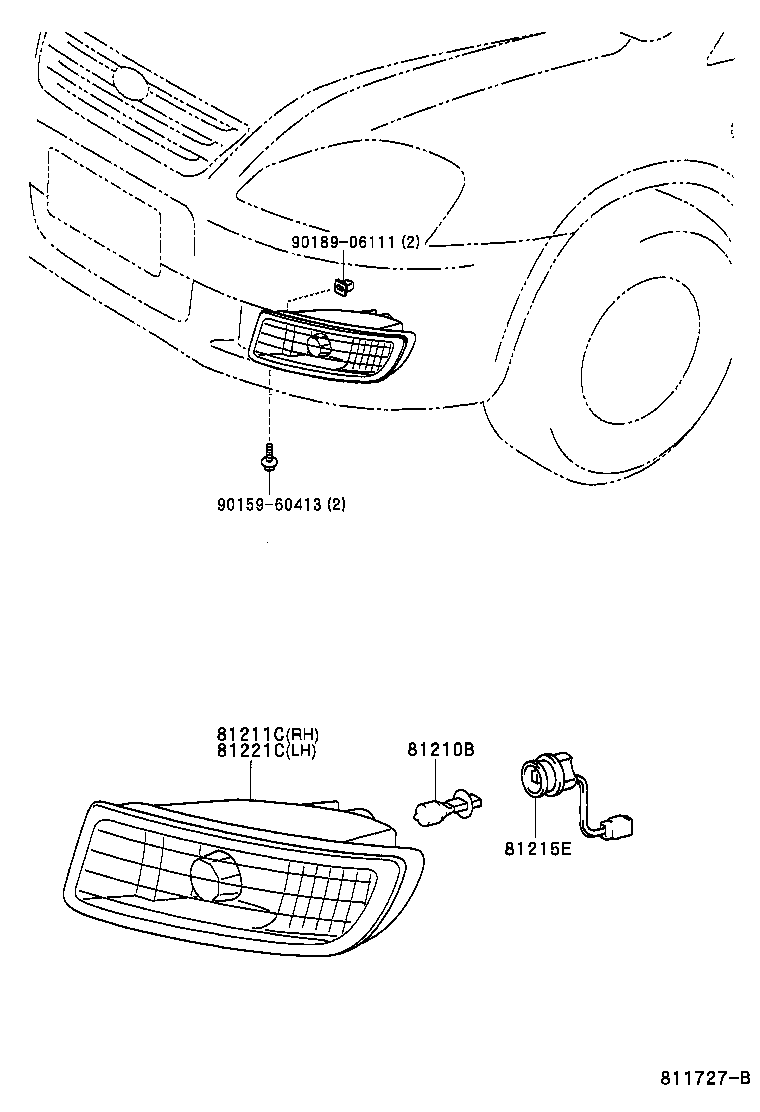

Figure 812427A 812427A 2001-05 → 2003-10 Figure 811727B 811727B 2001-05 → 2003-10 Figure 811727B 811727B 2002-06 → 2003-10 Figure 812688 812688 2003-10 → — Figure 812689C 812689C 2003-10 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81215E Cord, Fog Lamp
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481 Bracket, Fog Lamp
81481G Bracket, Fog Lamp, RH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
