Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

2 part groups · 2 illustrations

Illustrations

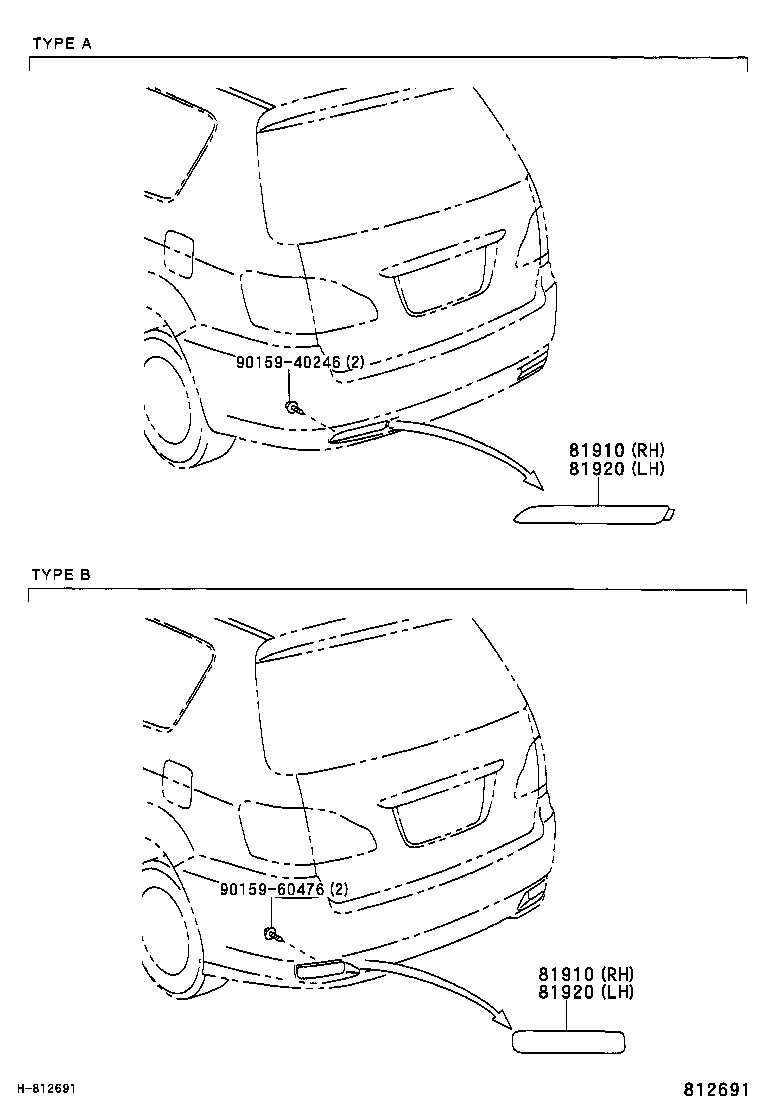

Figure 811734 811734 2001-05 → 2003-10 Figure 812691 812691 2003-10 → 2009-12

Part groups

PNCDescription
81910 Reflector Assy, Reflex, RH
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
