Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 8 illustrations

Illustrations

Figure 822546B

822546B 2001-05 → —

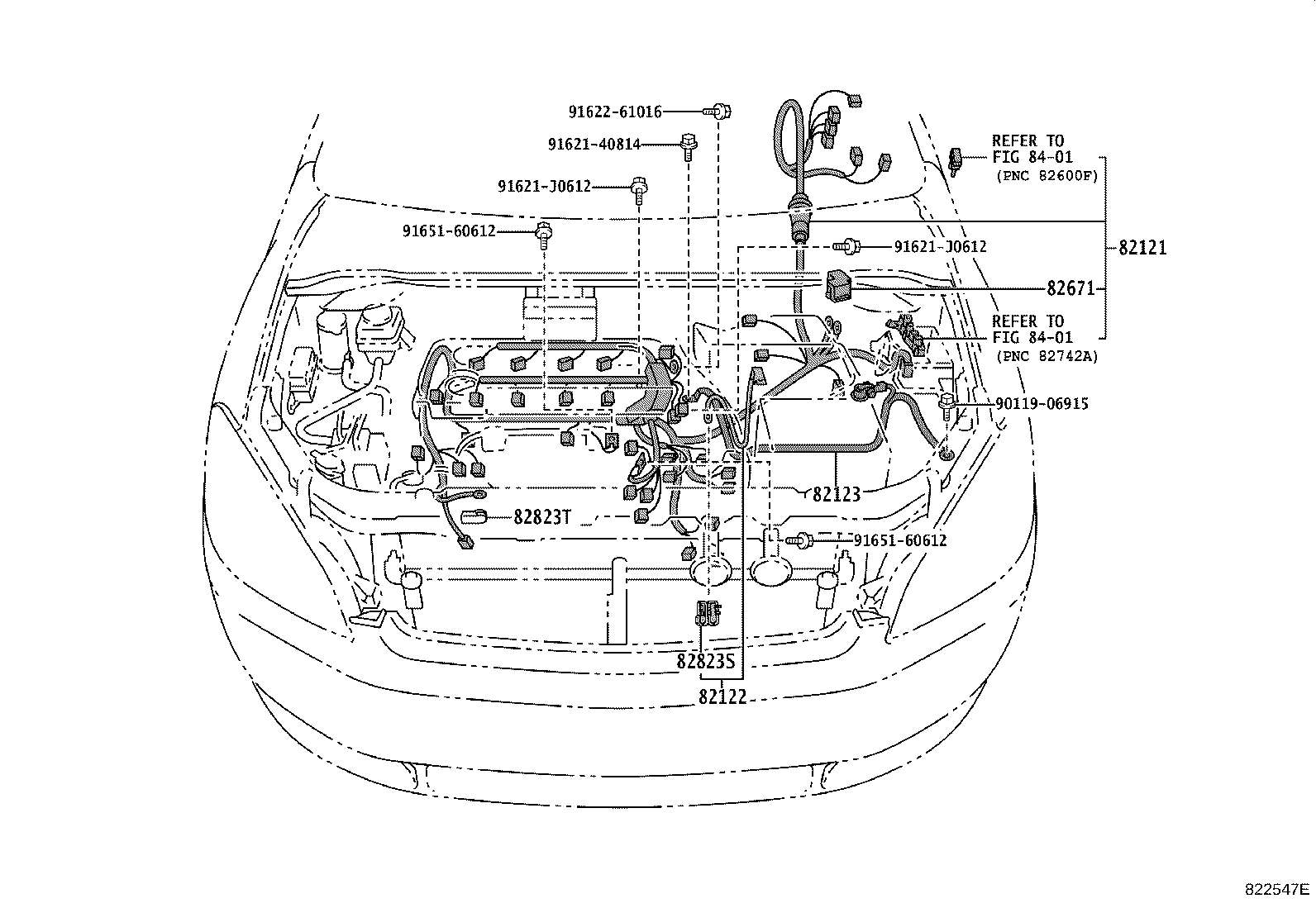

Figure 822547E

822547E 2001-05 → —

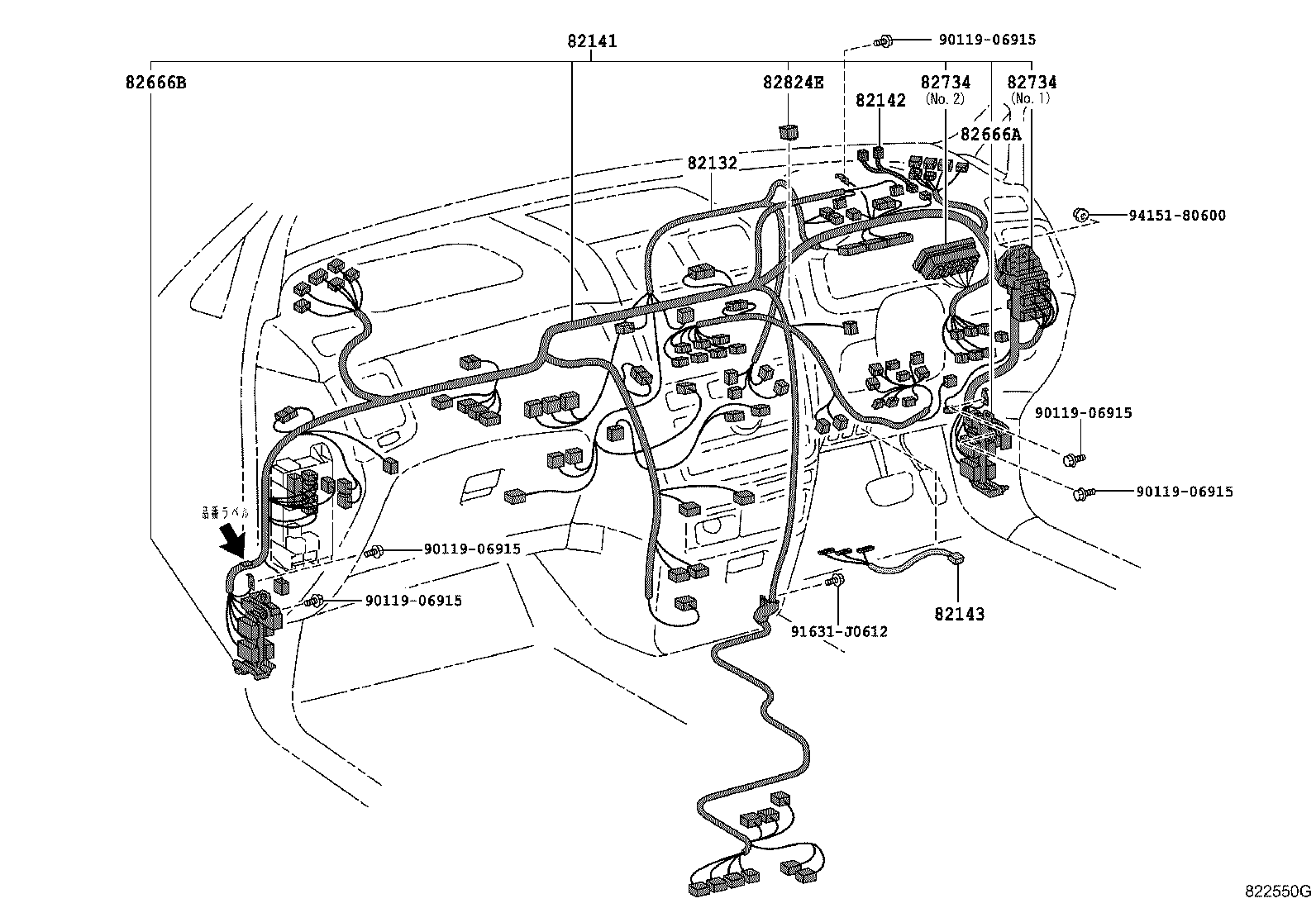

Figure 822550G

822550G 2001-05 → —

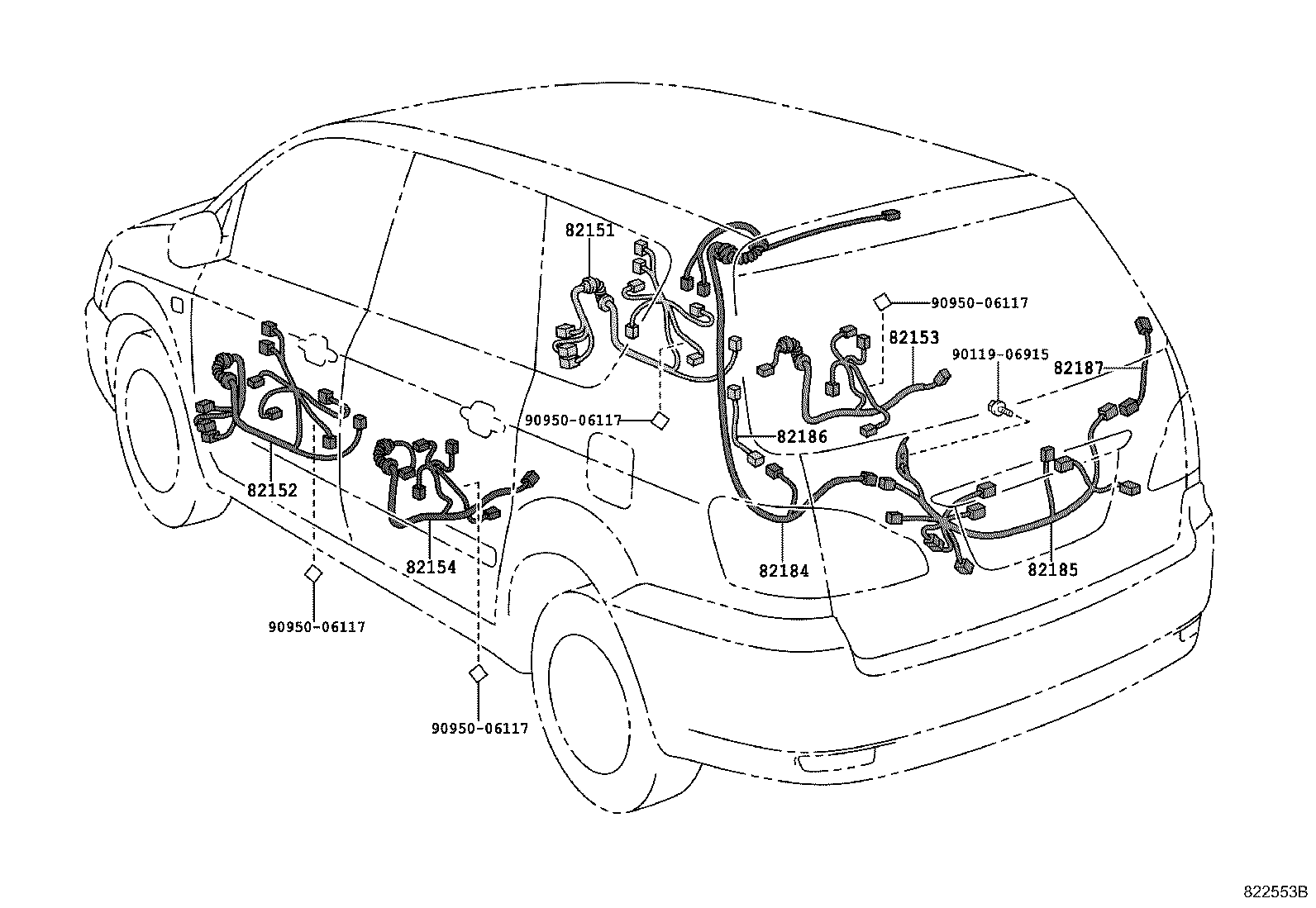

Figure 822553B

822553B 2001-05 → —

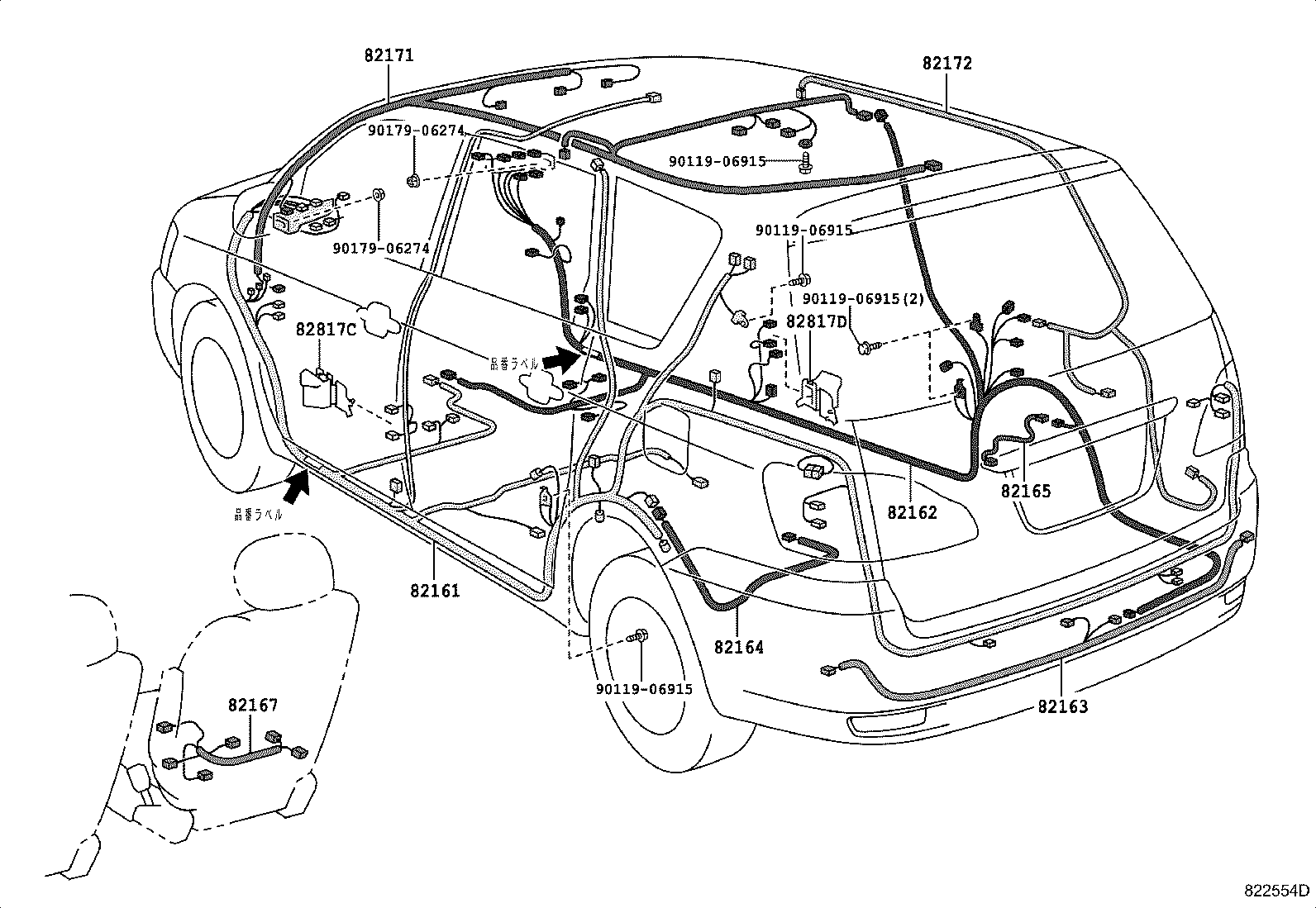

Figure 822554D

822554D 2001-05 → —

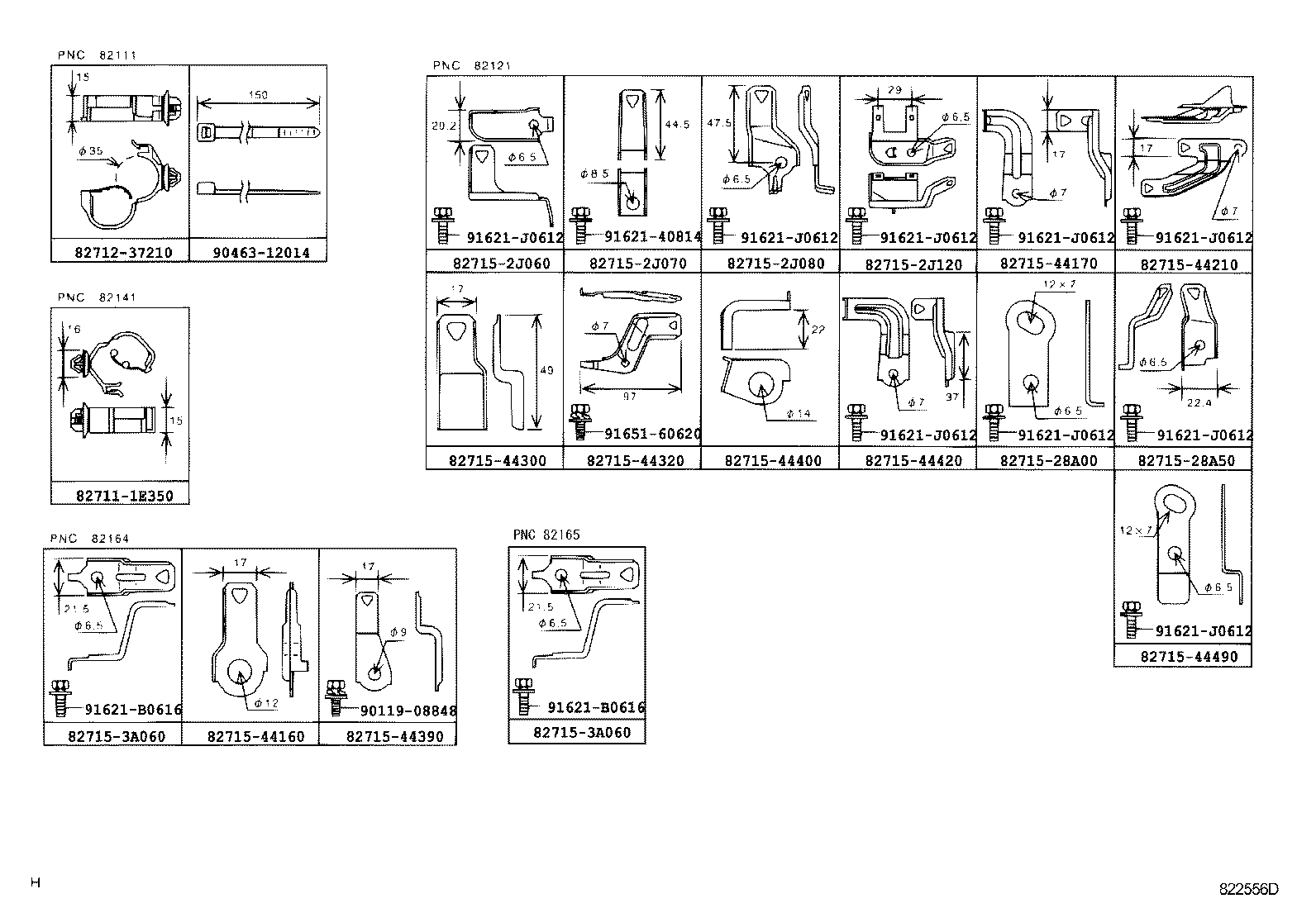

Figure 822556D

822556D 2001-05 → —

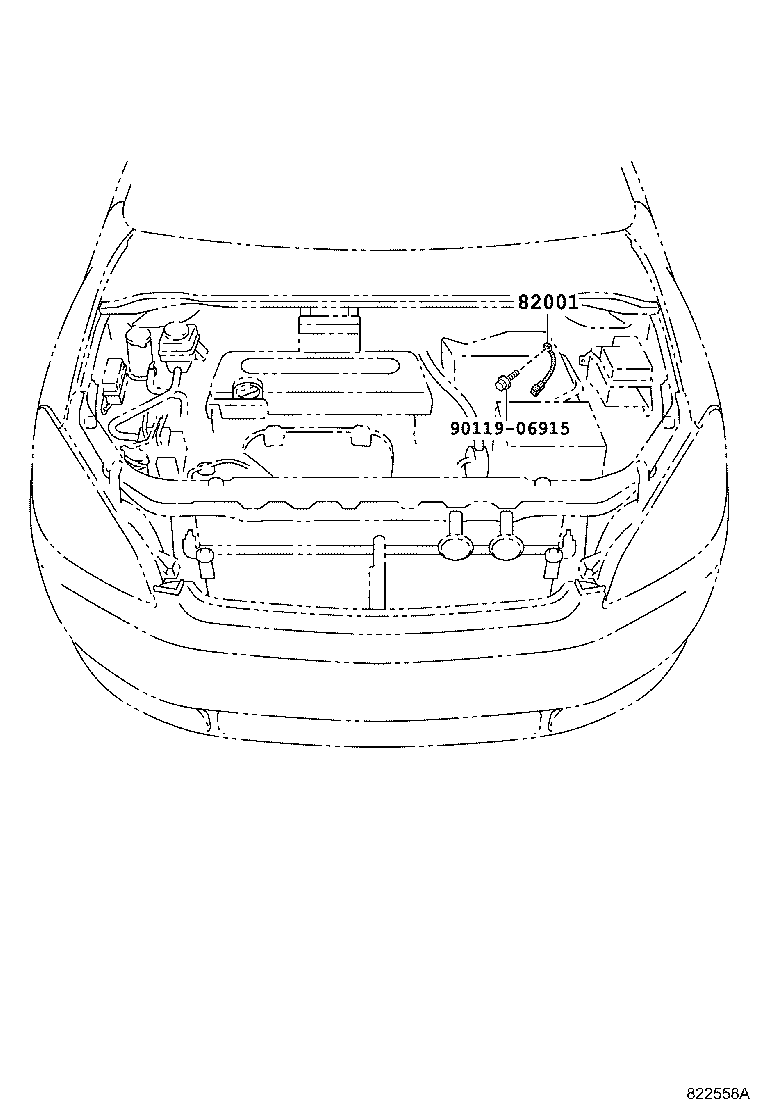

Figure 822558A

822558A 2001-05 → —

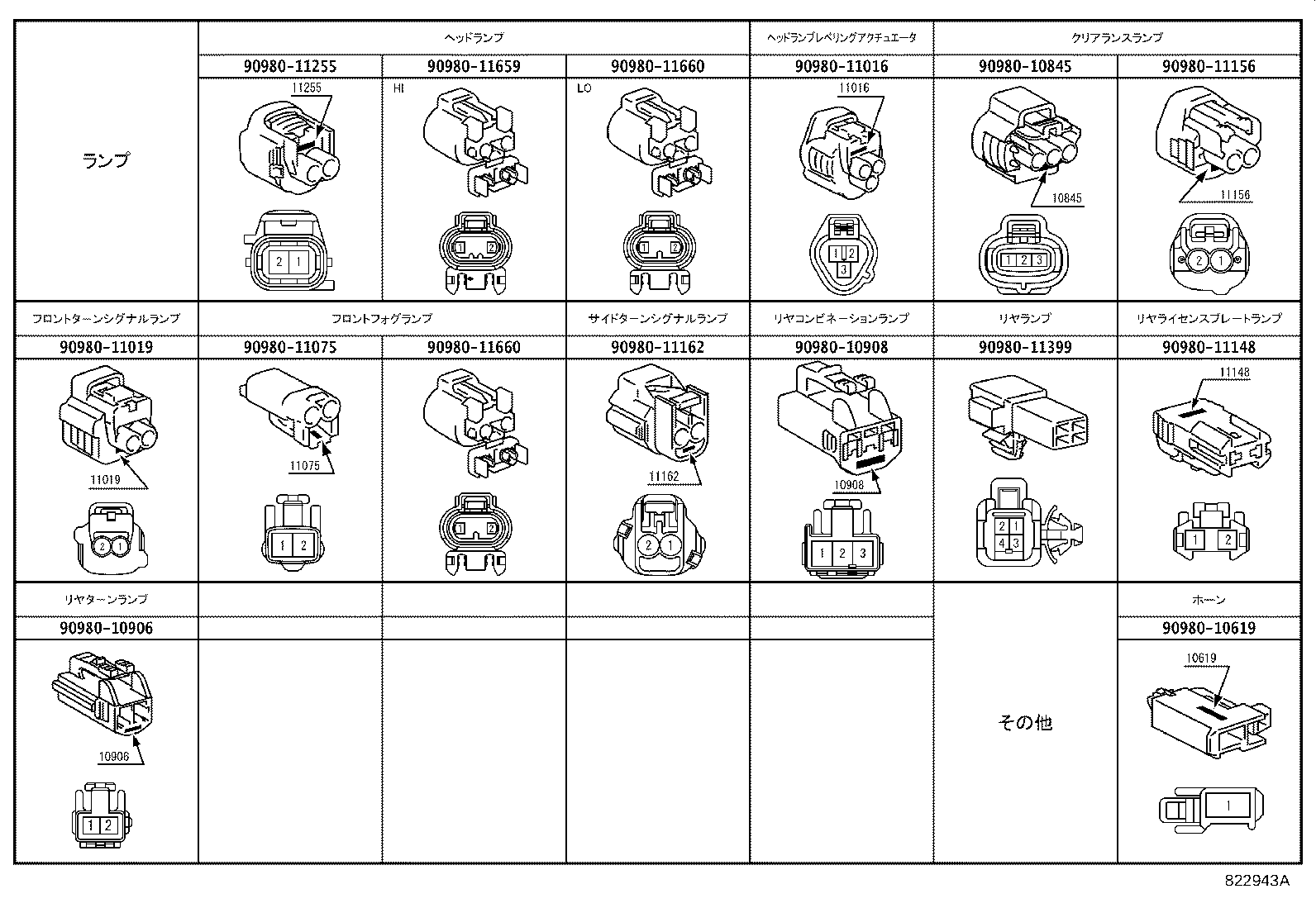

Figure 822943A

822943A 2001-05 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82112B	Wire, Engine Room, NO.2
82113	Wire, Engine Room, NO.3
82114	Wire, Engine Room, NO.4
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82132	Wire, Cowl, NO.2
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82143	Wire, Instrument Panel, NO.3
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82164	Wire, Frame
82165	Wire, Frame, NO.2
82167	Wire, Seat, NO.1
82171	Wire, Roof, NO.1
82172	Wire, Roof, NO.2
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82671	Block, Junction
82734	Block, Center Junction
82817C	Protector, Wiring Harness, NO.4
82817D	Protector, Wiring Harness, NO.5
82823S	Cap, Starter Terminal
82823T	Cap, Alternator Terminal
82824E	Connector, Wiring Harness

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
