Toyota Ipsum
2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan
Discontinued model
Data version 2010-04
Meter
5 part groups · 4 illustrations
Part groups

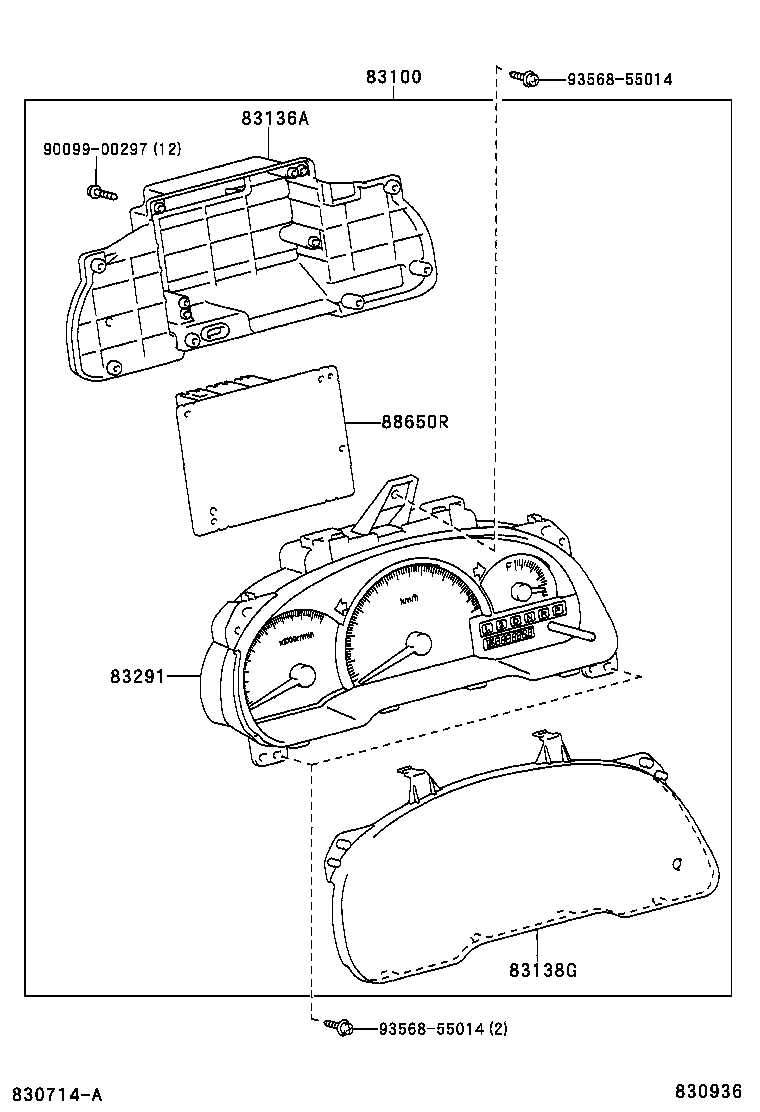

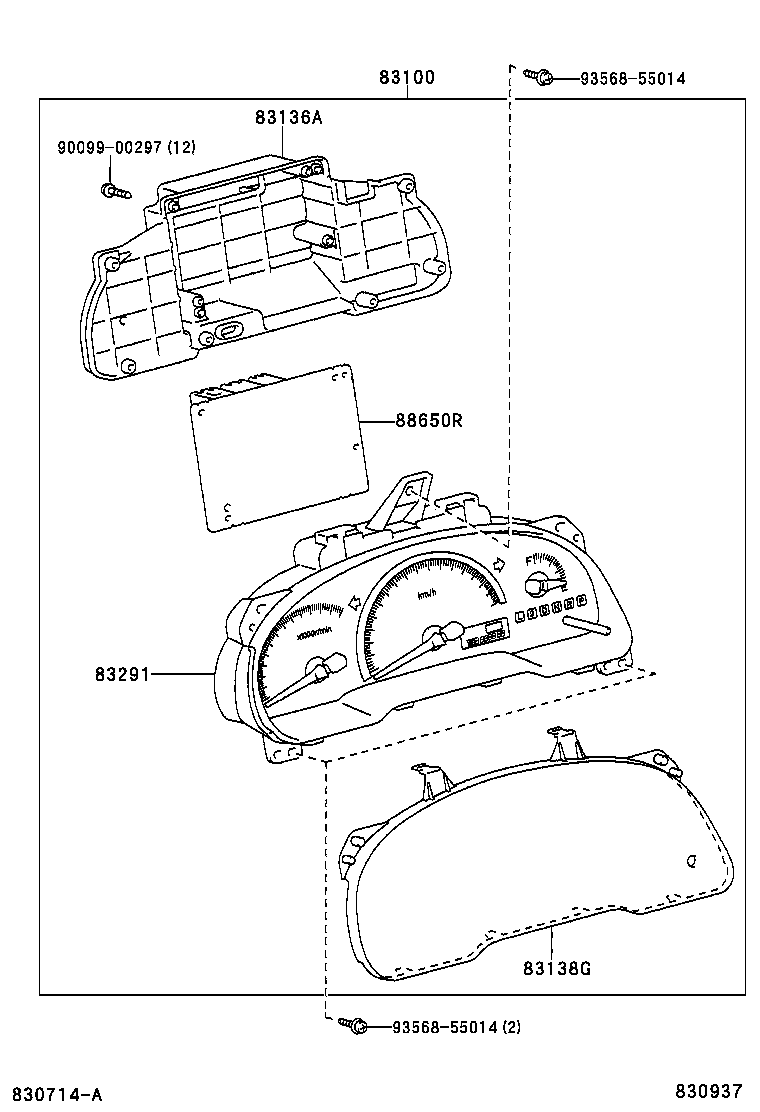

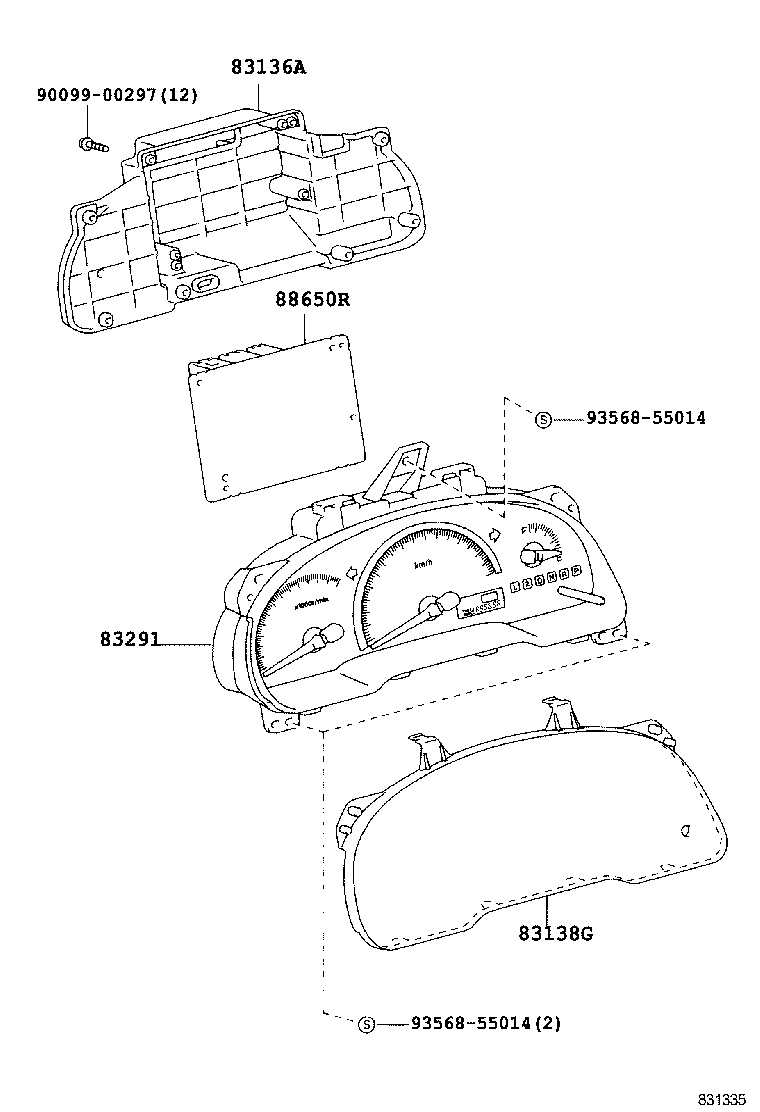

| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83136A | Cover, Combination Meter |
| 83138G | Glass, Combination Meter |
| 83291 | Computer, Combination Meter |
| 88650R | Amplifier Assy, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
