Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

97 part groups · 8 illustrations

Illustrations

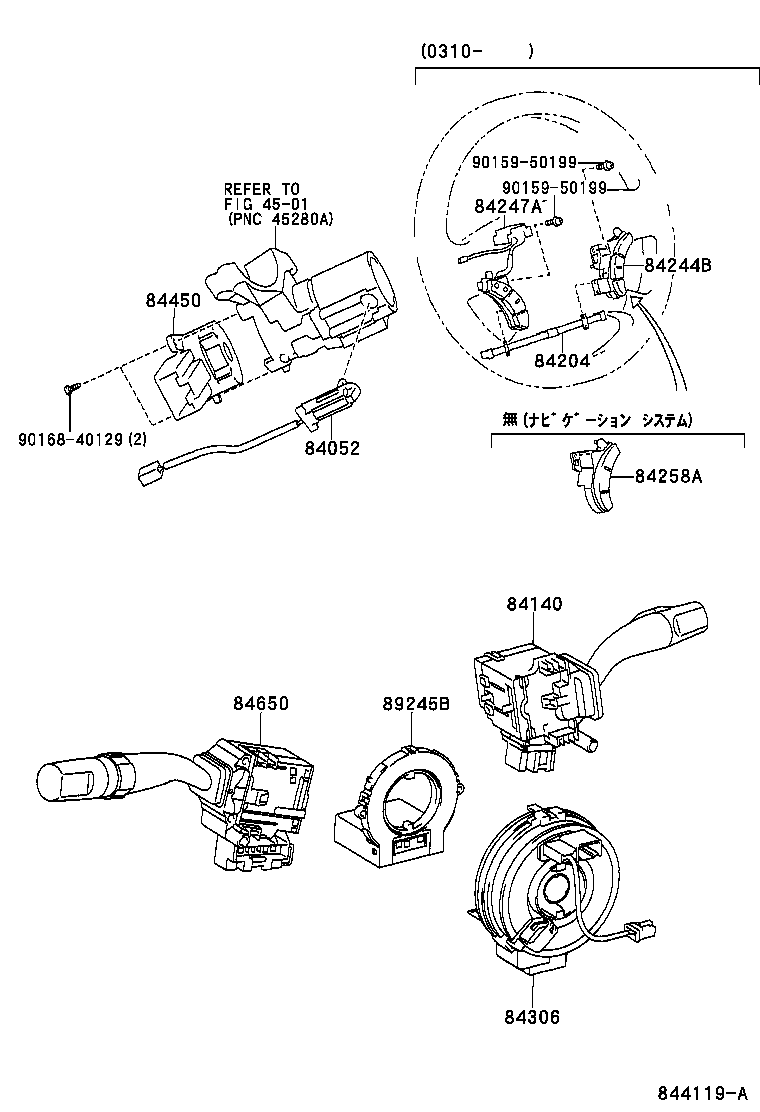

844115A 2001-05 → 2003-10

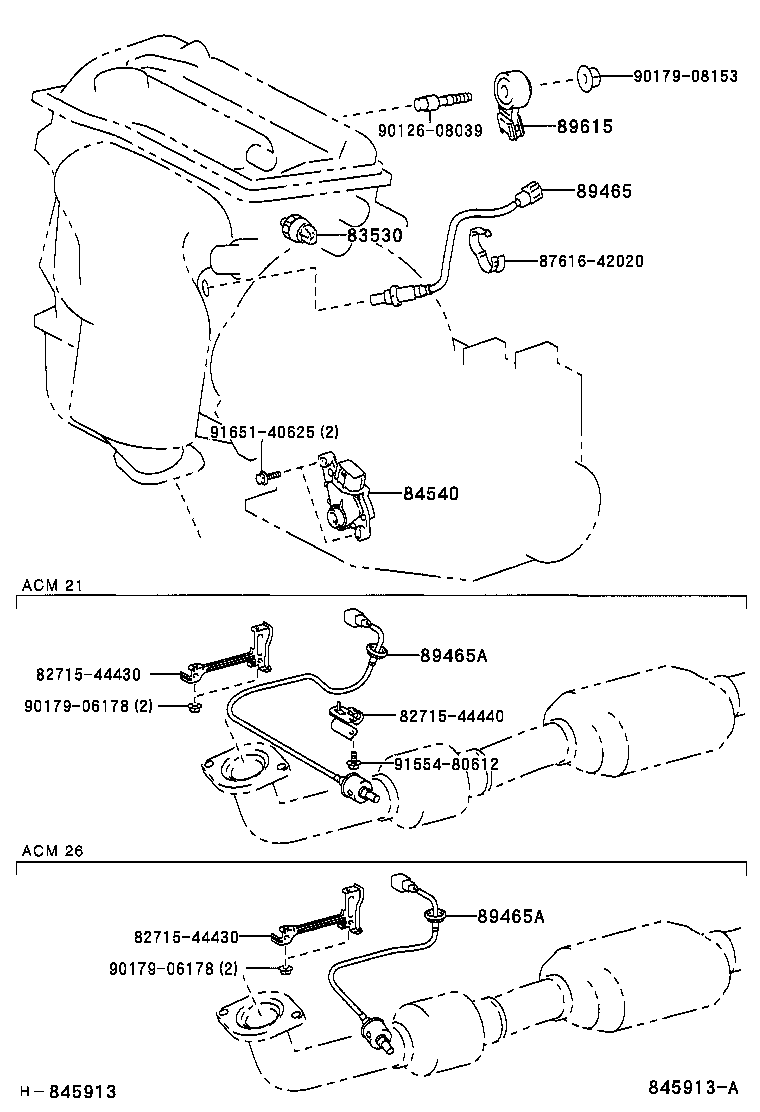

845913A 2003-10 → —

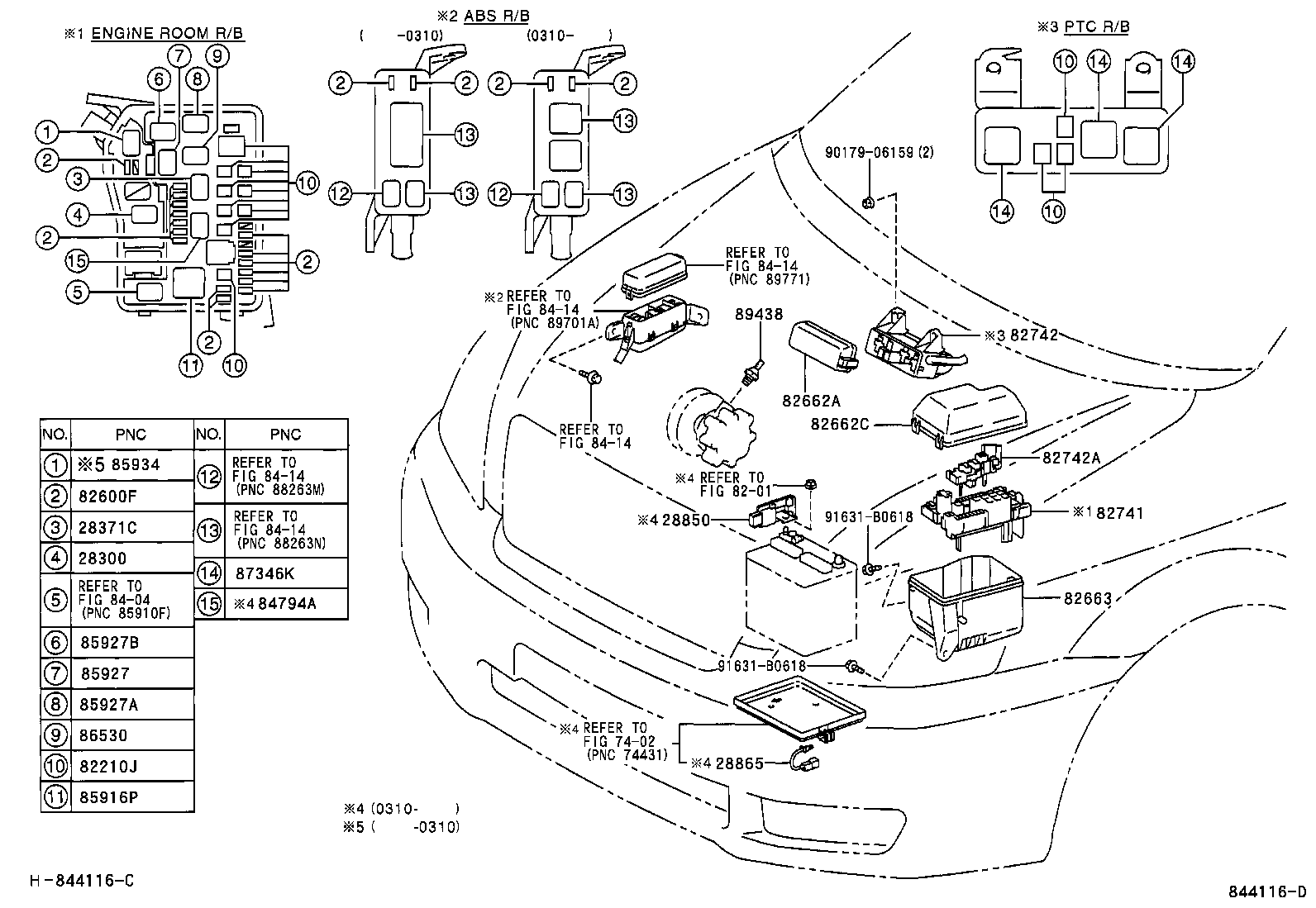

844116D 2001-05 → —

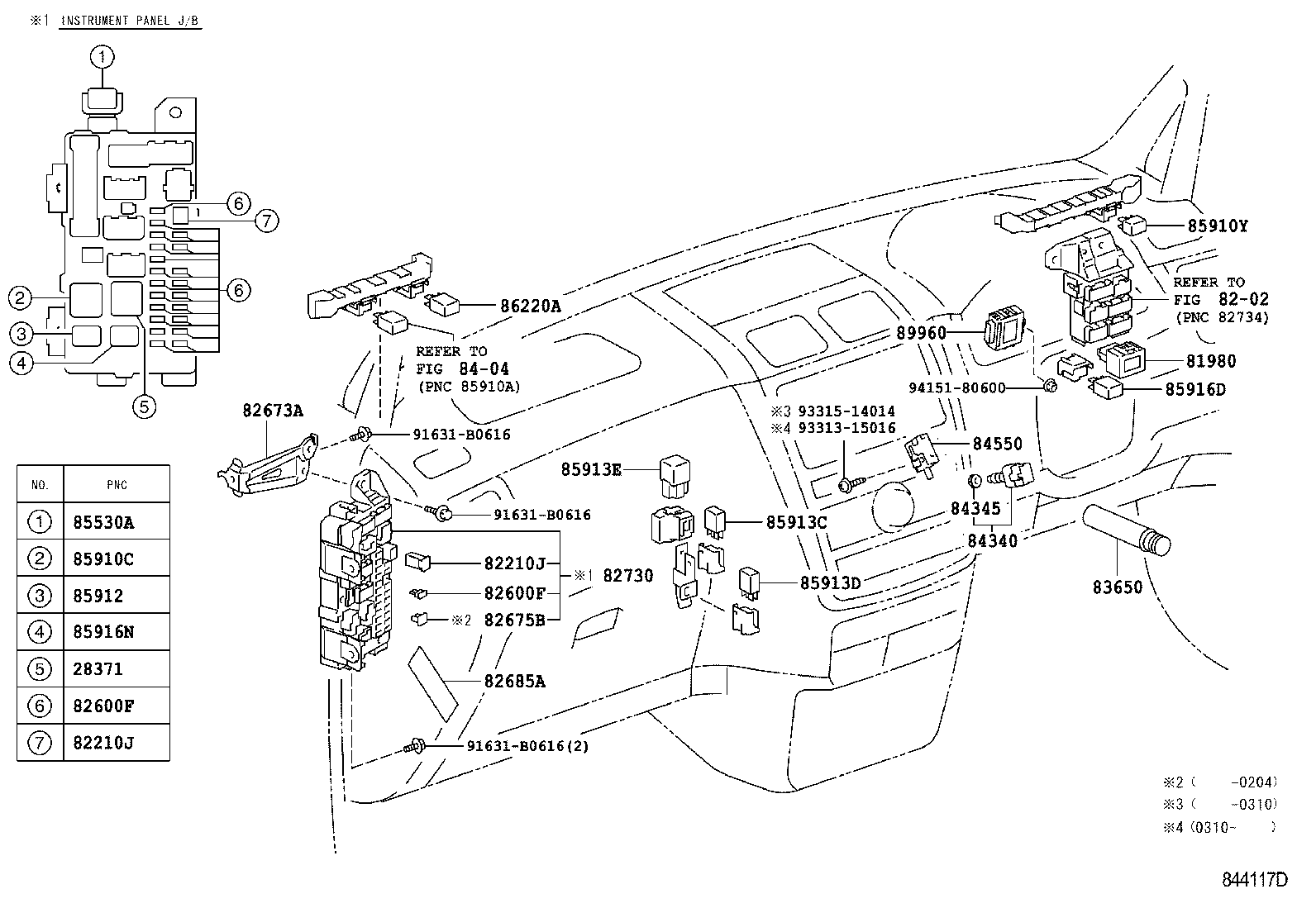

844117D 2001-05 → —

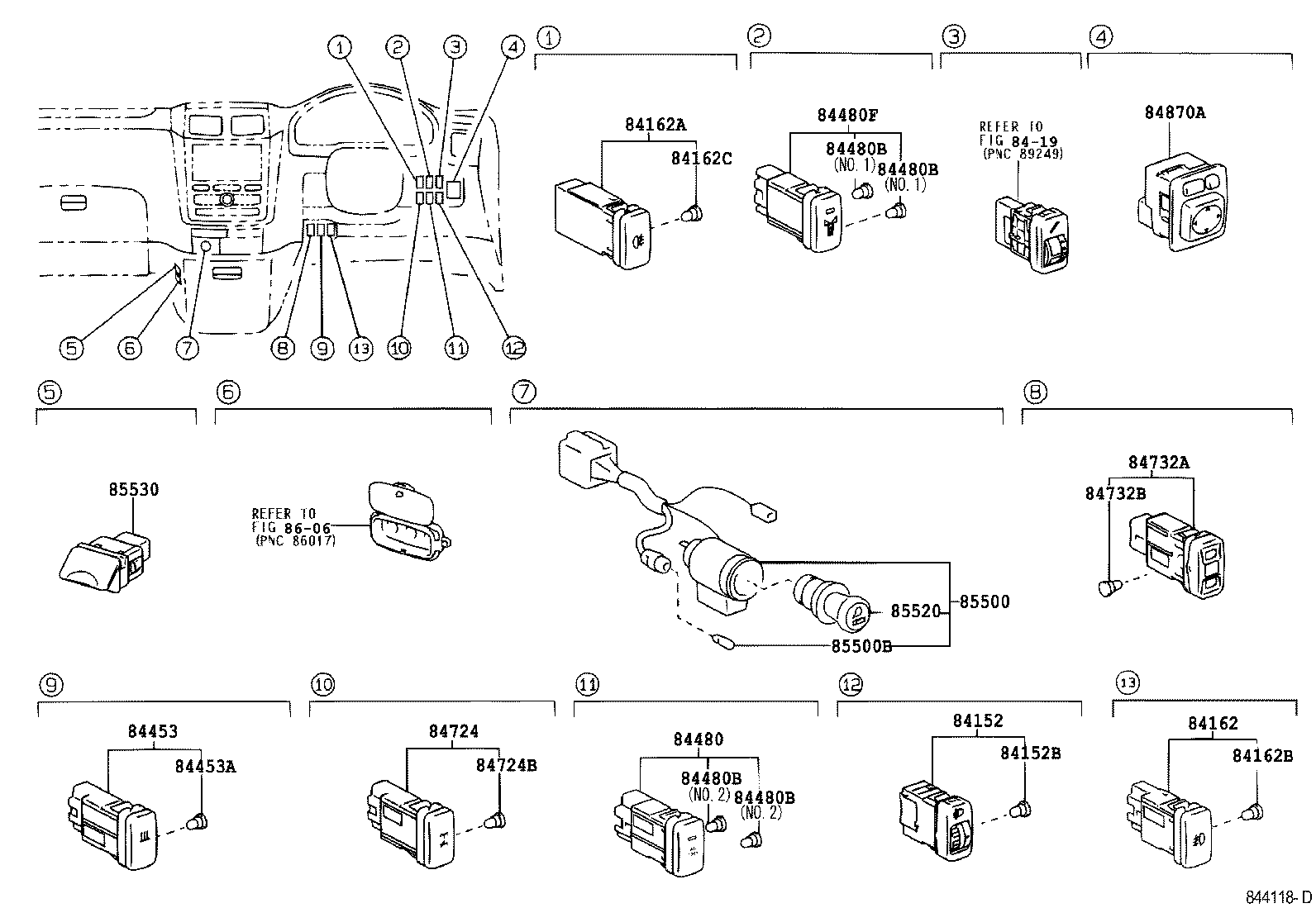

844118D 2001-05 → 2003-10

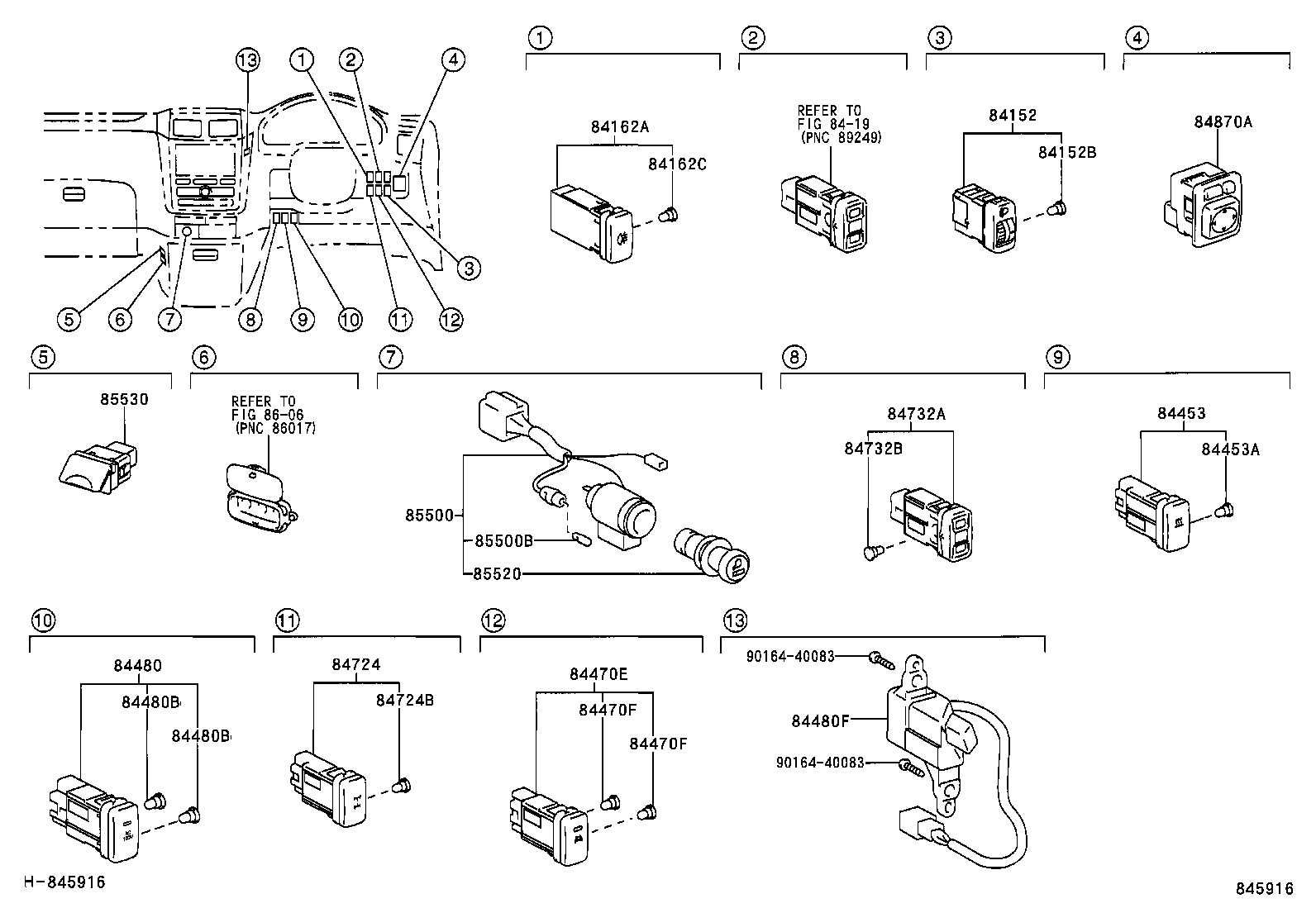

845916 2003-10 → —

844119A 2001-05 → —

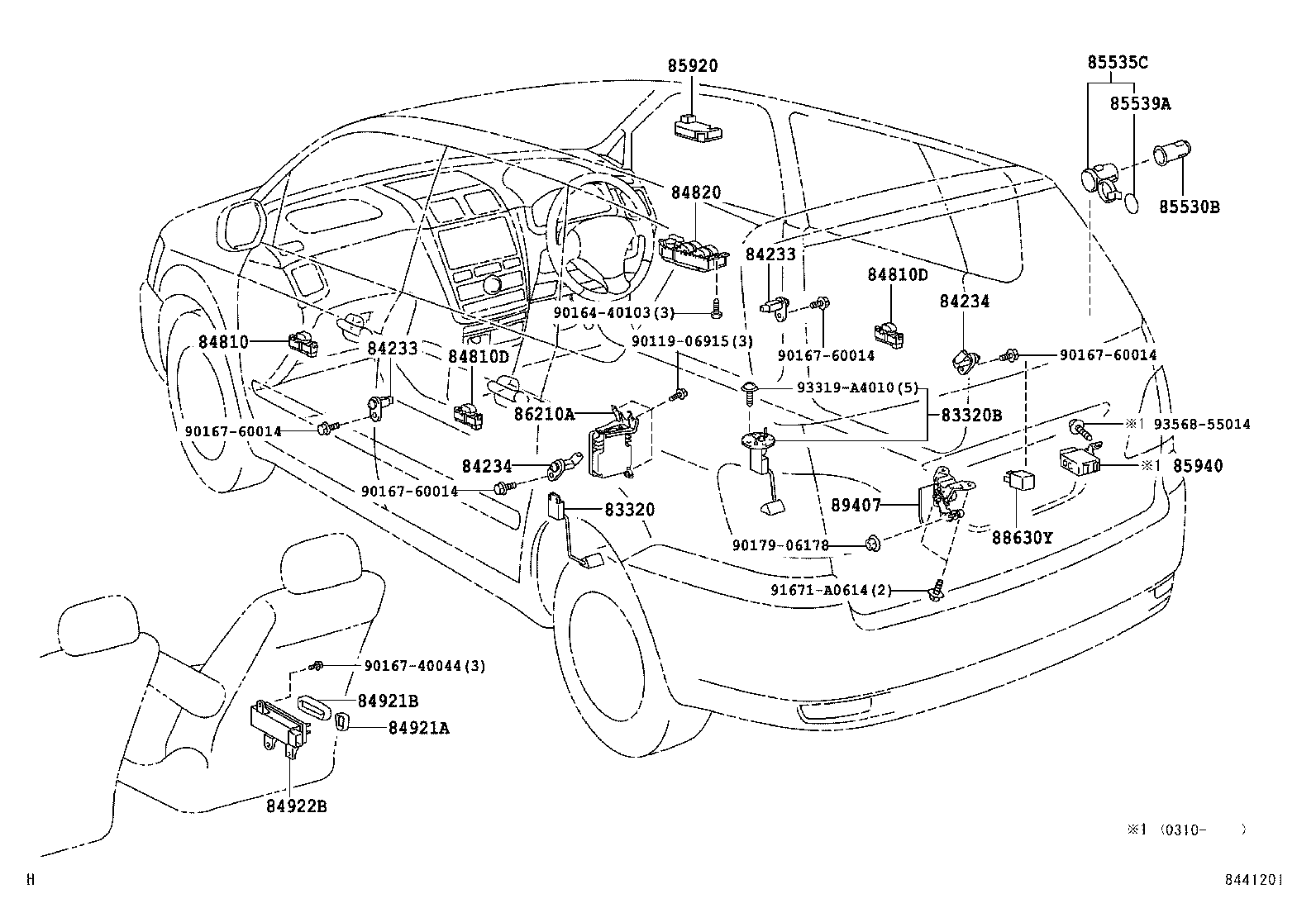

844120I 2001-05 → —

Part groups

PNC	Description
28300	Relay Assy, Starter
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2
28850	Sensor Assy, Battery Current
28865	Sensor, Battery Thermometer
81980	Flasher Assy, Turn Signal
82210J	Fusible Link
82600F	Fuse, Fuse Block
82662A	Cover, Relay Block, Upper, NO.1
82662C	Cover, Relay Block, Upper, NO.3
82663	Cover, Relay Block, Lower
82673A	Bracket, Junction Block, NO.1
82675B	Terminal, Junction
82685A	Plate, Caution
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82742A	Block, Engine Room Relay, NO.5
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84052	Switch Assy, Un-lock Warning
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84152B	Bulb (FOR HEADLAMP LEVELING SWITCH)
84162	Switch, Front Fog Lamp
84162A	Switch, Rear Fog Lamp
84162B	Bulb, Fog Lamp Switch
84162C	Bulb (FOR REAR FOG LAMP SWITCH)
84204	Cable Sub-assy, Steering Pad Switch
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B	Switch, Steering Pad, RH
84247A	Switch, Steering Pad, LH
84258A	Cover, Steering Pad, RH
84306	Cable Sub-assy, Spiral
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84453	Switch, Idle UP
84453A	Bulb, Idle UP Switch
84470E	Switch Assy, Lane Monitoring Main
84470F	Bulb, Lane Monitoring Main Switch
84480	Switch Assy, Main
84480B	Bulb, Main Switch Assy
84480F	Switch Assy, Main
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84724	Switch, 4 Wheel Drive Control
84724B	Bulb, 4 Wheel Drive Control Switch
84732A	Switch, Rear Heater Blower
84732B	Bulb, Rear Heater Blower Switch
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84870A	Switch Assy, Outer Mirror
84921A	Knob, Power Seat Switch (FOR RECLINING)
84921B	Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B	Switch, Front Power Seat, RH
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530A	Relay, Power Outlet Socket
85530B	Socket Assy, Power Outlet, Rear NO.1
85535C	Cover, Power Outlet Socket, Rear
85539A	Label, Power Outlet Notice, Rear
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85910Y	Relay, Rear Heater
85912	Relay, Defogger
85913C	Relay, Heater, NO.1
85913D	Relay, Heater, NO.2
85913E	Relay, Heater, NO.3
85916D	Relay, Fog Lamp
85916N	Relay, Taillamp
85916P	Relay, Headlamp
85920	Relay & Switch Assy, Sliding Roof
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85934	Relay, Magnet-clutch
85940	Relay Assy, Windshield Wiper
86210A	Inverter Assy, Voltage
86220A	Relay, Inverter
86530	Relay Assy, Horn
87346K	Relay, Ptc Heater
88630Y	Relay, Rear Cooler
89245B	Sensor, Steering
89407	Sensor Sub-assy, Height Control, Rear RH
89438	Switch, Power Steering Oil Pressure
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89615	Sensor, Knock Control
89960	Computer Assy, Headlamp Leveling

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
