Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

28 part groups · 6 illustrations

Illustrations

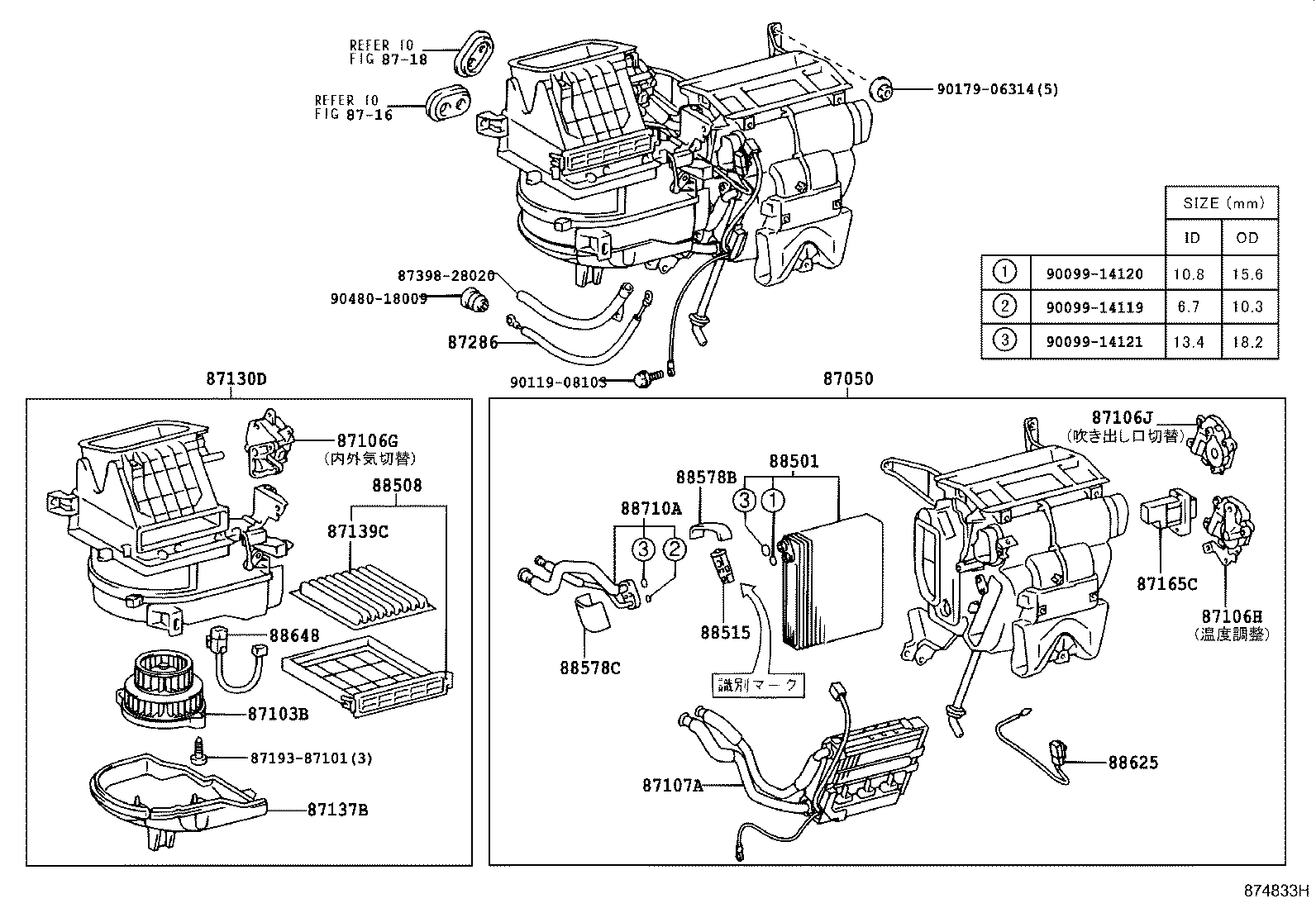

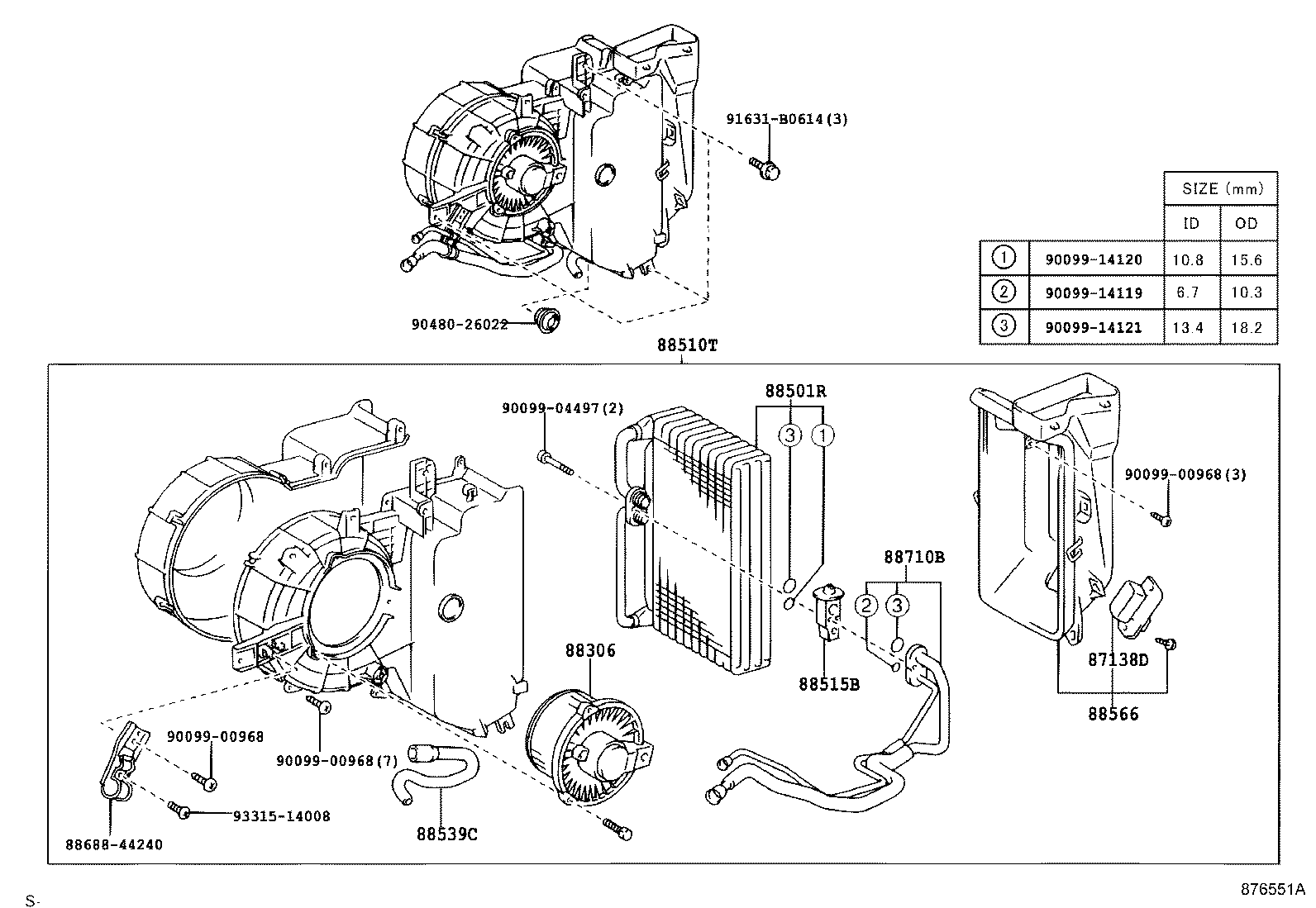

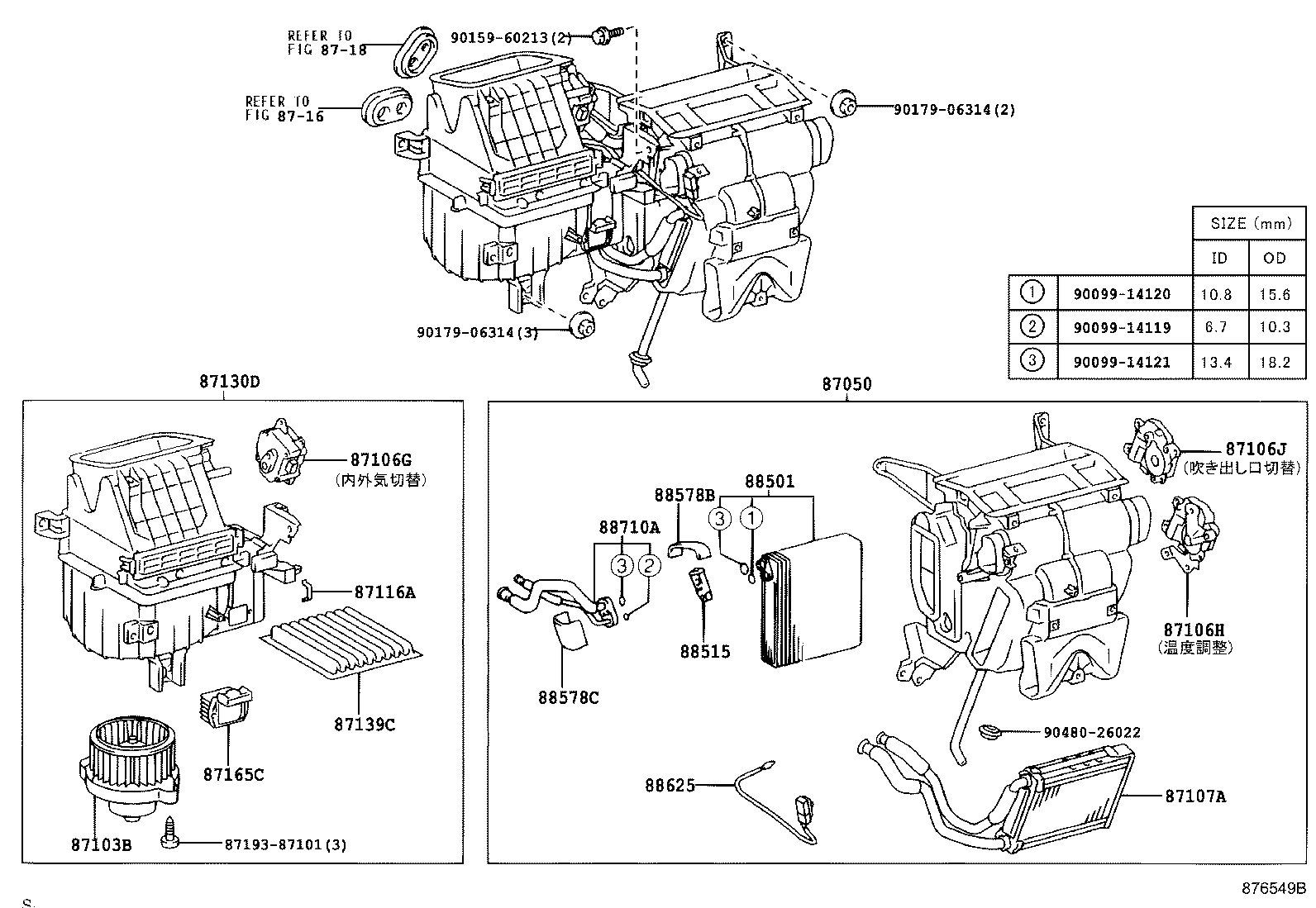

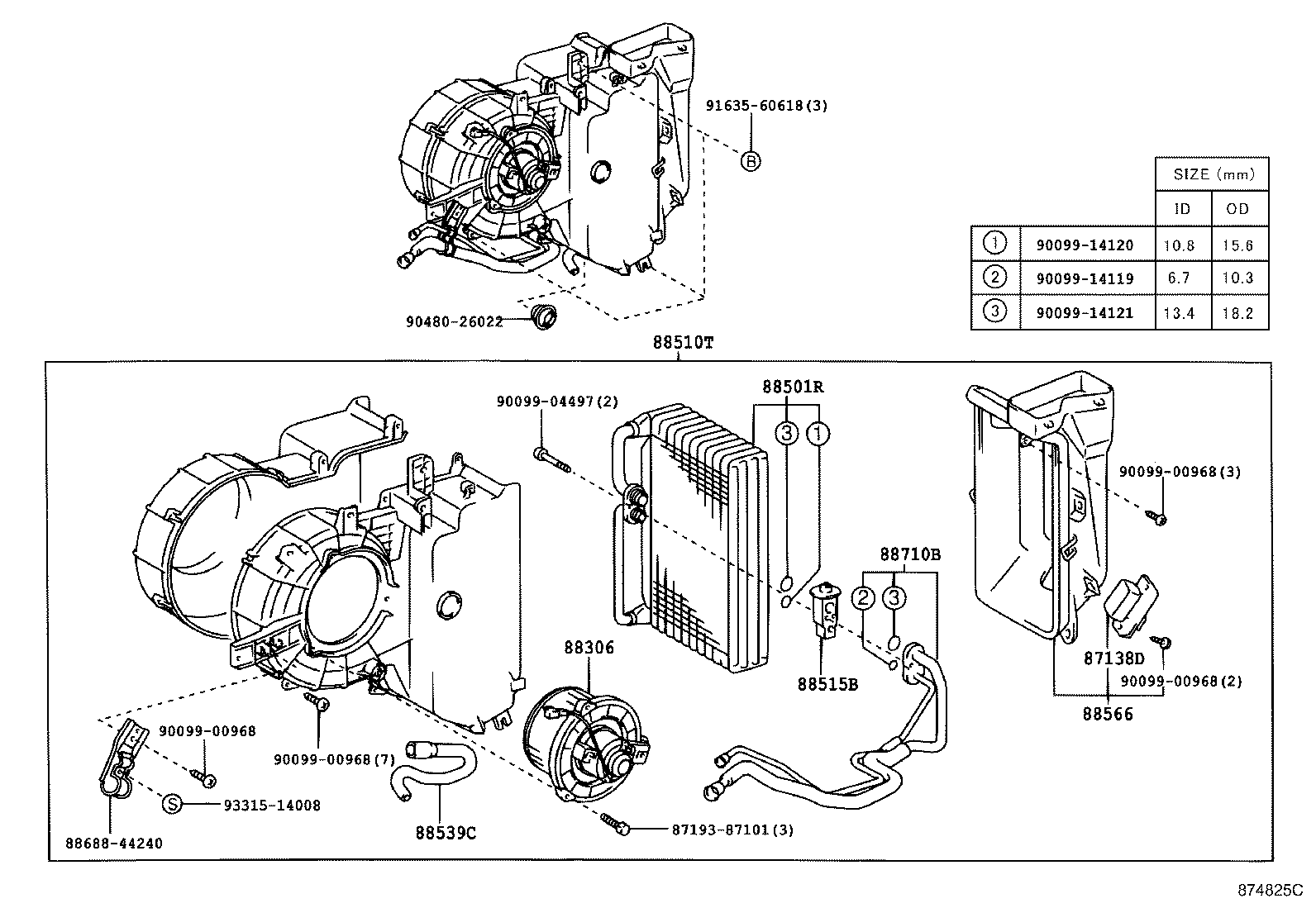

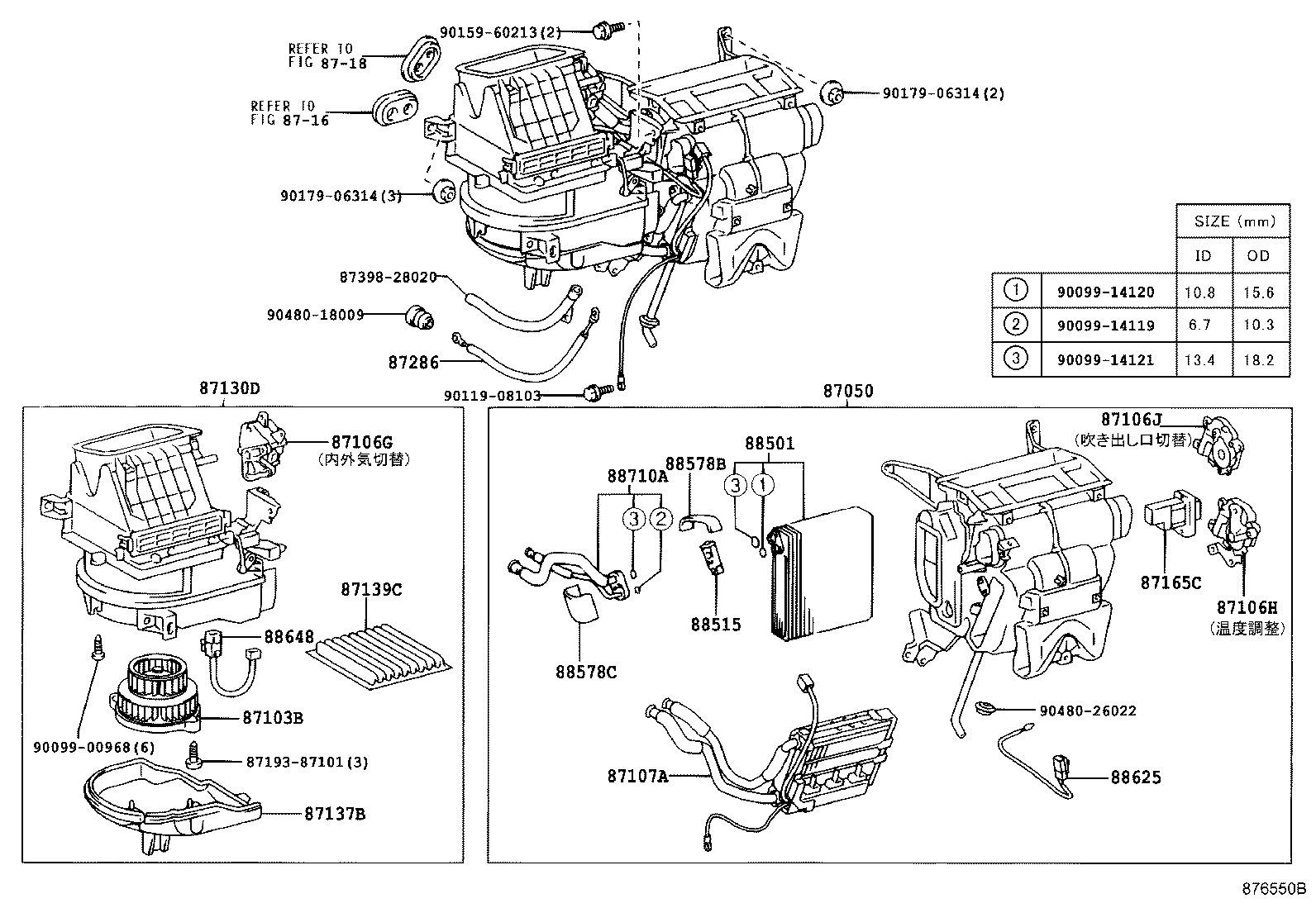

Figure 874832E 874832E 2001-05 → 2003-10 Figure 874833H 874833H 2001-05 → 2003-10 Figure 876549B 876549B 2003-10 → — Figure 876550B 876550B 2003-10 → — Figure 874825C 874825C 2001-05 → 2003-10 Figure 876551A 876551A 2003-10 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106G Servo Sub-assy, Damper(FOR BLOWER)
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87116A Spring, Holding (FOR COOLER UNIT CASE)
87130D Blower Assy
87137B Cover, Heater Blower
87138D Resistor, Blower (REAR)
87139C Filter, Clean Air
87165C Control, Blower Motor
87286 Cable, Control
88306 Motor Sub-assy, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88508 Filter Sub-assy, Clean Air
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88539C Hose, Cooler Unit Drain, NO.2
88566 Duct, Cooler Air, NO.1
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88648 Wiring, Cooler, NO.1
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
