Toyota Ipsum

2001-05 → 2009-12 · chassis ACM2# · catalogue 511120 · Japan

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

29 part groups · 10 illustrations

Illustrations

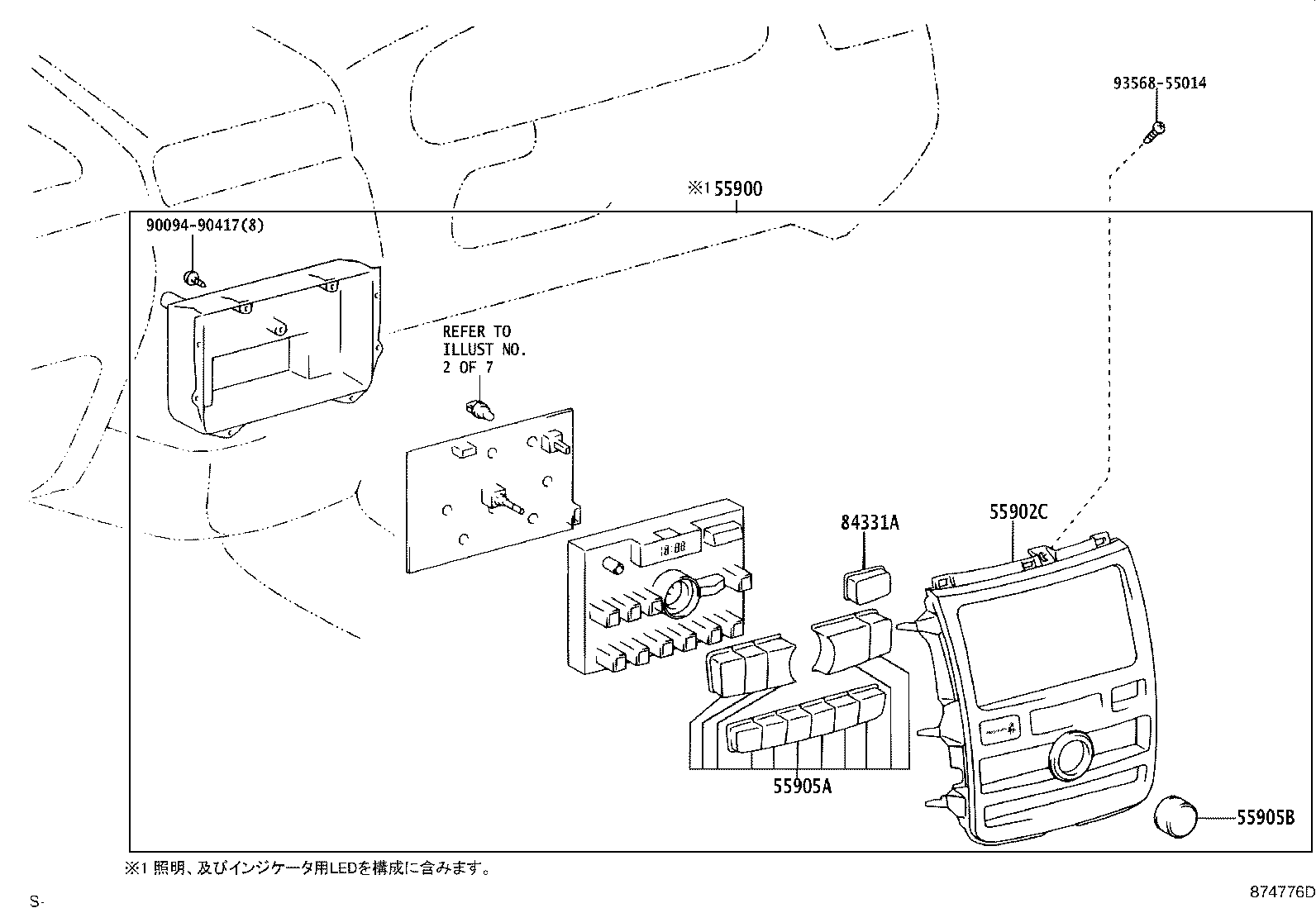

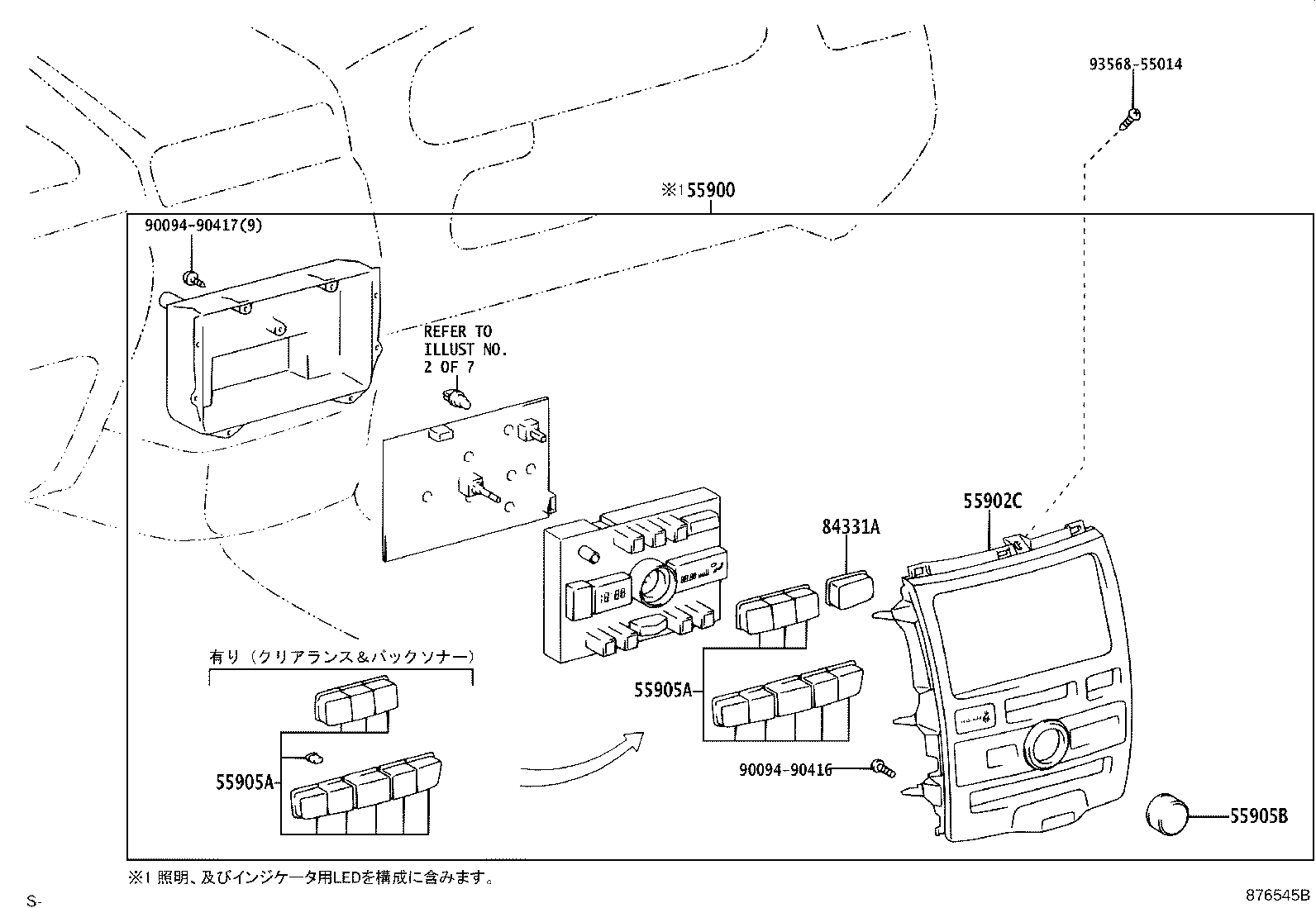

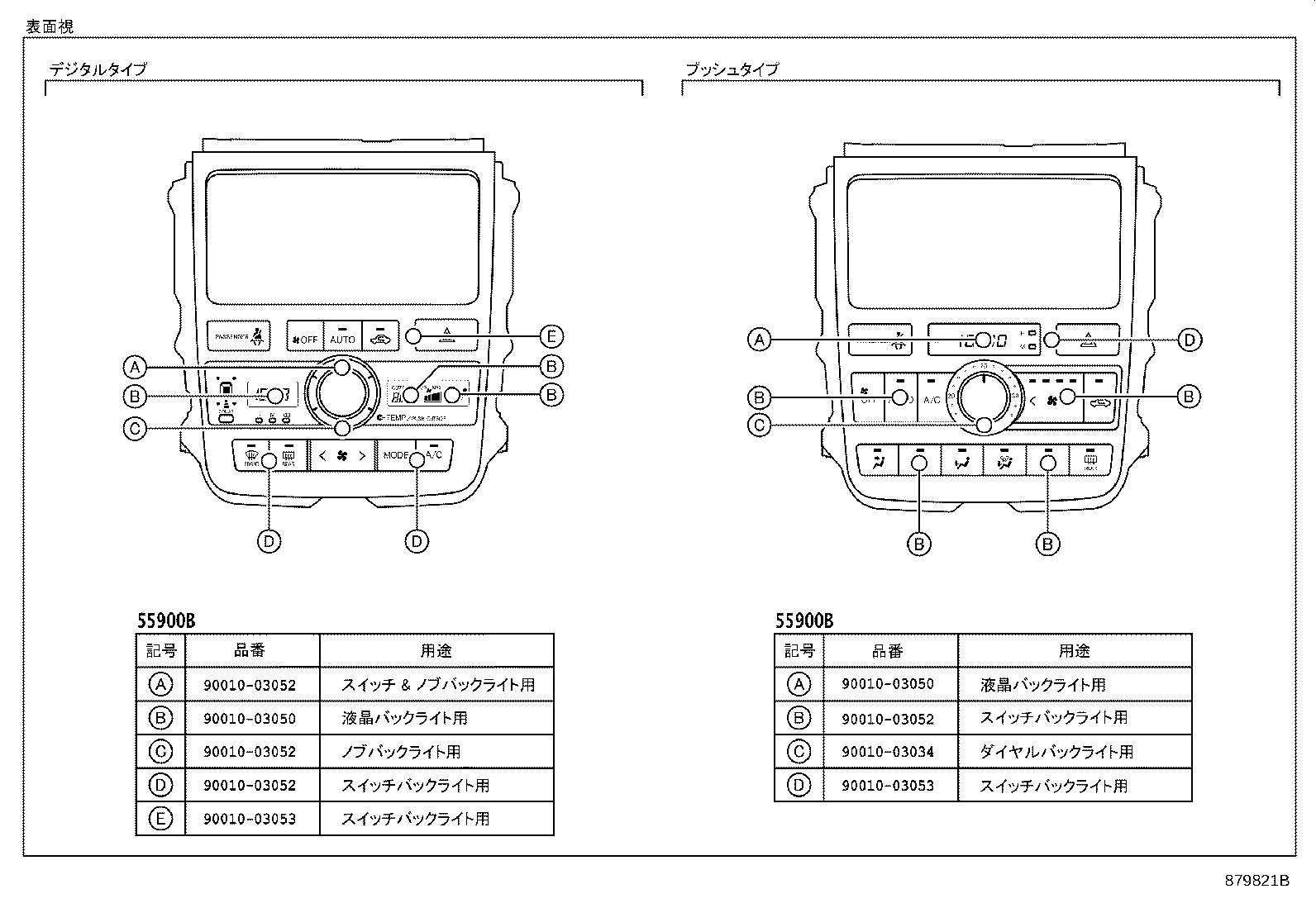

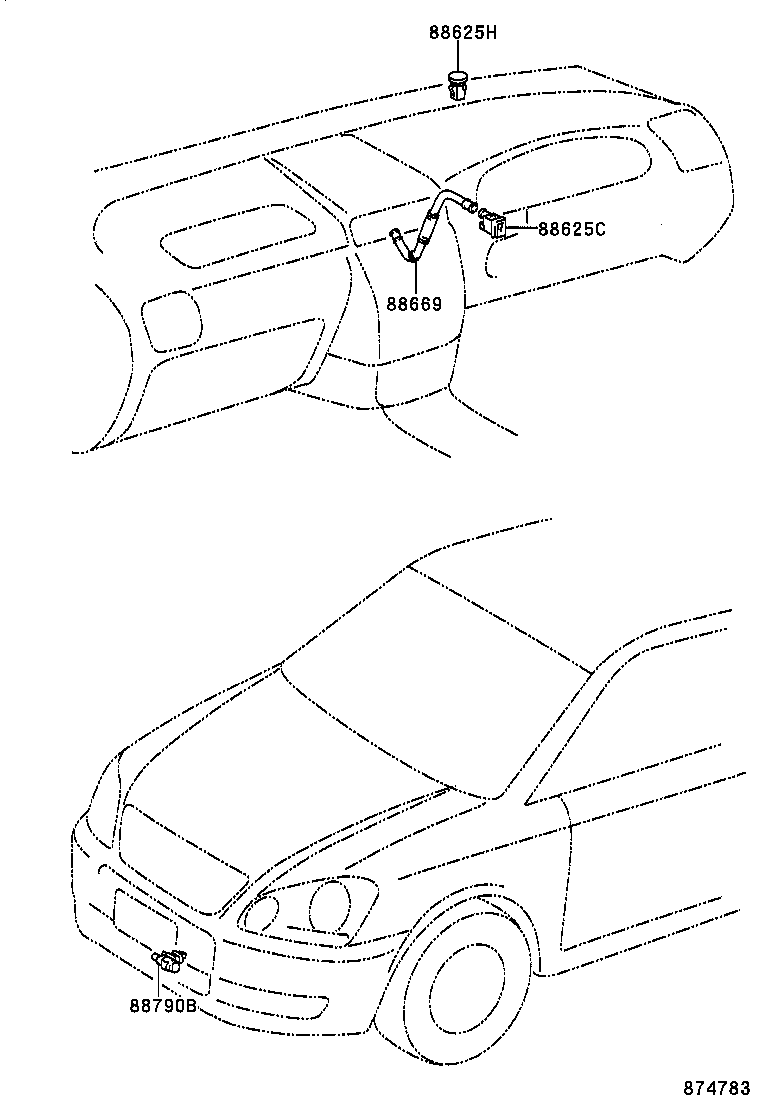

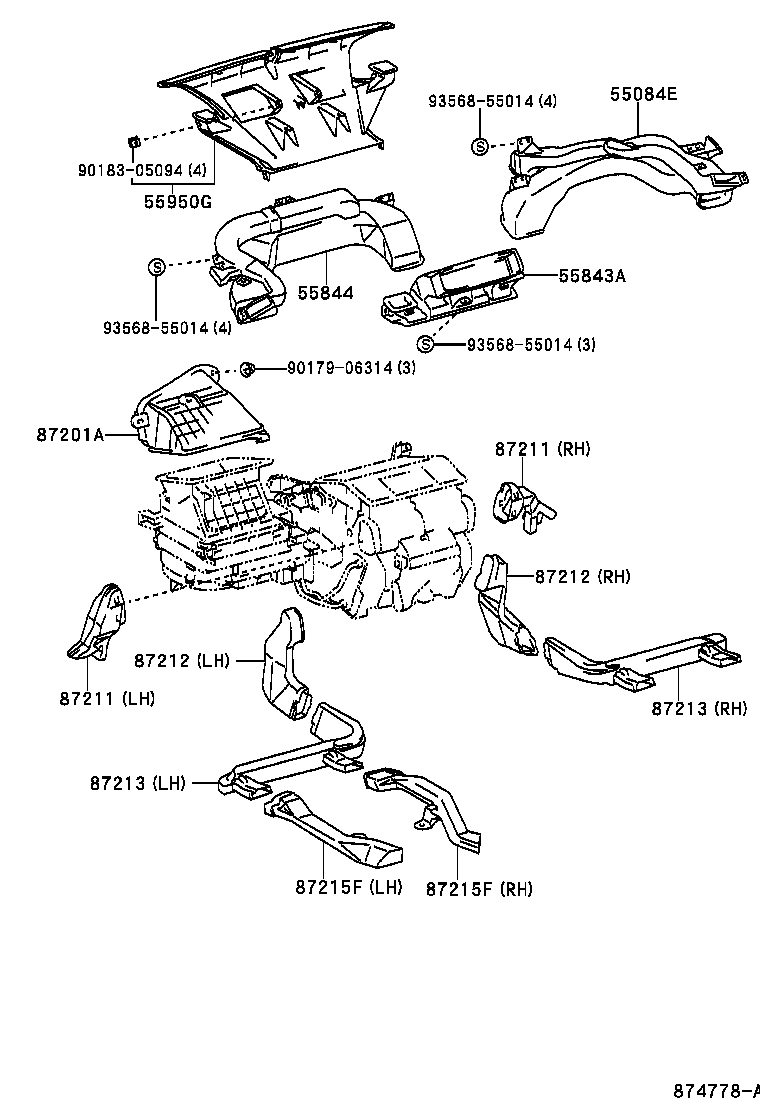

Figure 874775D 874775D 2001-05 → 2003-10 Figure 876545B 876545B 2003-10 → — Figure 874776D 874776D 2001-05 → 2003-10 Figure 874776D 874776D 2003-10 → — Figure 879821B 879821B 2001-05 → — Figure 875290 875290 2001-05 → — Figure 874778A 874778A 2001-05 → — Figure 874781A 874781A 2001-05 → — Figure 874782E 874782E 2001-05 → — Figure 874783 874783 2001-05 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902C Panel Sub-assy, Air Conditioner
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905M Knob Sub-assy, Control
55950G Nozzle Assy, Defroster
84331A Knob, Hazard Warning Signal Switch
87125B Grille, Heater Air Outlet
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215D Duct, Air, Rear NO.4
87215F Duct, Air, Rear NO.3
87220 Duct Assy, Air
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88566D Duct, Cooler Air, NO.4
88566Q Duct, Cooler Air, NO.5
88601A Switch Sub-assy, Cooler Control
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88669 Hose, Cooler Air
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
